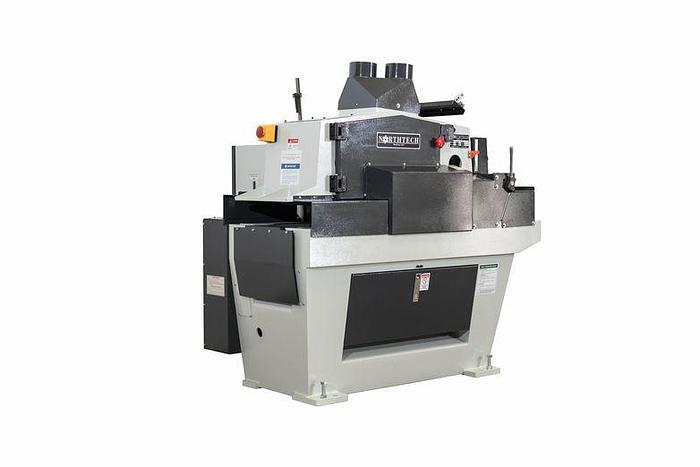

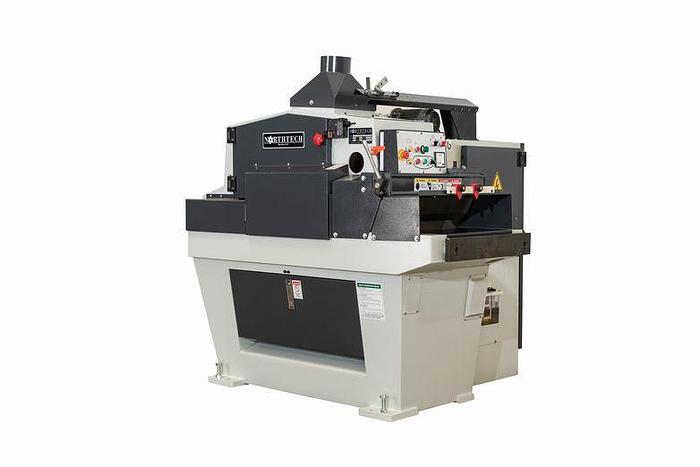

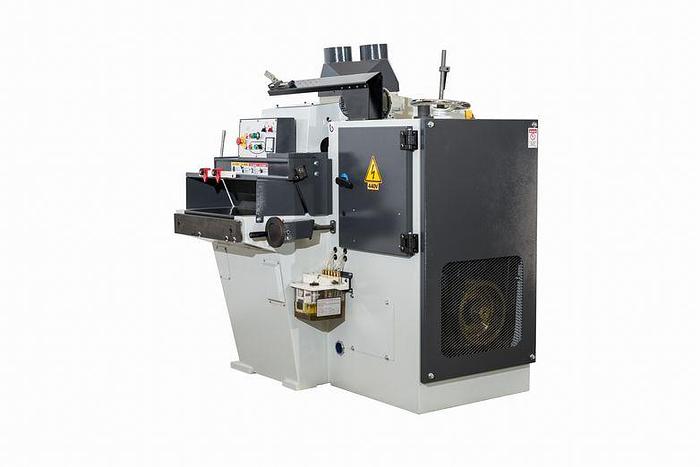

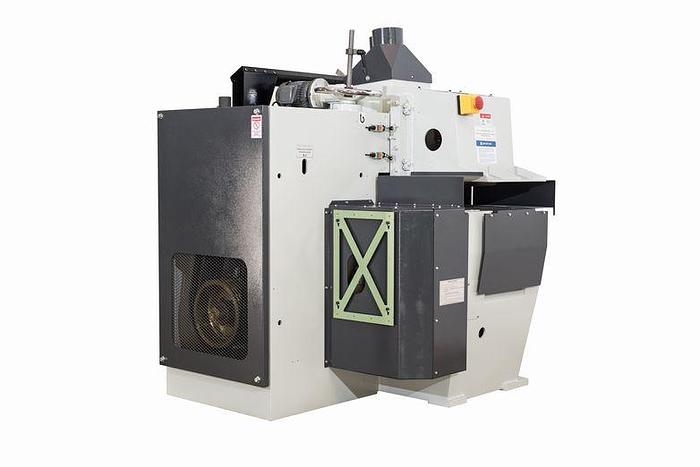

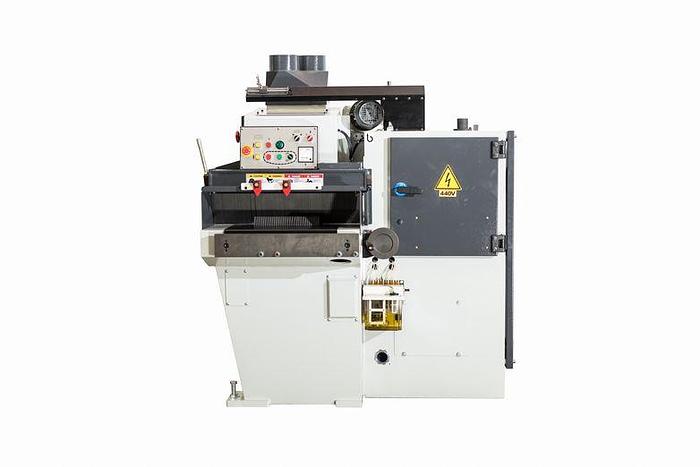

Northtech, NT MRS-14N Gang Rip Saw
Description
The NT MRS14N Multiple Rip Saw features a cast iron frame that houses a variable speed dip chain for premium rip capability. Often referred to as gang rip saws, this machine is fitted with 14″ diameter rip saw blades and can be equipped with power raise and lower, invertor speed control, and non marking urethane feed chain for customer specific applications. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber.

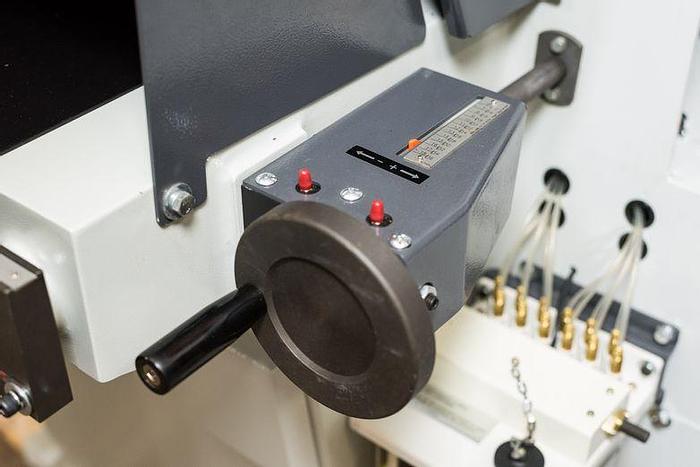

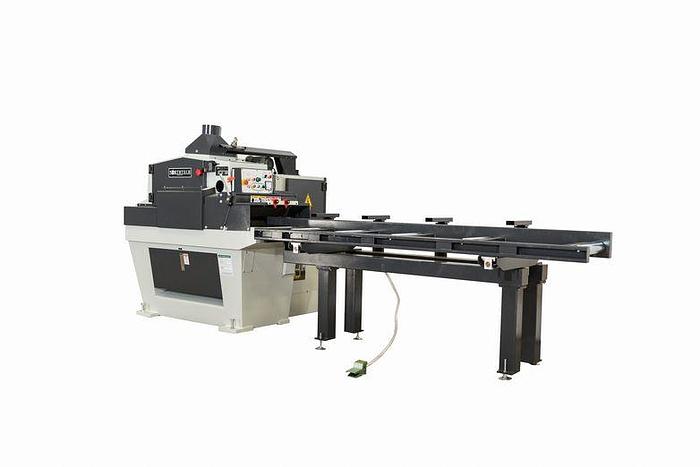

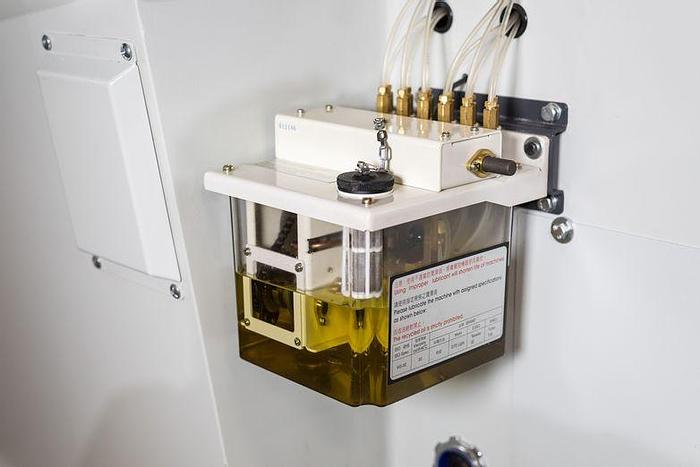

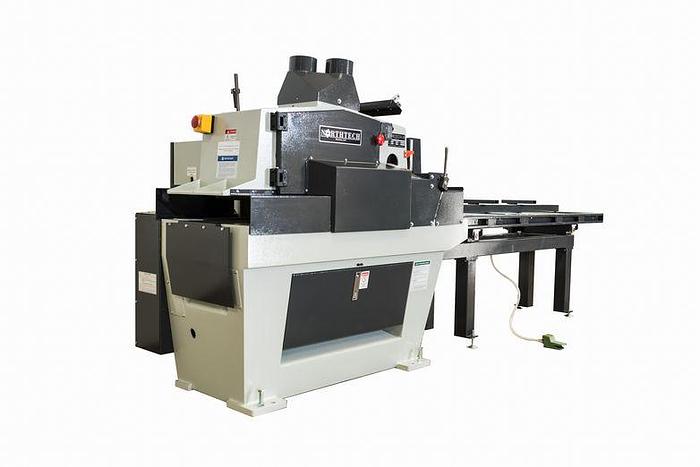

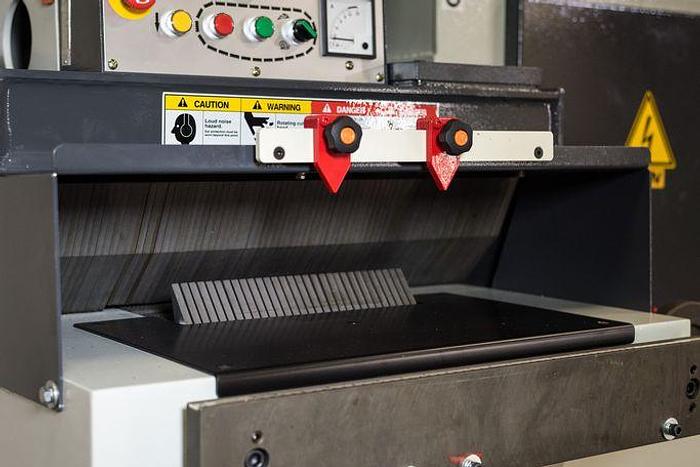

NT MRS-14N Heavy Duty Multi-Blade Rip Saw • Shown with OPTIONAL Infeed Table • Close link chain vs. open (no dust or pinch point) • Oiler has twice the number of lube points (critical) • The VS adjustment location on the 14N. • Can cut up to 4 3/8" with 14" blade vs. the MRS-12 12" blade. * Can run the 12" as well on the MRS-14N* • Bottom kickback fingers for added safety • Saws, with proper tooling and material, can glue line * Include one laser and bracket * Include (1) carbide blades: 12" x 30T x 70mm x 3.5mm kerf • (1) Tool box • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up.
Specifications
Manufacturer | Northtech |
Model | NT MRS-14N |
Condition | New |
MAIN MOTOR HP | 50 HP |
VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
PHASE | 3 Phase |
AMP REQUIREMENT | 35/70 Amp |
FEED SYSTEM | Feed Chain |
FEED SPEED RANGE | 25-120 FPM |
VARIABLE FEED SPEED | Manual Wheel Adjustment |
ELEVATION HP | 1/4 HP |
TOTAL MACHINE HP | 53.25 HP |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 110 Volt |
ASSISTED START | Wye Delta |
PASS-LINE | 33-1/2'' |
MIN. WORKING LENGTH | 17-3/4'' |
MIN. WORKING WIDTH | 27-1/8'' |
MIN. WORKING THICKNESS | 5/16'' |
MAX. WORKING THICKNESS | 4-15/16'' |
ARBOR RPM | 3570 RPM |
BLADE SIZE | 12'' Tungsten Carbide Tipped |
BLADE KERF | .140'' |
DUST PORT SIZE OUTLET | (2) 6'' Ports |
ARBOR DIAMETER | 70 MM |
HOLD DOWN STYLE | Pressure Shoe / Rollers |
GUARDING | Full Cabinet Enclosure |
OILER | Automatic Mechanical Oiler |
FENCE TYPE | Adjustable |
FRAME CONSTRUCTION | 5/16'' Steel Construction |
WORKTABLE DIMENSIONS | 27-1/8'' x 64'' |
INFEED TABLE LENGTH | 13-3/4'' x 103'' |
DECIBEL RATING | 74 dB |
NET WEIGHT | 4402 Lbs. |
GROSS WEIGHT | 4402 Lbs. |
