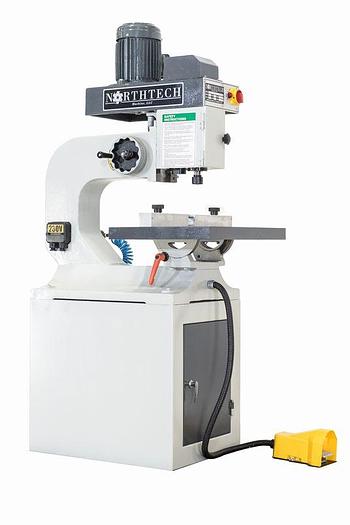

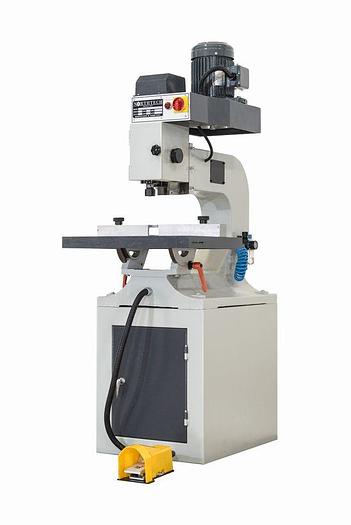

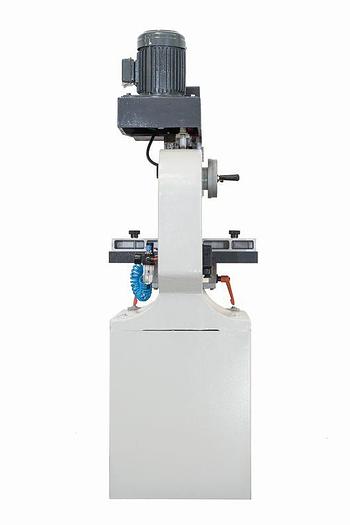

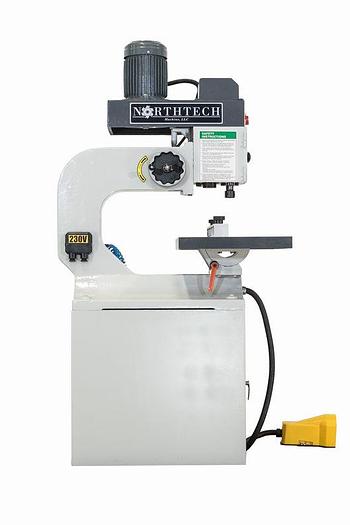

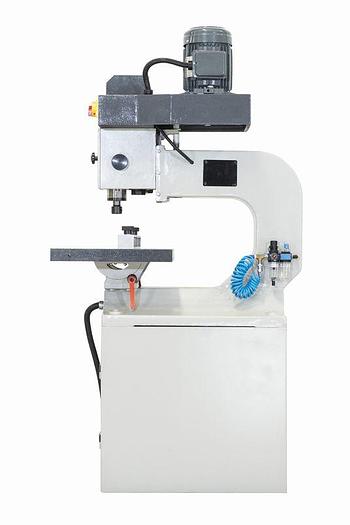

Northtech, NT-555 Overarm Pin Router
Northtech, NT-555 Overarm Pin Router
Contact us for price
Dundee, NY
orCall +1 (607) 243-7167
Description

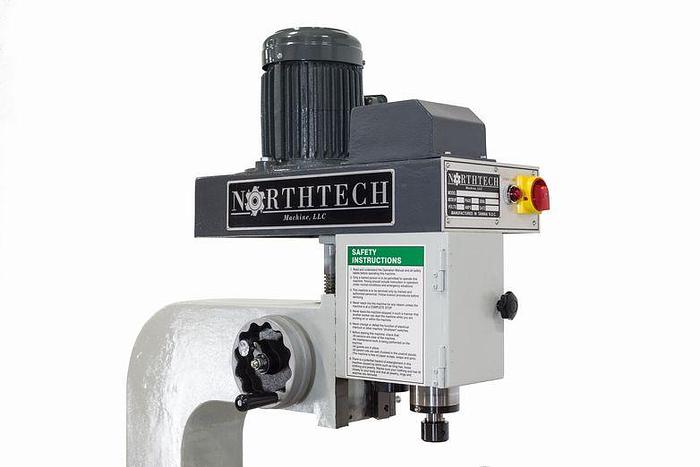

Northtech Overarm Pin Routers are designed with a heavy cast iron body and steel base to eliminate chatter flex. The NT-555 Overarm Pin Router has a 5HP (2) speed spindle with 22″ of throat clearance. This paired with the heavy duty tilting steel table and multi position drill setting provide quick and versatile change overs.
Specifications
| Manufacturer | Northtech |
| Model | NT-555 |
| Condition | New |
| MACHINE HP | 5 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 7.5 / 15 Amps |

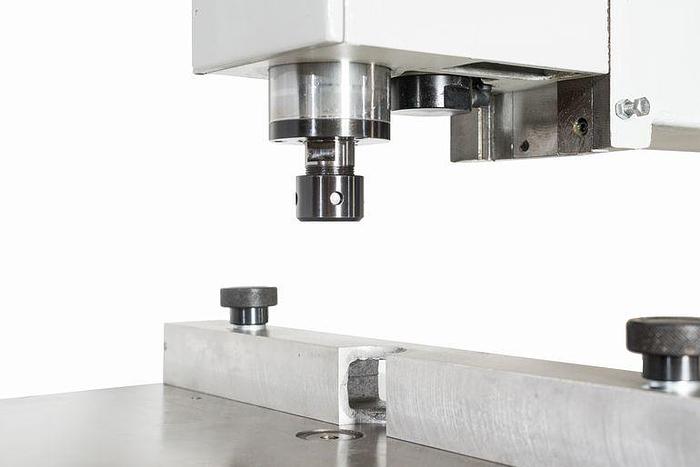

| CONFIGURATION | 1/4'' 3/8'' 1/2'' Collet |
| SPINDLE RPM | 8900 / 17800 RPM |

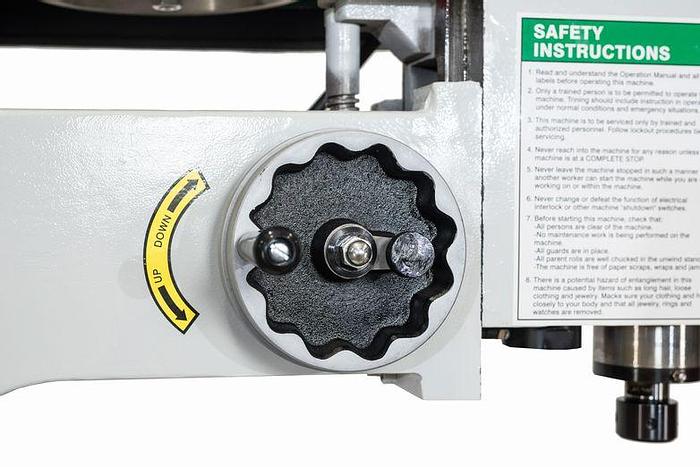

| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | Jack Screw / Linear Guides |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| CONTROL VOLTAGE | 230 Volt |
| MIN. WORKING THICKNESS | 2-3/4'' Collet to Table |
| MAX. WORKING THICKNESS | 8-1/2'' Collet to Table |
| VERTICAL TRAVEL | 5-3/4'' |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 1/4'' Line @ 90 PSI |
| EMERGENCY STOP | Push Button |

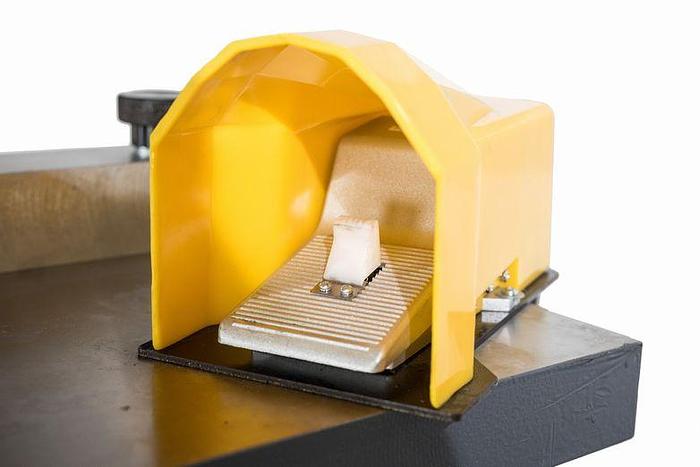

| OPERATION STYLE | Pneumatic Foot Pedal |
| FENCE TYPE | Adjustable Fence |
| FENCE DIMENSIONS | 2-1/4'' x 24'' |
| ADJUSTABLE STROKE | 3 Adjustable Settings |

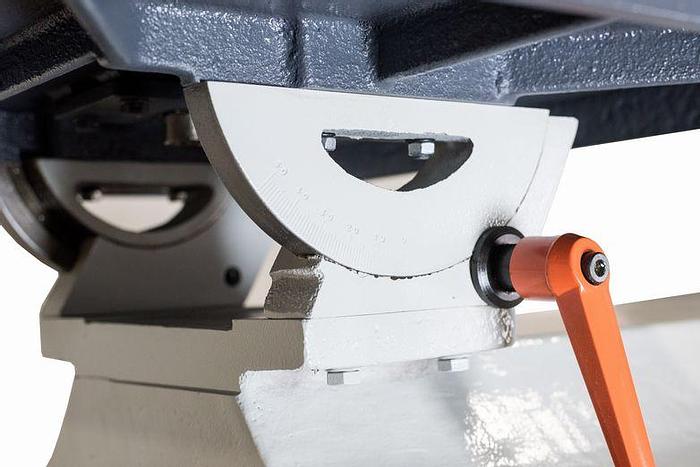

| TILT-ABLE | 45 Degrees |
| FRAME CONSTRUCTION | Cast Construction |
| WORKTABLE DIMENSIONS | 18'' x 24'' |
| TABLE CONSTRUCTION MATERIAL | Cast |
| DECIBEL RATING | 70 dB |
| NET WEIGHT | 660 Lbs. |
| GROSS WEIGHT | 745 Lbs. |
| MACHINE DIMENSIONS | 38'' x 24'' x 74'' |
| PACKAGING DIMENSIONS | 38'' x 24'' x 74'' |
