Northtech, NT MRS300-5032 Gang Rip Saw

Northtech, NT MRS300-5032 Gang Rip Saw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

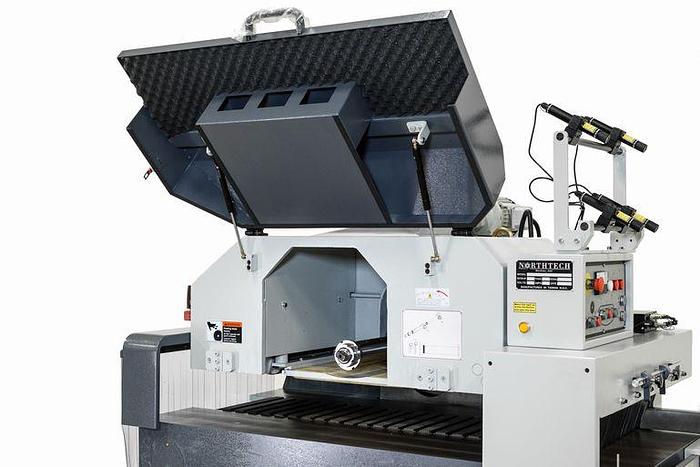

The NT MRS300 Multiple Rip Saw features a cast iron frame that houses a variable speed dip chain for premium rip capability. Sometimes referred to as gang rip saws, this machine has easy maintenance and change overs with a high rise arbor access hood. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber.


NT MRS300-5032 Gang Rip Saw • Saw arbor motor: 50 HP • Feed motor: 2 HP (3HP on request) • Max. cutting thickness: 5'' • Max. cutting thickness (w/short stock device): 95 mm (3.74") (optional) • Max. cutting width: 300 mm (12") • Distance from column to link chain center: 29-1/2'' • Min. working length: 500 mm (19.685") • Min. working length (w/short stock device): 300 mm (11.811") (optional) • Max. sawblade diameter: 12'' • Min. sawblade diameter" 10'' • Sawblade bore: 70 mm • Saw arbor diameter: 50 mm • Saw arbor speed: 3775 RPM • Variable feed speed: 25-100 FPM • Hold down roller elevating motor: 0.5 HP • Table area (LxW):  60"x30" • Machine dimensions (LxWxH): 81' x 61'' x 70'' • Packing dimensions (LxWxH): 65'' x 68'' x 65'' • Net weight: 4,525 lbs. • Gross Weight: 4725 Lbs. • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up.


Specifications

ManufacturerNorthtech
ModelNT MRS300
ConditionNew
MAIN MOTOR HP50 HP
VOLTAGE, FREQUENCY230/460 Volt 60
PHASE3 Phase
AMP REQUIREMENT34/68 Amps
FEED HP2/1 Hp. 2 Speed
FEED SYSTEM12'' Dip Chain
FEED SPEED RANGE25 - 100 FPM
VARIABLE FEED SPEEDManual Wheel Adjustment
ELEVATION HP1/2 HP
ELEVATION STYLEPush Button
TOTAL MACHINE HP52.5 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
ASSISTED STARTWye Delta
MAX. WORKING WIDTH29-1/2''
ARBOR RPM3775 RPM
BLADE SIZE12'' Tungsten Carbide Tipped
TOOTH SPACING1-1/8''
BLADE KERF.160''
DUST PORT SIZE OUTLET(2) 6'' Ports
ARBOR DIAMETER50 MM
REAR E STOPPush Button
SAFETY FEATURESawblade Door Safety Interlock
GUARDINGFull Cabinet Enclosure
OILERAuto Oiler
FENCE TYPEAdjustable
FENCE DIMENSIONS2-1/4'' x 27-1/2''
FRAME CONSTRUCTION3/4'' Steel Construction
WORKTABLE DIMENSIONS30'' x 60''
TABLE CONSTRUCTION MATERIALCast Iron
DECIBEL RATING75 dB
NET WEIGHT4525 Lbs.
GROSS WEIGHT4725 Lbs.
