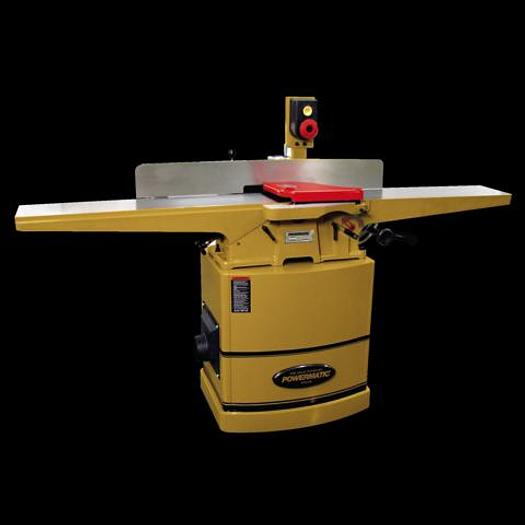

Powermatic 60HH 8" Jointer, 2HP 1PH 230V, Helical Head

Powermatic 60HH 8" Jointer, 2HP 1PH 230V, Helical Head

Contact us for price

Location:Dundee, NY

Available quantity:1

orCall +1 (607) 678-4374

Description

This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.


Features

Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth

Extra long tables are mounted on dovetailed ways for extended workpiece support

Handwheel operated worm gear system for smooth fence tilting

High mount switch for operator convenience

Magnetic push blocks can be stored on the machine within constant reach

Non-mar fence insert protects table surface

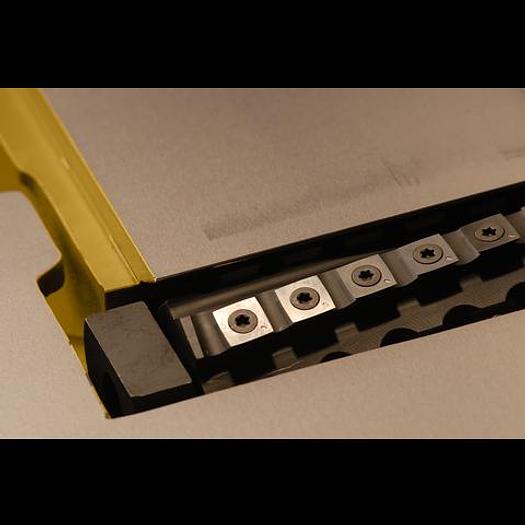

The helical cutterhead with 54 four sided carbide inserts provides smoother, quieter cutting and a superior finish



Specifications

ManufacturerPowermatic
Model60HH
ConditionNew
Stock Number1610086K
Cuts Per MinuteNot Applicable
Cutterhead Diameter (In.)3
Cutterhead Speed (RPM)7000
Cutting Capacity (W x D) (In.)8 x 1/2
Dust Collection450 CFM
Dust Port Diameter4''
Infeed Table Length (In.)35-1/4
Motor Amps9
Motor Phase1
Motor Power (HP)2
Motor Voltage (V.)230
Number of Knives54
Prewired Voltage (V.)230
Recommended Circuit Size (Amps.)20
Type of CutterheadHELICAL
