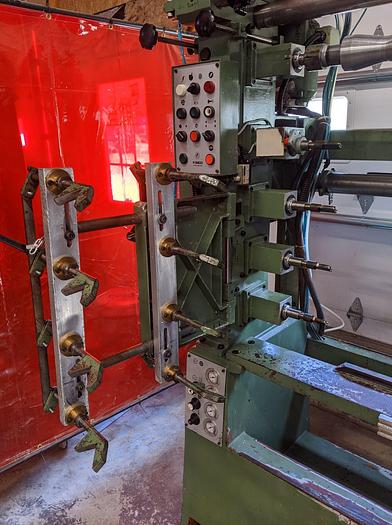

Bacci T4MO Copy Lathe with Sanding Heads

Sold

Bacci T4MO Copy Lathe with Sanding Heads

Dundee, NY

Description

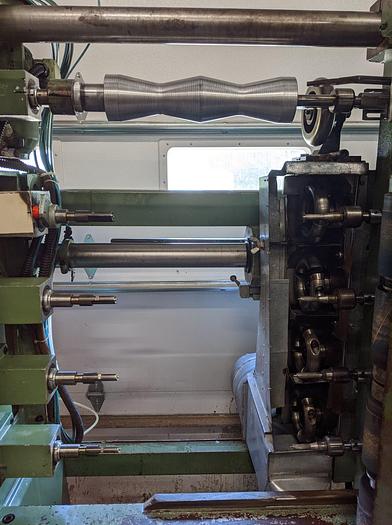

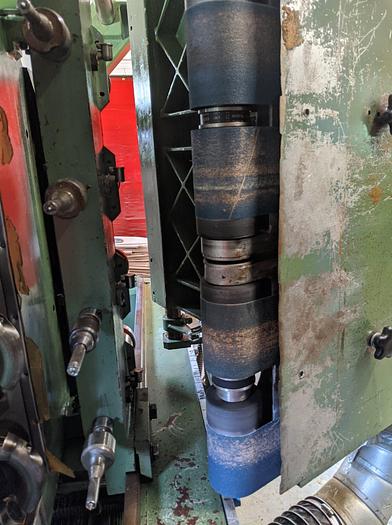

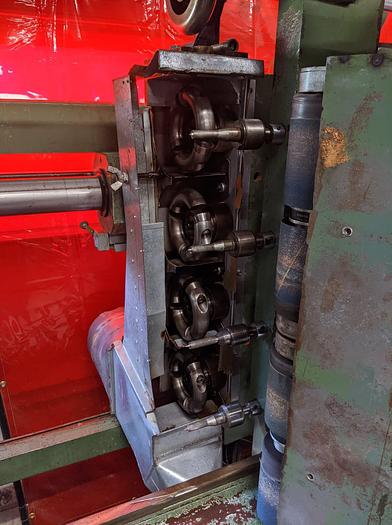

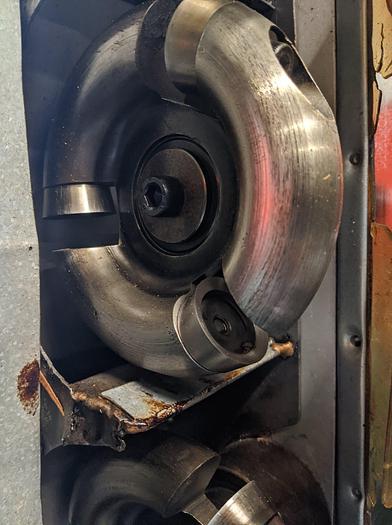

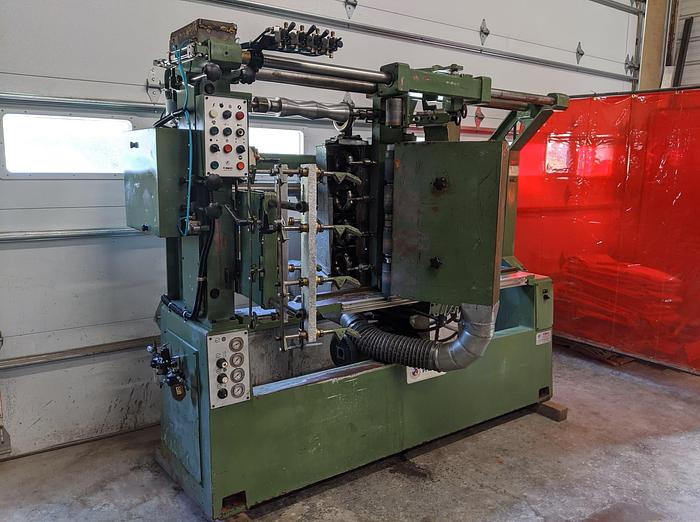

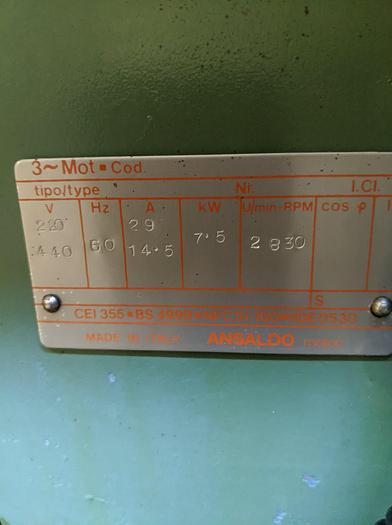

BACCI T4MO 4-Spindle Copy Lathe/Shaper w/Sanding. (4) Spindle duplicating/carving/copy heads with (4) copy belt sanders for asymmetrical parts. The most economical way to machine asymmetrical parts such as Queen Anne legs, tool handles, etc. Capacity: -- Max. working diameter (height): 6.5" (165 mm), max length capacity 39.4" (1000 mm). -- Speeds: (3) carriage speeds: 3 IPM (75 mm/Min)_up to 7.87 IPM (200 mm/Min). Spindle speeds: 25 minimum to 42 maximum RPM. -- Features: Carriage feed motor 1 HP. Cutter drive motor 7.5 HP. Bell cutters 1.38" (35 mm), Minimum working radius 0.71" (18 mm). ** NOTE: Larger diameters are possible by using every second carriage position, ie. (2) heads instead of four heads.

Specifications

ConditionUsed
