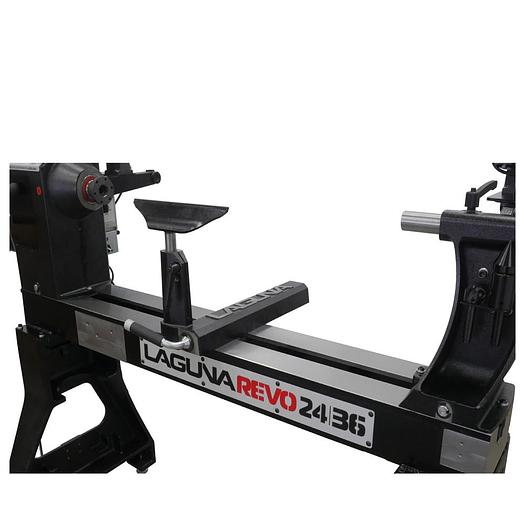

Laguna, Revo 24|36 Lathe 220 Volt 3HP

Laguna, Revo 24|36 Lathe 220 Volt 3HP

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Revo 24|36 Lathe 220 Volt

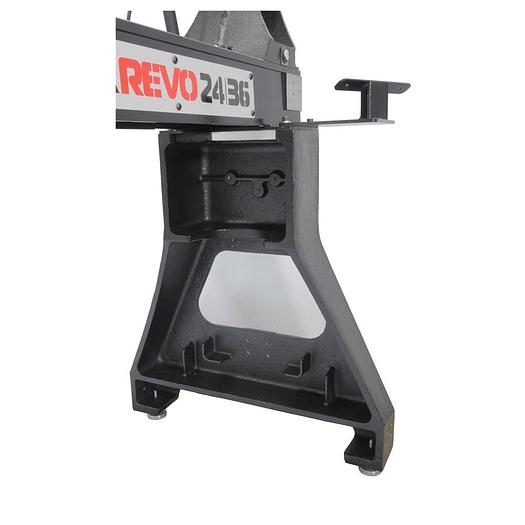

Wall Thickness of legs on the Revo 24|36 is 80% heavier compared to the Revo 18|36.

Redesigned banjo features a more compact design, 45° cutout & wider base.

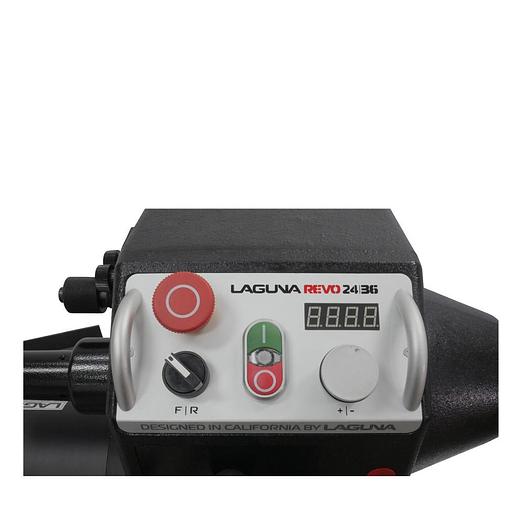

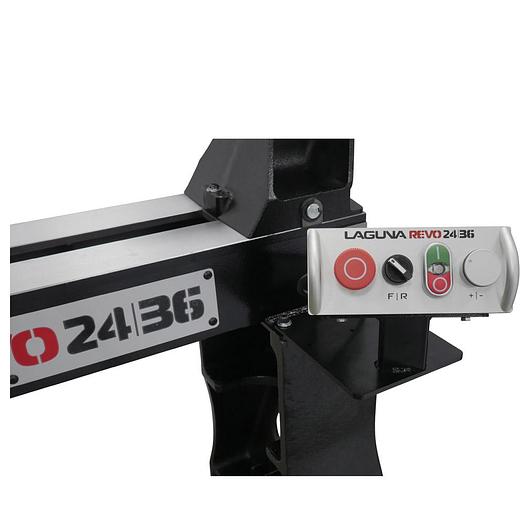

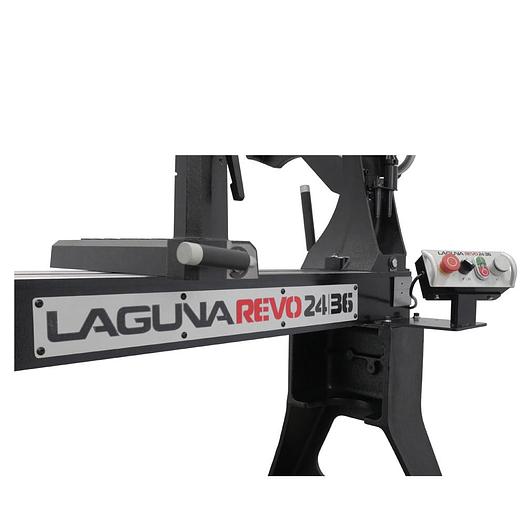

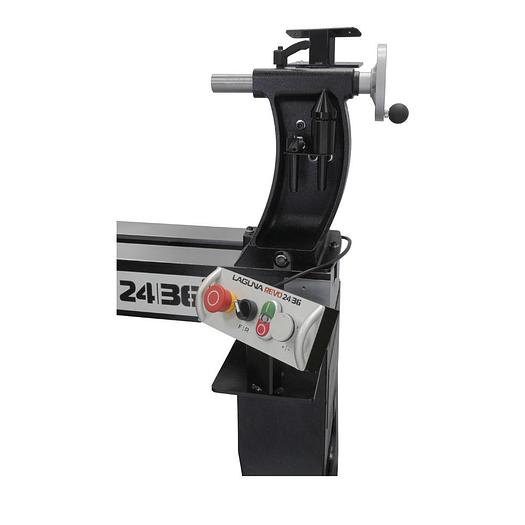

Having a second control panel that mounts in two positions (high or low) sets the Revo 24|36 apart from any other lathe in the world, not only can you turn off the machine from this control panel, but it allows the operator to change speed as well. A switch on the back of the headstock designates whether you control the Revo from the headstock control panel or the corresponding control panel. The E Stop works on both at any given time.


And YES, this amazing control panel comes standard with the Revo 24|36


Features:

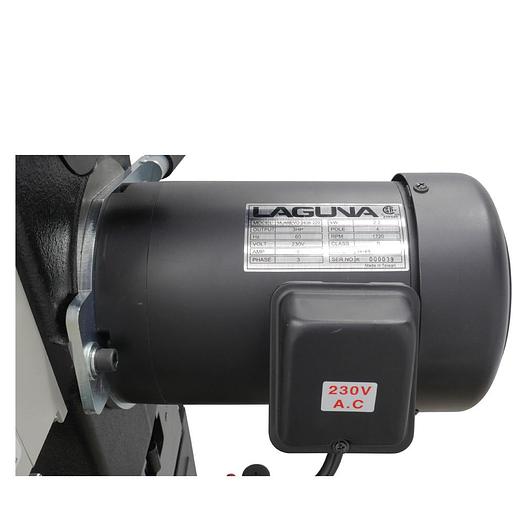

  • Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
  • Phase: 1-Phase Input, 3-Phase Output
  • VFD: Delta S1 Variable Frequency Drive
  • Remote Control Box With Speed Settings

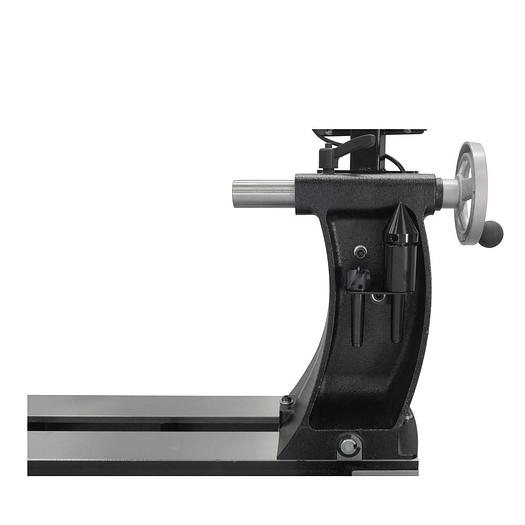

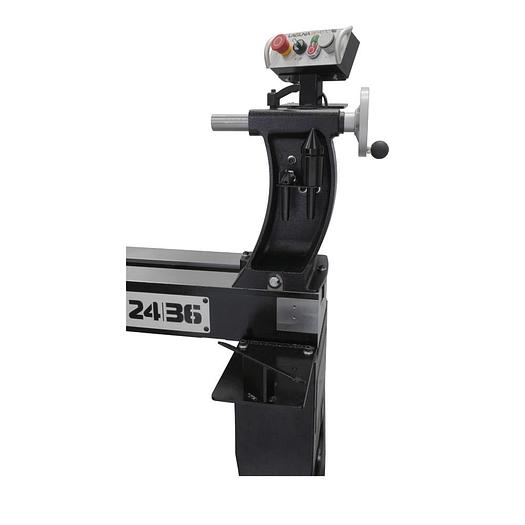

  • Tailstock Storage Of Centers

Specifications

ManufacturerLaguna
ModelRevo 24|36
ConditionNew
Stock NumberMLAREVO2436-220
Recommended Breaker Size15 Amp
Two Ergonomic Control Panel PositionsHigh/Low

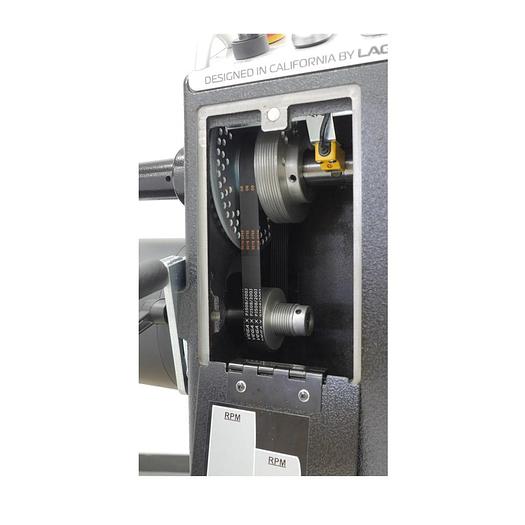

Drive BeltPoly-Groove With EZ Access
Tailstock Quill4-½″, Engraved, Self-Ejecting
Floor Top Spindle Center44-½″
Front BearingTPI Taiwan 6307LLU
Rear BearingTPI Taiwan 6205LLU

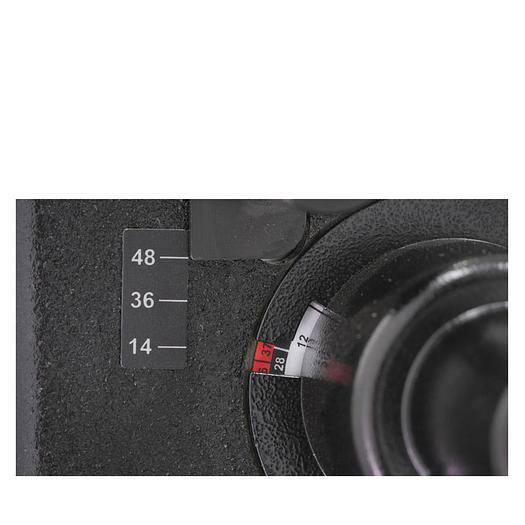

Spindle Index #14/36/48 with Lock
Distance Between Centers36″
Headstock Through-Bore⅜″
Toolrest Post Size1″
Spindle Size1-¼″ x 8 TPI RH
Floor To Bed32-½″ with Pads
Maximum Outboard Turning Diameter38″ (w/ Optional 20″ Extension Installed)
Swing Over Banjo19-¾″
Accepts Vacuum ChuckYes
Face Plate3″ Diameter

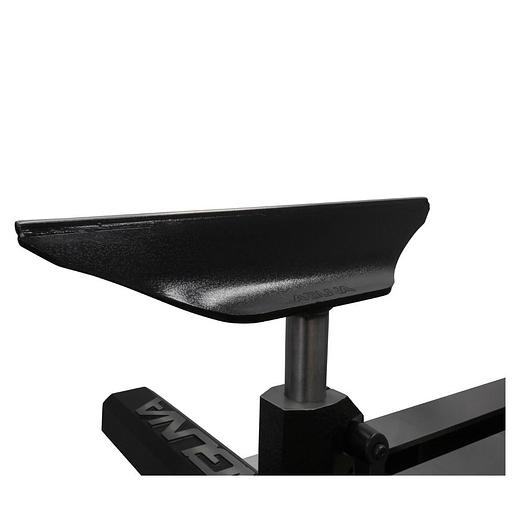

Tool Rest12″
Steel BedASTM A36
Bed Gap50mm
Headstock SpindleMT2 Taper Hardened To 40° HRC
Tailstock Quill#2 MT
Swing Over Bed24″
RPM High135-3500
RPM Low50-1300
Dimensions (W x D x H)60″ x 26″ x 52-¼″
Shipping Weight610 lbs
Shipping Dimensions (L x W x H)36″ x 40″ x 50″
