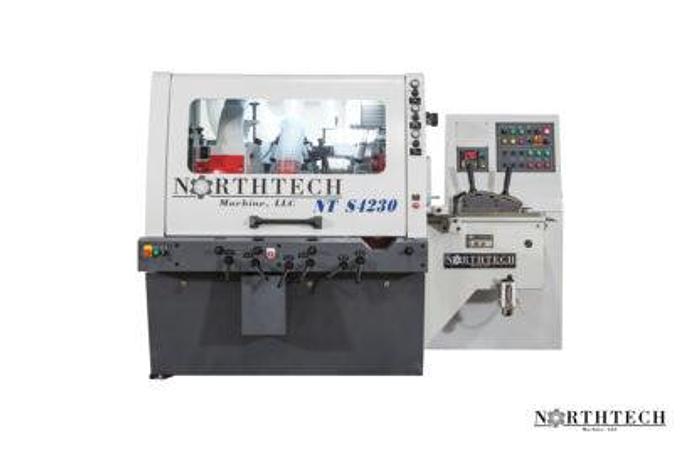

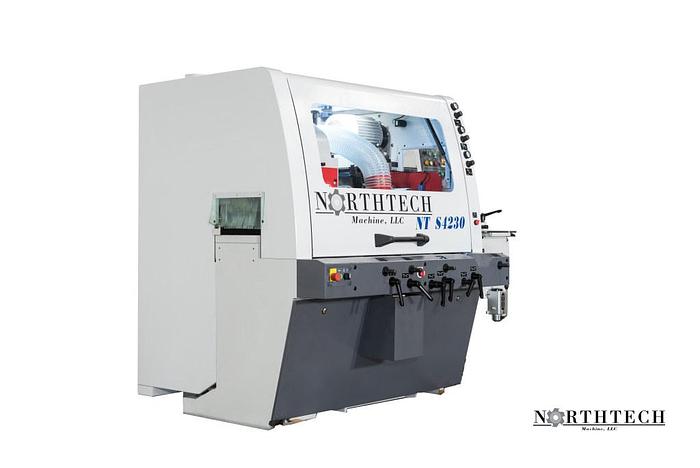

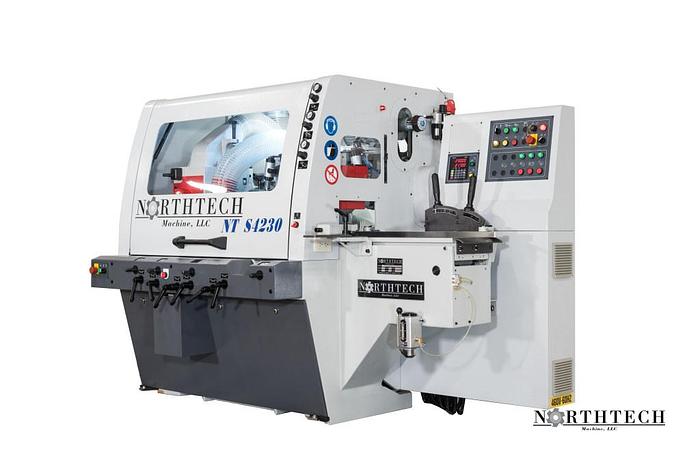

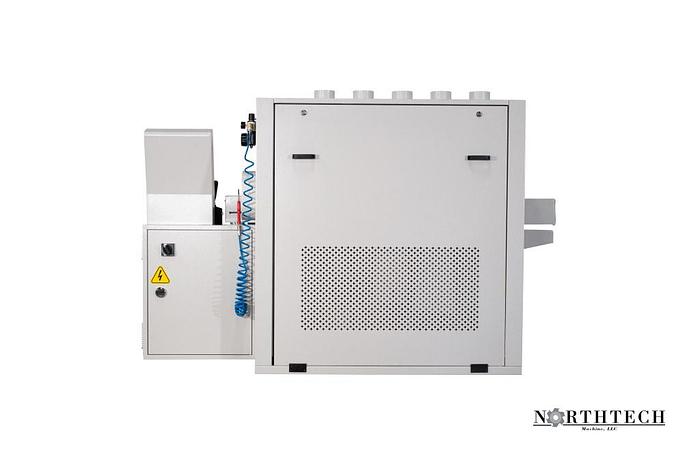

Northtech NT-S4230-1 Four Spindle Moulder
or
Call +1 (607) 678-4374
Description
NT-S4230-1 MOULDER 4 HEAD
The NT S4230-1 is a compact heavy duty 4 head moulder with large moulder capacity and a digitally positioned outside spindle for fast width changes. The 5″ x 9″ capacity moulder with single head per side configuration provides simple profile and excellent S4S capability while maintaining a compact footprint. Features such as chrome table, Siko mechanical readouts, bed oiler, and 40mm 6000RPM spindles are standard. Many upgradeable options for operator convenience makes the S series is an excellent option when space matters.
Specifications
| Manufacturer | Northtech |
| Model | NT-S4230-1 |
| Condition | New |
| Stock Number | NT S4230-1 |
| MACHINE HP | 33.3 HP |
| REVERSIBLE MOTOR | Reversible Feed |
| VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 91.6/45.8 Amps |
| CONFIGURATION | B-R-L-T |
| 1ST SPINDLE | Bottom 7.5 HP 6000RPM |
| 2nd SPINDLE | Right Shared 15 HP 6000 RPM |
| 3rd SPINDLE | Left Shared 15 HP 6000 RPM |
| 4th SPINDLE | Top 7.5 HP. 6000 RPM |
| SPINDLE DIAMETER | 40 MM |
| SPINDLE RPM | 6000 RPM |
| UNDER THE NUT CAPACITY | 10-1/4'' Horizontal, 6'' Vertical |
| FEED HP | 3 HP |
| FEED SYSTEM | Knurled and Urethane Rollers |
| DRIVE SYSTEM | Carden Shaft |
| FEED SPEED RANGE | 20-75 FPM |
| VARIABLE FEED SPEED | Manual Knob Adjustment |
| REVERSIBLE FEED | Reversible |
| ELEVATION HP | 1/3 HP. |
| ELEVATION STYLE | Manual Knob Control |
| ELEVATION SYSTEM | Linear Guide Jacks Screws |
| TOTAL MACHINE HP | 38.3 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 110 Volt |
| ASSISTED START | 15 HP Motor Shared by Head 2/3 |
| PROGRAMABLE | 3rd Vertical Head |
| PASS-LINE | 34-3/4'' |
| CUTTING ENVELOPE | 9'' Wide x 5-1/4'' Tall |
| MIN. WORKING LENGTH | 22'' |
| MAX. WORKING WIDTH | 9'' |
| MIN. WORKING THICKNESS | 3/8'' |
| MAX. WORKING THICKNESS | 5-1/4'' |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (4) 5'' Ports |

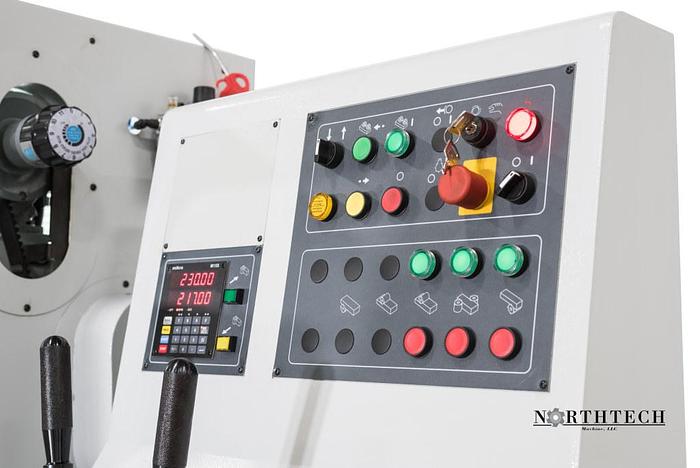

| DIGITAL DISPLAY | Digital Readout 3rd Head |
| POWERED ROLLERS | (5) Top (1) Bottom |
| PRESSURE SHOES | (2) Pressure Shoes |
| HOLD DOWN STYLE | (5) Pneumatic (1) Spring Loaded Hold Down |

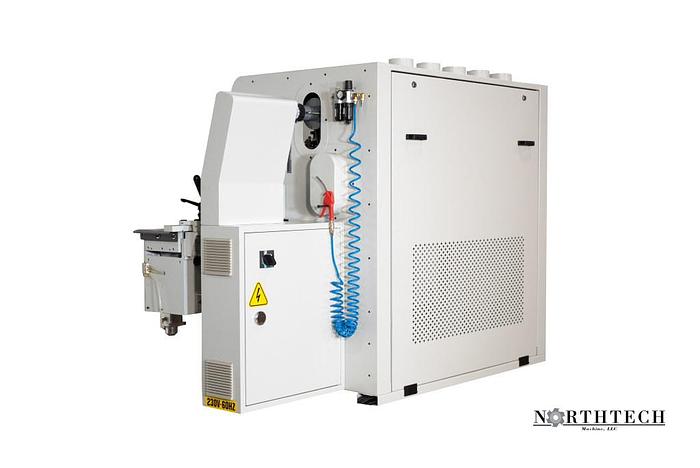

| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |

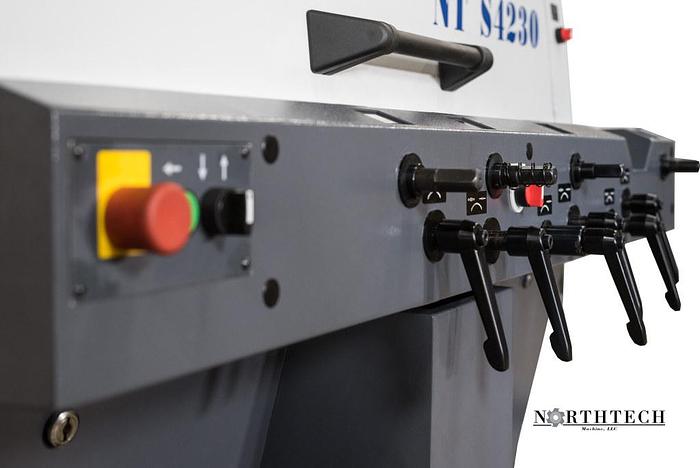

| EMERGENCY STOP | Push Button |
| REAR E STOP | Push Button |
| GUARDING | Full Enclosure |
| OPERATION STYLE | Auto / Manual |
| GREASE MANIFOLD | (4) Grease Fittings for Spindles |
| OILER | (1) Manual Oiler |
| FENCE TYPE | Adjustable |
| FENCE DIMENSIONS | 1'' x 40-1/2'' |
| FRAME CONSTRUCTION | Cast/Steel |
| TABLE CONSTRUCTION MATERIAL | Chromed Cast Steel |
| CHROME BED PLATE | Yes |
| NOISE REDUCTION BED PLATE FINGERS | 1st Head |
| DECIBEL RATING | 70 dB |
| NET WEIGHT | 4750 Lbs. |
| GROSS WEIGHT | 5150 Lbs. |
| MACHINE DIMENSIONS | 92'' x 56'' x 67'' |
| PACKAGING DIMENSIONS | 94'' x 61'' x 76'' |
