Laguna, Revo 18|36 Lathe 110 Volt

Laguna, Revo 18|36 Lathe 110 Volt

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

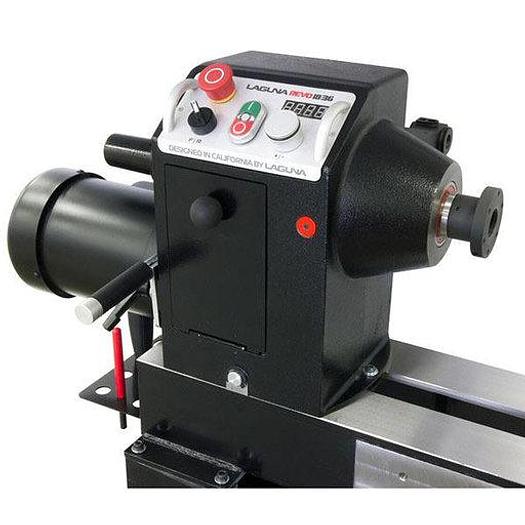

The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings, you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.



Poly-Groove Drive Belt With EZ Access

Spring Loaded Spindle Lock

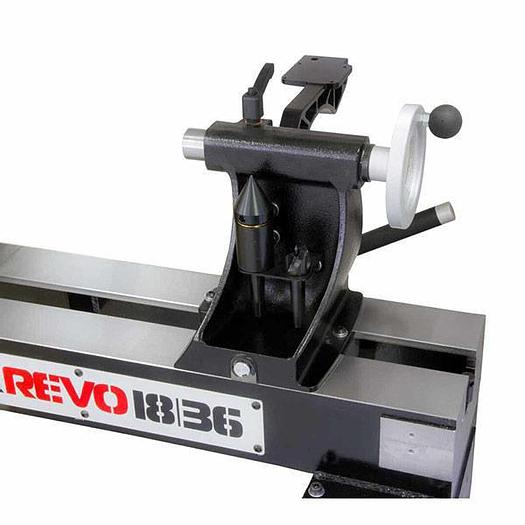

Tailstock Storage Of Centers


Specifications

ManufacturerLaguna
Model18|36
ConditionNew
Stock NumberMLAREVO1836-110-150
Phase1 Phase Input, 3 Phase Output
Recommended Breaker15 Amp
Maximum Outboard Swing32″ (w/ Optional 20″ Extension Kit Installed)
Swing Over Banjo13-½″
Steel BedASTM A36
Toolrest Post Size1″
Bed Gap50mm
Spindle TaperMT#2
Swing Over Bed18″
RPM High135-3500
RPM Low50-1300

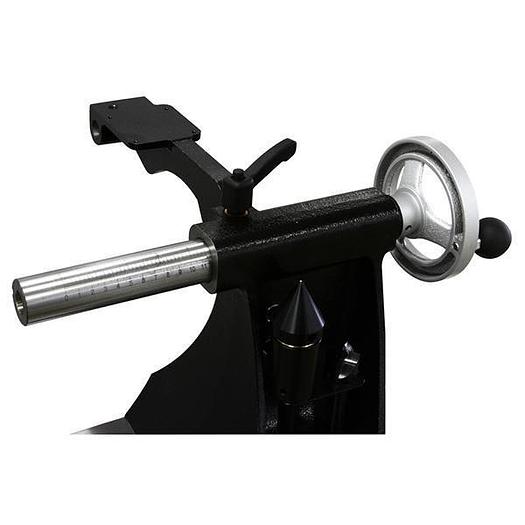

Tailstock Quill4-½″, Engraved, Self-Ejecting
Floor To Spindle Center41-½″ with Pads
Accepts Vacuum ChuckYes
Front BearingTPI Taiwan 6207LLU
Rear BearingTPI Taiwan 6205LLU
Spindle Index #14/36/48 with Lock
Distance Between Centers36″
Headstock Through-Bore⅜″
Headstock TravelFull Length
Tailstock Through-Bore⅜″
Floor To Bed32-½″ with Pads
Floor Space (W x L x H)60″ x 26″ x 47″
Shipping Weight570 lbs
Shipping Dimensions (L x W x H)61″ x 27″ x 28″
