Description

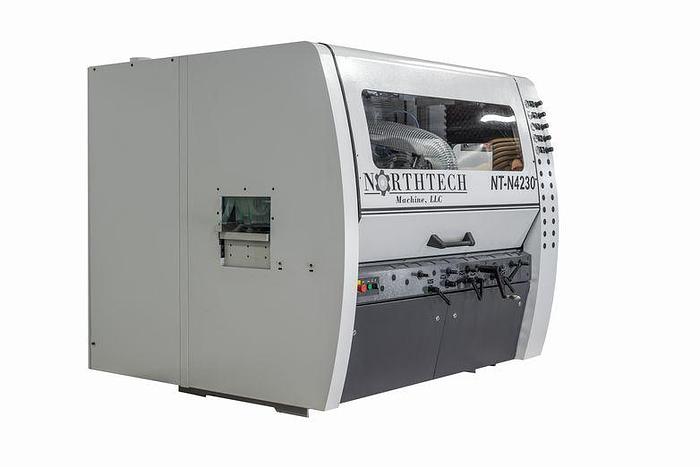

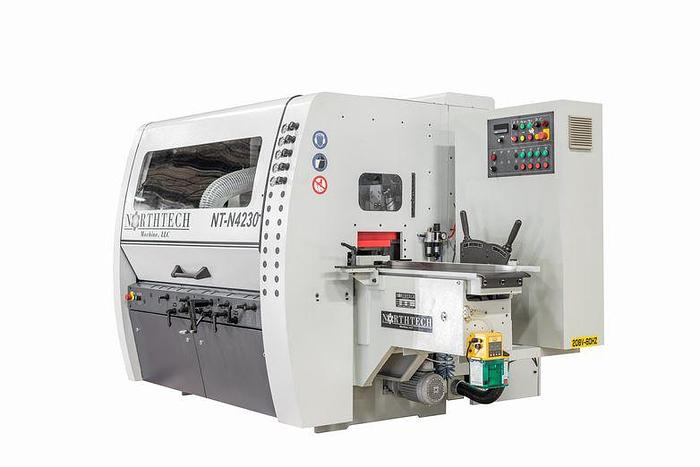

NT-N4230 MOULDER 4 HEAD
The NT N4230 is our standard 4-head N series machine. The 6″ x 9″ capacity moulder with a standard 4-head configuration provides excellent S4S and simple profiled mouldings. Features such as a chrome table, Siko mechanical readouts, automatic bed oiler and independent motors powering 1-13/16″ 6000RPM spindles are standard. There are a vast amount of optional features available making the N series an excellent option to higher priced competitive models.
Specifications
| Manufacturer | Northtech |
| Model | NT-N4230 |
| Condition | New |
| Stock Number | NT-N4230 |
| MACHINE HP | 43 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 228/114 Amps |
| CONFIGURATION | B-R-L-T |

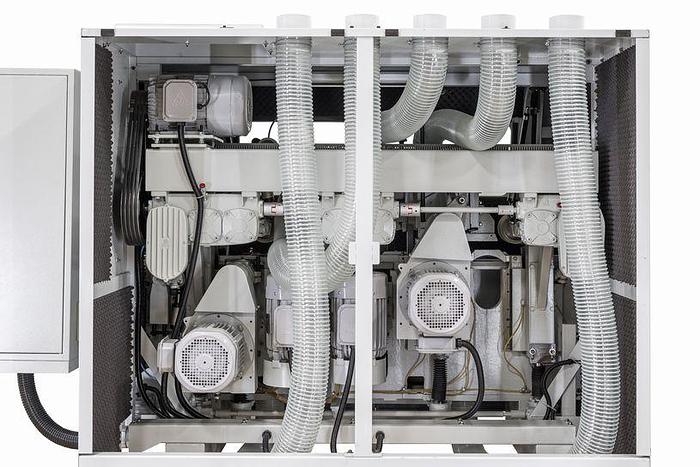

| 1ST SPINDLE | Bottom Horizontal 10HP 6,000RPM |
| 2nd SPINDLE | Right Vertical 10HP 6,000RPM |
| 3rd SPINDLE | Left Vertical 10HP 6,000RPM |
| 4th SPINDLE | Top Horizontal 15HP 6,000RPM |
| SPINDLE DIAMETER | 1-13/16'' |
| SPINDLE RPM | 6000 RPM |
| UNDER THE NUT CAPACITY | Horizontal 10'' Vertical 7" |
| FEED HP | 7.5 HP |

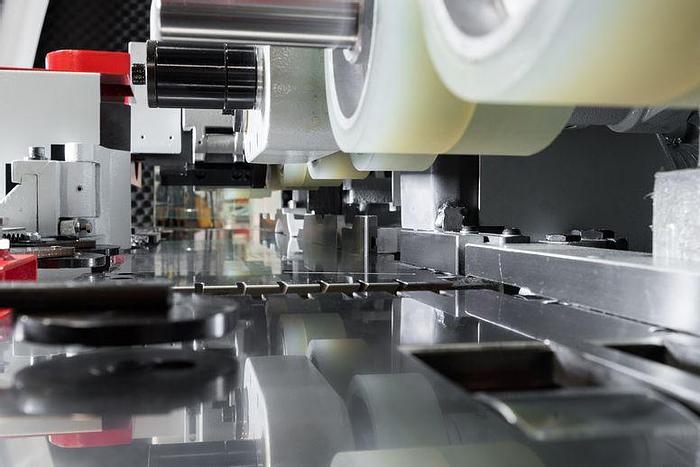

| FEED SYSTEM | Knurled and Urethane Rollers |
| DRIVE SYSTEM | Carden Shaft |
| FEED SPEED RANGE | 20-130 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| REVERSIBLE FEED | Reversible |
| ELEVATION HP | 1/2 HP |
| ELEVATION STYLE | Manual Knob Control |
| ELEVATION SYSTEM | Linear Guide Jacks Screws |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 110 Volt |
| ASSISTED START | Wye Delta 4th Head |
| PASS-LINE | 35'' |
| CUTTING ENVELOPE | 6-3/8'' x 10'' |
| MIN. WORKING LENGTH | 27'' |
| MAX. WORKING WIDTH | 10'' |
| MIN. WORKING THICKNESS | 3/8'' |
| MAX. WORKING THICKNESS | 6-3/8'' |
| TOOLING | Straight Knife Heads |
| ROWS OF CUTTERS | (4) Knives |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (5) 5'' |
| DIGITAL DISPLAY | Feed Speed |
| POWERED ROLLERS | (3) Bottom (8) Top |
| IDLE ROLLERS | (2) |
| PRESSURE SHOES | (2) Pressure Shoes |

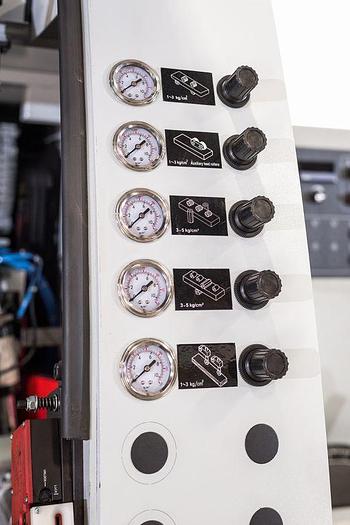

| HOLD DOWN STYLE | Pneumatic Hold Downs / Pressure Shoes |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | Push Button |
| REAR E STOP | Push Button |

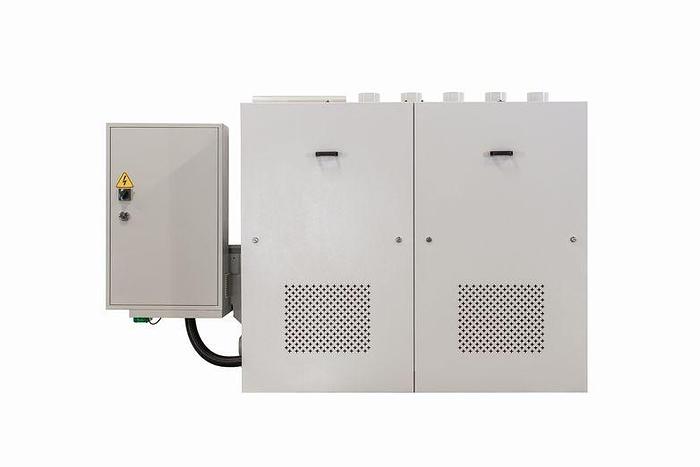

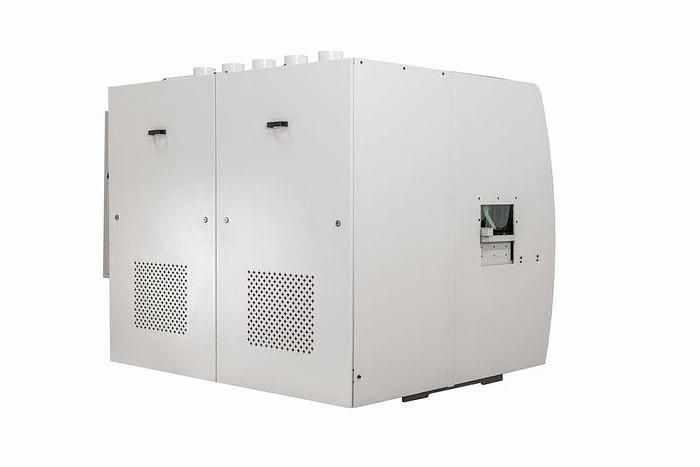

| GUARDING | Full Enclosure |
| OPERATION STYLE | Auto / Manual |
| GREASE MANIFOLD | Yes |
| OILER | Bed Oiler |

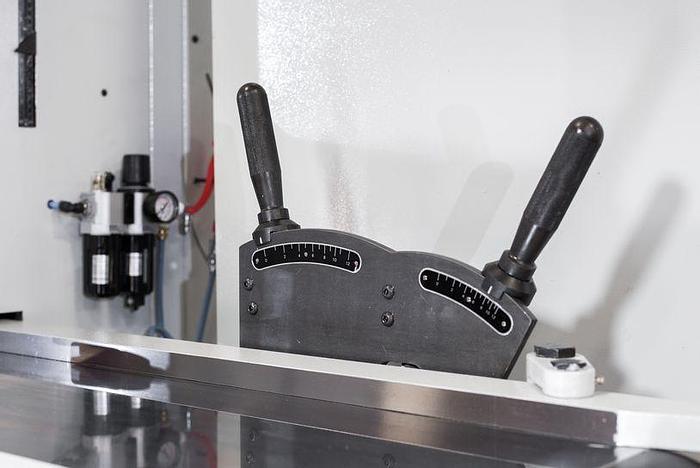

| FENCE TYPE | Adjustable |
| FENCE DIMENSIONS | 1'' x 60'' |
| FRAME CONSTRUCTION | Cast / Steel |
| WORKTABLE DIMENSIONS | 10-3/4'' x 117'' |
| TABLE CONSTRUCTION MATERIAL | Chromed Cast Steel |
| CHROME BED PLATE | Yes |
| NOISE REDUCTION BED PLATE FINGERS | 1st Bottom Head |
| MEASURING METHOD | Siko Counters |
| DECIBEL RATING | 70 dB |
| NET WEIGHT | 7380 Lbs. |
| GROSS WEIGHT | 7880 Lbs. |
| MACHINE DIMENSIONS | 120'' x 77'' x 74'' |
| PACKAGING DIMENSIONS | 140'' x 82'' x 93'' |
