Grizzly G0623X - 10" 5 HP 230V Sliding Table Saw

Grizzly G0623X - 10" 5 HP 230V Sliding Table Saw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

A sliding table saw for those with limited shop space.

The G0623X 10" Sliding Table Saw perfectly blends traditional table saw functionality with easy-to-use sliding table ripping and saw cross-cutting capability.

The G0623X allows full-sheet cutting capacity for crosscuts and miters, plus the added benefit of 33" of ripping capacity.

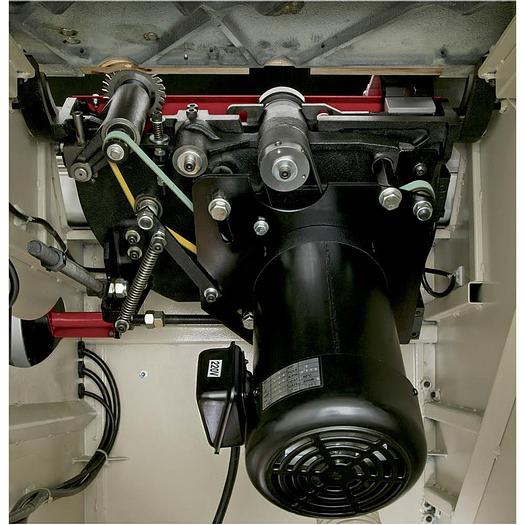

The heavy-duty 5 horsepower motor spins the 10" main blade at 4000 RPM and offers a 3-1/8” depth of cut.

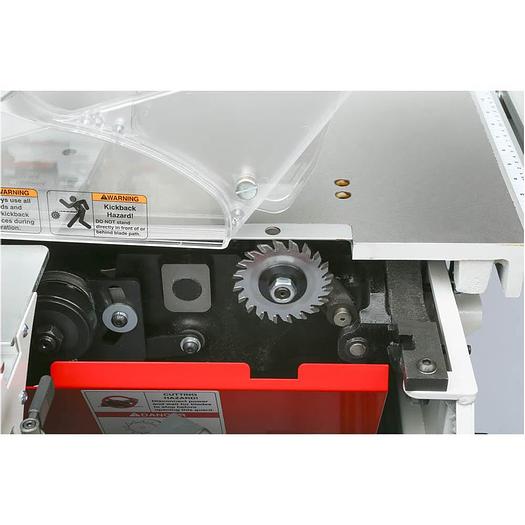

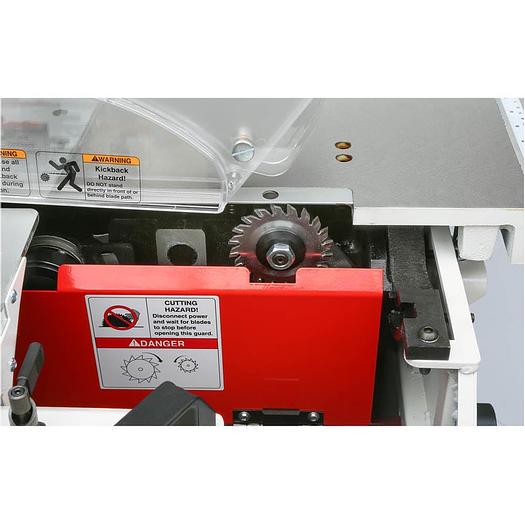

The 3-1/8" scoring blade creates a crisp leading cut to prevent tearout in paneling surface material by spinning at 8000 RPM.

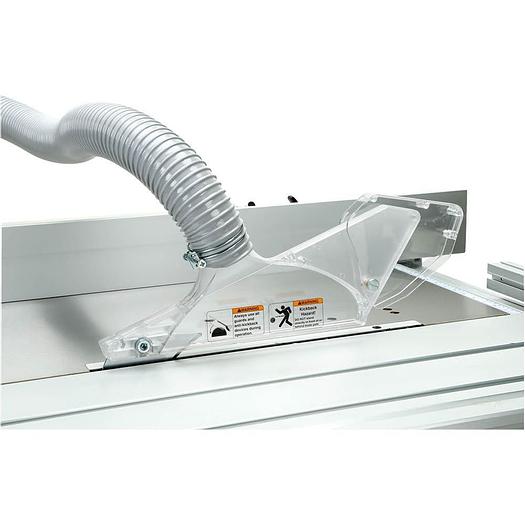

The dust shroud has a 2-1/2" dust port that connects directly to the riving knife mount to keep the cutting area clean during operation.

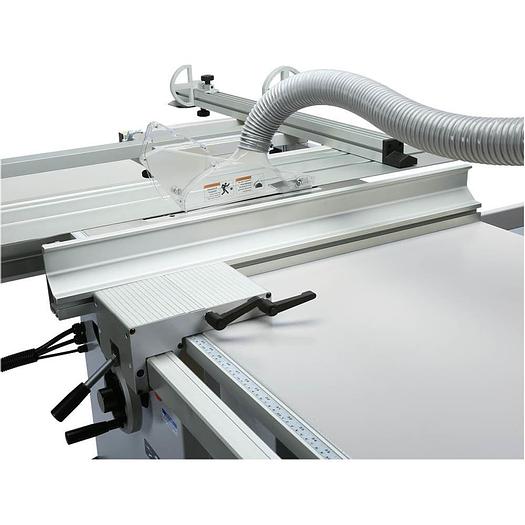

The compact but heavy-duty aluminum 12-1/4" x 63" sliding table travels on ball-bearing guides for an effortless cutting action.

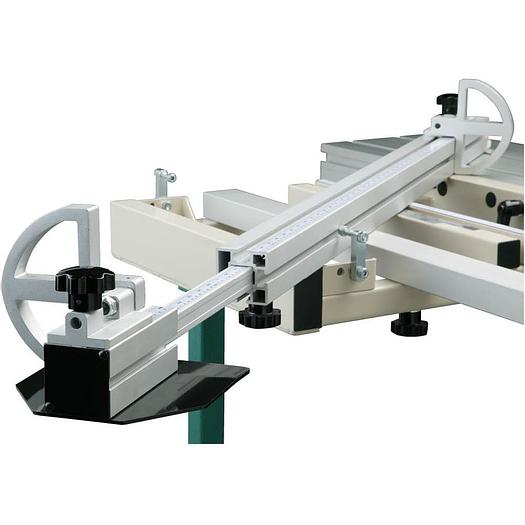

The 2" tall crosscut fence extends up to 78-3/4" to evenly support your workpiece and allows for cross cutting pieces up to 63" wide.

For miter cuts, simply rotate the fence assembly and lock it in place for miters up to 48" wide when set at 45°.

Like all Grizzly table saws, the G0623X comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0623X manual was written by our U.S. based Technical Documentation Department and is packed with useful information; making it easier to assemble and maintain your saw.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the table saw are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

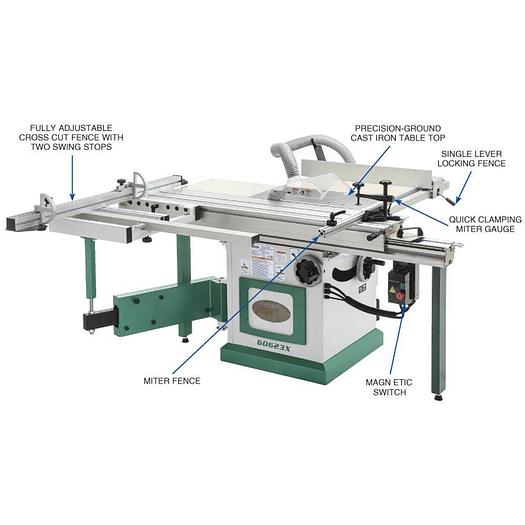

FEATURES:

Scoring blade ensures tear-out free cuts

A quick clamp-on, extruded aluminum sliding table

Miter fence positions 45° right or left with two flip stops for repetitive cutting

Precision-ground cast-iron main table with extensions

Single-lever locking fence

Specifications

ManufacturerGrizzly
ModelG0623X
ConditionNew
Stock NumberG0623X
Motor5 HP, 230V, single-phase,19A
Rip capacity33"
Crosscut capacity63"

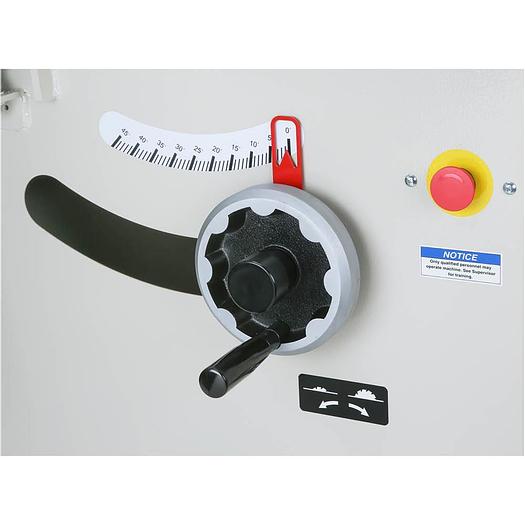

Blade tilt0 - 45°
Max. depth of cut @ 90°3-1/8"
Max. depth of cut @ 45°2-1/4"
Main table size27" x 14-3/8"
Sliding table size12-1/4" x 63"
Floor-to-table height33-5/8"
Main blade size10"
Main blade arbor5/8"
Main blade speed4000 RPM
Scoring blade size3-1/8" (80mm)
Scoring blade arbor22mm
Scoring blade speed8000 RPM
Max. width of dado1-3/16"
Dust port sizes4" & 2-1/2"
Floor space required150" W x 123" D
Overall dimensions76" W x 125" D x 46" H
Approx. shipping weight688 lbs.
