Laguna, P|25 Industrial 25″ Planer

Laguna, P|25 Industrial 25″ Planer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The P|25 Planer brings a whole new standard for Heavy Duty thickness planers. The 15HP 3 Phase motor makes sure you never run out of power even when planing full 25? boards.

Features:

  • Motor, Cutterhead: 15HP 3 Phase, 220 Volt, 37A
  • Motor, Feed: 3/4 HP, DC Electronically Variable speed
  • Motor, Vertical: 3/4 HP, AC
  • DRO (Digital Read Out)
  • PLC Programmable Height Setting

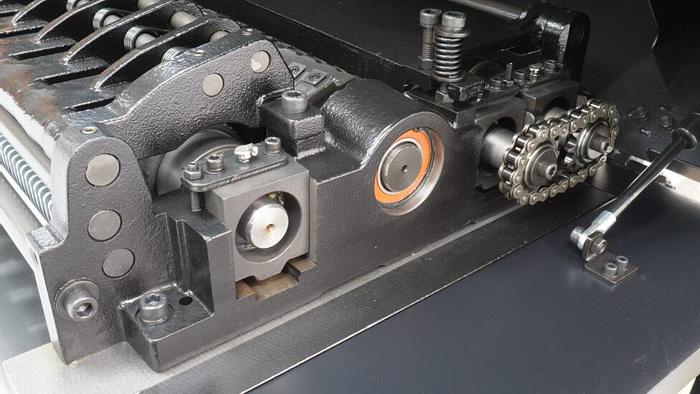

Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Most thickness- planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25” comes standard with Electronic

Variable Speed meaning you will ALWAYS have the exact speed required.

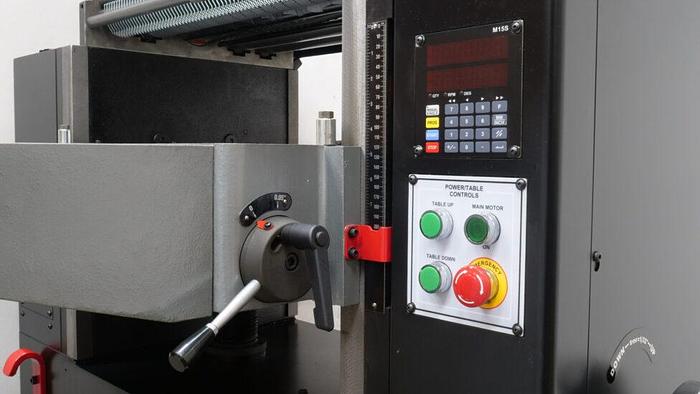

Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter!). The PLC in the Laguna Industrial 25″ planer also has automatic backlash compensation ensuring exact thicknesses.

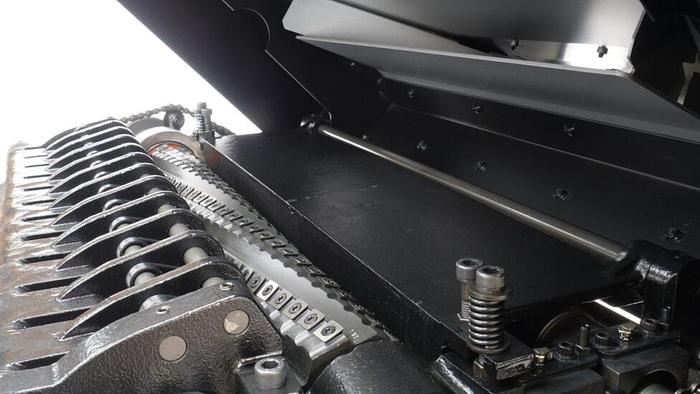

Of course no world class planer would be complete without our incredible ShearTec II cutter head, which boasts 6 rows of 4 sided German carbide inserts for a total of 174 knives!

Specifications

ManufacturerLaguna
ModelP|25
ConditionNew
Stock NumberMPLAN25-15-3-0130
Maximum Stock Width25″
Maximum Stock Thickness9″
Minimum Stock Thickness⅛”
Electronic Variable Speed10-30FPM
Table Size52″ x 26″ (Including Extensions)
ShearTec II Cutterhead6 Row 174 Insert Knives
Cutter Head Diameter3½”
Cutter Head Speed4800 RPM
Segmented In Feed Roller3″
Segmented Pressure BarYes
2 Polished Out Feed Rollers3''
Retractable Table RollersAdjustable
In/Out Feed Cast Extensions Included (L x W)10″ x 26″
Dust Port5″
ElectronicsCSA Components
Weight1500 lbs
Shipping Dimensions (L x W x H)35″ x 53″ x 60″
