Northtech, NT-610XL Heavy Duty Chain Drive Series Double Surfacer

Northtech, NT-610XL Heavy Duty Chain Drive Series Double Surfacer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

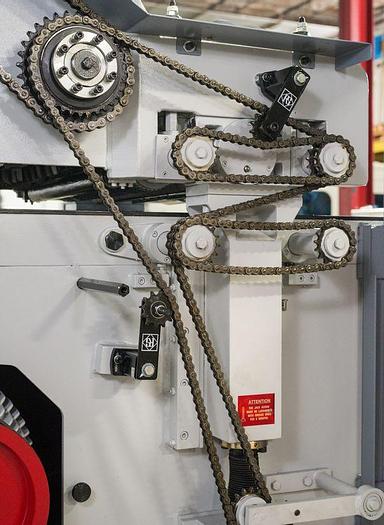

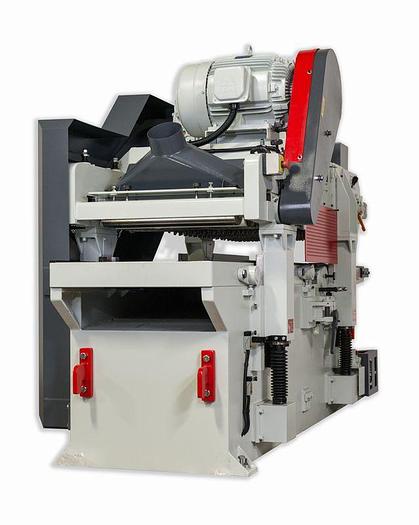

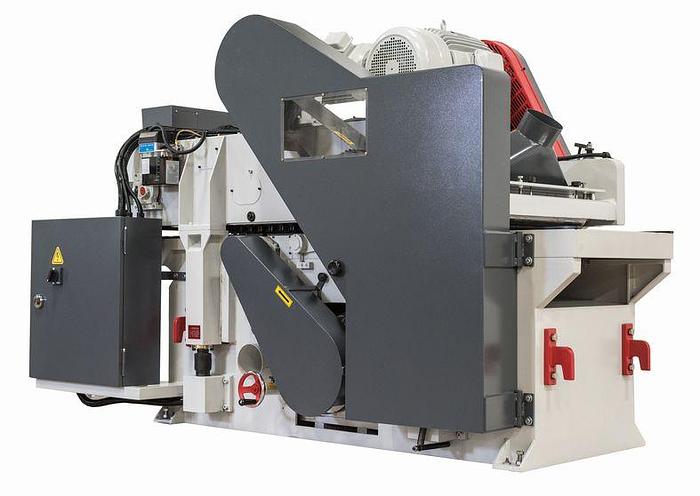

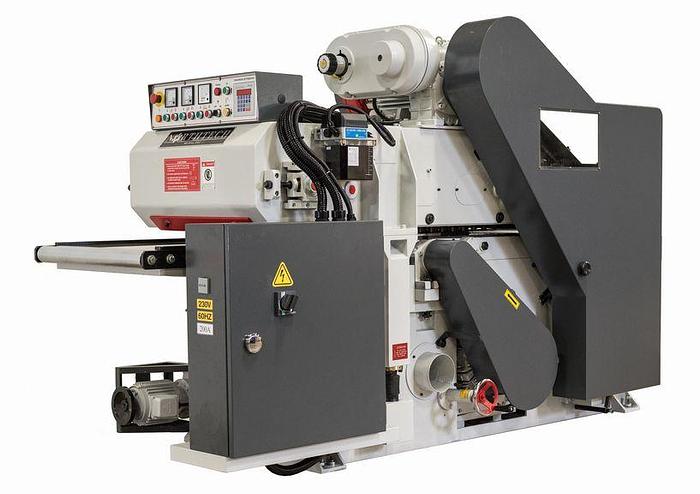

The NT 610XL is our most popular chain drive double surfacer. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The NT 610XL has a 24″ working width and over 6″ working height, making it a very capable machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed system is designed with integrated chrome bed rollers and a chain driven spring loaded carpet spike infeed. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a heavy duty slideway system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness.


CUTTERHEADS •  30HP Top, 25HP Bottom •  Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts •  5000 RPM solid steel cutterheads with Class 7 NSK bearings •  Cutterhead decibel rating of 75 dB or less PRODUCT DIMENSIONS •  Working thickness 10 - 155mm (3/8” - 6-1/2”) •  15” min working length •  24” maximum width FEED SYSTEM •  5HP feed motor •  Carpet feeding spike system with 1100 spikes •  Feed speed 25 - 95 ft/min FEATURES •  Mechanical variable speed •  Digital control panel with 3 amp meters •  Chrome bed plate  .01mm  (.004”) thick •  Amperage requirement:  230V @ 200AMP, 460V @ 100AMP •  (2) 6” dust ports requiring 1000 CFM @ each point of extraction •   Automatic lubricating system with low level shut off •  UL/CE Certified electrical components •  Includes operator’s manual and parts book •  Machine dimensions:  112” L x 46” W x 74” H •  Packing dimensions:  117”L x 52”W x 78”H •  Machine gross / net weight:  7,680 lbs. / 8,300 lbs •  One year parts warranty •  All machines are tested stateside prior to shipment providing trouble-free start up

Specifications

ManufacturerNorthtech
ConditionNew
Stock NumberNT-610XL
TOP HEAD HP30 HP
BOTTOM HEAD HP25 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT100 / 200 Amps
FEED HP5 HP
FEED SYSTEMCarpet Feed / Powered Rollers
DRIVE SYSTEMChain Drive
FEED SPEED RANGE25-95 FPM

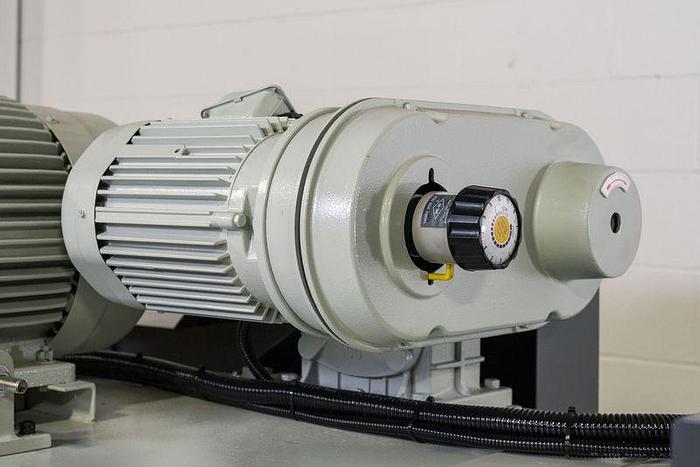

VARIABLE FEED SPEEDVariable Speed Clutch With Knob Adjustment
ELEVATION HP1 HP
ELEVATION STYLEDP-626S Elevation Control
ELEVATION SYSTEM(4) Geared Lifting Columns
TOTAL MACHINE HP61 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PROGRAMABLEElevation
MIN. WORKING LENGTH15''
MAX. WORKING WIDTH24''
MIN. WORKING THICKNESS.345''
MAX. WORKING THICKNESS6.5''
CUTTER HEAD RPM5000 RPM
HEAD TYPEDynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS5-1/4'' x 24''
CUTTER HEAD MATERIALAlloy Steel
ROWS OF CUTTERS6 Rows
NO. OF INSERTS105 Per Head
INSERT SIZE30 x 12 x 2.5 mm
NO. OF HEADS(2) Heads
DUST COLLECTION REQUIREMENT980 CFM @ Point of Extraction
DUST PORT SIZE OUTLET(2) 6'' Ports
DIGITAL DISPLAYElevation
POWERED ROLLERS(2) Top (2) Bottom Powered Roller
IDLE ROLLERS(1) Idle Bed Roller
HOLD DOWN STYLEChip Breakers/ Pressure Plate
CARPET SPIKE HARDNESSHRC 45
NO. OF SPIKES1100 Spikes
REAR E STOPPush Button
GUARDINGHigh Visibility Guarding
OILER(1) Auto Oiler (1) Manual Oiler
LOW OIL WARNING/SHUT OFFOil Low Warning / Shut Off
FRAME CONSTRUCTIONCast Construction
CHROME BED PLATE.004'' Chrome Plated Bed
DECIBEL RATING80 dB
NET WEIGHT7680 Lbs.
GROSS WEIGHT8300 Lbs.
MACHINE DIMENSIONS112'' x 46'' x 74''
PACKAGING DIMENSIONS116'' x 51'' x 78''
