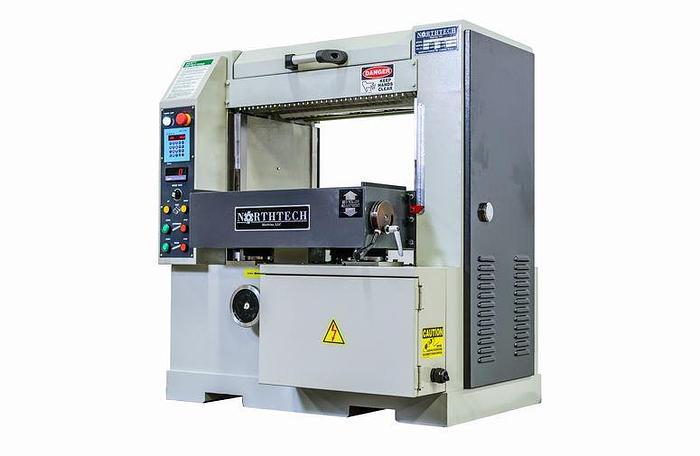

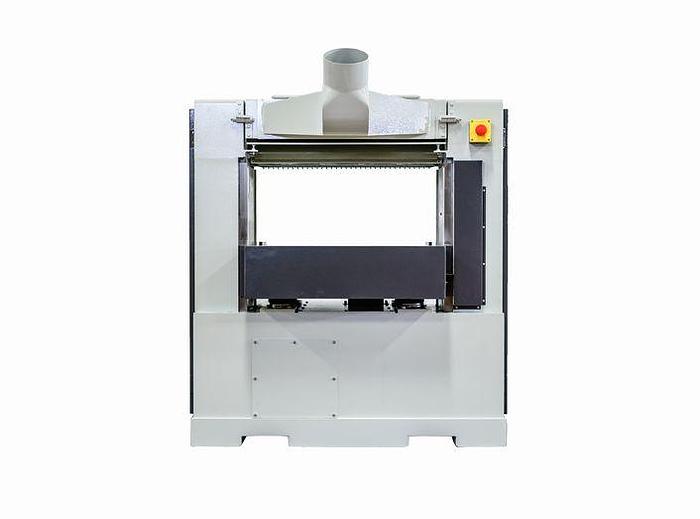

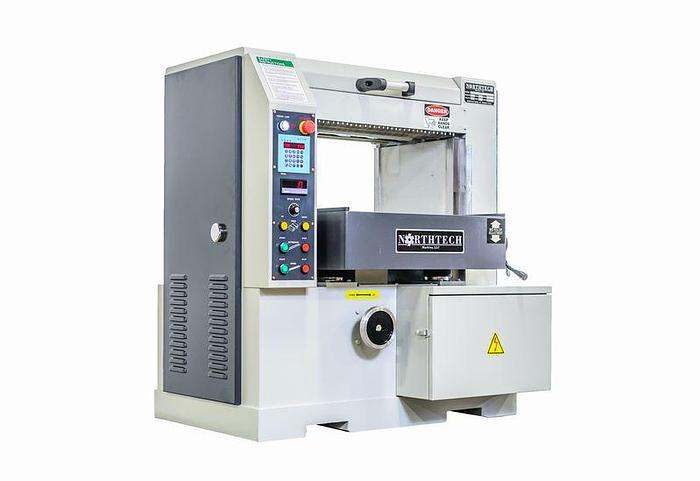

Northtech, NT 660S-20HCVS-2034 Single Surface Planer

Northtech, NT 660S-20HCVS-2034 Single Surface Planer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

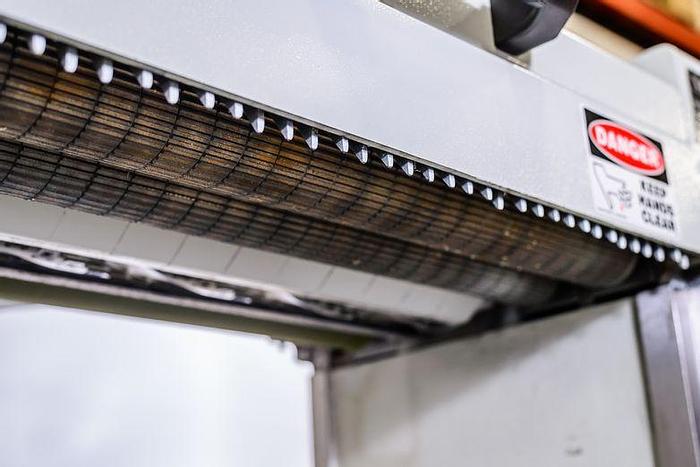

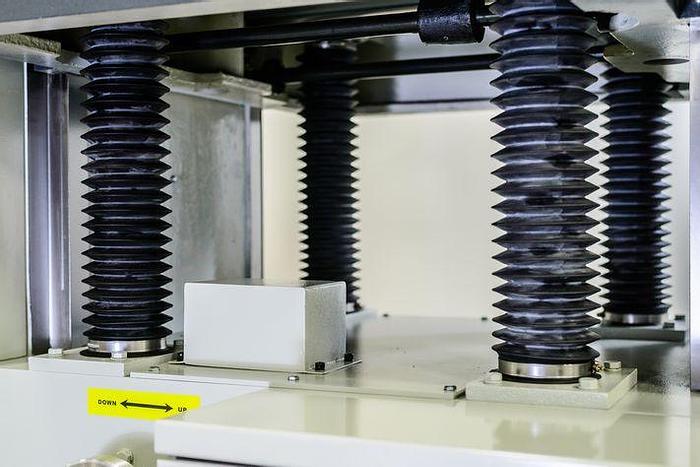

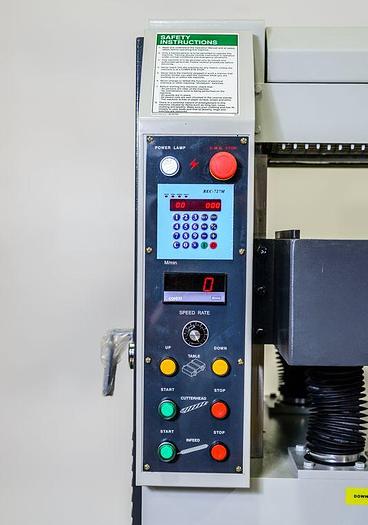

NT 660S-20HCVS-2034 Single Surface Planer • Helical 4" cutterhead provides high chip removal rate, superior surface finish & low noise level (under 85 dba). • Powerful 20HP cutterhead motor; 2HP feed motor makes this planer ideal for heavy  duty planing and meets high production requirements. Arranged with Y-Delta soft start controls (Square D). •Main motor is Nema rated and standard with 1 year warranty and service throughout  North America. • Digital positioning controller for convenient thickness setting (with memory control to 99 thickness settings). • Variable feed speed is driven by a VFD and TECO inverter duty DC motor (0-90' min) with LED readout of  feeding speed. • Powered table elevation for fast and convenient thickness setting. Opening has been increased to 12" on  NT-660S series planers vs. 8" on the standard NT-660 planers. • Extra heavy, rib reinforced cast iron table is surface precision ground. 660S-20HCVS has (4) precision 35mm  jack screws to support the planer's rugged construction. • Adjustable bed rollers ensure fast and proper positioning with regards to rough lumber to finished   glue panels. • UV rubber outfeed roller provides optimum finish with reduced vibration. • Corrugated sectional infeed roller has independent yield for running strip stock of varying thickness without  the danger of kick back. • Anti-kickback fingers equipped at the infeed end provide added safety for the operator. • Raising and lowering limit controls for powered table elevation


Specifications

ManufacturerNorthtech
ConditionNew
Stock NumberNT 660S-20HCVS
TOP HEAD HP20 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT26/52 Amps
FEED HP2 HP
FEED SYSTEM(2) Segmented Powered Rollers (1) Powered Poly Roller
FEED SPEED RANGE5-75 FPM
VARIABLE FEED SPEEDInverter Controlled
ELEVATION HP1 HP
ELEVATION STYLEREC727M Digital Controller
ELEVATION SYSTEM(4) Post Jack Screw
TOTAL MACHINE HP23 HP.
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PROGRAMABLEElevation
MIN. WORKING LENGTH10''
MIN. WORKING WIDTH26''
MIN. WORKING THICKNESS3/16''
MAX. WORKING THICKNESS12''
CUTTER HEAD RPM5464 RPM

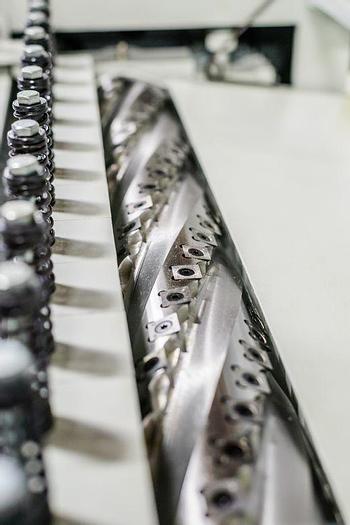

HEAD TYPESpiral Helical Cutter Head
CUTTER HEAD DIMENSIONS4'' x 26''
CUTTER HEAD MATERIALAlloy Steel
ROWS OF CUTTERS6 Rows
NO. OF INSERTS156 Inserts
INSERT SIZE15 x 15 x 2.5 MM

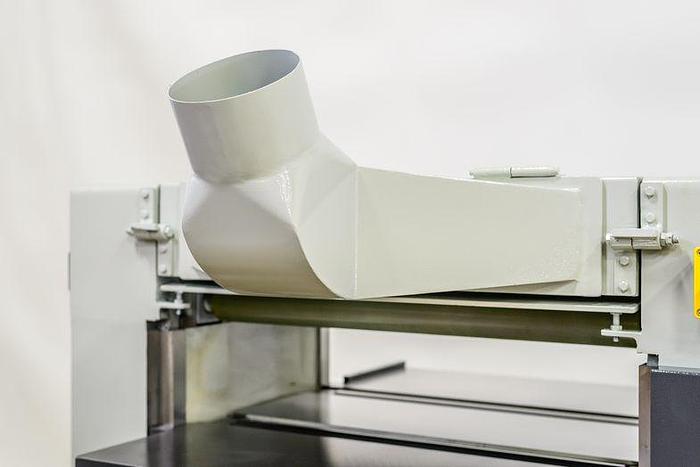

DUST PORT SIZE OUTLET(1) 6'' Port
DIGITAL DISPLAYElevation Controller / Feed Speed
POWERED ROLLERS(2) Segmented Rollers / (1) Poly Roller
IDLE ROLLERS(1) Infeed Roller (1) Outfeed Roller

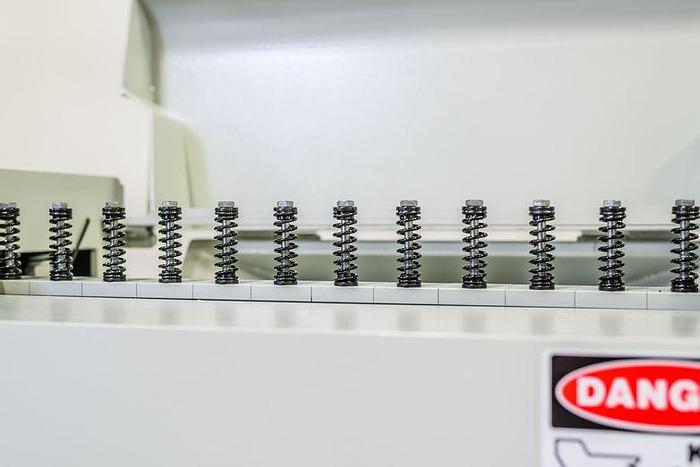

HOLD DOWN STYLE(13) Chip Breakers (1) Pressure Plate
REAR E STOPPush Button
GUARDINGFull Enclosure
FRAME CONSTRUCTIONCast/Steel Construction
DECIBEL RATING70 dB
NET WEIGHT2420 Lbs.
GROSS WEIGHT2770 Lbs.
MACHINE DIMENSIONS44'' x 39'' x 55''
PACKAGING DIMENSIONS52'' x 51'' x 55''
