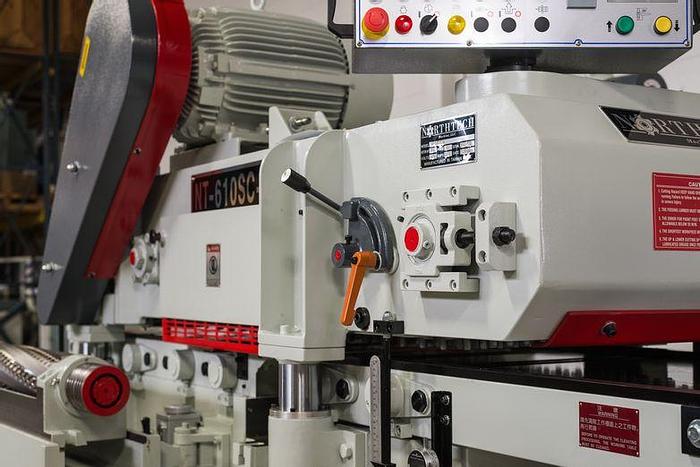

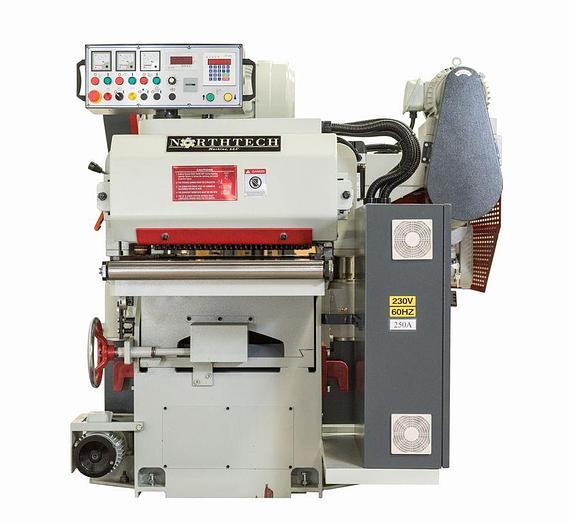

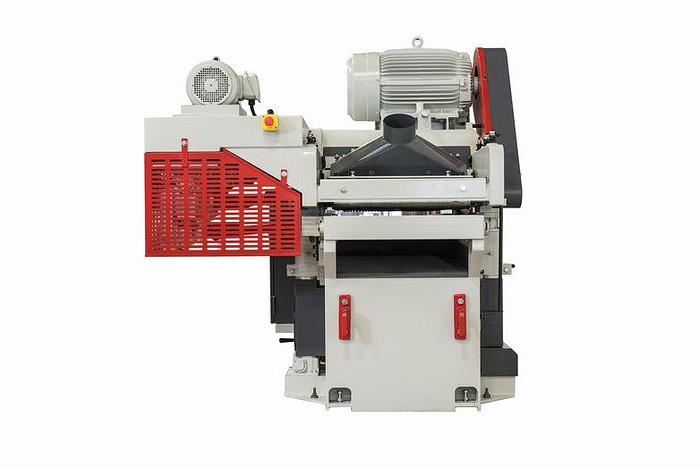

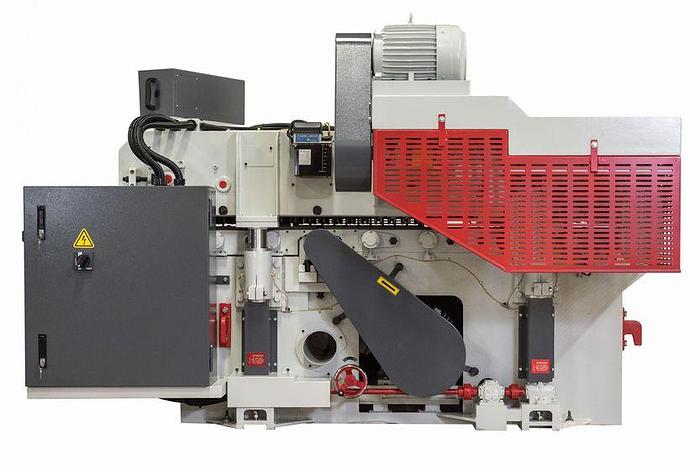

Northtech, NT-610SC-I Double Surface Planer

Northtech, NT-610SC-I Double Surface Planer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

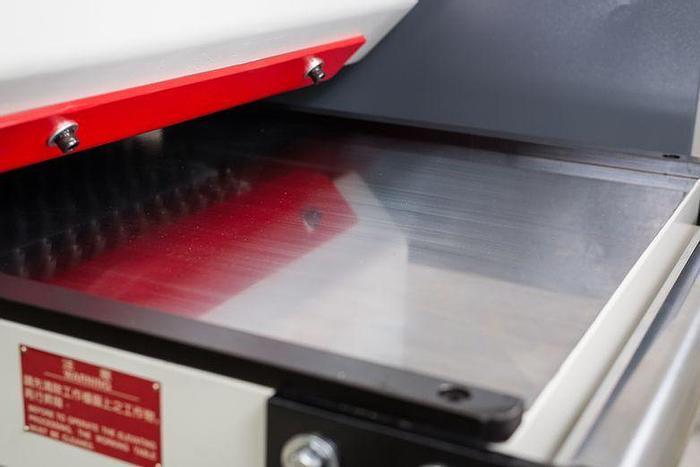

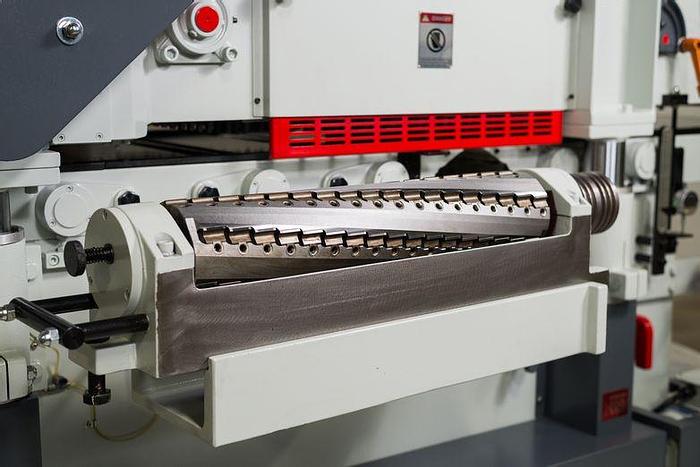

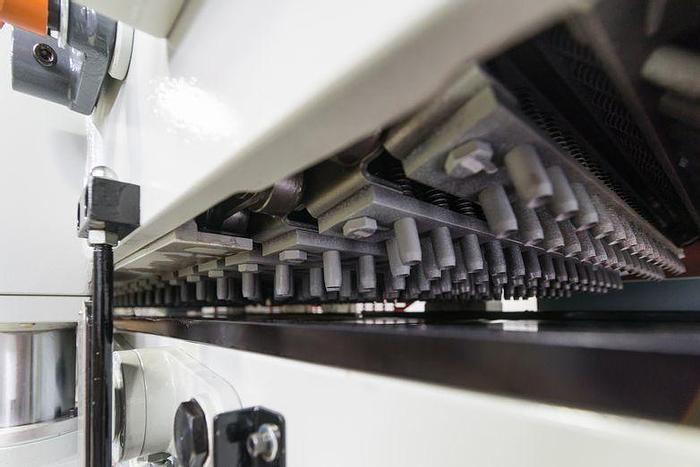

The NT 610SC-I is our most popular double surfacer. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The NT 610SC-I has a 24″ working width and an 8″ working height, making it an extremely versatile machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed system is designed with (7) rollers integrated in the chrome bed and a spring loaded carpet spike infeed with a gearbox connected carden shaft drive. The carden shaft drive delivers a slack free feed with out the common chain adjustments. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a (4) column slide system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure.



NT 610SC-I-40302 Double Surface Planer Double Surfacer High Speed Series  40 + 30 + 7.5HP VFD Dual (6) Row Helical Cutterhead with 30 x 12 x 2.5mm inserts Patented 4 column lifting system •  Carpet feeding spike system Cardan shaft drive system 100 FPM maximum feed speed •  Chrome bed plate (2) 6” dust ports Includes operator’s manual and parts book One year parts warranty All machines are tested stateside prior to shipment providing trouble-free start up.


Specifications

ManufacturerNorthtech
ModelNT-610SC-I
ConditionNew
Stock NumberNT-610SC
TOP HEAD HP40 HP
BOTTOM HEAD HP30 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT109 / 218 Amps
FEED HP5 HP
FEED SYSTEMCarpet Feed / Powered Rollers

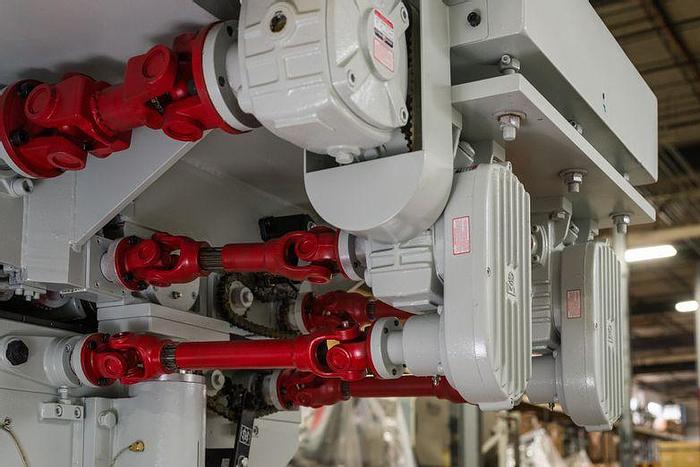

DRIVE SYSTEMCardan Shaft Drive System
FEED SPEED RANGE30-90 FPM

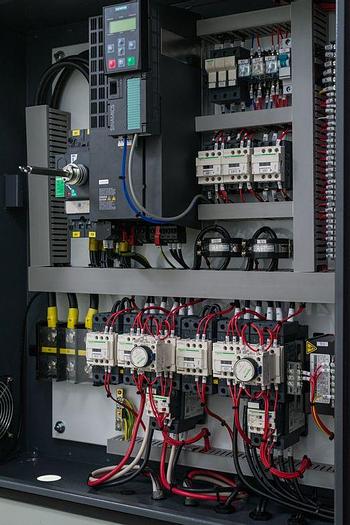

VARIABLE FEED SPEEDInverter Controlled
ELEVATION HP1 HP
ELEVATION STYLEDP-626S Elevation Control
ELEVATION SYSTEM(4) 3-1/4'' Geared Lifting Columns
TOTAL MACHINE HP76 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PROGRAMABLEElevation

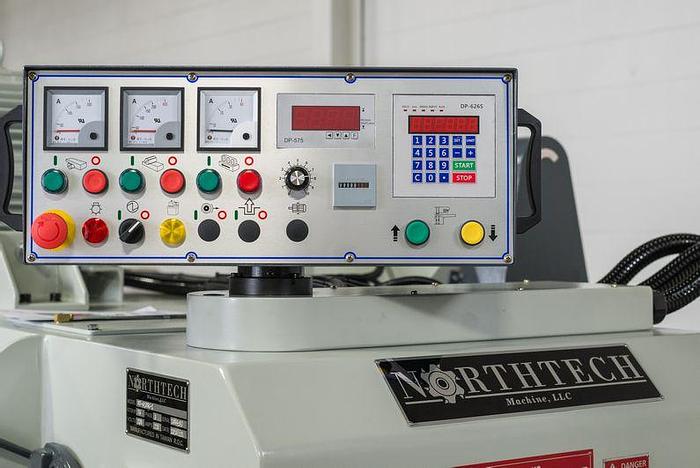

ADJUSTABLE OPERATOR PANELAdjustable Operator Panel
PASS-LINE33-5/8''
MAX. WORKING LENGTH14''
MAX. WORKING WIDTH24''
MIN. WORKING THICKNESS.315''
MAX. WORKING THICKNESS7-3/4''
CUTTER HEAD RPM5100 Rpm

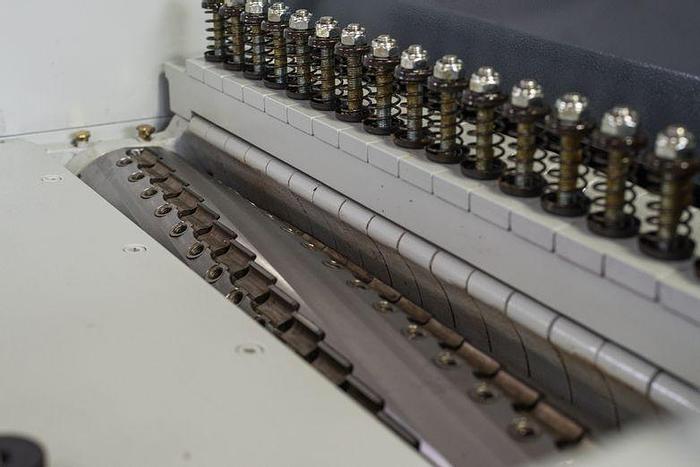

HEAD TYPEDynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS5-1/2'' x 24''
CUTTER HEAD MATERIALAlloy Steel
ROWS OF CUTTERS6 Rows
NO. OF INSERTS105 Inserts Per Head
INSERT SIZE30 x 12 x 2.5 mm
NO. OF HEADS(2) Heads
DUST COLLECTION REQUIREMENT980 CFM @ Point of Extraction
DUST PORT SIZE OUTLET6'' Top 6'' Bottom
DIGITAL DISPLAYElevation / Feed Speed
POWERED ROLLERS(3) Top (3) Bottom Powered Roller
IDLE ROLLERS(4) Idle Bed Rollers
HOLD DOWN STYLEChip Breakers/ Pressure Plate
CARPET SPIKE HARDNESSHRC 45
NO. OF SPIKES1100 Spikes
REAR E STOPPush Button
GUARDINGHigh Visibility Guarding

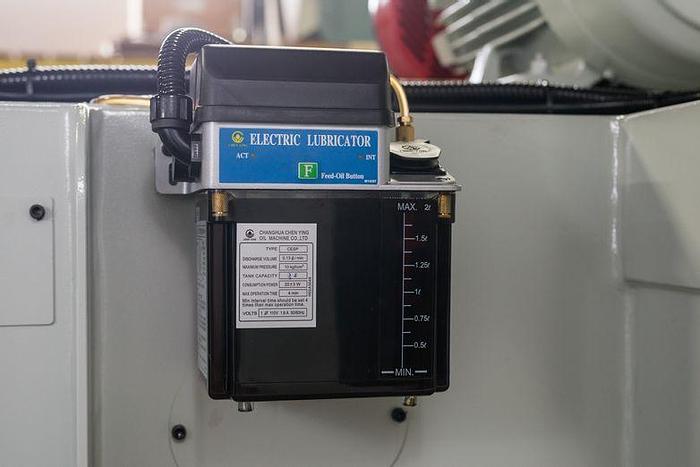

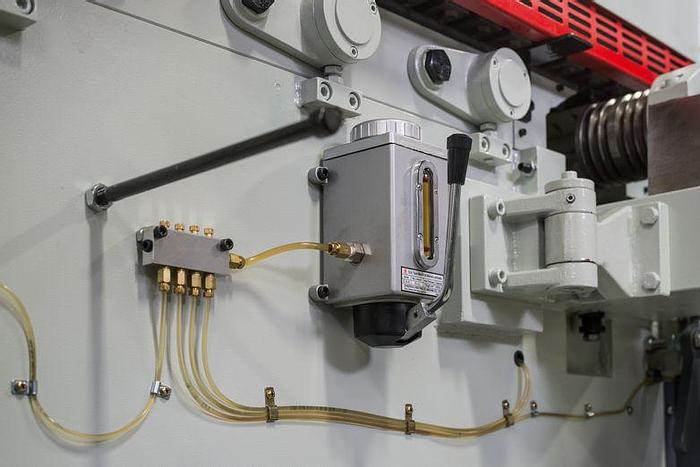

OILER(1) Auto Oiler (1) Manual Oiler
LOW OIL WARNING/SHUT OFFOil Low Warning / Shut Off
FRAME CONSTRUCTIONCast Construction
CHROME BED PLATE.004'' Chrome Plated Bed
DECIBEL RATING80 dB
NET WEIGHT9259 Lbs.
GROSS WEIGHT9700 Lbs.
MACHINE DIMENSIONS110'' x 67'' x 73''
PACKAGING DIMENSIONS116'' x 76'' x 78''
