Northtech NT 400XL Heavy Duty Chain Drive Series Double Surfacer

Northtech NT 400XL Heavy Duty Chain Drive Series Double Surfacer

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374

Description

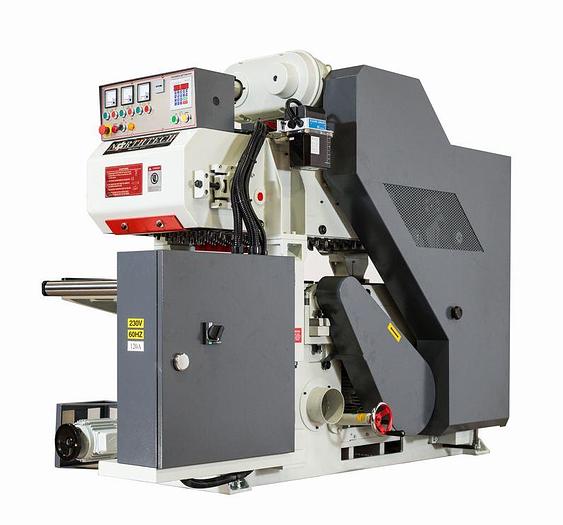

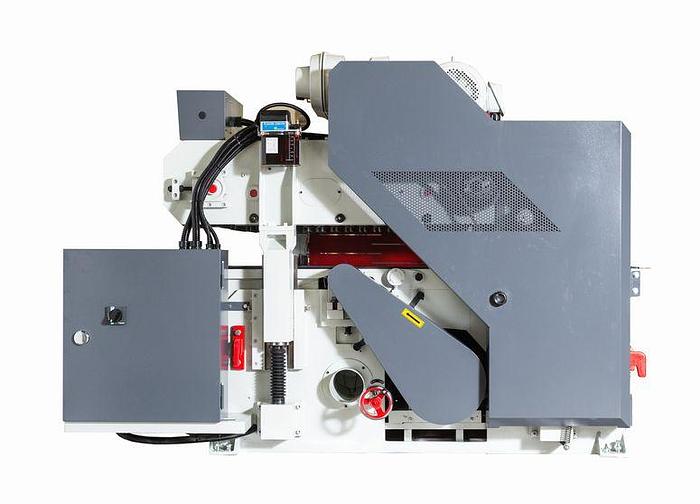

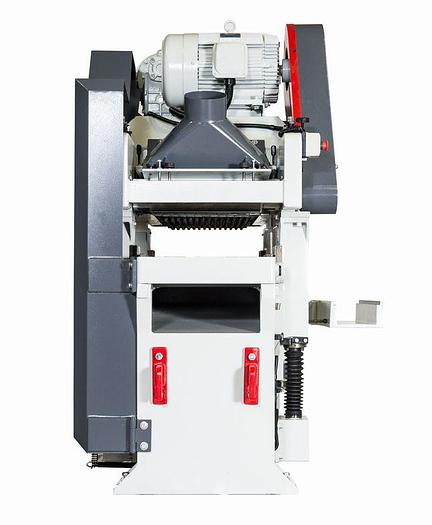

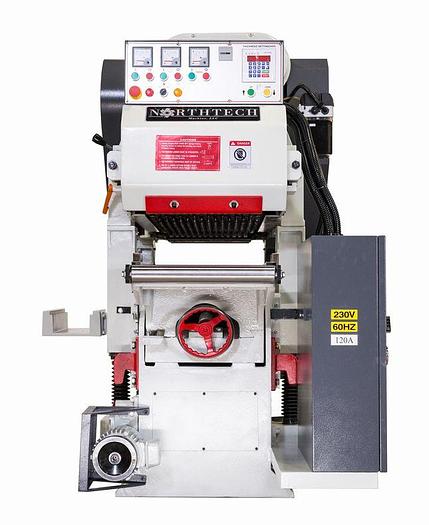

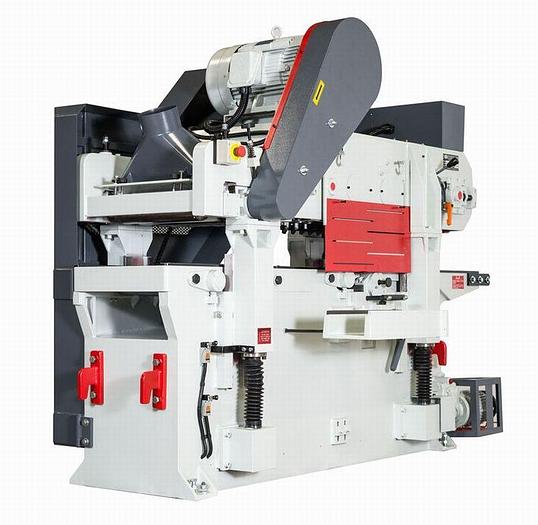

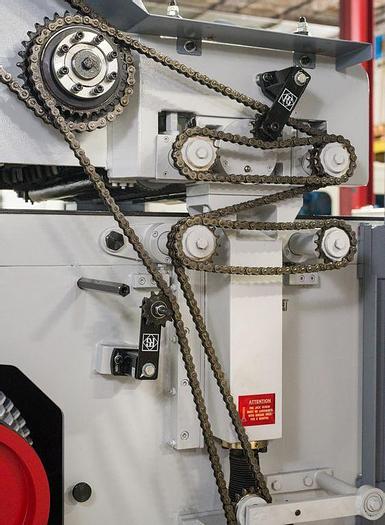

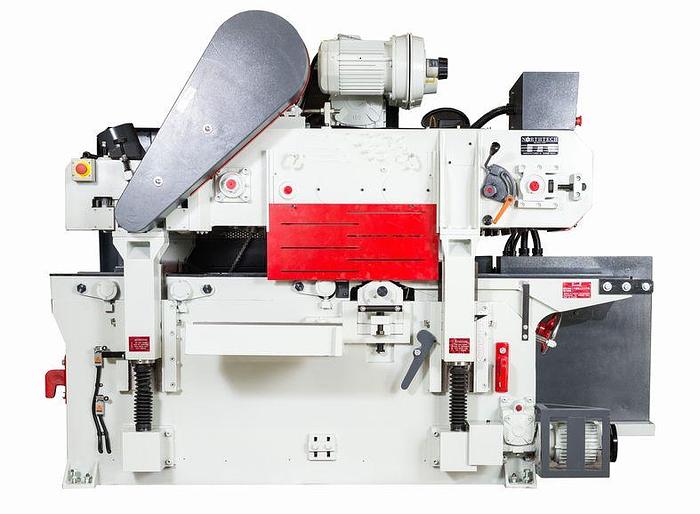

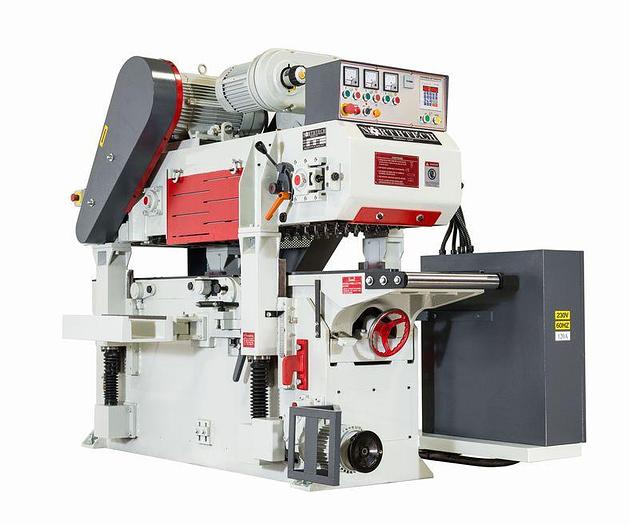

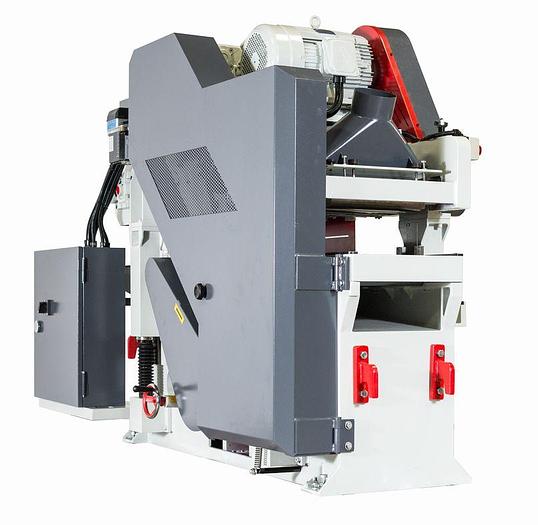

The NT 400XL is our 16″ chain drive double surfacer. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The NT 400XL has a 16″ working width and over 6″ working height, making it a very capable machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a smooth finish across the entire width. The powered top and bottom feed system is designed with integrated chrome bed rollers and a chain driven spring loaded carpet spike infeed. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a heavy duty slideway system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure.

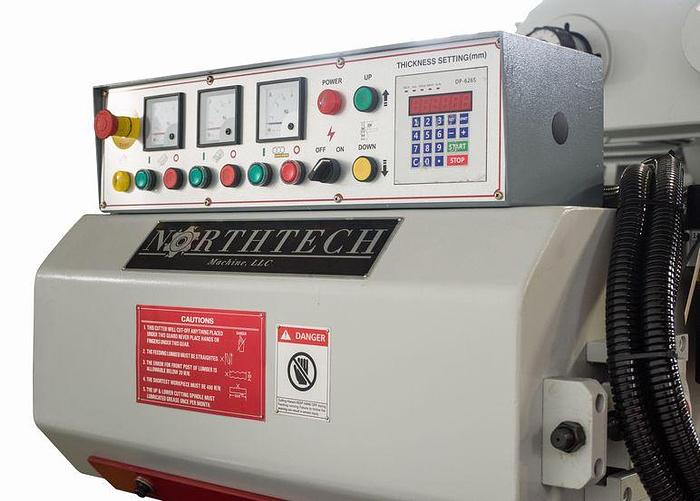

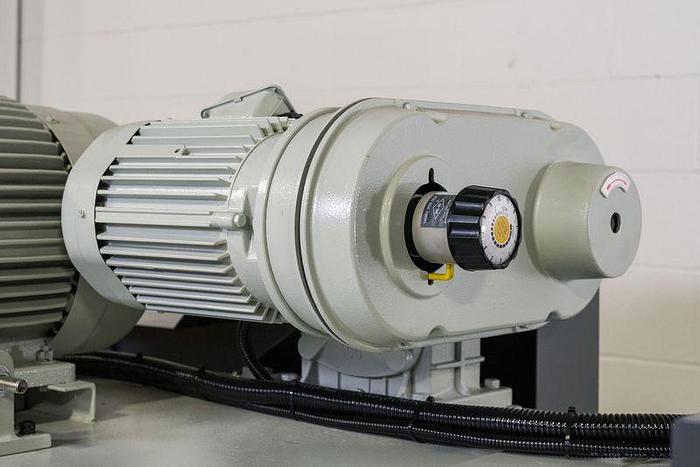

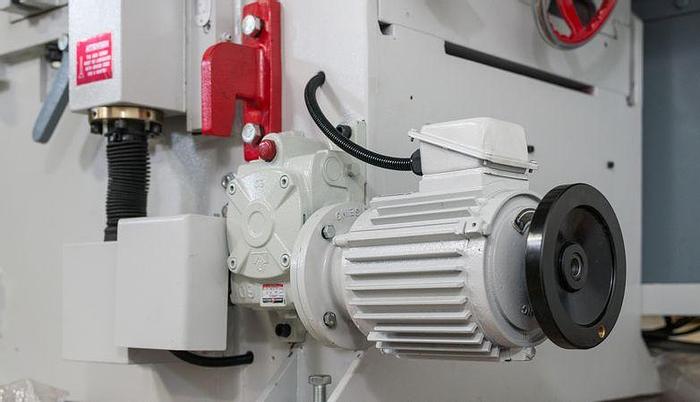

CUTTERHEADS 20HP Top, 15HP Bottom Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts 5100RPM solid steel cutterheads with Class 7 NSK bearings PRODUCT DIMENSIONS Working thickness 10 - 155mm (3/8” - 6-1/2”) 13” min working length 400mm (16”) maximum width FEED SYSTEM 2HP feed motor Carpet feeding spike system with 644 spikes Feed speed 25-85 FPM FEATURES 1HP elevation motor Mechanical variable speed Digital control panel with 3 amp meters Chrome bed plate .004’’ thick Amperage requirement: 230V/110 AMPS, 460V/55 AMPS (2) 6” dust ports requiring 981 CFM @ each point of extraction Lubricating system included UL/CE Certified electrical components Includes operator’s manual and parts book Net weight: 5,820 lbs. Gross weight: 6,000 lbs. Machine dimensions: L99” x W36” x H70” Packaging dimensions: L99” x W46” x H77” One year parts warranty All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.

Specifications

ManufacturerNorthtech
ConditionNew
Stock NumberNT 400XL
