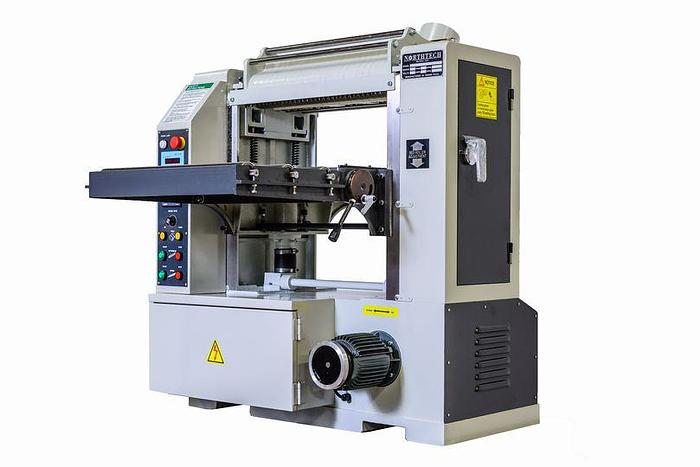

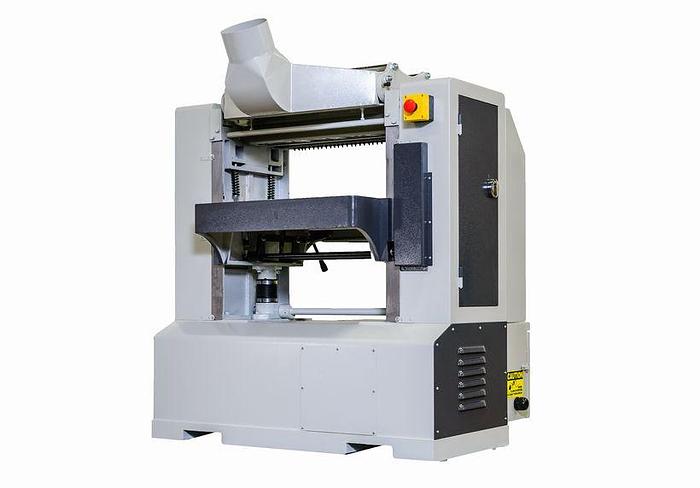

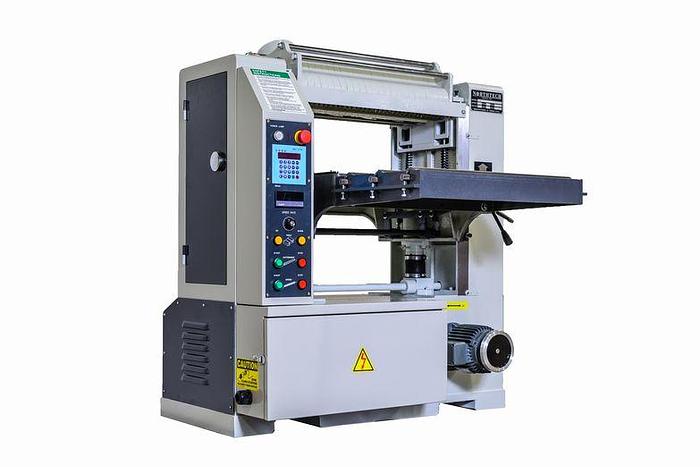

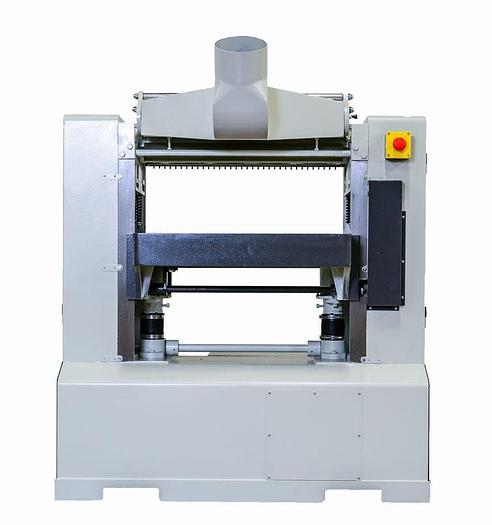

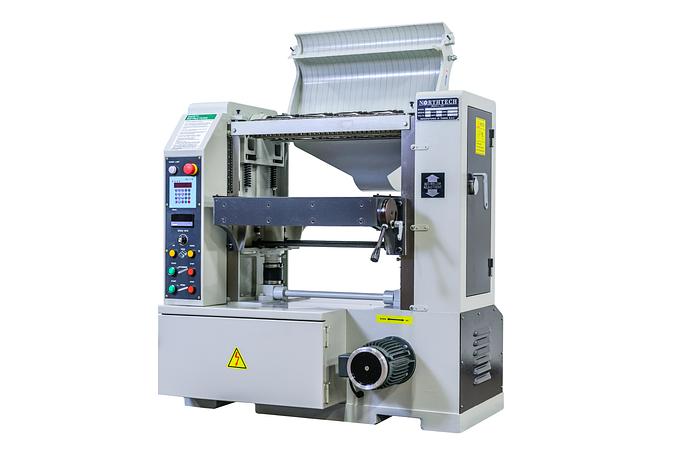

Northtech NT24-15HCVS-XL 15 HP Ultimate Single Surface Planer (w/ Helical Cutter Head)

Northtech NT24-15HCVS-XL 15 HP Ultimate Single Surface Planer (w/ Helical Cutter Head)

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

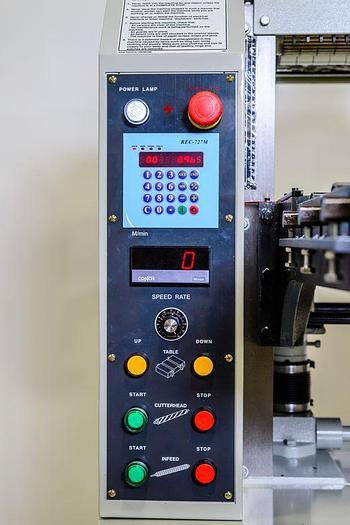

The NT 24-15HCVS is our most popular model being is the best value available which, is why we call it the Ultimate. The 24″ working width provides excellent the flexibility and versatility that makes the Ultimate a staple in many wood shops and large factories across the US. The Ultimate comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop and inverter speed control. It also comes standard with limit switches to restrict head access while on, front and rear emergency stop buttons, and anti kick back fingers for added safety. The corrugated sectional infeed roller with smooth non marking outfeed roller coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. The 15HP motor powers the cutter head through any specie of material while providing a pristine finish. Unlike many competitive models, all Northtech feed rollers are synchronized to turn at the same speed.

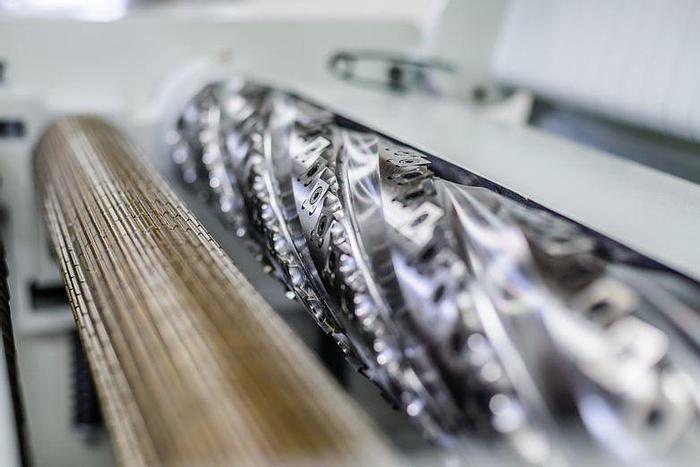

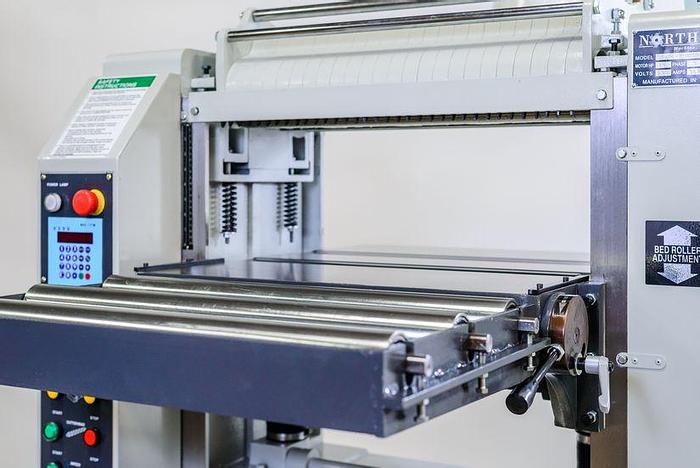

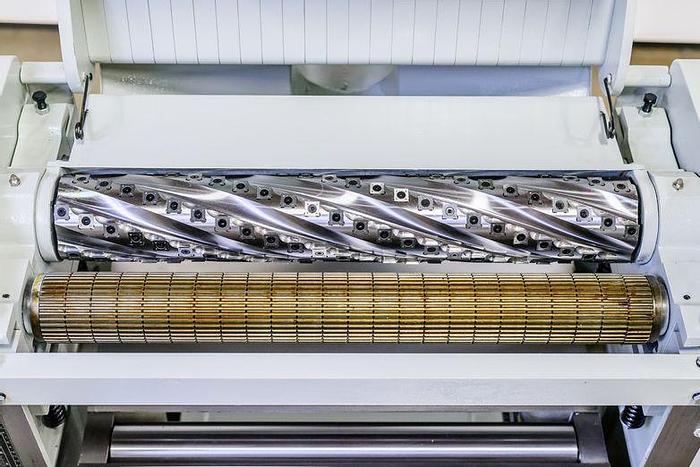

NT 24-15HCVSXL-1532 Single Surface Planer FEED SYSTEM •  Cutterhead motor:  15HP, 3PH 230V •  Power table motor: 1HP •  Feed drive motor:  1HP PRODUCT DIMENSIONS •  Stocking thickness range:  1.8" - 7.874" •  Max depth of cut:  5mm (3/16") •  Max. width of stock:  610mm (24") •  Cutterhead diameter:  80mm (3-1/4") FEATURES •  24" Helical Head with (6) rows of 15 x 15 x 2.5mm 4-way carbide inserts. •  Spiral cutterhead provides high chip removal rate, superior surface finish at low noise levels. •  Range of feed speed:  0-75 ft./min. variable inverter. •  Quick adjust bed rollers •  Powered table elevation for fast and convenient thickness setting via the digital control. •  Extra heavy rib reinforced cast iron table with precision ground surface. •  Corrugated sectional infeed roller has independent sections for running strip stock of varying thickness. •  Table area:  25" x 27-1/4" (635 x 692mm) •  Net weight 1,525 lbs. •  Gross weight 1,630 lbs. •  Packing dimensions:  (L) 49" x (W) 36" x (H) 54" •  (1) Tool box •  Warranty is one year parts •  All machines are tested stateside prior to shipment providing trouble free start up.


Specifications

ManufacturerNorthtech
ConditionNew
Stock NumberNT24-15HCVS-XL
Top Head Hp.15 Hp.
Voltage/ Freq.230/460 Volt 60Hz
Phase3 Phase
Amp Requirement19/38.6 Amps
Feed Hp.1 Hp.
Feed SystemSegmented Roller Power Roller
Drive SystemBelt
Feed Speed5 – 70 FPM
Variable SpeedInverter Controlled
Elevation Hp.1 Hp.
Elevation StyleREC 727M Elevation Control

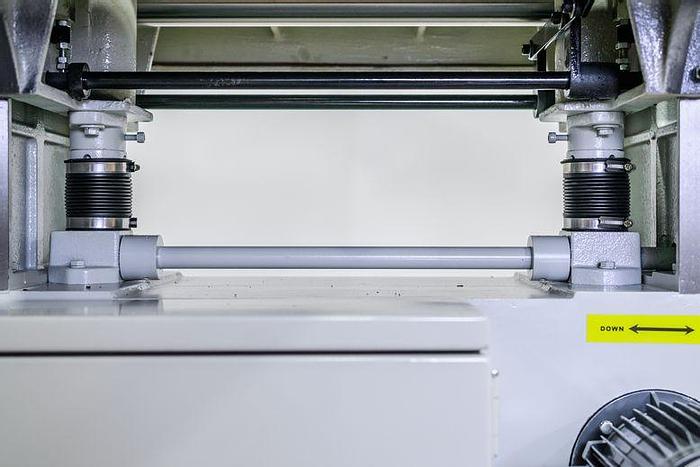

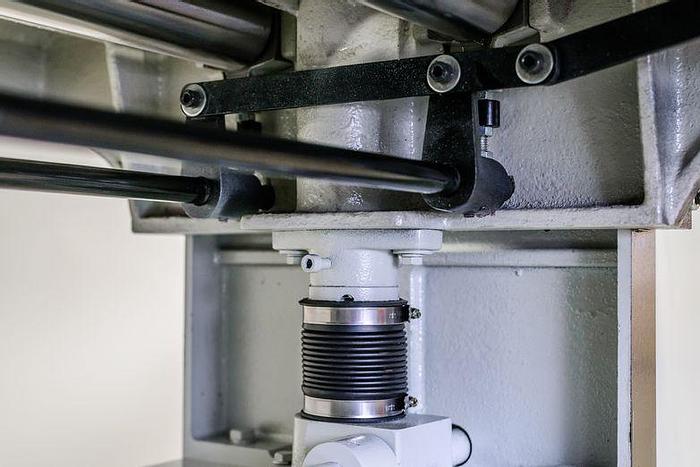

Elevation Sys.(2) Post Jack Screw
Total Hp.17 Hp.
ElectronicsCE Approved Components
Dual Voltage230/460 Volt
Control Voltage110 Volt
ProgrammableREC 727M Elevation Control
Min. Length10”
Max. Width24”
Min. Thickness3/16″
Max. Thickness7-3/4”
Cutter Head RPM5250 Rpm
Tooling15 x 15 x 2.5 mm
Head TypeDynamically Balanced Helical Head
Cutter Head Dim3-3/4” x 24”
Cut Head Matl.Alloy Steel
Rows of Cutters6 Rows
No. of Inserts144 Inserts
Insert Size15 x 15 x 2.5 mm
Dust Port Out6” Top
Digital DisplayElevation and Feed Speed
Powered Rollers2 Top Powered Rollers
Idle Rollers(2) Idle Bed Rollers
Pressure Shoes24” Spring Loaded Pressure
Frame Const.1/4” Steel/Cast Iron Construc

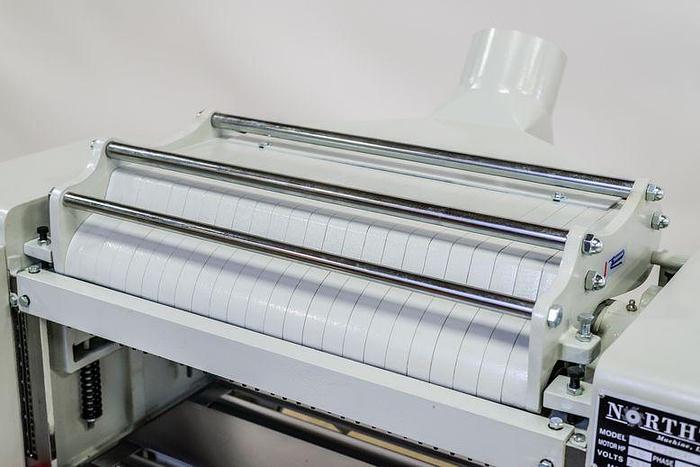

Infeed Table15-1/2” 3 Roll Infeed Table
Decible Rating77 dB
Net Weight1525 Lbs.
Gross Weight1630 Lbs.
Machine Dimensions43” x 45” x 55”
Packaging Dimensions46” x 49” x 54”
