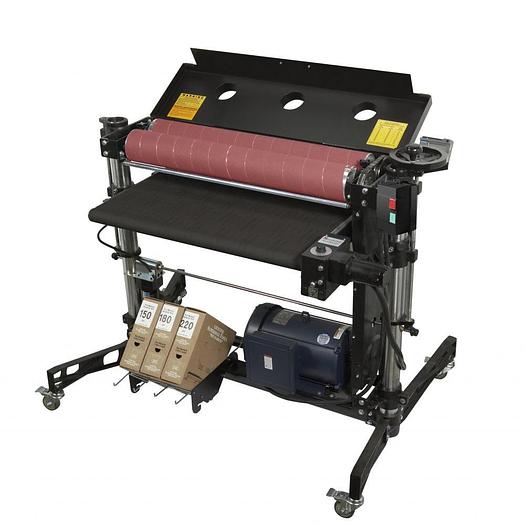

SuperMax, 37×2 Double Drum Sander

SuperMax, 37×2 Double Drum Sander

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

37x2 Double Drum Sander

Sand two grits in a single pass with a 37×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP 220 Volt 1 phase motor, you can significantly reduce the amount of time you spend sanding.

The 37×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor. Available in Single phase only.


Features:

INTELLISAND Technology: Automatically adjusts conveyor speed based on load

  • Prevents gouging, damaging or burning stock
  • Provides consistent finish even with varying grain pattern and density
  • Greatly increases abrasive planing and dimensioning speed


Sanding Capacity

  • Maximum Width (in): 37″
  • Minimum Length (in): 3-½″
  • Maxiumum Thickness (in): 12″
  • Minimum Thickness (in): 1/32″

Dimensions (H x W x D): 43″ x 58″ x 31″

Drum (Extruded Aluminum): 5″ x 37″

Drum Speed: 1740 RPM

Dust Hood (Steel Hood, Hinged At Back): (3) – 4″ Vacuum ports, Min. CFM: 1000 recommended

Ball Bearings (1″): 4, sealed and permanently lubricated

Conveyor Motor: 100 in.-lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM

Drive Motor (TEFC): 5 HP

Power Requirements: 208-230V, 60Hz, 1 Phase 30 Amp Service; 3 Phase 20 Amp Service

Shipping Dimensions (L x W x H): 62″ x 52″ x 45″


Specifications

ManufacturerSuper Max
Model37×2 Double Drum Sander
ConditionNew
Stock NumberSUPMX-937003
