SuperMax, 25 X 2 Double Drum Sander

SuperMax, 25 X 2 Double Drum Sander

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374

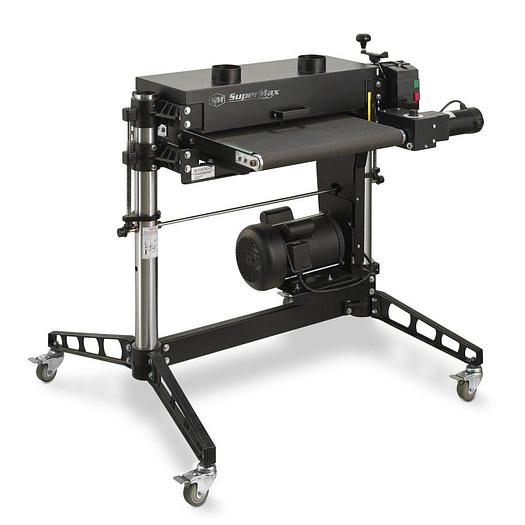

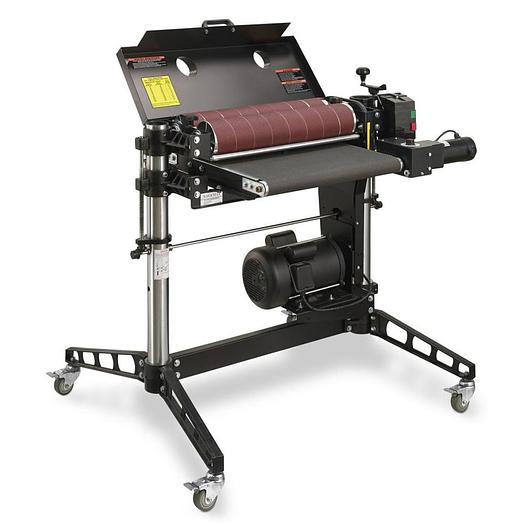

25x2 Double Drum Sander

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

Need a larger machine? Check out our 37×2 Drum Sander.


INTELLISAND Technology: Automatically adjusts conveyor speed based on load

– Prevents gouging, damaging or burning stock

– Provides consistent finish even with varying grain pattern and density

– Greatly increases abrasive planing and dimensioning

Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010 across the width of the sander.

Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter and thinner.

Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loosening, and overlapping.

Self-cooling drum prevents overheating and extends abrasive life.

The 25×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor.


ManufacturerSuper Max
Model25 X 2 Double Drum Sander
Stock NumberSUPMX-913002
Maximum Width (in)25″
Minimum Length (in)3-½″
Maximum Thickness (in)6″
Minimum Thickness (in)1/32″
Drum (Extruded Aluminum)5″ x 25″
Drum Speed1740 RPM
Dust Hood (Steel Hood, Hinged At Back)(2) 4″ Vacuum Ports, Min CFM: 1000 Recommended
Ball Bearing (1″)4 sealed and permanently lubricated
Drive Motor (TEFC)5 HP, 1 Phase
Shipping Weight475 lbs
Shipping Dimensions (L x W x H)50″ x 44-½″ x 44-½″
Conveyor Motor100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM
