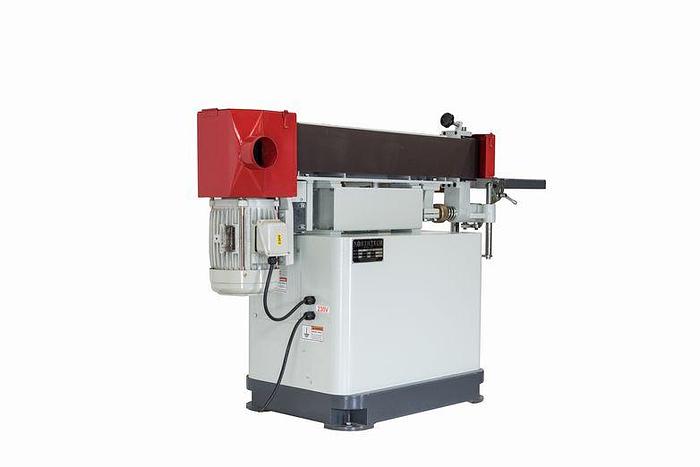

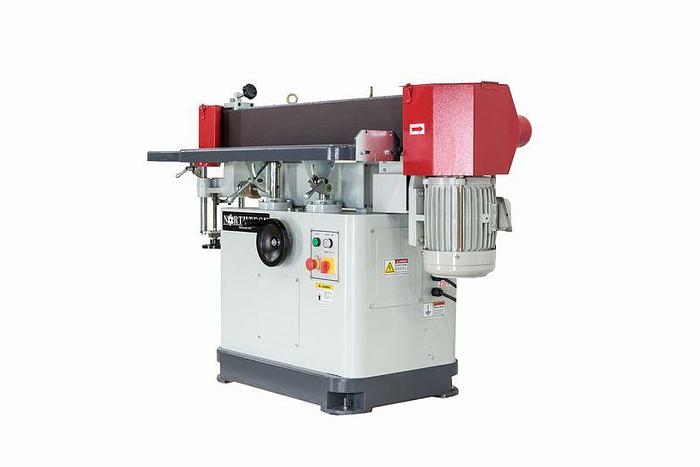

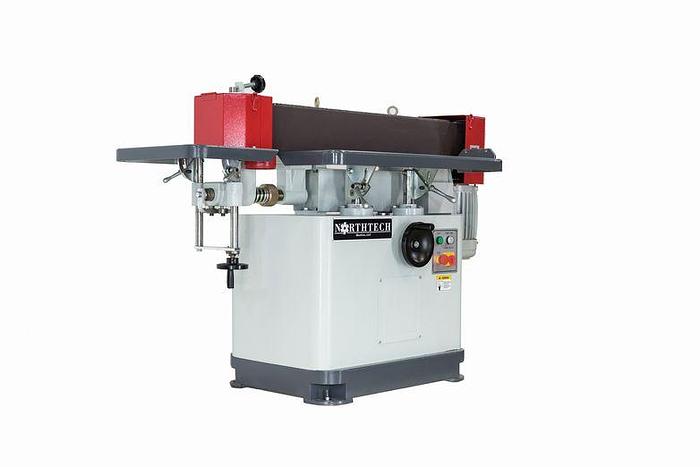

Northtech NT-ES636SE 6'' X 36'' Edge Sander Single Table

Northtech NT-ES636SE 6'' X 36'' Edge Sander Single Table
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description
NT-ES636SE EDGE SANDER SINGLE TABLE

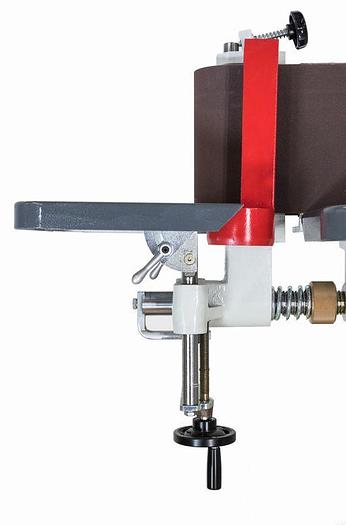

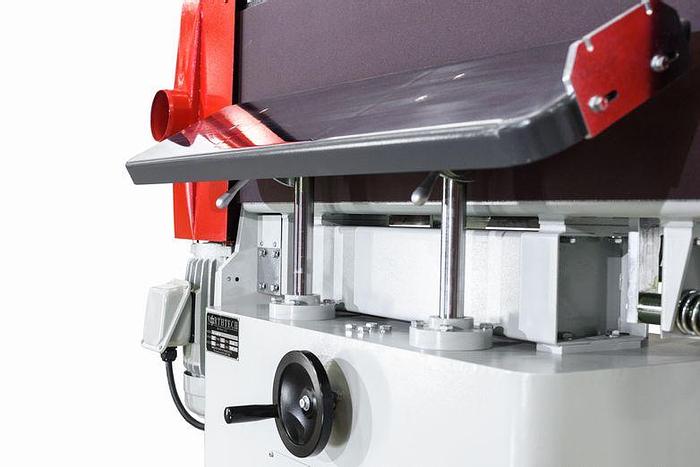

Northtech edge sanders are built for industrial use. The NT-ES636DE is our most compact edge sander that has a 6″x36″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy-duty cast iron frame provide a vibration free base and heavy stock removal capability.
Specifications
| Manufacturer | Northtech |
| Condition | New |
| Stock Number | NT-ES636SE |
| MACHINE HP | 3 HP |
| DIRECT DRIVE (MOTOR) | Motor to 7'' x 6-5/8'' Pulley |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 9/4.5 Amps |
| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | (2) Post Jack Screw |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 24 Volt Control Voltage |
| PASS-LINE | 32'' |
| MAX. WORKING LENGTH | 36'' |
| MAX. WORKING WIDTH | 6'' |
| SANDPAPER SIZE | 6'' x 109'' |
| PLATEN SPECIFICATIONS | 6'' x 36'' |
| 1st BELT SPEED | 3300 FPM |
| OSCILLATION STYLE | Gear Box with Cam |
| OSCILLATION RATE | 30 Cycles/Minute |
| OSCILLATION TRAVEL | 1/2'' |
| TRACKING STYLE | Manual Knob Adjustment |
| TENSION STYLE | Manual Knob Adjustment |
| VERTICAL TRAVEL | 4'' Table Travel |
| DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (2) 4'' |
| EMERGENCY STOP | Push Button |
| GUARDING | High Visibility Guarding |
| FENCE TYPE | Jig Fence |
| TILT-ABLE | 0-45 Degrees |
| FRAME CONSTRUCTION | 1/4'' Steel Construction |
| END TABLE DIMENSIONS | 13-3/4'' x 16-1/2'' |
| WORKTABLE DIMENSIONS | 10-1/2'' x 35-3/4'' |
| TABLE CONSTRUCTION MATERIAL | Chromed Steel |
| DECIBEL RATING | 72 dB |
| NET WEIGHT | 570 Lbs. |
| GROSS WEIGHT | 722 Lbs. |
| MACHINE DIMENSIONS | 64'' x 25'' x 39-1/2'' |
| PACKAGING DIMENSIONS | 68'' x 30'' x 49-1/2'' |
