Northtech NT-ES1248SE Edge Sander Single Table

or
Call +1 (607) 678-4374
Description

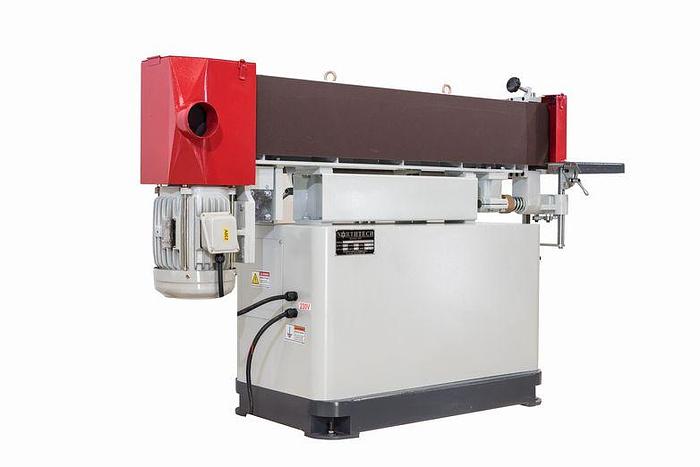

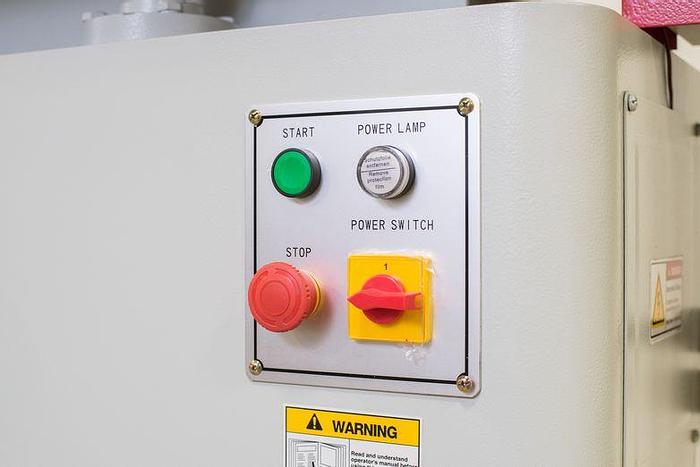

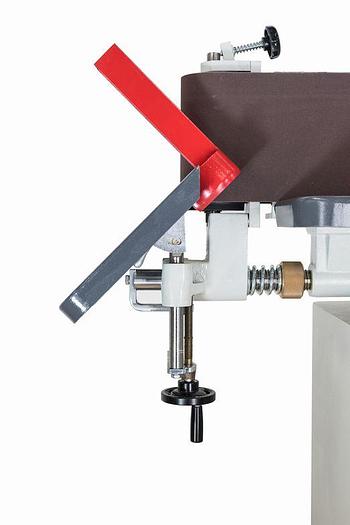

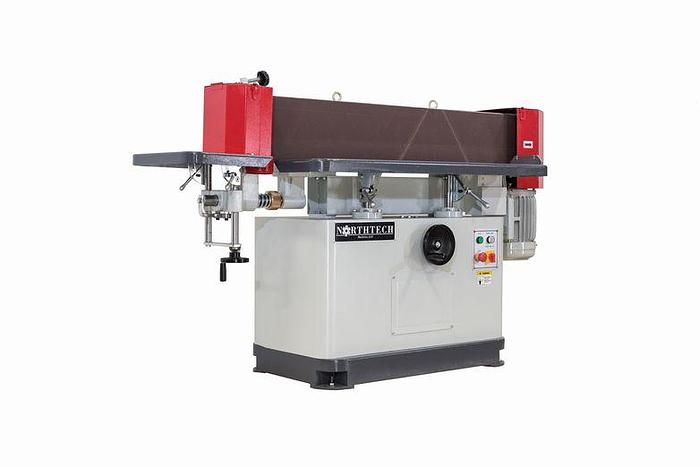

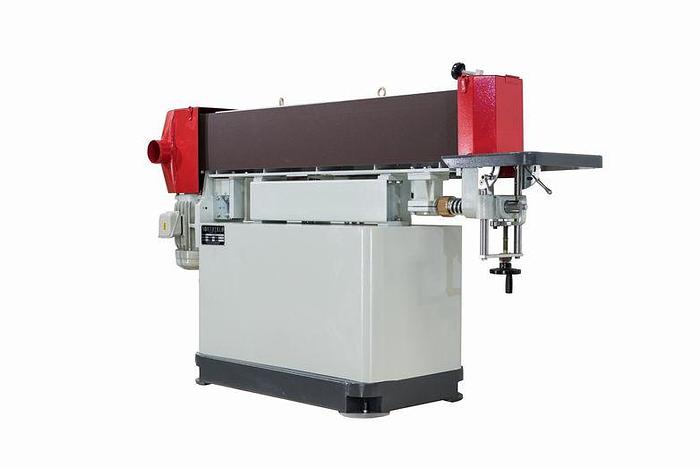

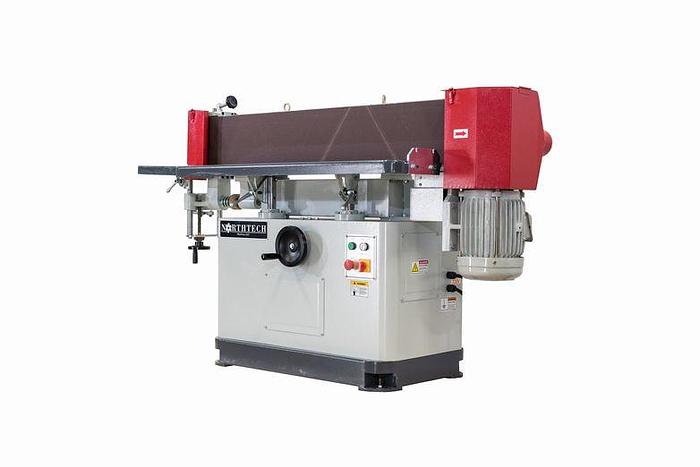

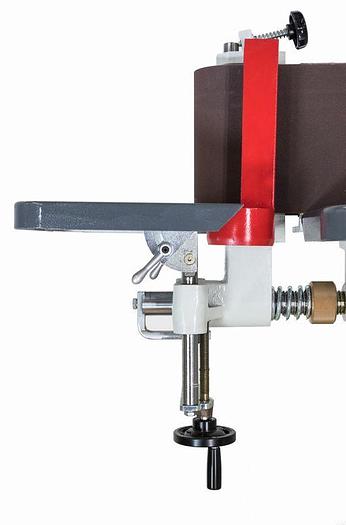

Northtech offers a large family of industrial grade edge sanders. The NT-ES948SE falls into the middle of the family of edge sanders with a 9″x48″ sanding area on one side of the machine along with an end table for smaller and contoured sanding work. The single table design allows a centrally located control panel that is easily accessible. Chrome side tables are tiltable to 45 degrees and are on a gear-driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provide a vibration free base and heavy stock removal capability.
Specifications
| Manufacturer | Northtech |
| Model | NT-ES1248SE |
| Condition | New |
| Stock Number | NT-ES1248SE |
| MACHINE HP | 7.5 HP |
| DIRECT DRIVE (MOTOR) | Motor to 7'' x 12'' Pulley |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 22/11 Amps |
| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | (2) Post Jack Screw |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 24 Volt Control Voltage |
| PASS-LINE | 32'' |
| SANDPAPER SIZE | 12'' x 136'' |

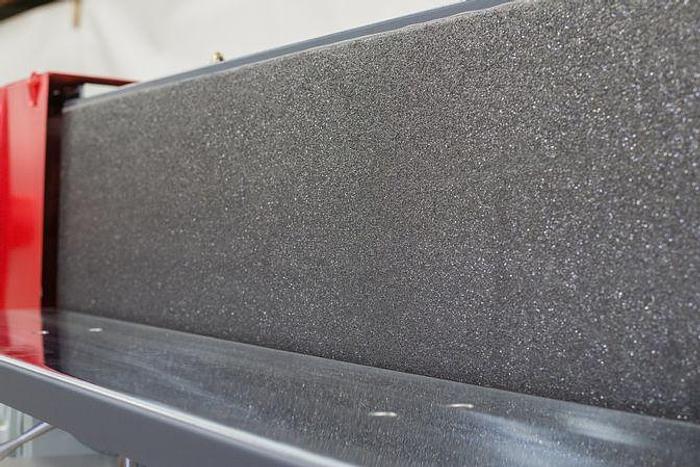

| PLATEN SPECIFICATIONS | 12'' x 48'' |

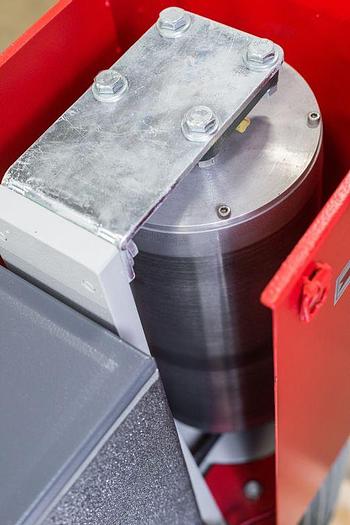

| DRUM SPECIFICATIONS | 7''x 12'' Steel 4-3/4''x 12-1/2'' Rubber |
| OSCILLATION STYLE | Gear Box with Cam |
| OSCILLATION RATE | 30 Cycles/Minute |
| OSCILLATION TRAVEL | 1/2'' |

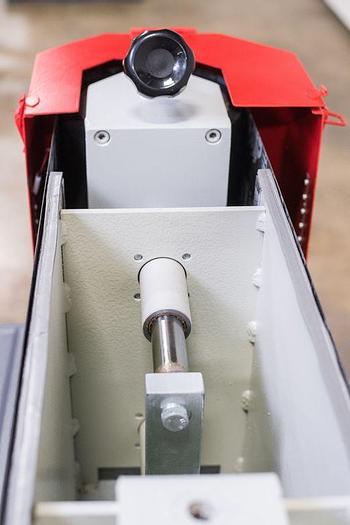

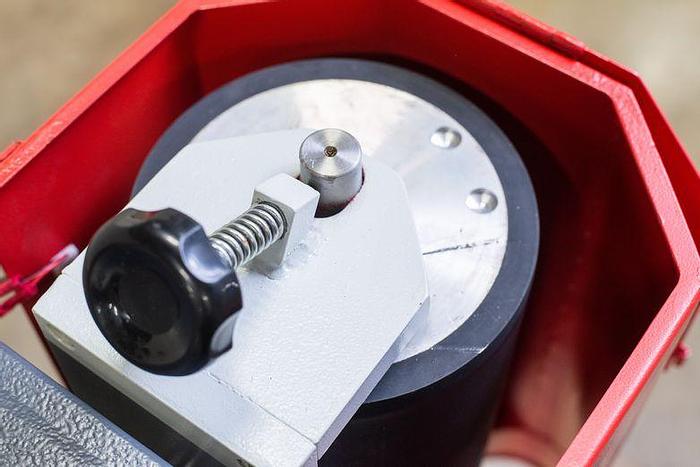

| TRACKING STYLE | Manual Knob Adjustment |

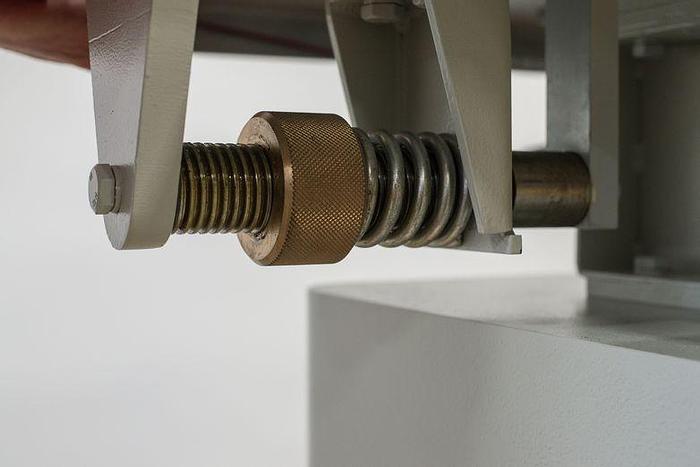

| TENSION STYLE | Manual Knob Adjustment |
| VERTICAL TRAVEL | 5-3/4'' Table Adjustment |
| DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (2) 4'' |
| EMERGENCY STOP | Push Button |
| GUARDING | High Visibility Guarding |
| FENCE TYPE | Jig Fence |
| TILT-ABLE | 0-45 Degrees |
| FRAME CONSTRUCTION | 1/4'' Steel Construction |
| END TABLE DIMENSIONS | 13-3/4'' x 16-1/2'' |
| WORKTABLE DIMENSIONS | 10-1/2'' x 48'' |
| TABLE CONSTRUCTION MATERIAL | Chromed Steel |
| DECIBEL RATING | 77 dB |
| NET WEIGHT | 915 Lbs. |
| GROSS WEIGHT | 940 Lbs. |
| MACHINE DIMENSIONS | 69'' x 25'' x 49'' |
| PACKAGING DIMENSIONS | 82'' x 30'' x 55'' |
