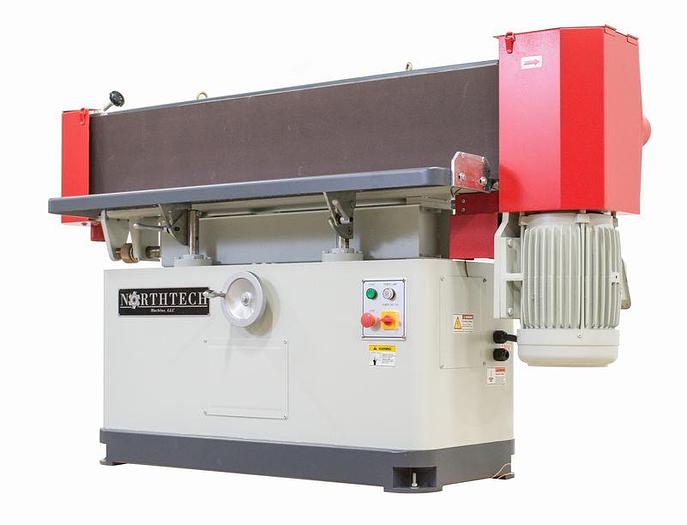

Northtech, NT ES1260D 12″ X 60″ Capacity Single Sided or Dual Sided Oscillating Edge Sander

Northtech, NT ES1260D 12″ X 60″ Capacity Single Sided or Dual Sided Oscillating Edge Sander

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

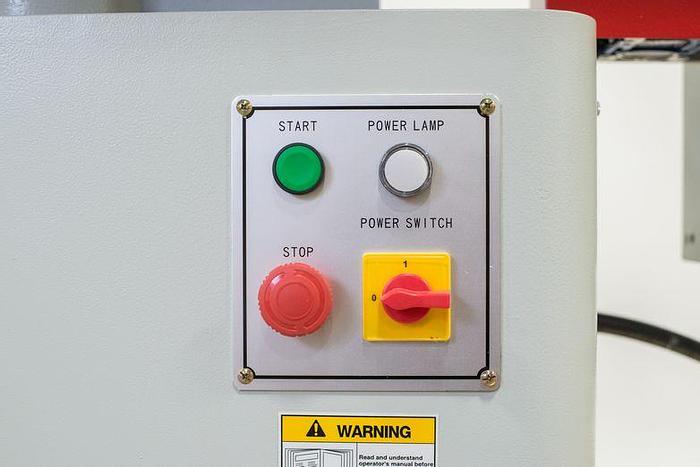

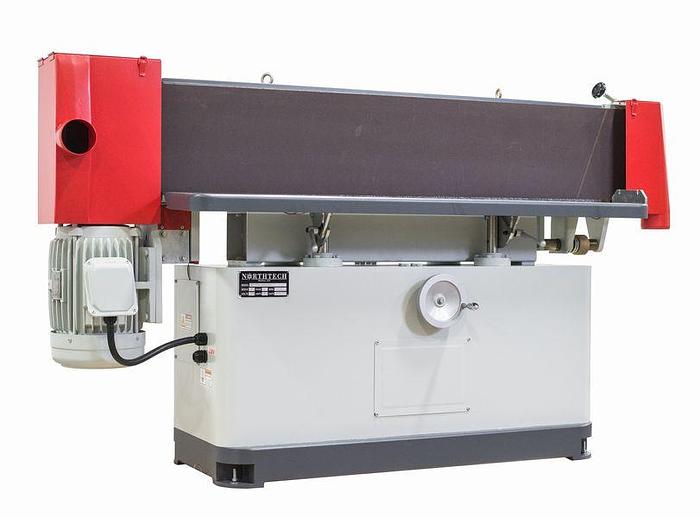

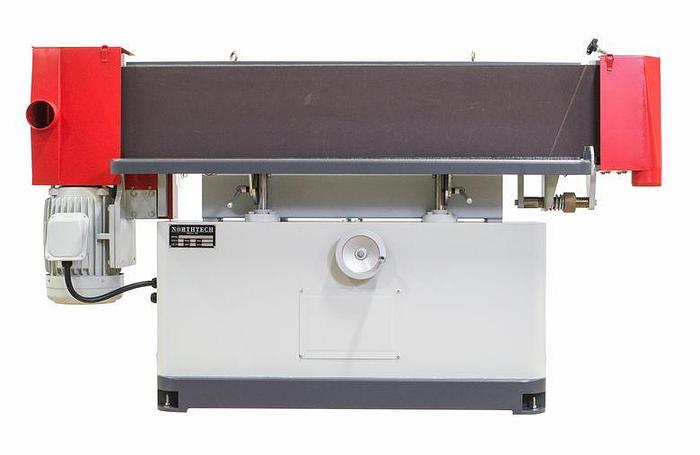

Northtech offers a large family of industrial grade edge sanders. The NT-ES1260D falls into the middle of the family of edge sanders with a 12″x60″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provides a vibration free base and heavy stock removal capability.

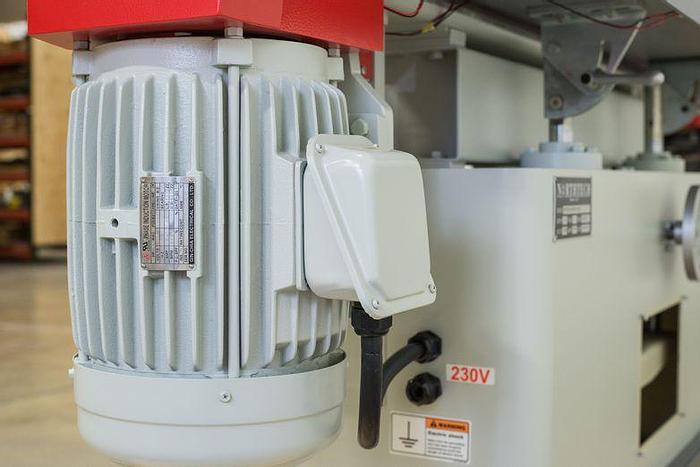

• 10HP main motor; 3PH, 230V/460V Dual Voltage

• 12mm (1/2") oscillating stroke

• Drive wheel: 7" x 12"

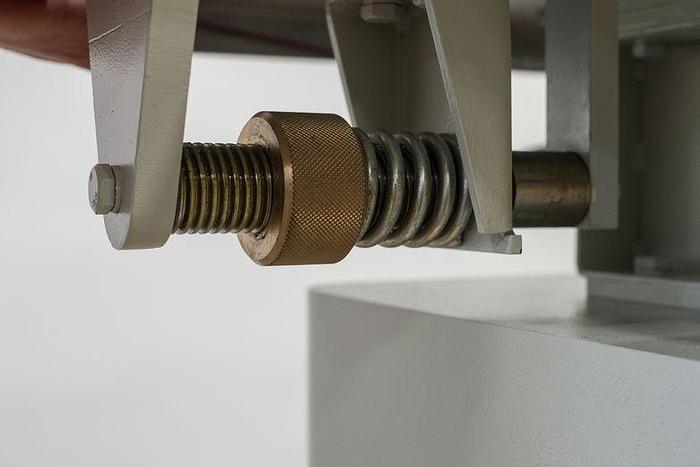

• Easy elevation control through manual worm gear

• Side table dimensions: 10-3/8" x 60-11/16"

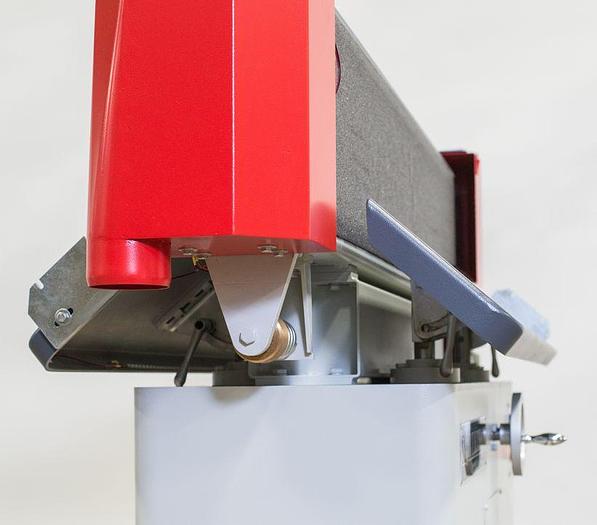

• Side table tilt 0° - 45° • End  table dimensions: 13-3/4" x 16-1/2"

• End table tilt: 0° - 45°

• Sanding belt size: 12" x 165" (Included)

• Sanding belt speed: 60HZ, 3200 FPM

• Platen size: (2) 13" x 60" • Dust ports: (2) 4"

• Easy jig fences are standard for squaring accuracy and part stability

• Machine Dimensions: 83" x 29" x 49"

• Packaging Dimensions: 87" x 34" x 56"

• Net weight: 1,100 lbs

• Gross weight: 1,340 lbs

• (1) Tool box

• Warranty is one year parts


Specifications

ManufacturerNorthtech
ModelNT-ES1260D
ConditionNew
Stock Number1160
DIRECT DRIVEMotor to 7” x 13” Pulley

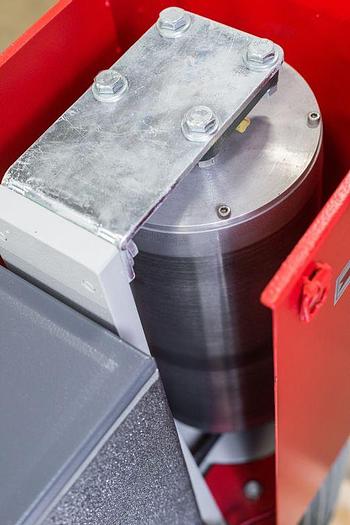

DRUM SPECS7”x 13” Steel 7”x 12.5” Rubber
MACHINE HP.10 hp.
VOLTAGE / FREQ.230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIRMENT30 Amps
ELECTRONICSCE Approved Components
DUAL VOLTAGE230/460 Volt
CONTROL VOLTAGE24 Volt Control Voltage

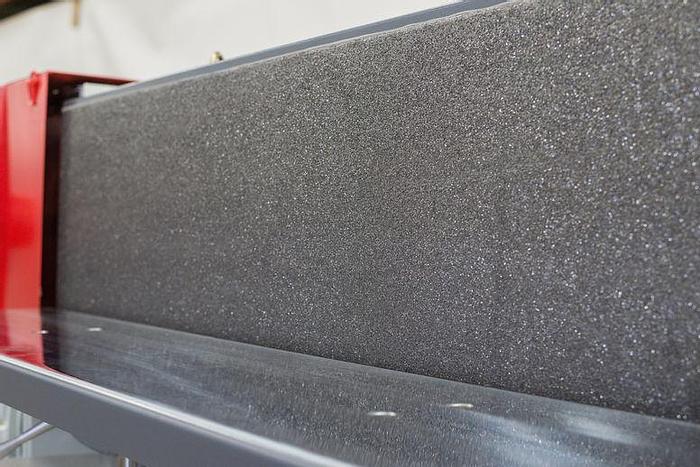

SANDPAPER SIZE12” x 165”

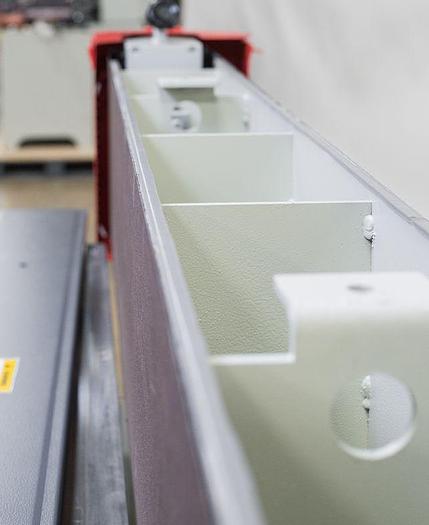

PLATEN SPECS.13” x 60”
ROLLER TYPESteel / Rubber
OSCILLATION STYGear Box Driven
OSCILLATION TRAVEL1/2”

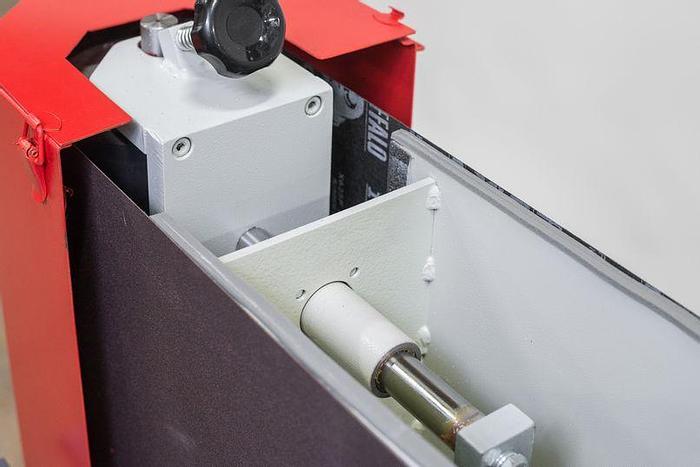

TRACKING STYLEManual Adjustment
TENSION STYLEManual Adjustment
DUST COLLECTION872 CFM @ Extraction Point
DUST PORT SIZE OUTLET2 4” Top
RECOMMENDED CFM480 nl/min
EMERGENCY STOPPush Button
GUARDINGHigh Visibility Guarding
TILTABLE45 Degrees
WORKTABLE DIMENSIONS10-1/2” x 59-1/2”
SIDE TABLE DIMENSIONS10-3/8” x 60-11/16”
TABLE CONSTRUCTION MATERIALSteel
DECIBEL RATING79 dB
NET WEIGHT1100 Lbs.
GROSS WEIGHT1340 Lbs.
MACHINE DIMENSIONS83” x 29” x 49”
PACKAGING DIMENSIONS87” x 34” x 56”
