Description

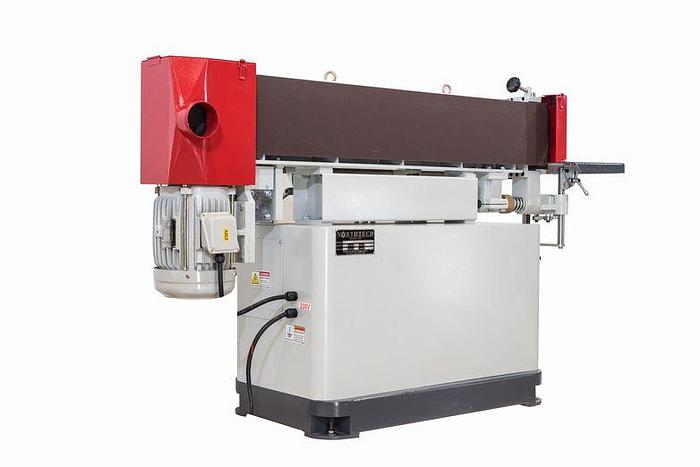

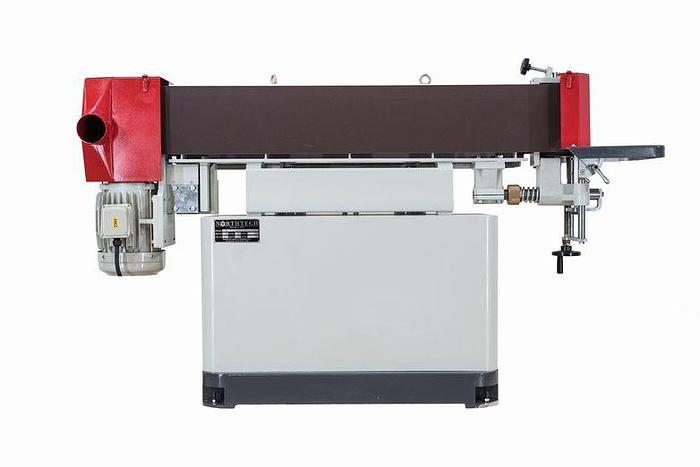

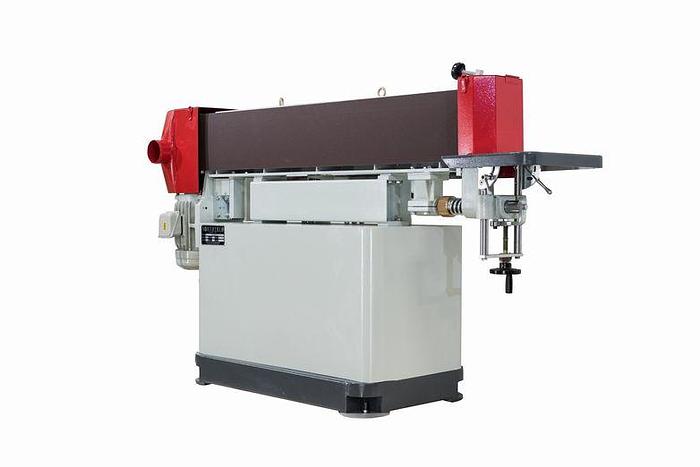

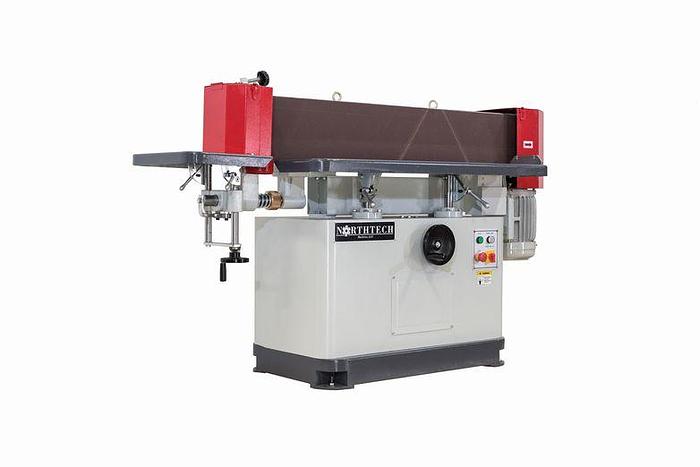

NT-ES948SE EDGE SANDER SINGLE TABLE

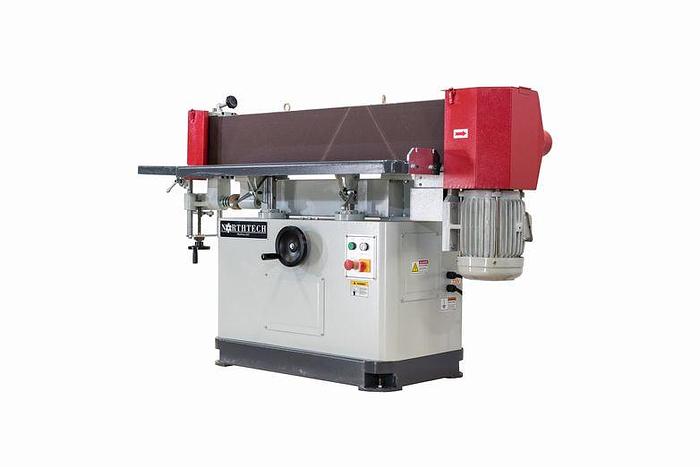

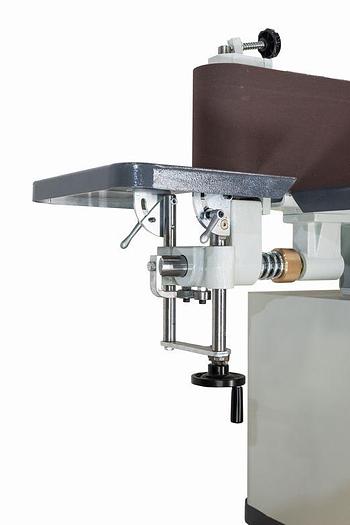

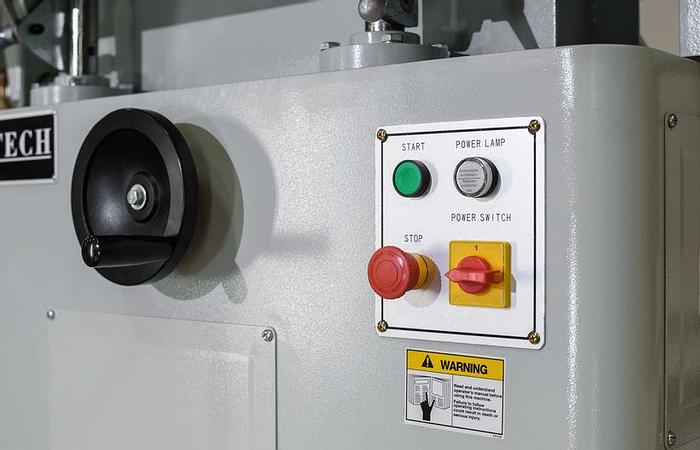

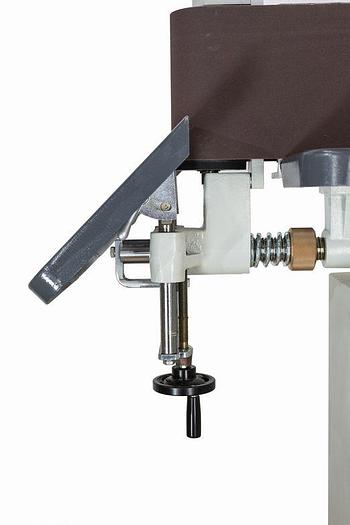

Northtech offers a large family of industrial grade edge sanders. The NT-ES948SE falls into the middle of the family of edge sanders and has a 9″x48″ sanding area on one side of the machine along with an end table for smaller and contoured sanding work. The single table design allows a centrally located control panel that is easily accessible. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provide a vibration free base and heavy stock removal capability.
Specifications
| Manufacturer | Northtech |
| Model | NT-ES948SE |
| Condition | New |
| Stock Number | NT-ES948SE |
| MACHINE HP | 5 HP |
| DIRECT DRIVE (MOTOR) | Motor to 7'' x 9-5/8'' Pulley |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 15/7.5 Amps |

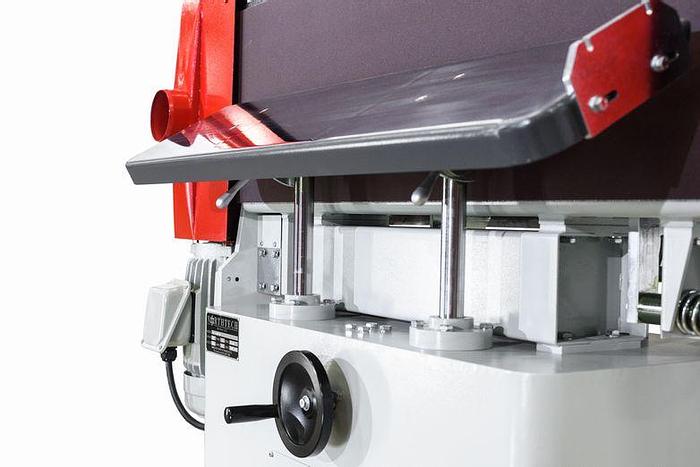

| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | (2) Post Jack Screw |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 24 Volt Control Voltage |
| PASS-LINE | 32'' |
| MAX. WORKING LENGTH | 48'' |
| MAX. WORKING WIDTH | 9'' |
| SANDPAPER SIZE | 9'' x 134'' |
| PLATEN SPECIFICATIONS | 9'' x 48'' |
| 1st BELT SPEED | 3300 FPM |
| OSCILLATION STYLE | Gear Box with Cam |
| OSCILLATION RATE | 30 Cycles/Minute |
| OSCILLATION TRAVEL | 1/2'' |
| TRACKING STYLE | Manual Knob Adjustment |

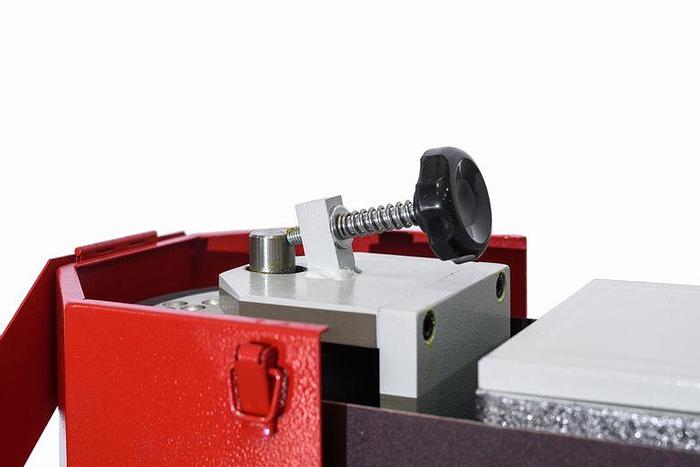

| TENSION STYLE | Manual Knob Adjustment |
| VERTICAL TRAVEL | 5-3/4'' Table Adjustment |
| DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (2) 4'' |
| EMERGENCY STOP | Push Button |
| GUARDING | High Visibility Guarding |
| FENCE TYPE | Jig Fence |
| FRAME CONSTRUCTION | 1/4'' Steel Construction |

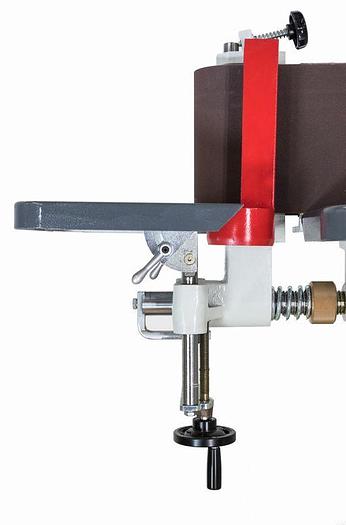

| END TABLE DIMENSIONS | 13-3/4'' x 16-1/2'' |
| WORKTABLE DIMENSIONS | 10-1/2'' x 48'' |
| TABLE CONSTRUCTION MATERIAL | Chromed Steel |
| DECIBEL RATING | 72 dB |
| NET WEIGHT | 696 Lbs. |
| GROSS WEIGHT | 870 Lbs. |
| MACHINE DIMENSIONS | 76'' x 25-1/2'' x 45-1/2'' |
| PACKAGING DIMENSIONS | 81'' x 30'' x 53 |
