Laguna, Industrial S|45T Shapers

Laguna, Industrial S|45T Shapers

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

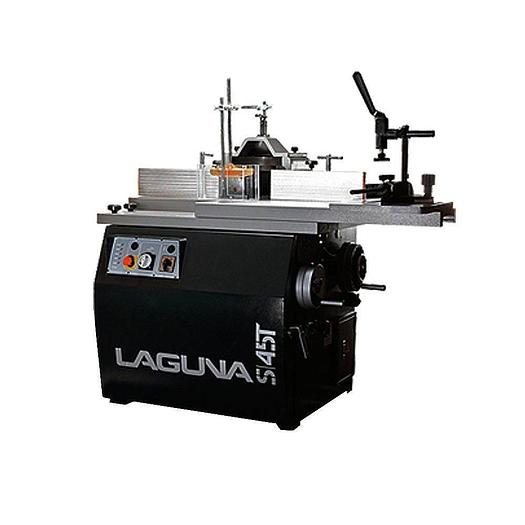

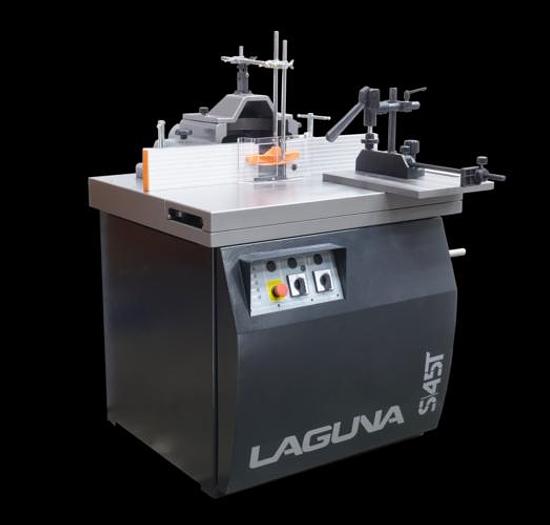

The Laguna S|45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop. The combination of dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum vibration.

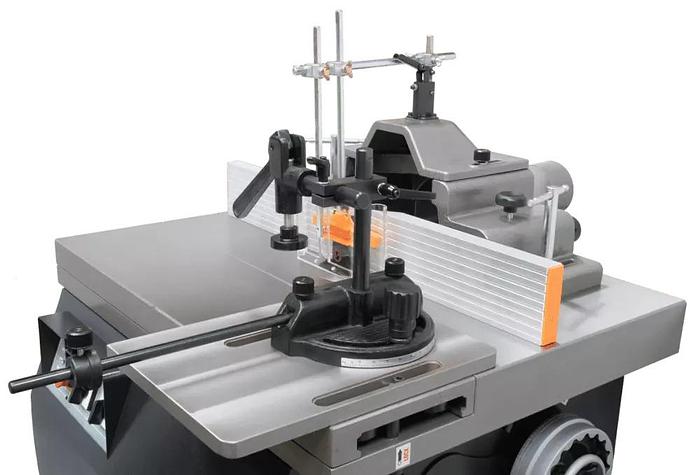

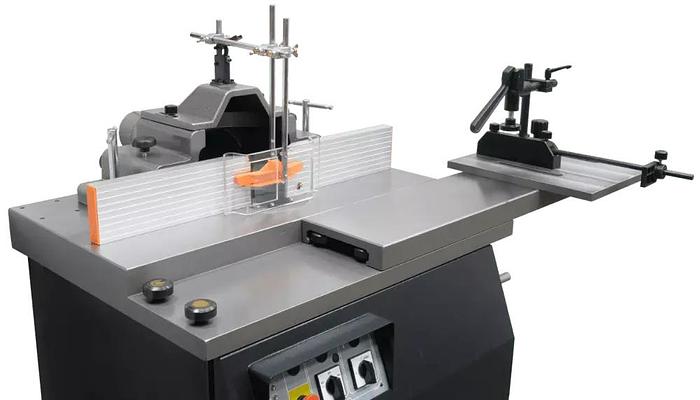

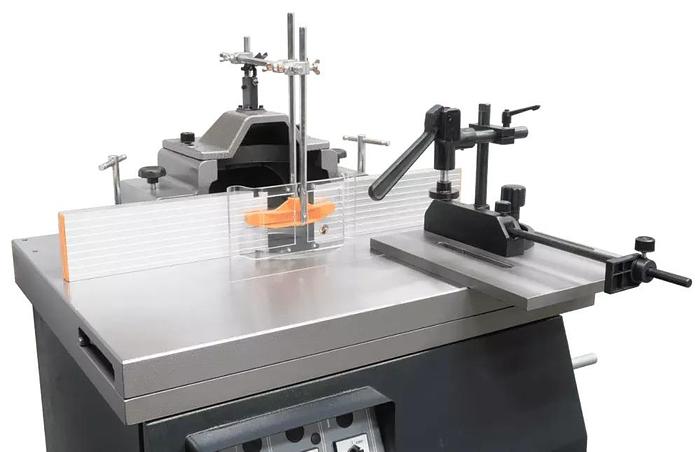

The versatile 45° backward & 10° forward tilting spindle makes using a feeder much easier & keeps the cutting action close to the cast table rather than shaping from the top. Oversized cast table pre-drilled to accept most feeders & featuring a sliding table with tenoning as standard. Complete with table & hold down clamp. The sliding table has a full 30” stroke from miter fence to center of spindle. Miter gauge adjusts +/- 45° The interchangeable spindle comes standard as 1 ¼”, but other sizes including router collets are available. The fence is made from heavy cast iron & easily adjusts w micro-adjusters for both in/out feed. LED lights display the desired RPM. The S45T is available in both 1 phase & 3 phase. Other voltages are also available upon request.

Specifications

ManufacturerLaguna
ModelS|45T
ConditionNew
Stock NumberMSHAPS45T-7.5-0167
Motor7.5HP, 3 phase, 220 Volt, 60 Hz.
Spindle Tilt45° Backwards, 10° Forward
Sliding Table10 ¼ X 39
Sliding Table Stroke18 ¾
Main Table Incl. S/T39 ½ X 31 5/8
Tenoning Table13 ¾ X 18 ½
Hold Down ClampIncluded
Tenoning Table Adjustment 7″ Slide To Spindle
Sliding Table Stroke19″ Right of Spindle, 19″ Left of Spindle
Sliding Table Far Right30″ Spindle To Miter Gauge
Table Height From Floor35-⅜″
Capacity Under Nut5″/125mm
Spindle Stroke7″/180mm
Spindle1-¼″ Interchangeable
Max Tooling Diameter8-¼″/210mm Under Table, 13″/335mm Above Table
RotationForward/Reverse
FenceMicro Adjust, Cast Body
Speeds3000/4000/6000/8000/10000 RPM

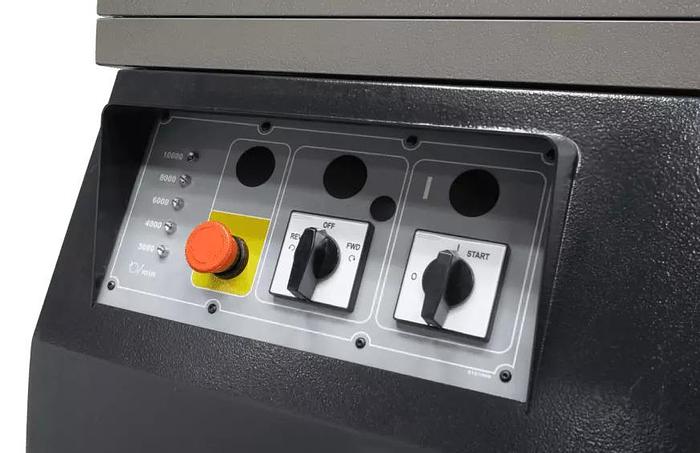

ReadoutLED Lights For Speeds
ReadoutMechanical Tilt & Spindle Height
FeederPre-drilled Left Back Corner
Router ColletAccepts, Not Included
Net/Ship Weight1056/1350 lbs
Shipping Dimensions (L x W x H)49″ x 45″ x 50″
