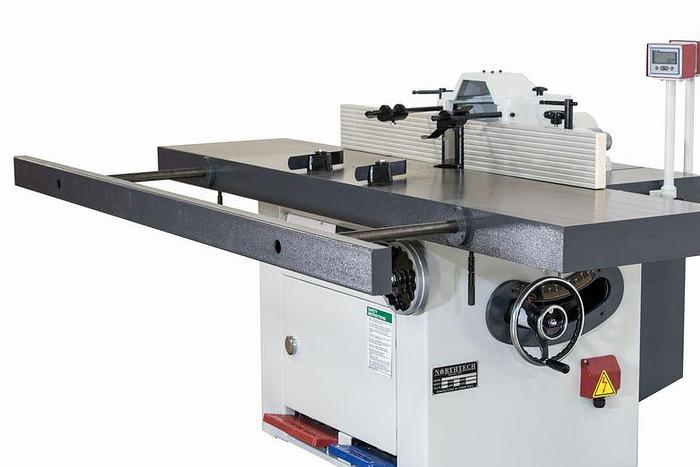

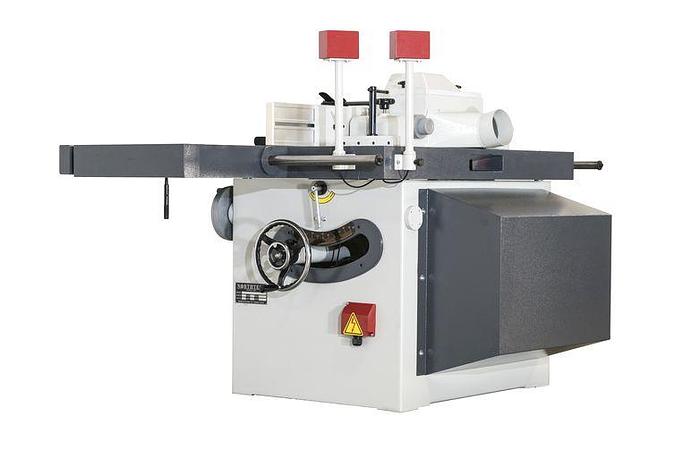

Northtech, NT-735LT Long Bed With Tilting Spindle

Northtech, NT-735LT Long Bed With Tilting Spindle

Contact us for price

Get Financing

Location:Dundee, NY

or
Call +1 (607) 678-4374

Description

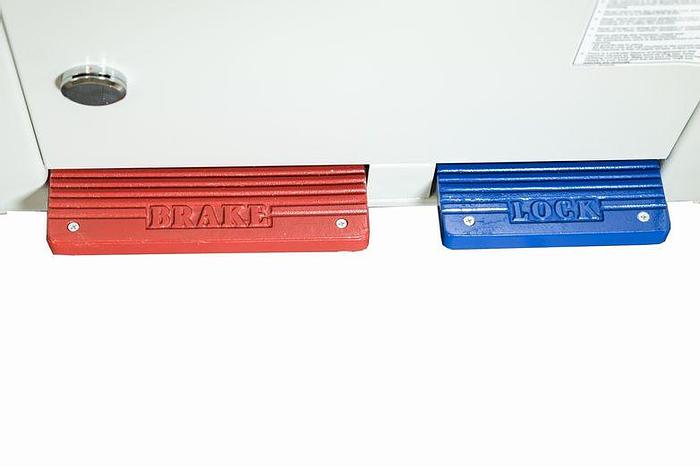

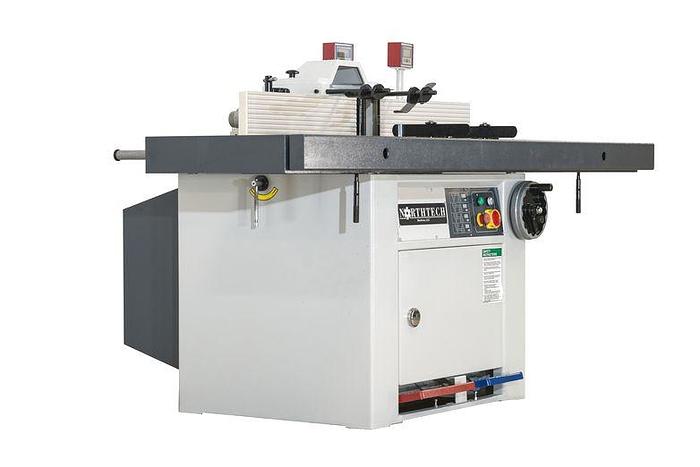

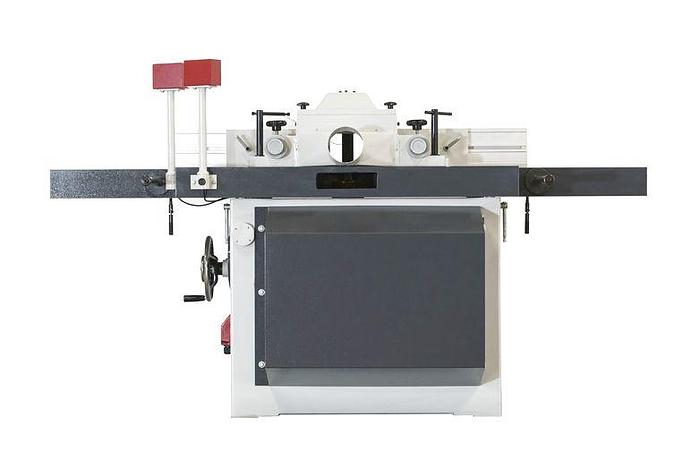

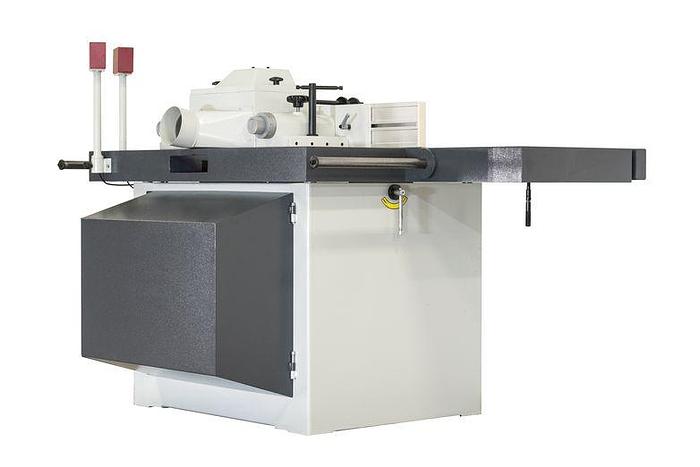

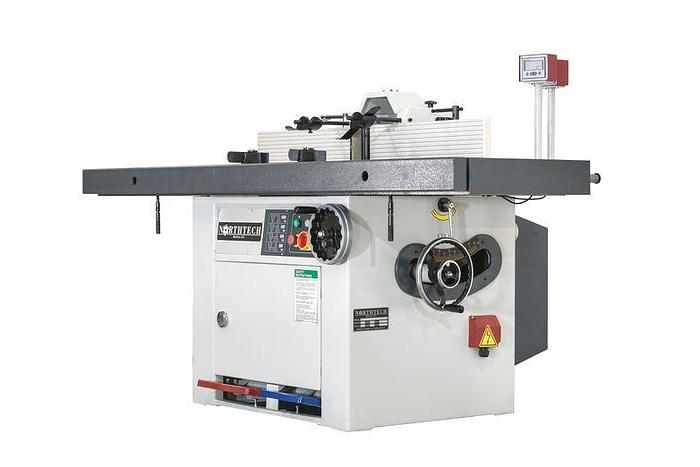

The NT 735LT shaper is our heavy duty 735 series machine with an extended table. An excellent option when profiling longer product. The powerful 10hp interchangeable 4 speed spindle with a large stable base, foot operated brake for quick spindle stop and a foot operated lock for easy tool changes, provides excellent customer capability . The oversized precision ground table on solid steel cabinet provides stable vibration free milling.

Show All

Specifications

ManufacturerNorthtech
ModelNT-735LT
ConditionNew
Stock NumberNT 735
MACHINE HP10 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT12/12.5 Amps

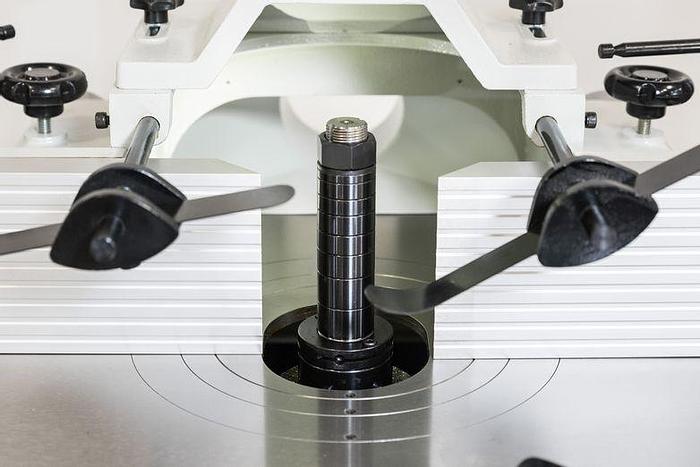

SPINDLE LENGTH6''
SPINDLE DIAMETER1-1/4''

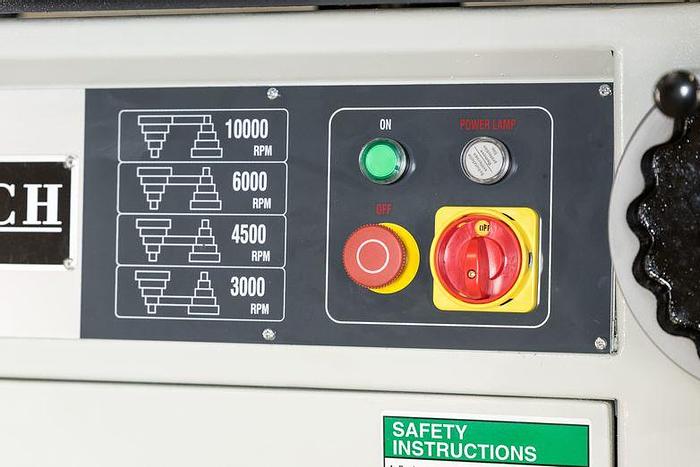

SPINDLE RPM3000, 4500, 6000, 9500 RPM

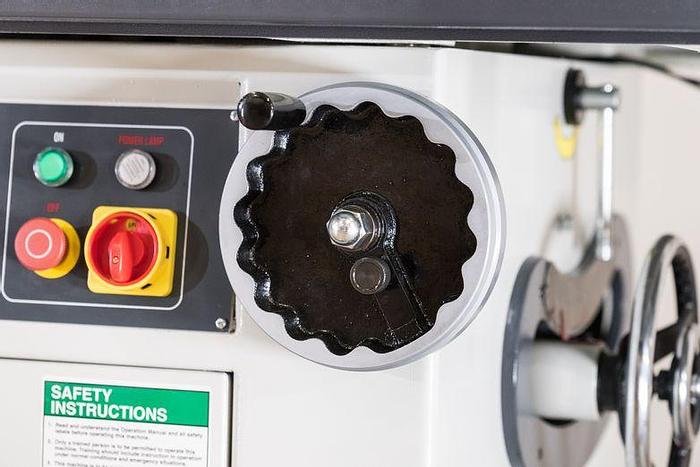

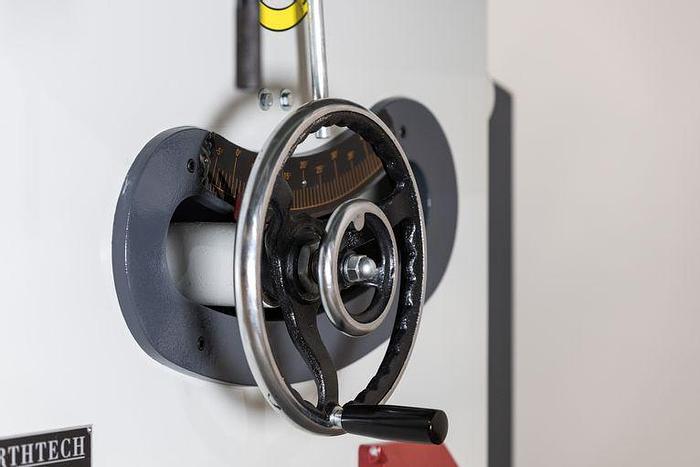

ELEVATION STYLEManual Wheel Adjustment
ELEVATION SYSTEMQuill Housing / Jack Screw
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PASS-LINE35''
VERTICAL TRAVEL6'' On Spindle
DUST COLLECTION REQUIREMENT681 CFM @ Extraction Points
DUST PORT SIZE OUTLET(1) 5''
EMERGENCY STOP(1)

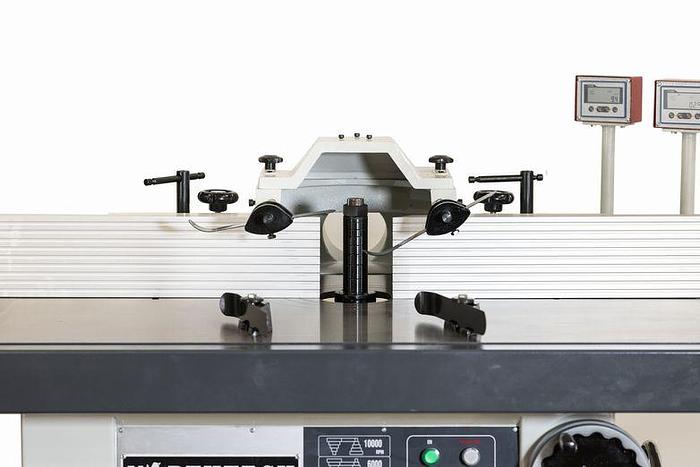

FENCE TYPEAdjustable
FENCE DIMENSIONS6'' x 23-3/4''
MICRO FENCEKnob Adjustment
ADJUSTABLE STROKE8-1/2'' on Spindle
TILT-ABLE-5 - 45 Degrees

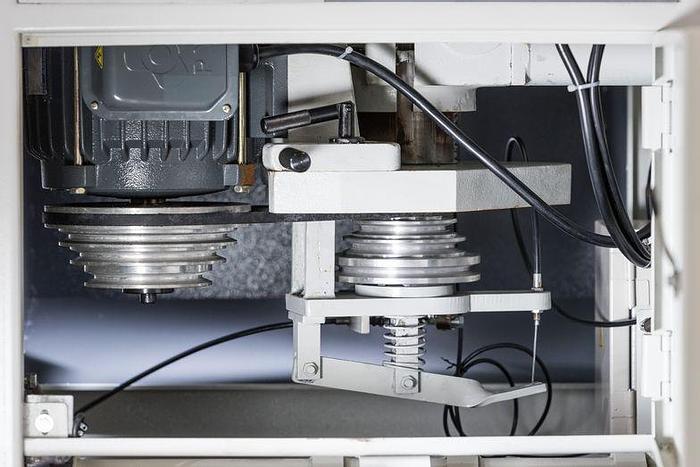

BRAKE SYSTEMBrake Pedal / Brake Shoe
FRAME CONSTRUCTIONSteel
WORKTABLE DIMENSIONS36'' x 47-3/4
INFEED TABLE LENGTH20''
OUTFEED TABLE LENGTH20''
DECIBEL RATING73 dB
NET WEIGHT1870lbs.
GROSS WEIGHT1954 Lbs.
MACHINE DIMENSIONS88'' x 48'' x 50''
PACKAGING DIMENSIONS91'' x 55'' x 53''
