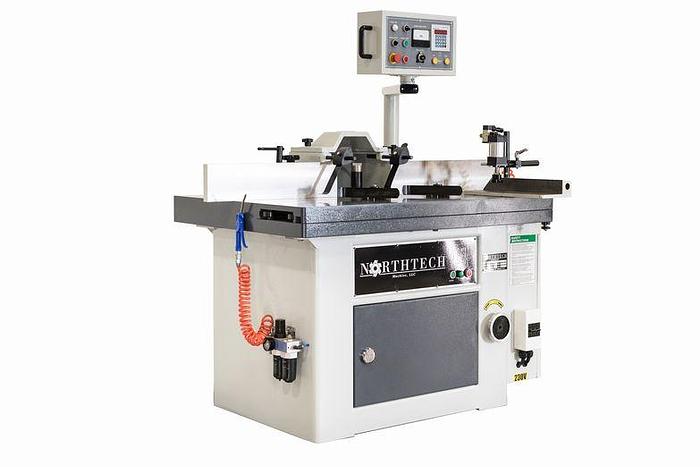

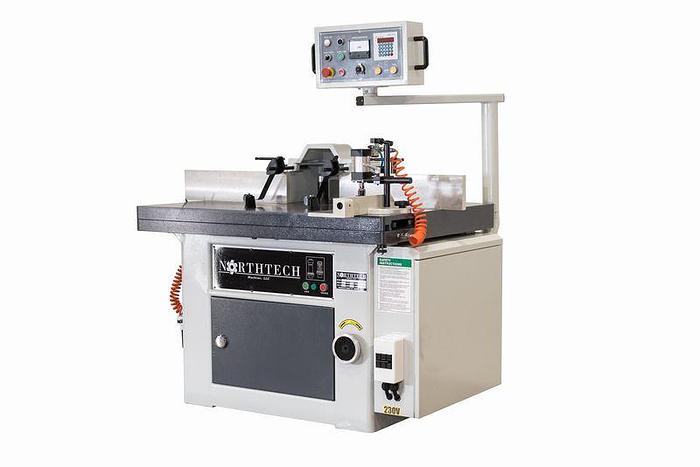

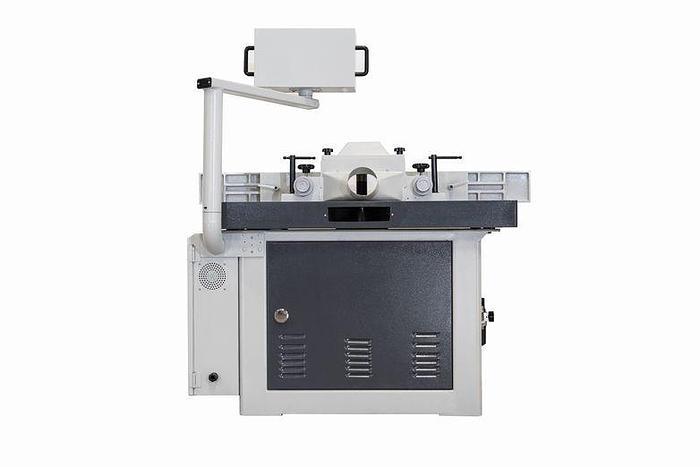

Northtech, NT 770HSK Spindle Shaper
or
Call +1 (607) 678-4374
Description

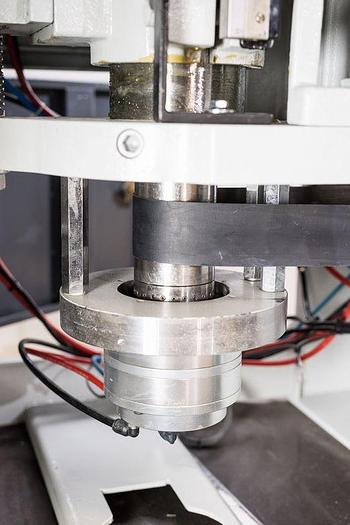

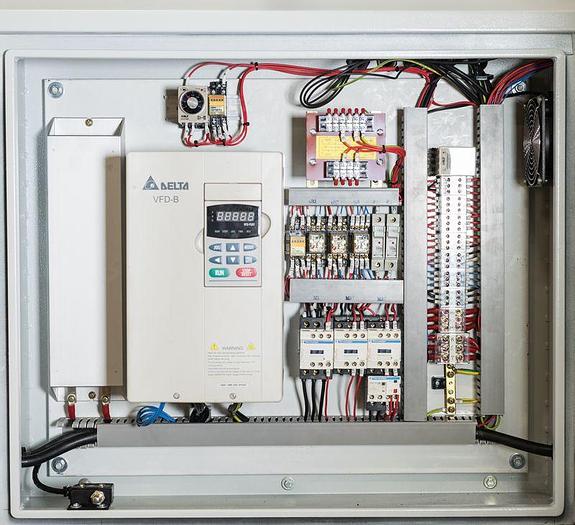

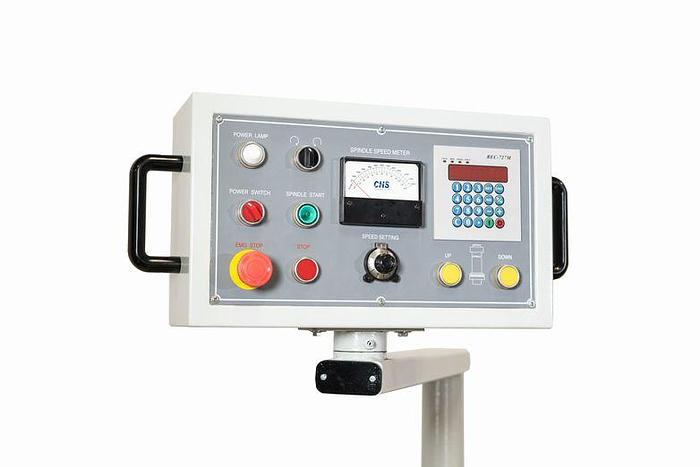

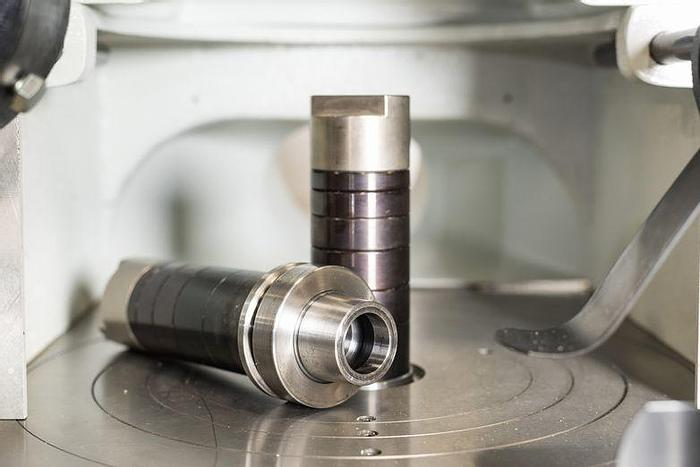

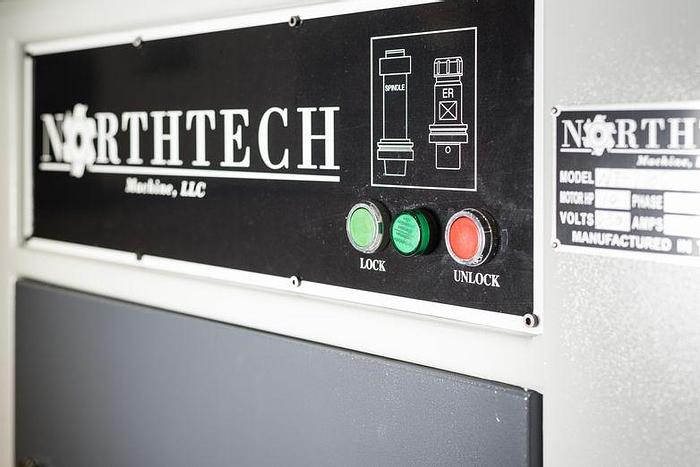

NT 770HSK Spindle Shaper • 3,000 - 13,350RPM, 10HP inverter controlled spindle • (1) 1-1/4'' x 4’’ HSK-63F spindle included • HSK-63F spindle release system is developed by Andi CNC Machining Centers • Spindle tolerance of .0001" * • Includes sensor light to ensure proper mating of the chucks as well as correct full pneumatic pressure for safety • Moveable overarm control panel • 35" Ergonomically designed precision milled table • (1) Tool box • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up.
Specifications
| Manufacturer | Northtech |
| Condition | New |
| Main Motor | 10 HP |
| Reverse Motor | Reversible |
| Machine Hp | 11 HP |
| Voltage/ Freq. | 230/460 Volt 60Hz |
| Phase | 3 Phase |
| Amp Requirement | 30/15 Amps |
| 1st Spindle | 1-1/4'' x 4'' Spindle |
| Spindle RPM | 13350 Rpm Adjustable |
| Under Nut Cap | 4-1/4'' |

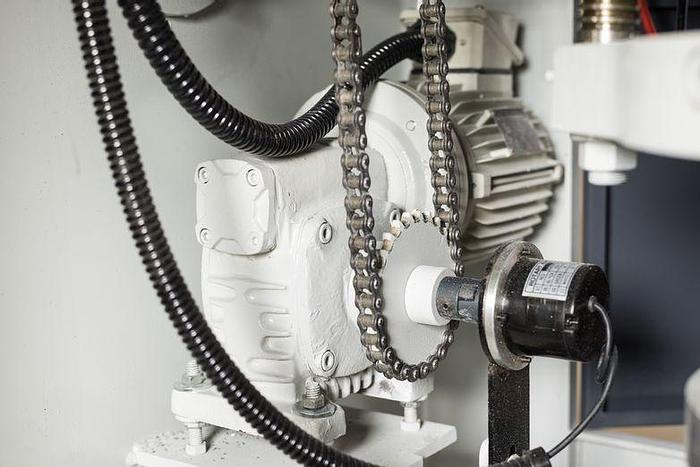

| Elevation Hp | 1 HP |
| Elevation Style | Push Button |

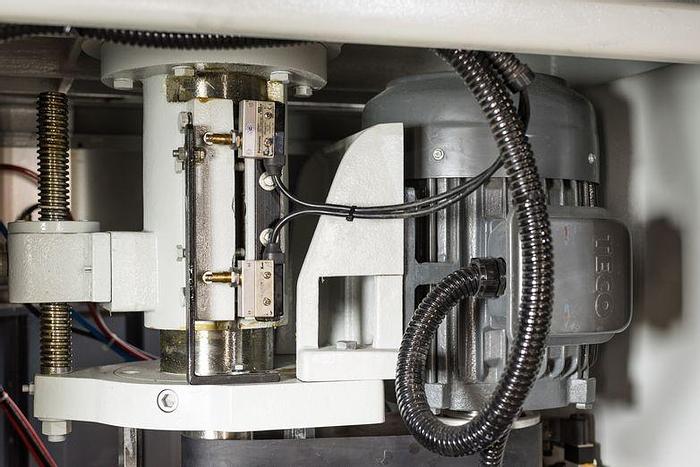

| Elevation Sys | Jack Screw / Quill Housing |
| Electronics | CE Approved Components |
| Control Voltage | 110 Volt |
| Programmable | Elevation |
| Operator Panel | Adjustable Operator Panel |
| Pass-Line | 35'' |
| Vertical Travel | 4-1/8'' Spindle Travel |

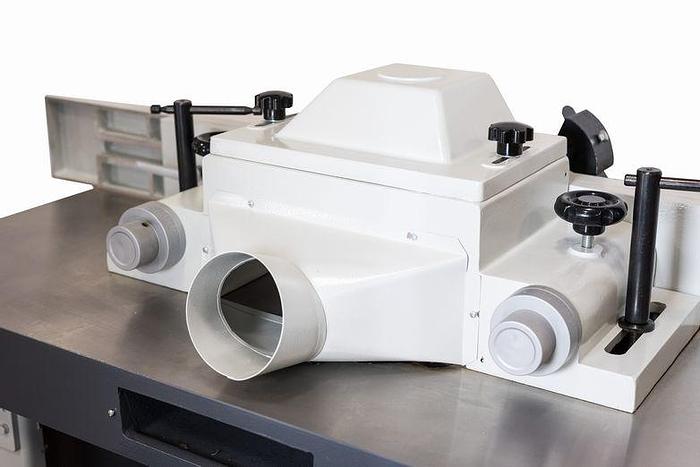

| Dust Collection | (1) 4'' (1) 5'' @ 1117 CFM |
| FLR Included | Filter, Lubricator, Regulater |
| Recommended CFM | 1/4'' Line @ 90 PSI |
| Emergency Stop | Push Button |

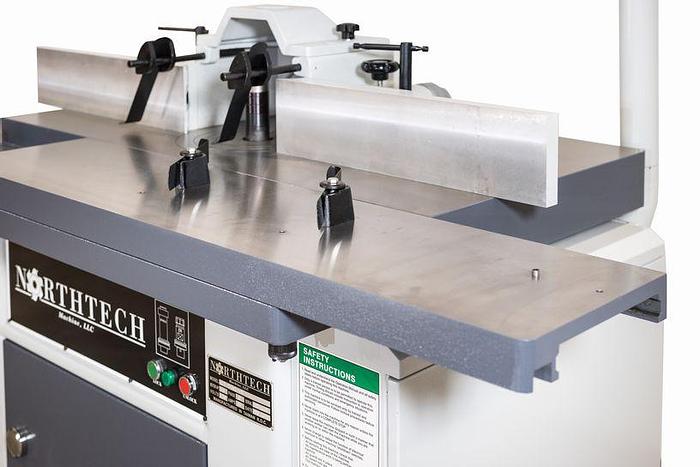

| Fence Type | Adjustable |
| Fence Dimensions | (2) 5-1/2'' x 24'' |
| Micro Fence | Micro Adjustable |
| Brake System | Electronic Braking |
| Frame Construction | 3/16'' Steel Construction |
| Worktable Dimensions | 38'' x 51'' |
| Table Construction | Cast Iron |
| Decible Rating | 83dB |
| Net/Ship Weight | 1650/1850 lbs. |
| Dimensions Set Up Approx. | 54'' x 42'' x 66-1/4'' |
| Shipping Dimensions (L x W x H) | 59'' x 45'' x 75'' |
