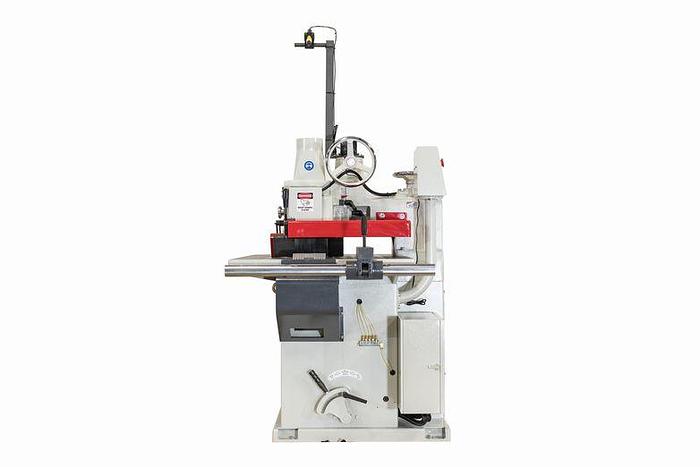

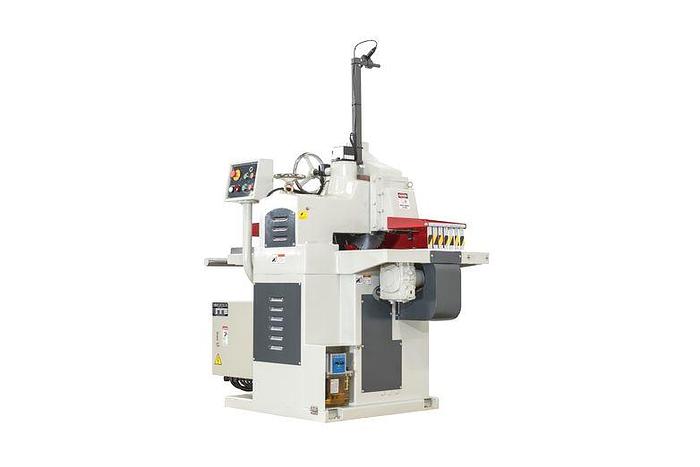

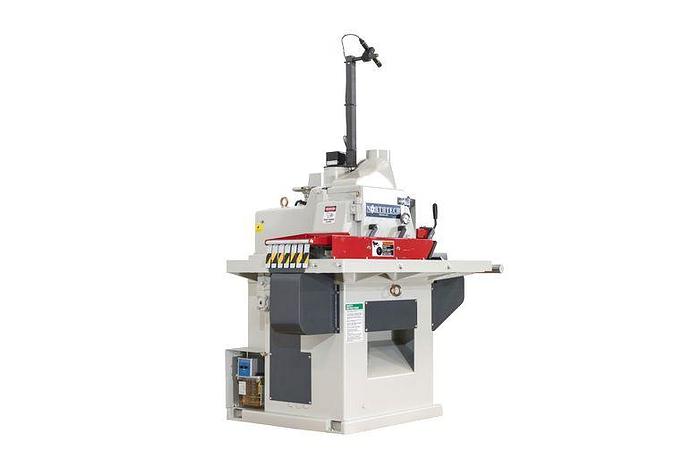

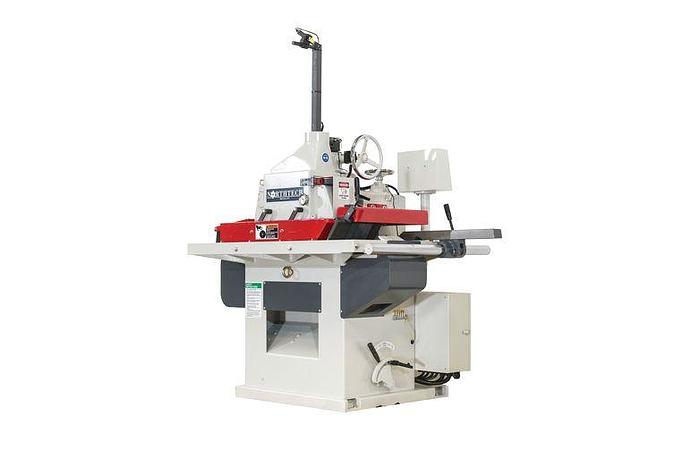

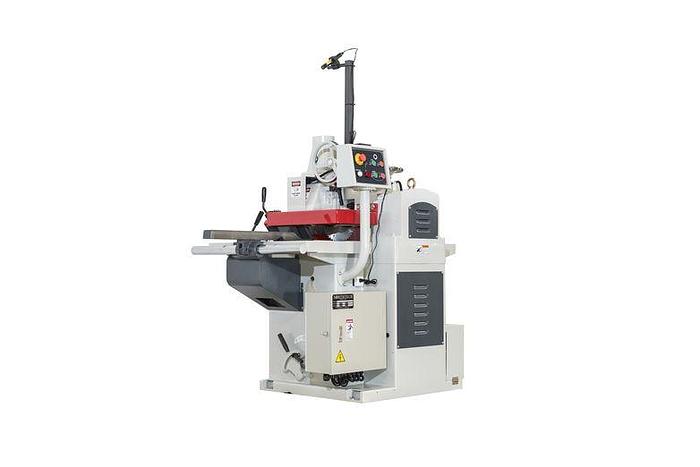

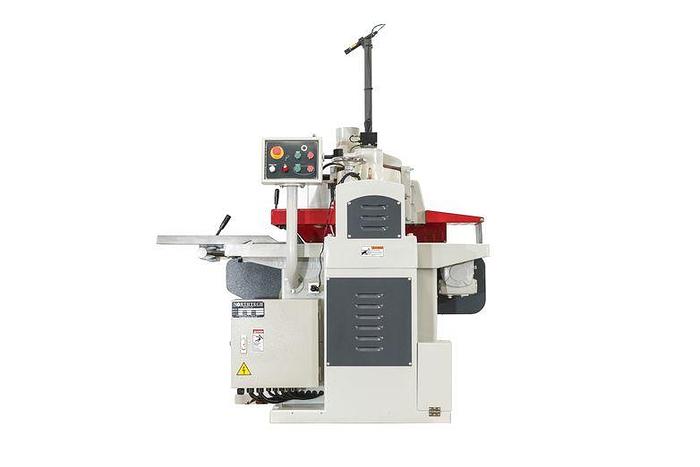

Northtech NT-SRS12NS Straight Line Rip Saw
Description
Northtech Straight Line Rip Saws provide accurate straight cuts for glue ups and blank production. The NT-SRS12NS is a top arbor Straight Line Rip Saw with a 15HP drive. This is our most compact and economical model Straight Line Rip Saw.

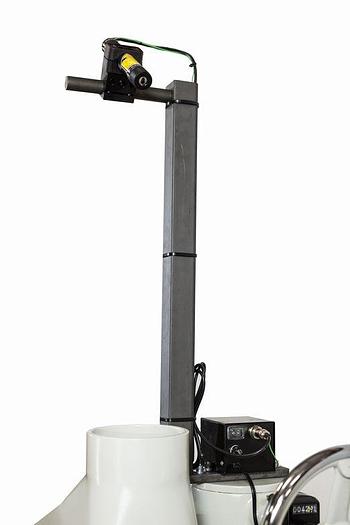

NT SRS-12NS Straight Line Ripsaw • 15HP Motor + 1HP feed motor (with Wye Delta soft start) • Mechanical variable speed (30' - 110' / min) provides a speed range for all material types and thickness ranges (¼" - 3 ¼"). • Bottom & top kickback fingers • Rack and pinion fence for precise and quick positioning. • Digital electronic oiler provides maximum chain and race life. • 15-1/2" distance from column to blade. • 8' glue line tolerance. • Industrial series 10mw laser is included with steel bracket. • 12" x 52T laser cut precision blade is included. • Motors and controls are with UL and CE approved components. • (1) Tool box • Warranty is one-year parts • All machines are tested stateside prior to shipment providing trouble free start up.
Specifications
| Manufacturer | Northtech |
| Model | NT-SRS12NS |
| Condition | New |
| Stock Number | NT-SRS12NS |
| MAIN MOTOR HP | 15 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 13/26 Amps |
| FEED HP | 1 HP |

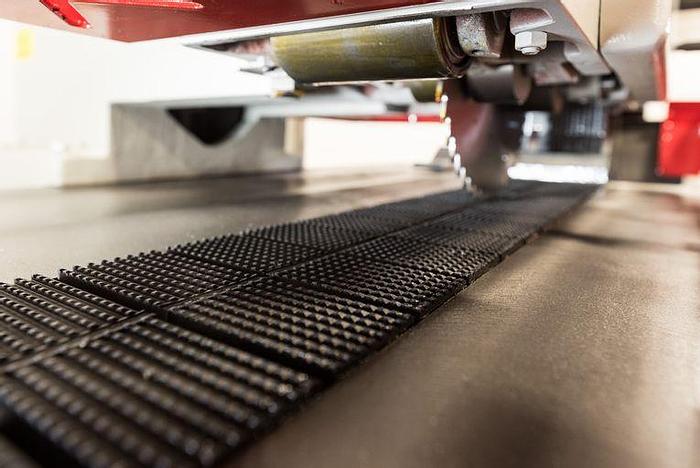

| FEED SYSTEM | 5-1/2'' 50 Pad Steel Chain |
| FEED SPEED RANGE | 45 - 100 FPM |
| VARIABLE FEED SPEED | Manual Lever Adjustment |
| ELEVATION SYSTEM | Jack Screw / Linear Guides |
| ELEVATION STYLE | Manual Wheel Adjustment |
| TOTAL MACHINE HP | 16 Hp. |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220V Control Voltage |
| ASSISTED START | Wye Delta Arbor Motor |
| PASS-LINE | 32'' |
| MIN. WORKING LENGTH | 10'' 2nd Roller to Kickback |
| MAX. WORKING WIDTH | 15-1/2'' |
| MAX. WORKING THICKNESS | 3-1/2'' |
| GLUE LINE RIP | Guaranteed 8' 4/4 stock @ 50 FPM |
| ARBOR RPM | 4790 RPM |

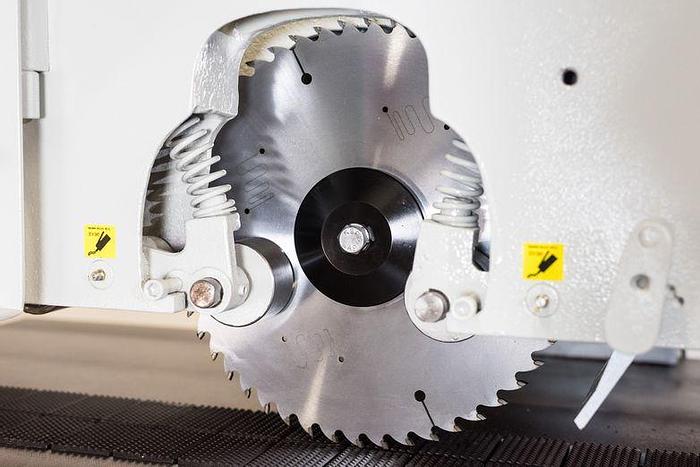

| BLADE SIZE | 12'' Tungsten Carbide Tipped |
| NO. OF TEETH ON BLADE | 50 Tooth |
| TOOTH SPACING | 3/4'' |
| BLADE KERF | .157 |
| DUST PORT SIZE OUTLET | (1) 5'' Port |
| ARBOR DIAMETER | 1'' |
| HOLD DOWN STYLE | (6) Spring Loaded Hold Downs |

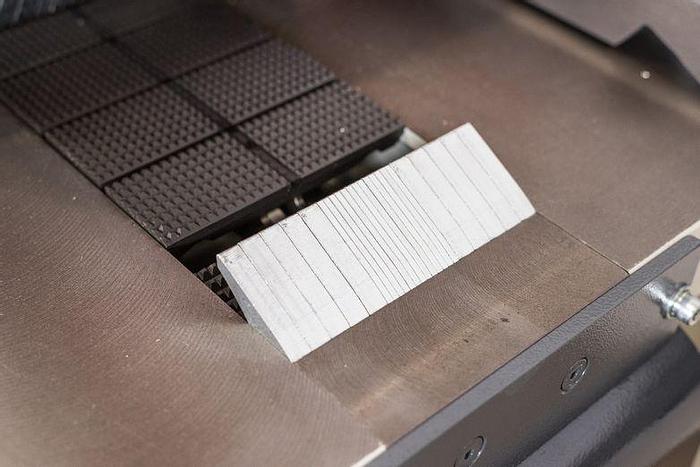

| KICKBACK FINGERS | Top/Bottom Kickback Fingers |
| SAFETY FEATURE | Sawblade Door Safety Interlock |

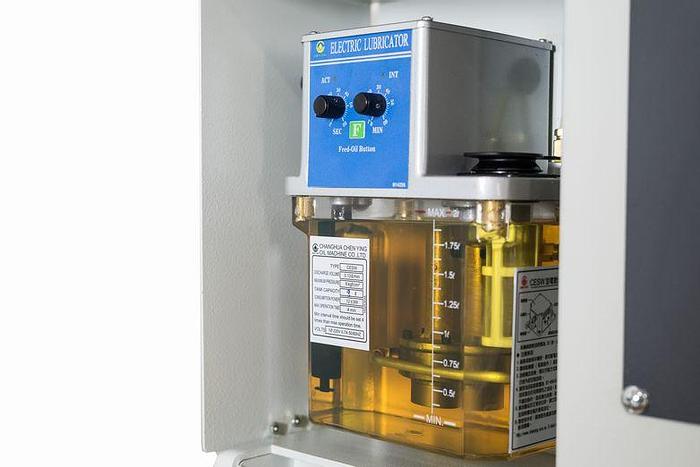

| OILER | Auto Oiler |
| LOW OIL WARNING/SHUT OFF | Low Oil Alarm |

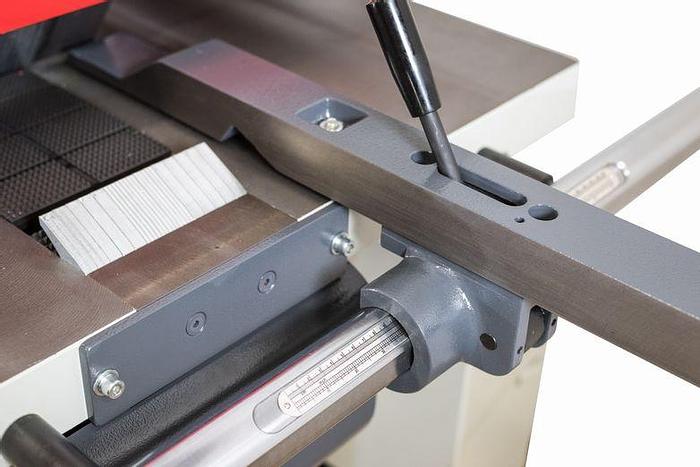

| FENCE TYPE | Industrial Cam Lock Quick Release |
| FENCE DIMENSIONS | 1-3/4'' x 27'' |
| FRAME CONSTRUCTION | Cast Construction |
| WORKTABLE DIMENSIONS | 31'' x 49-3/8'' |
| TABLE CONSTRUCTION MATERIAL | Cast Iron |
| LASER INCLUDED | 100mw Laser Light & Mount Bracket |
| DECIBEL RATING | 86 dB |
| NET WEIGHT | 1790 Lbs. |
| GROSS WEIGHT | 2018 Lbs. |
| MACHINE DIMENSIONS | 66'' x 38'' x 73'' |
| PACKAGING DIMENSIONS | 57'' x 44'' x 61'' |
