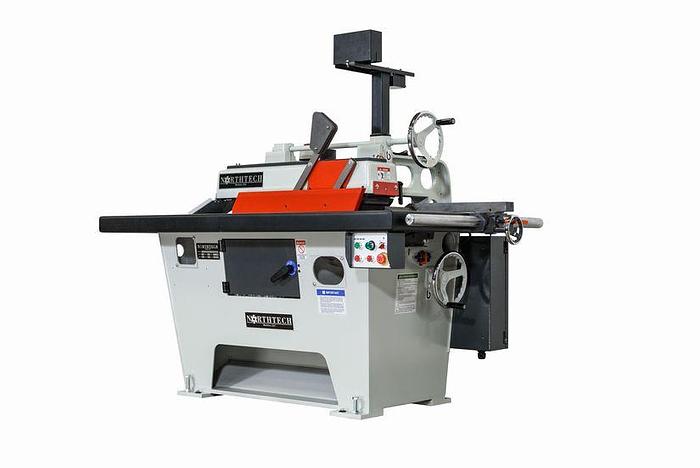

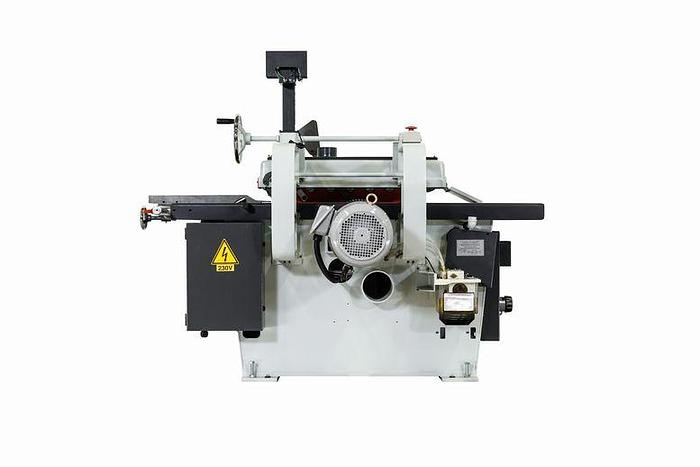

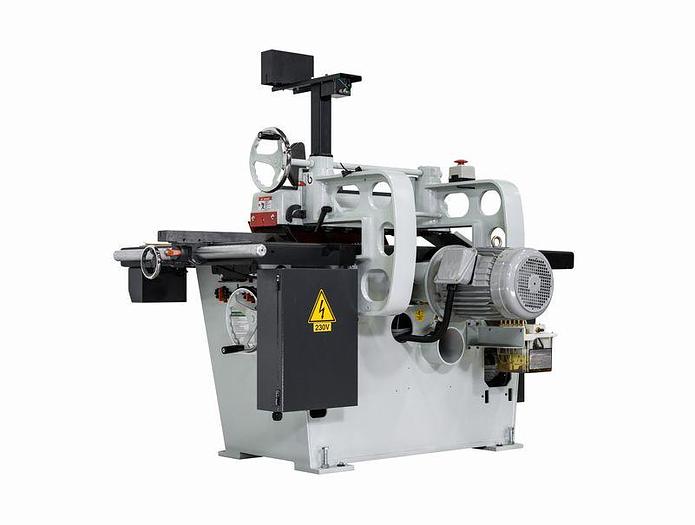

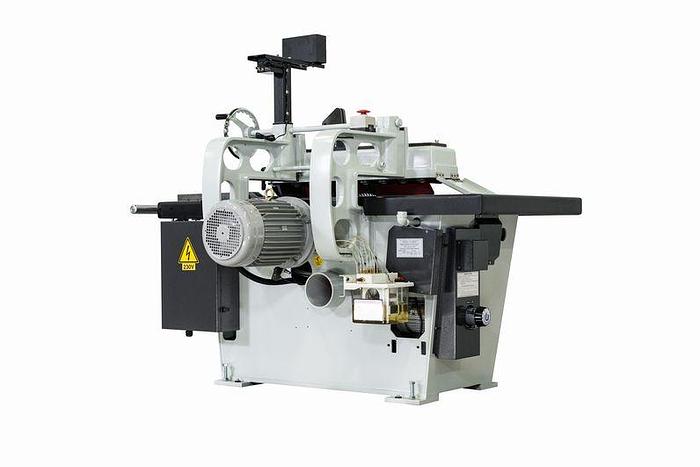

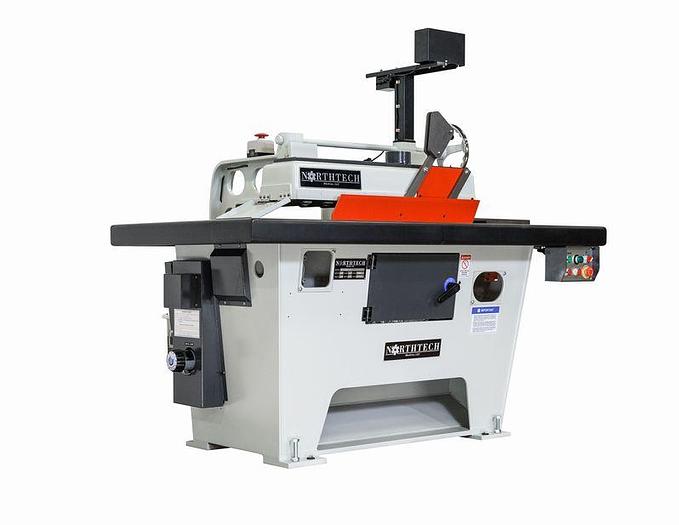

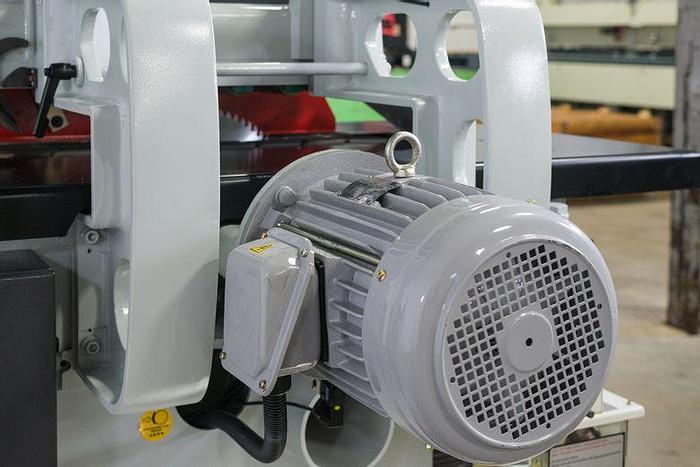

Northtech NT-SLR-16SC Precision Straight Line Rip Saw

Northtech NT-SLR-16SC Precision Straight Line Rip Saw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Northtech offers the strongest line of Straight Line Rip Saws. The NT-SLR16SC might be the runt of the bottom arbor saws, but has the premium engineered design of its big brothers. Premium safety features such as safety interlocks, anti-kickback fingers and rapid braking makes this machine one of the safest single blade rip saws available. The 15HP 16″ blade powers through over 4″ thick stock. Northtech Straight Line Rip Saws won the 2018 Visionary award for their touch activated fence.

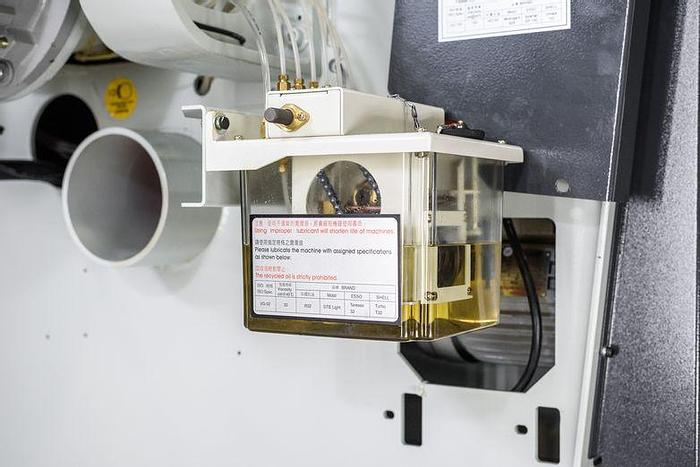

Feed System Saw Motor: 15HP, 3PH 230V Feed: 1.5HP variable from 35' - 110' / minute Product Dimensions Min. thickness: 3/16'' Max depth of cut: 4'' Max width of stock: (Blade to column arms) 18'' Features "True Track" Chain and Race Table size 69'' X 35-1/2'' Machine frame is constructed of 1'' thick base plate Solid steel frame with 1'' thick column arms. Safety door switch with pneumatic motor brake. 2'' Arbor and large support bearings. Glue line guarantee on 8/4 stock is 8' at 60' / minute. All motors and electricals are UL rated. Industrial fence with cam lock quick release on rack and pinion glide. Two rows of heavy duty kickback fingers. (8) large pressure rollers for optimum glue line ripping. An automatic mechanical oiling system with low level alert. A 100mw laser light and mounting bracket are included. (1) Tool box Amperage requirements: 15HP + 1.5HP 230V / 460V: 48A / 24A. Dust requirments: (1) 4'' dust port requiring 450 CFM (1) 6'' dust port requiring 1,000 CFM Weight: 2,400 lbs. Machine dimensions: (L) 84'' X (W) 58'' X (H) 74'' Warranty is one year parts All machines are tested at factory prior to shipment providing trouble free start up.


Specifications

ManufacturerNorthtech
ConditionNew
MAIN MOTOR HP15 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT20/40 Amp
FEED HP1.5 HP

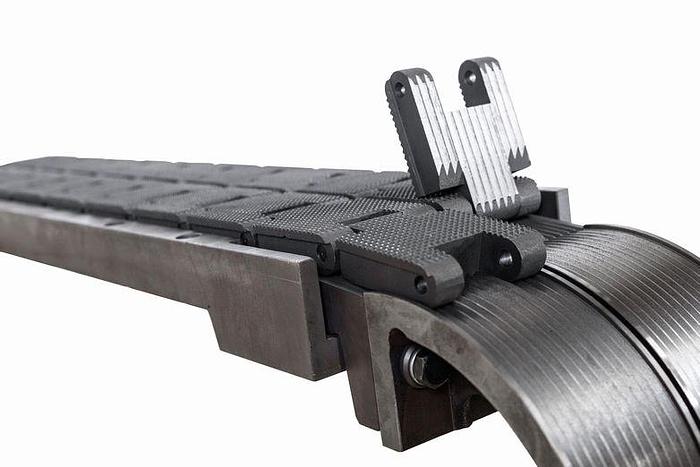

FEED SYSTEMSplit Chain and Race equipped with "True Track"
FEED SPEED RANGE40-120 FPM
VARIABLE FEED SPEEDManual Clutch Adjustment
ELEVATION STYLEManual Wheel Adjustment
TOTAL MACHINE HP16.5 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt

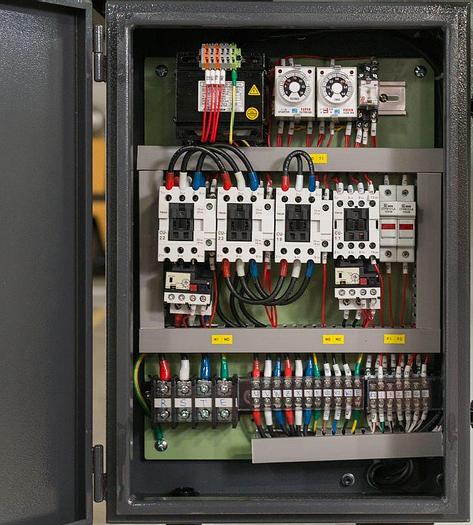

ASSISTED STARTWye Delta
PASS-LINE33-1/4''
MAX. WORKING WIDTH18-1/4'' From Sawblade to Rear Columns
MAX. WORKING THICKNESS4'' with 16'' Sawblade 3'' with 14'' Sawblade
GLUE LINE RIPGuaranteed 12' 4/4 stock @ 50 FPM
ARBOR RPM3520 RPM

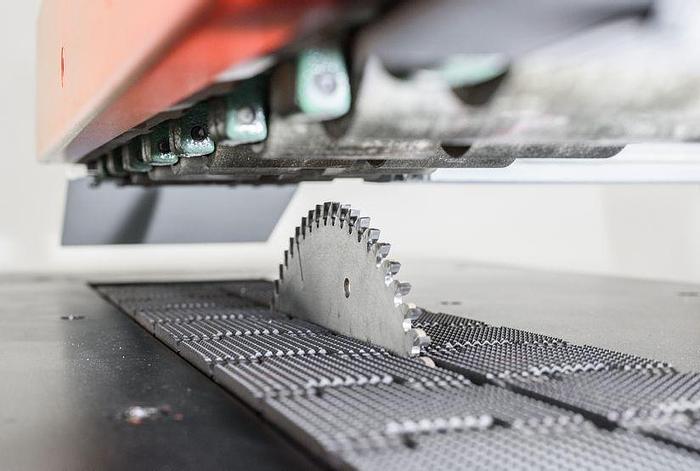

BLADE SIZE14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE70 Tooth
TOOTH SPACING5/8''
BLADE KERF.197 In.
DUST PORT SIZE OUTLET(1) 4'' Top (1) 6'' Bottom
ARBOR DIAMETER2''
CHAIN ADJUSTMENTTrue Track Adjustable Chain
HOLD DOWN STYLE8 Spring Loaded Hold Down Rollers

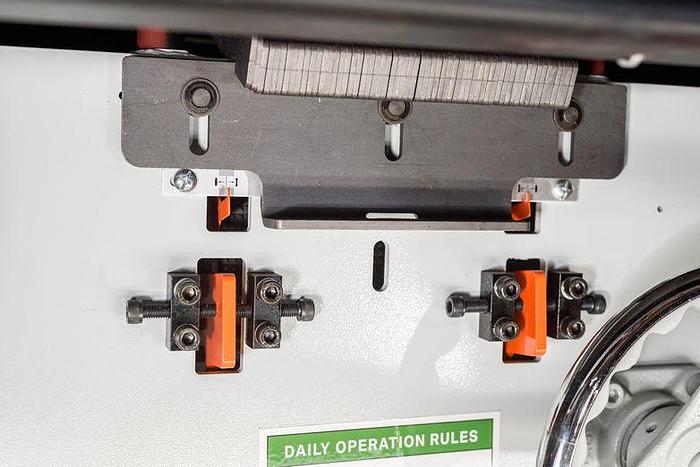

KICKBACK FINGERS(59) Lower (32) Top
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90PSI

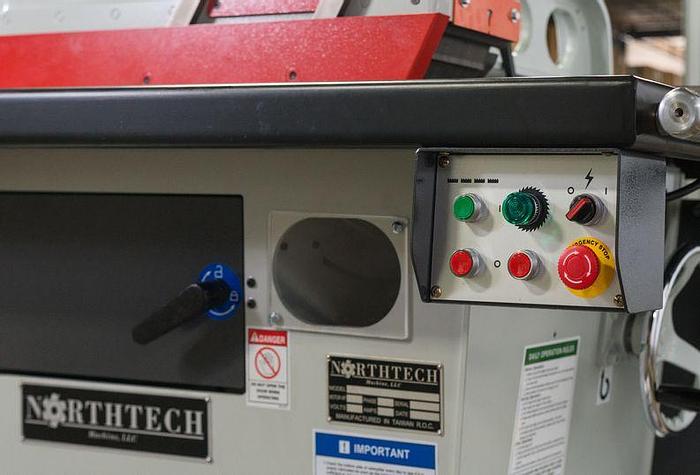

REAR E STOPPush Button

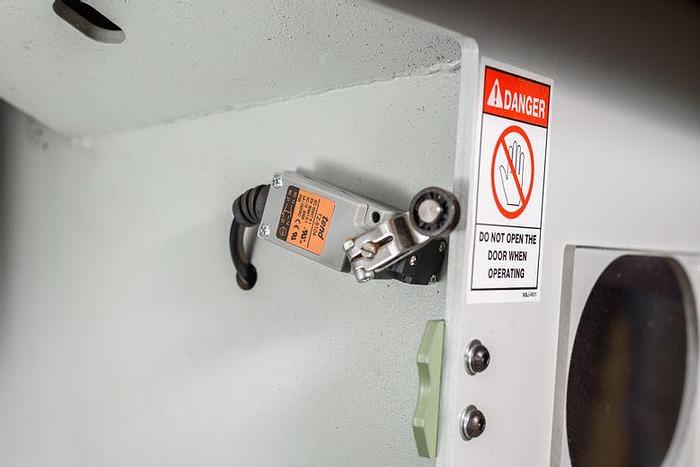

SAFETY FEATURESawblade Door Safety Interlock, Motor Brake
GUARDINGHigh V
FENCE TYPEIndustrial Cam Lock Quick Release
FENCE DIMENSIONS1-3/4'' x 23-3/4''

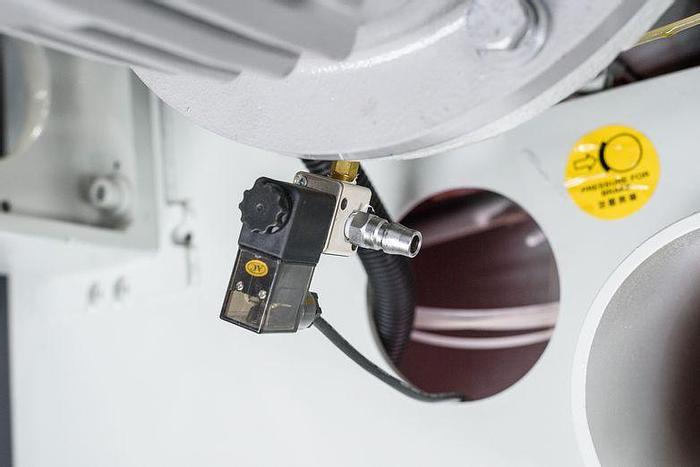

BRAKE SYSTEMPneumatic Brake
FRAME CONSTRUCTION1'' Base 1/4'' Frame 3/4'' Arms
WORKTABLE DIMENSIONS69'' x 35''
TABLE CONSTRUCTION MATERIALSteel

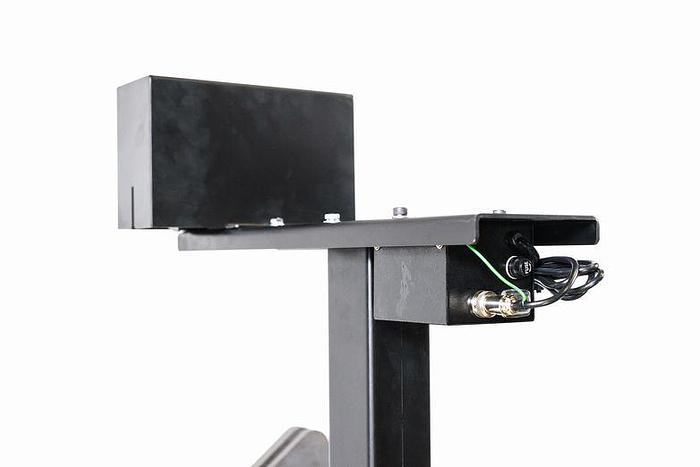

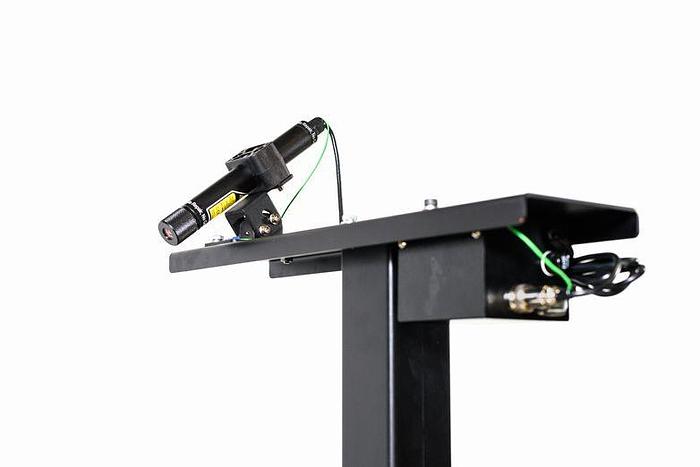

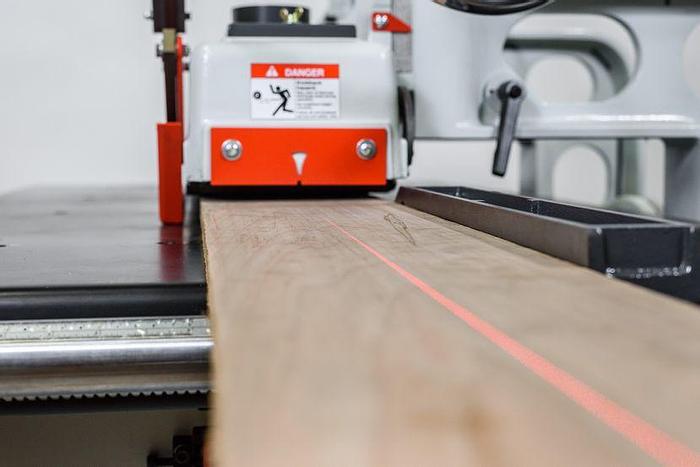

LASER INCLUDED100mw Laser Light & Mount Bracket
DECIBEL RATING84 dB
NET WEIGHT2170 Lbs.
GROSS WEIGHT2285 Lbs.
MACHINE DIMENSIONS77'' x 57'' x 66''
PACKAGING DIMENSIONS81'' x 58'' x 74''
