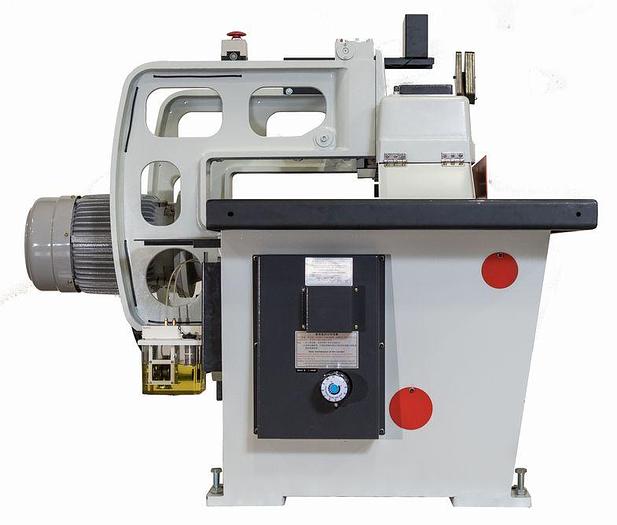

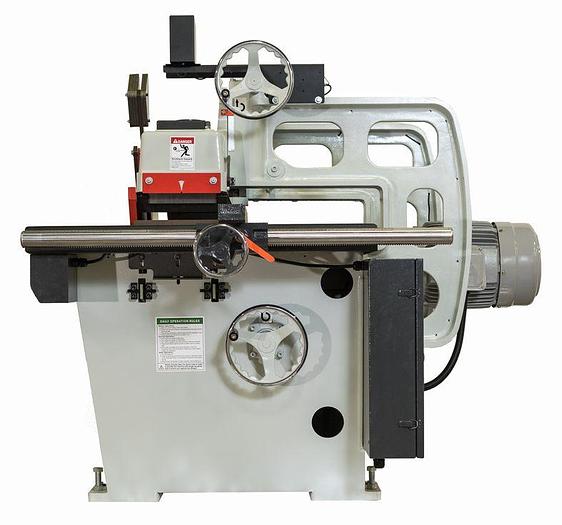

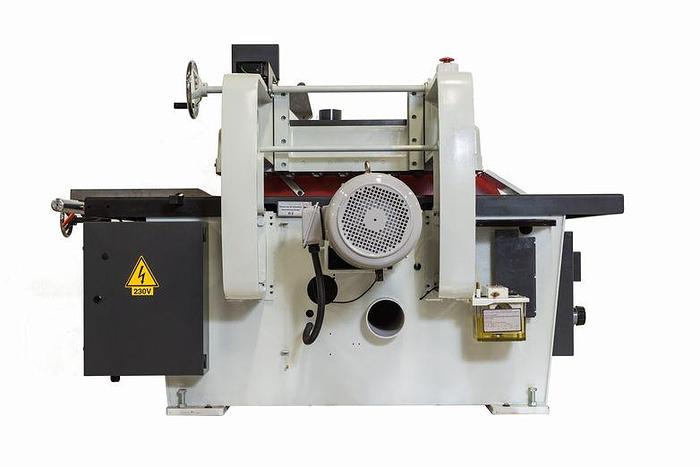

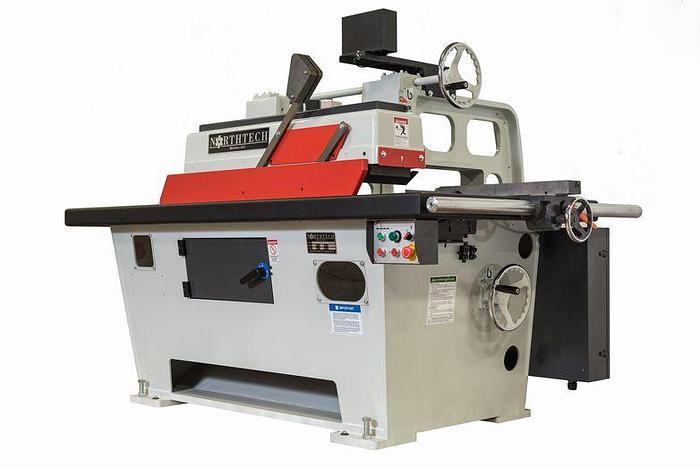

Northtech, NT SLR-20SC PRECISION STRAIGHT LINE RIP SAW

Northtech, NT SLR-20SC PRECISION STRAIGHT LINE RIP SAW

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Northtech offers the strongest line of Straight Line Rip Saws. The NT-SLR20SC might be the runt of the bottom arbor saws, but has the premium engineered design of its big brothers. Premium safety features such as safety interlocks, anti-kickback fingers and rapid braking makes this machine one of the safest single blade rip saws available. The 25HP 20″ blade powers through over 6″ thick stock. Northtech Straight Line Rip Saws won the 2018 Visionary award for their touch activated fence.

FEED SYSTEM • Saw motor: 25HP, 3PH 230V • Feed: 3HP variable from 45' - 145' / minute PRODUCT DIMENSIONS • Min. thickness: 3/16" • Max depth of cut: 5-1/2'' with 20'' Blade • Max. width of stock: (Blade to column arms) 26" FEATURES • Chain and Race equipped with "True Track" • Table size 40" x 83" • Machine frame is constructed of a 1" thick base plate • Solid steel frame with 1" thick column arms. • Safety door switch with pneumatic motor brake. • 2" arbor and large support bearings. • Glue line guarantee on 8/4 stock is 12' at 60' / minute. • All motors and electricals are UL rated. • Industrial fence with cam lock quick release on rack and pinion glide. • Two rows of heavy duty kickback fingers. • (8) large pressure rollers for optimum glue line ripping. • An automatic mechanical oiling system with low level alert. • A 100mw laser light and mounting bracket are included. • (1) Tool box • Amperage requirements: 25HP + 3HP 230V / 460V: 66A / 33A • Dust collection requirements: (1) 4" dust port requiring 450 CFM @ each point of extraction (1) 6" dust port requiring 981 CFM @ each point of extraction • Weight: 4,090 lbs. • Machine dimensions: (L) 92" x (W) 67" x (H) 60" • Warranty is one year parts • All machines are tested stateside prior to shipment providing trouble free start up.


Specifications

ManufacturerNorthtech
ModelNT-SLR-20SC
ConditionNew
MAIN MOTOR HP25 HP
VOLTAGE, FREQUENCY230/460 Volt
PHASE3 Phase
AMP REQUIREMENT33/66 Amps
FEED HP3 HP
FEED SYSTEMSplit Chain and Race equipped with "True Track"
FEED SPEED RANGE50-190 FPM
ELEVATION SYSTEMManual Clutch Adjustment
TOTAL MACHINE HP28 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
ASSISTED STARTWye Delta
PASS-LINE32-3/4''
MAX. WORKING WIDTH26-1/4'' Sawblade to Rear Arms
MAX. WORKING THICKNESS5-15/16'' With 20'' Sawblade
GLUE LINE RIP14' - 16' 4/4 stock @ 50 FPM
ARBOR RPM3540 Rpm
BLADE SIZE14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE70 Tooth
TOOTH SPACING5/8 In.
BLADE KERF.197''
TRACKING STYLE"True Track" System
DUST PORT SIZE OUTLET(1) 4'' Top (1) 6'' Bottom
ARBOR DIAMETER2''
CHAIN ADJUSTMENTTrue Track Adjustable Chain
HOLD DOWN STYLE(8) Spring Loaded Hold Down Rollers
KICKBACK FINGERS(34) Top (86) Bottom Kickback Fingers
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
REAR E STOPPush Button
SAFETY FEATURESawblade Door Safety Interlock, Motor Brake
GUARDINGHigh Visibility Guarding
LOW OIL WARNING/SHUT OFFLow Oil Shut-off
FENCE TYPEIndustrial Cam Lock Quick
FENCE DIMENSIONS2'' x 26-7/8''
BRAKE SYSTEMPneumatic Brake
FRAME CONSTRUCTION1" Base 1/2" Cabinet 3/4" Arms
WORKTABLE DIMENSIONS40'' x 83'' x 33-1/2''
TABLE CONSTRUCTION MATERIALSteel

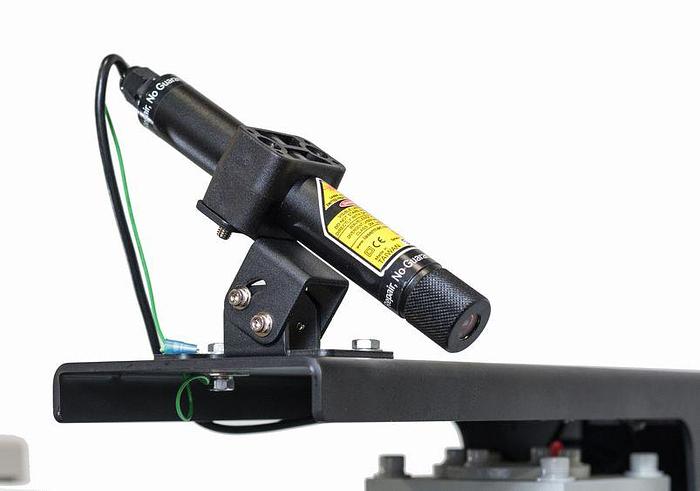

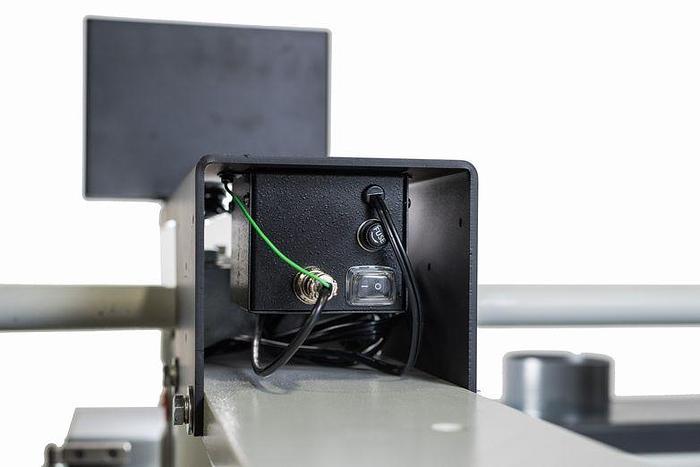

LASER INCLUDED100mw Laser Light & Mount Bracket
DECIBEL RATING82 dB
NET WEIGHT3872 Lbs.
GROSS WEIGHT4090 Lbs.
MACHINE DIMENSIONS92'' x 67'' x 60''
PACKAGING DIMENSIONS89'' x 69'' x 70''
