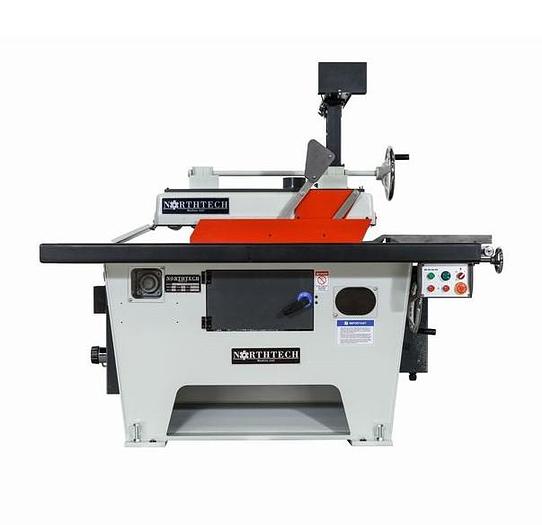

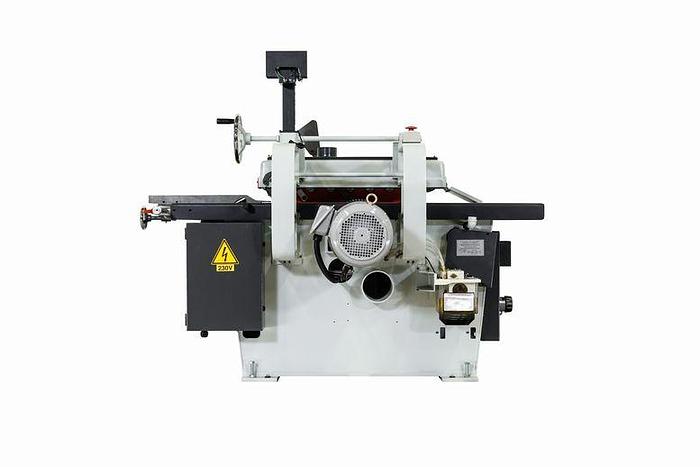

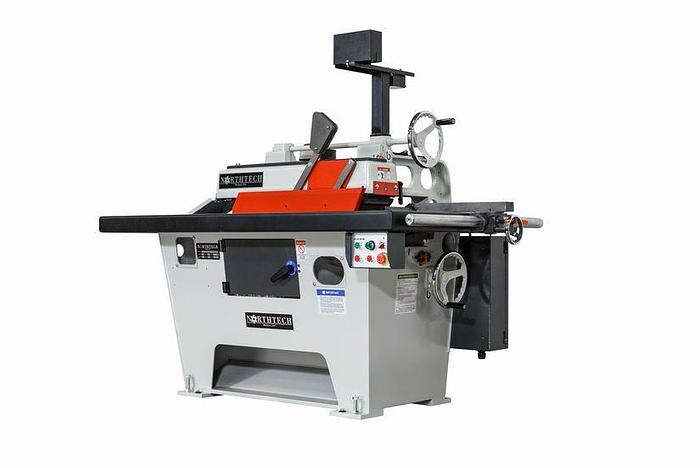

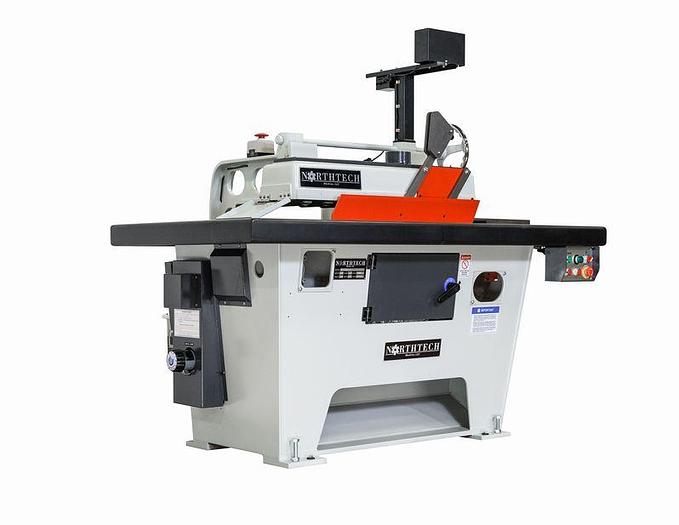

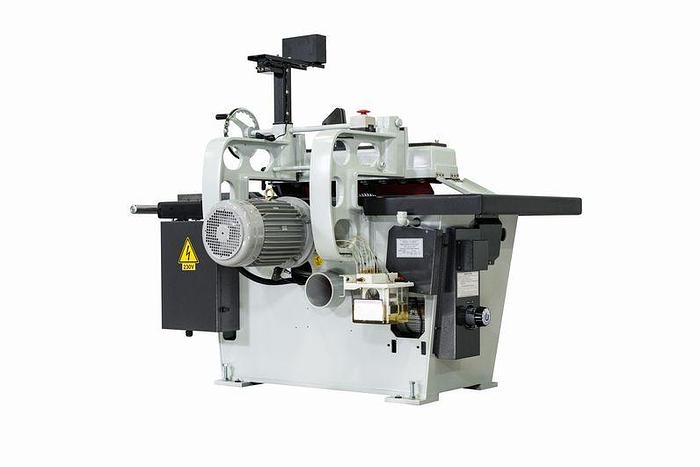

Northtech, NT SLR-14SC Precision Straight Line Rip Saw

Northtech, NT SLR-14SC Precision Straight Line Rip Saw

Contact us for price

Dundee, NY

orCall (607)243-7167

Description

Northtech offers the strongest line of Straight Line Rip Saws. The NT-SLR14SC might be the runt of the bottom arbor saws, but has the premium engineered design of its big brothers. Premium safety features such as safety interlocks, anti-kickback fingers and rapid braking makes this machine one of the safest single blade rip saws available. The 15HP 14″ blade powers through over 3″ thick stock. Northtech Straight Line Rip Saws won the 2018 Visionary award for their touch activated fence.


FEED SYSTEM

• Saw motor: 15HP, 3PH 230V

• Feed: 1.5HP variable from 40 - 120 FPM



PRODUCT DIMENSIONS

• Min. thickness: 3/16"

• Max depth of cut: 3-1/8" (with 14" blade)

• Max. width of stock: (Blade to column arms) 18"


FEATURES

• Chain and Race equipped with "True Track"

• Table size 61" x 33-1/2" x 31-1/2''

• Machine frame is constructed of a 1" thick base plate.

• Solid steel frame with 3/4" thick column arms.

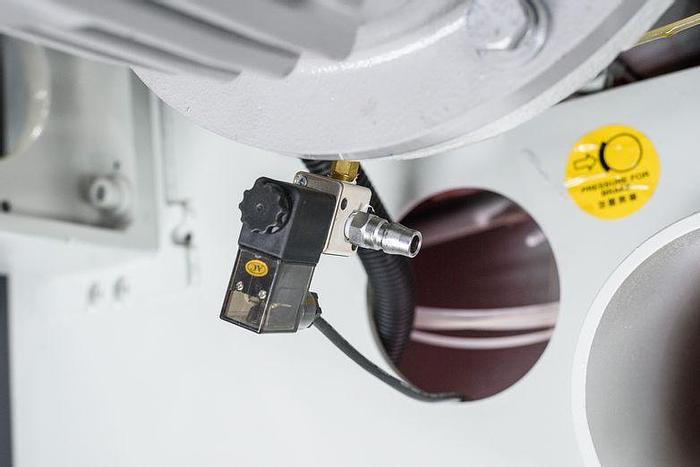

• Safety door switch with pneumatic motor brake.

• 2" arbor and large support bearings.

• Glue line guarantee on 8ft 4/4 at 50 FPM .

• All motors and electrical are UL rated.

• Industrial fence with cam lock quick release on rack and pinion glide.

• Two rows of heavy duty kickback fingers.

• (6) large pressure rollers for optimum glue line ripping.

• An automatic mechanical oiling system with low oil level feed shutoff.

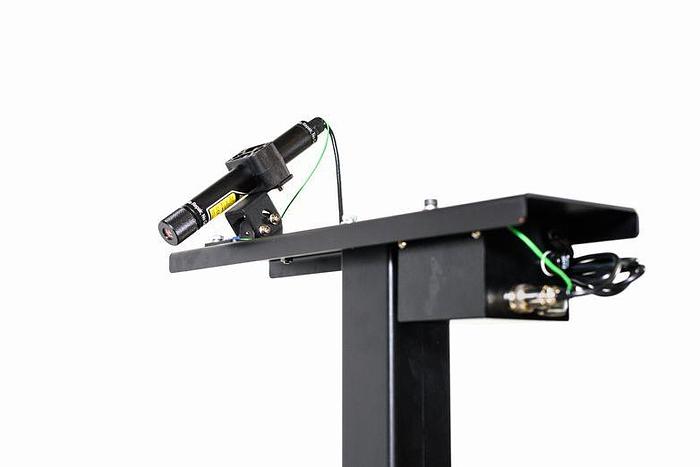

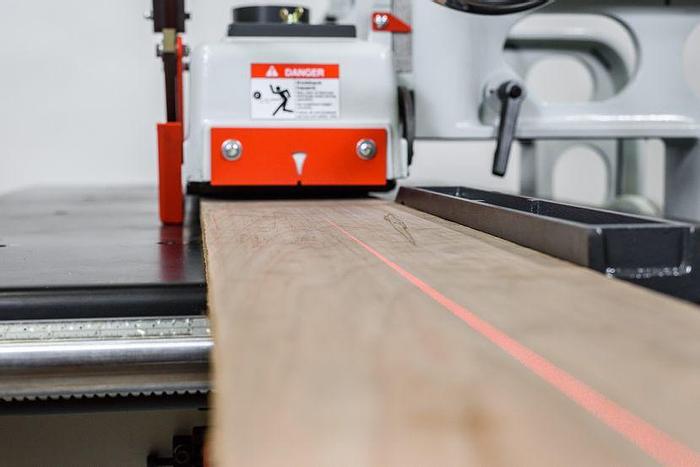

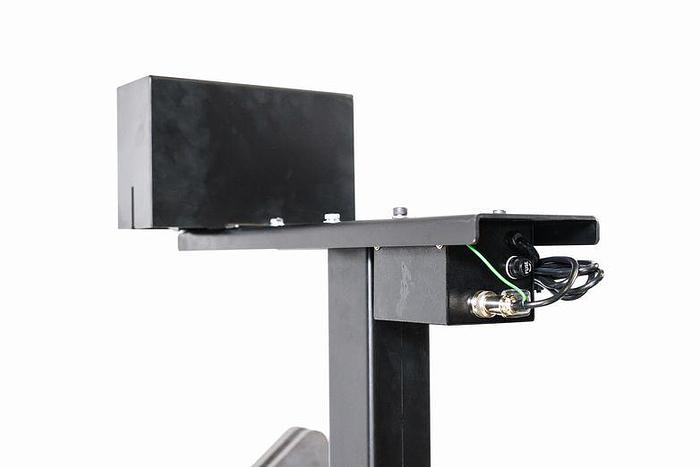

• A 100mw laser light (red) and mounting bracket are included.

• (1) Tool box

• Amperage requirements: 15HP + 1.5HP 230V / 460V: 40A / 20A.

• Dust requirements: (1) 4" @ 450 CFM (1) 6'' Port @ 981 CFM

• Weight: 1,930 lbs..

• Machine dimensions: (L) 70" x (W) 59" x (H) 71"

• Warranty is one year parts

• All machines are tested stateside prior to shipment providing trouble free start up.

Specifications

ManufacturerNorthtech
ConditionNew
MAIN MOTOR HP15 HP
VOLTAGE, FREQUENCY230/460 Volt
PHASE3 Phase
AMP REQUIREMENT20/40 Amps
FEED HP1.5 HP
FEED SYSTEMSplit Chain and Race equipped with "True Track"
FEED SPEED RANGE40-120 FPM
ELEVATION STYLEManual Wheel Adjustment
TOTAL MACHINE HP16.5 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
ASSISTED STARTWye Delta
PASS-LINE31-3/8''
MAX. WORKING WIDTH18'' From Blade to Rear Columns
MAX. WORKING THICKNESS3-1/8''
GLUE LINE RIPGuaranteed 8' 4/4 stock @ 50 FPM
ARBOR RPM3520 RPM
BLADE SIZE14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE70 Tooth
TOOTH SPACING5/8''
BLADE KERF.197''
TRACKING STYLE"True Track" System
DUST PORT SIZE OUTLET(1) 4'' Top (1) 6'' Bottom
ARBOR DIAMETER2''
CHAIN ADJUSTMENTTrue Track Adjustable Chain
HOLD DOWN STYLE(6) Spring Loaded Hold Downs
KICKBACK FINGERS(31) Top (59) Bottom Fingers
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
REAR E STOPPush Button
SAFETY FEATURESawblade Door Safety Interlock, Motor Brake
GUARDINGHigh Visibility Guarding
OILERAutomatic Mechanical Oiler
LOW OIL WARNING/SHUT OFFLow Oil Shut-off
FENCE TYPEIndustrial Cam Lock Quick Release
FENCE DIMENSIONS1-3/4'' x 23-3/4''
BRAKE SYSTEMPneumatic Brake
FRAME CONSTRUCTION1/4'' Steel Construction
WORKTABLE DIMENSIONS61'' x 33-1/2''
TABLE CONSTRUCTION MATERIALSteel
LASER INCLUDED100mw Laser Light & Mount Bracket
DECIBEL RATING80 dB
NET WEIGHT1930 Lbs.
GROSS WEIGHT2150 Lbs.
Machine Dimensions69-1/2'' x 54'' x 62-1/2''
Packaging Dimensions72'' x 59'' x 71''
