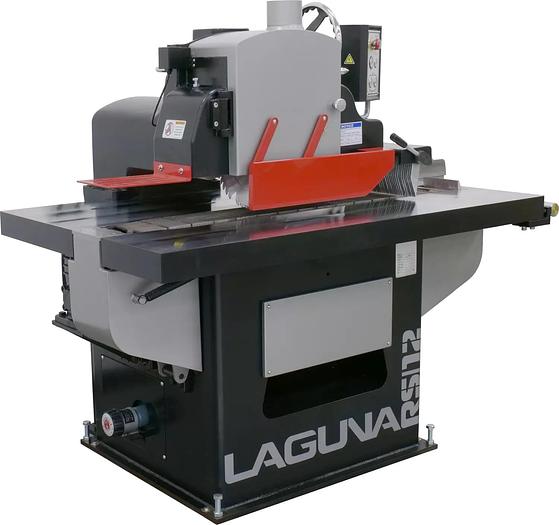

Laguna Tools, RS|12 Straight Line Rip Saw
Laguna Tools, RS|12 Straight Line Rip Saw
Contact us for price
Dundee, NY
orCall +1 (607) 243-7167
Description
The RS|12 is the perfect machine for production ripping operations. Automatic feed and centralized lubrication top the list of features on this machine.

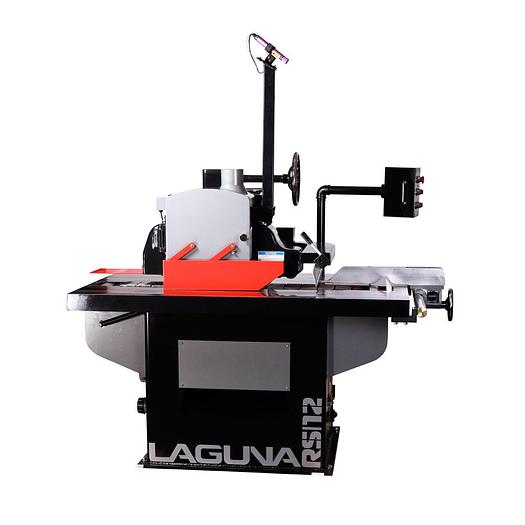

Optional laser guide-system available. Optional Laser Guide System Shown
Features

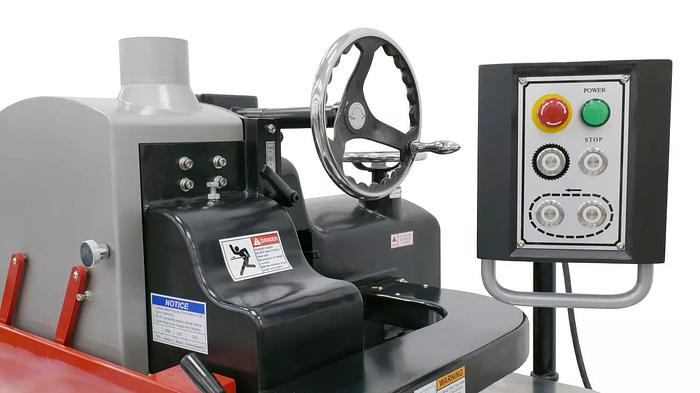

- Overhead Controls: Standard
- Lubrication System: Centralized Automatic
- Variable Speed: 30 – 112 ft/min
- Min. Work Length: 6-1/2″
- Blade Capacity: 10″ – 12″
Specifications
| Manufacturer | Laguna |
| Condition | New |
| Stock Number | MRS5000-0280 |
| Arbor Size | 1'' |
| Power | 230V – 3 Phase |
| Main Motor | 15 HP |
| Maximum Work Thickness | 3-⅞″ |
| Hold Down Rollers | 4 |
| Dust Port Diameter | 4″ |
| Weight (Net) | 2,420 lbs. |
| Feed Chain | 6″ High Grip |
| Blade To Frame | 18″ |
| Shipping Dimensions (L x W x H) | 60″ x 48″ x 62″ |
