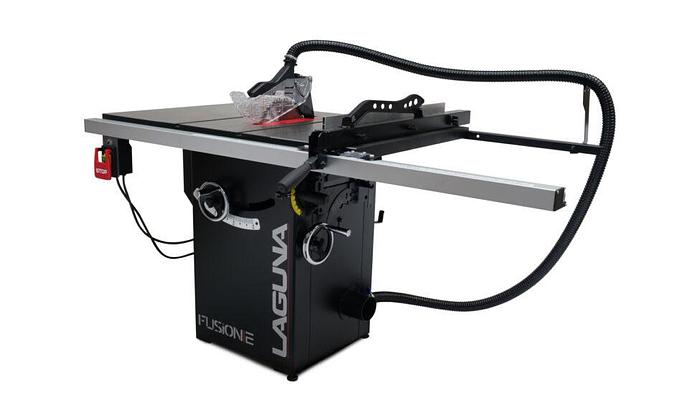

Laguna, F2 Fusion Tablesaw
Laguna, F2 Fusion Tablesaw
Contact us for price
Dundee, NY
orCall +1 (607) 243-7167
Description

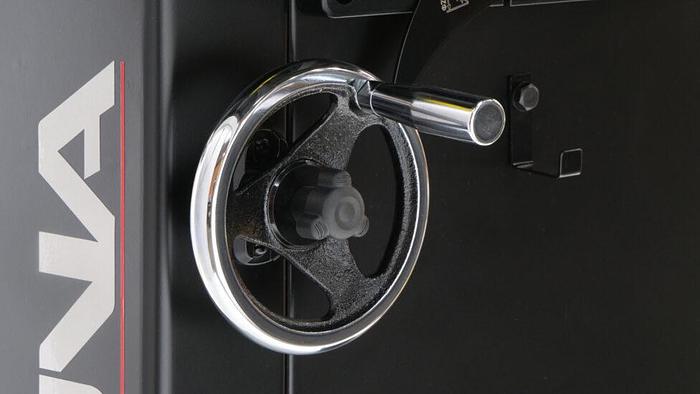

F2 Fusion Tablesaw The new Laguna F2 and F3 Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.
- 2 New Features Now Standard On F2 & F3 Fusions

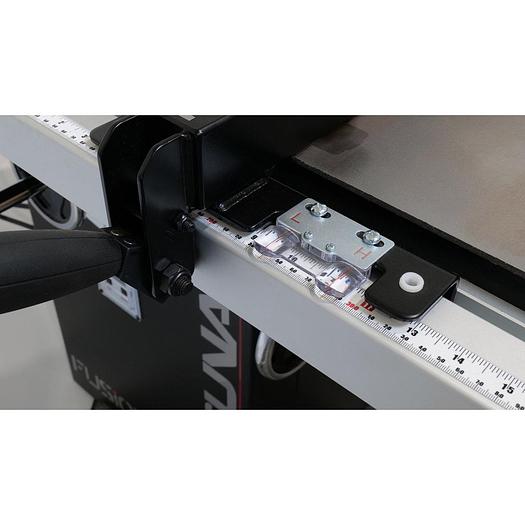

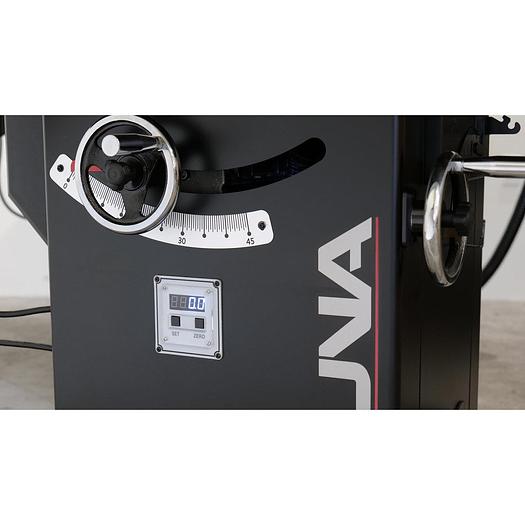

- DRO For The Tilt Angle Of BladeDouble Window With Hairline For Hi/Low Fence
Specifications
| Manufacturer | Laguna |
| Model | F2 |
| Condition | New |
| Stock Number | MTSF236110175-0130 |
| Dust Port Size | 4 in. |
| Blade Guard Dust Port Size | 1-½″ |
| Table Saw Type | Cabinet |
| Maximum Blade Diameter | 10″ |
| Arbor Size | ⅝″ |
| Arbor Speed | 4500 RPM |
| Maximum Width Of Dado | ¾″ |
| Blade Tilt Direction | Left |
| Max Blade Tilt | 45° |
| Maximum Depth Of Cut At 90° | 3-⅛″ |
| Maximum Depth Of Cut At 45° | 2-⅛″ |
| Max Rip Right Of Blade With Included Fence & Rails | 37'' |
| Table | Precision-Ground Cast Iron |
| Wings | Precision Cast Iron |
| Cabinet | Pre-Formed Steel |
| Trunnions | Cast Alloy |
| Body Assembly | Pre-Formed Steel |
| Fence Assembly | Aluminum Extruded Body |
| Rails | Steel |
| Miter Gauge Construction | Aluminum Body With Steel Bar |

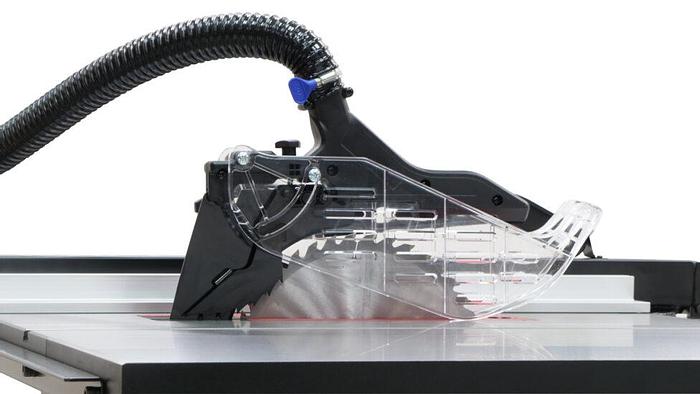

| Guard | Steel And Clear Plastic |
| Body/Cabinet Paint Type/Finish | Powder Coated |
| Arbor Bearings | Sealed & Permanently Lubricated |
| Weight (Net) | 276 lbs |
| Overall Width (Side-To-Side) | 66-13/16″ |
| Overall Depth (Front-To-Back) | 39-⅜″ |
| Overall Height | 42-⅞″ |
| Footprint Width | 19-¼″ |
| Footprint Length | 42-½″ |
| Shipping Weight | 435 lbs |
| Shipping Dimensions (W x L x H) | 30″ x 48″ x 43 |
