Laguna, F3 Fusion Tablesaw 36'' Fence
Description

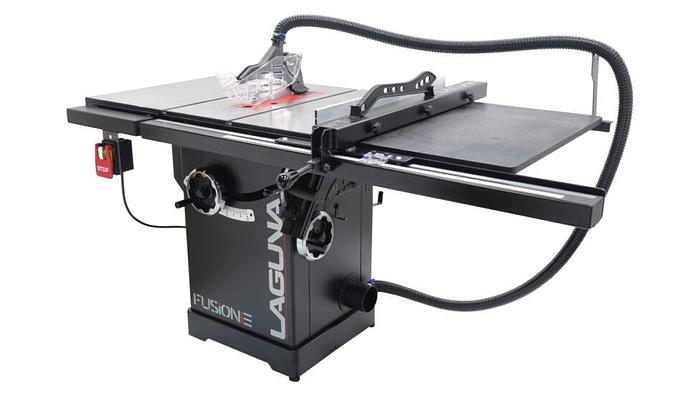

F3 Fusion Tablesaw
The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

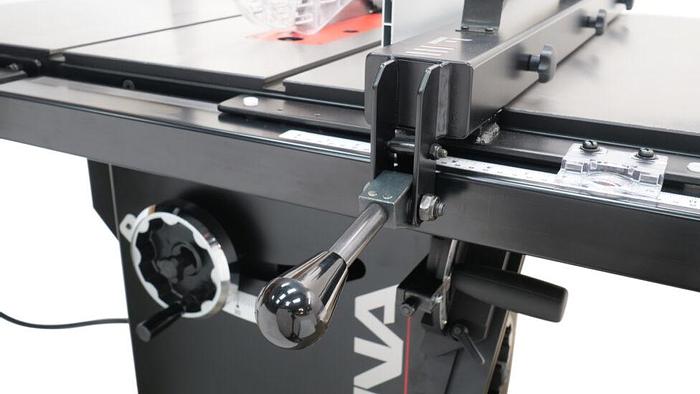

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
Features:
3HP TEFC Motor
220V, Single-Phase, 60Hz Power Requirement

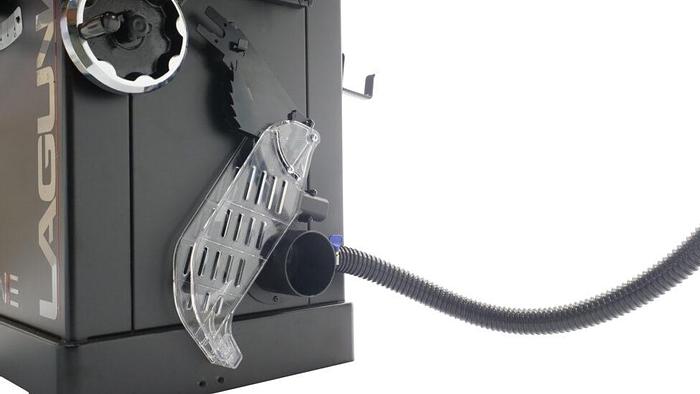

Fusion Dust Collection System
Industrial Cabinet, Fence & Trunnions
Included Tools, Tables & Integrated Tool Storage
Included 10 x 40T Carbide-Tipped Blade
Specifications
| Manufacturer | Laguna |
| Model | F3 |
| Condition | New |
| Stock Number | MTSF3362203-0130 |
| Dust Port Size | 4″ |
| Blade Guard Dust Port Size | 1-½″ |
| Table Saw Type | Cabinet |
| Maximum Blade Diameter | 10″ |
| Arbor Size | ⅝″ |
| Arbor Speed | 4500 RPM |
| Maximum Width Of Dado | ¾″ |
| Blade Tilt Direction | Left |
| Max Blade Tilt | 45° |
| Maximum Depth Of Cut At 90° | 3-⅛″ |
| Maximum Depth Of Cut At 45° | 2-⅛″ |
| Max Rip Right Of Blade With Included Fence & Rails | 37″ * |
| Included Blade Information | 10″ x 60T |
| Riving Knife/Spreader Thickness | 3/32″ |
| Required Blade Body Thickness | > ⅛″ |
| Required Blade Kerf Thickness | < 5/64″ |
| Floor To Table Height | 35″ |
| Table Size With Extension Wing Width | 61'' |
| Table Size With Extension Wings Depth | 27'' |
| Table | Precision-Ground Cast Iron |
| Wings | Precision-Ground Cast Iron |
| Cabinet | 14 Gauge Steel |
| Trunnions | Cast Iron |
| Body Assembly | 14 Gauge Steel |
| Fence Assembly | Steel Body |
| Rails | Industrial Steel |
| Miter Gauge Construction | Cast Iron With Steel Bar |
| Guard | Steel And Clear Plastic |
| Body/Cabinet Paint Type/Finish | Powder Coated |
| Arbor Bearings | Sealed & Permanently Lubricated |
