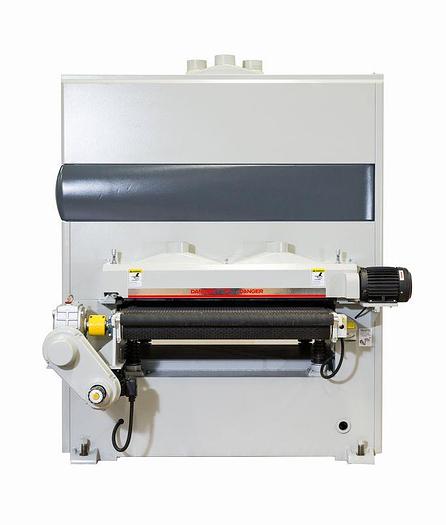

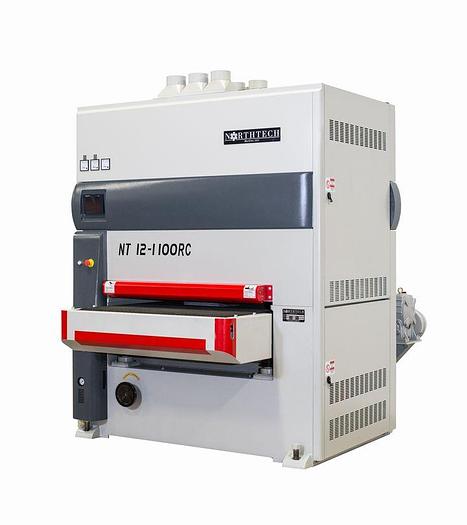

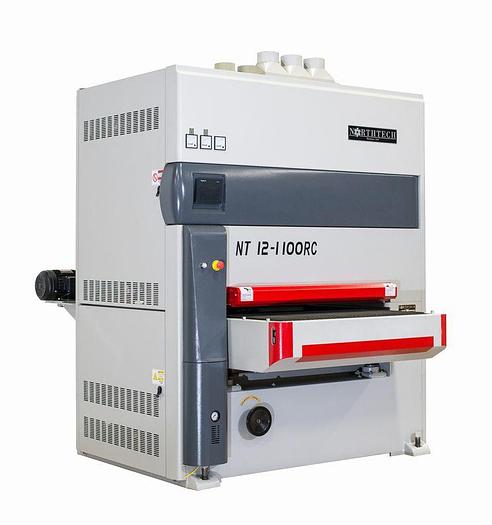

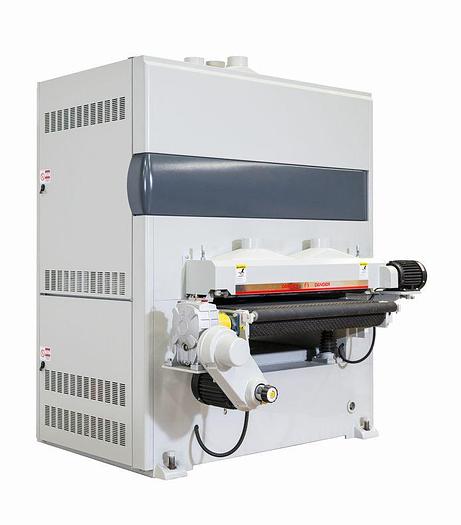

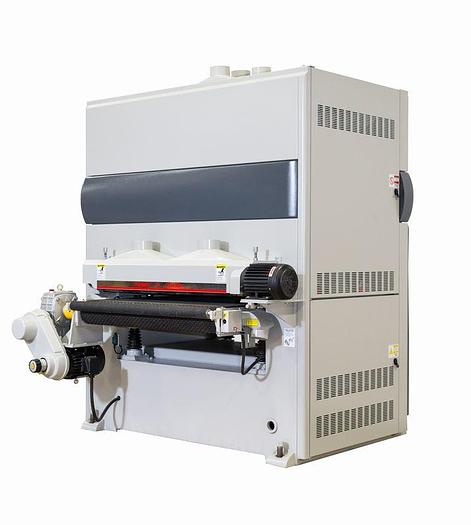

Northtec NT 12-1100RC Wide Belt Sander
or
Call +1 (607) 678-4374
Description
While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, the 12 series machines are designed for industrial production use. The NT-12-1100RC is a two head wide belt sander with 43″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The contact drum and combination head configuration provides excellent stock removal with a smooth finish. Available in a bottom series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.
Specifications
| Manufacturer | Northtech |
| Model | NT 12-1100RC |
| Condition | New |
| Stock Number | NT 12-1100RC |
| VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 72 / 144 Amps |
| CONFIGURATION | Roller Combination |

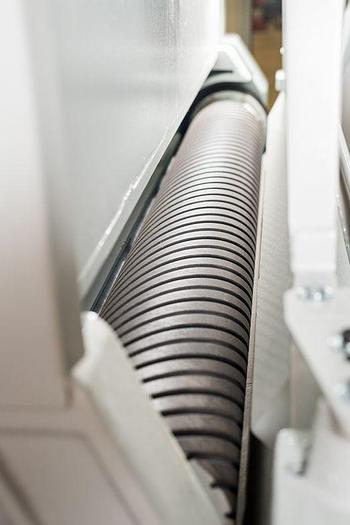

| 1st HEAD | 30 HP 12'' Spiral Fluted 70 Durometer |
| 2nd HEAD | 25 HP 6'' Roller Combination 65 Durometer |
| BRUSH MOTOR HP | 1 HP |
| FEED HP | 3 HP |

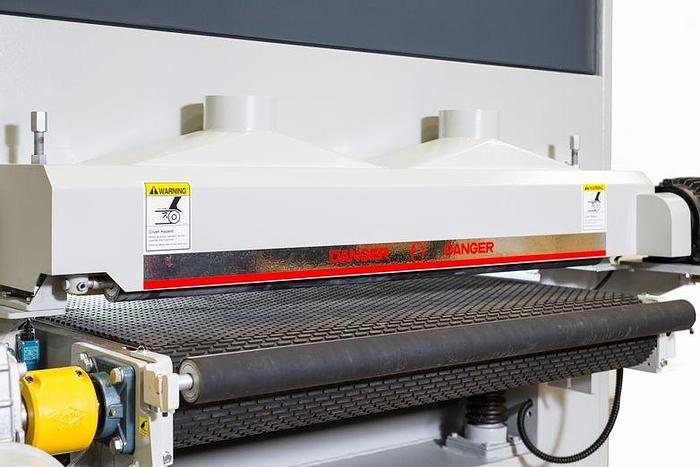

| FEED SYSTEM | 43'' Rubber Feed Mat |

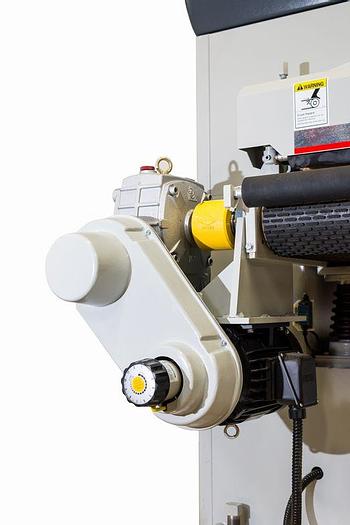

| DRIVE SYSTEM | Motor Gear Box |
| FEED SPEED RANGE | 20 - 90 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| ELEVATION HP | 3 HP |
| ELEVATION STYLE | Digital Touch Screen |
| ELEVATION SYSTEM | (4) Post Jack Screw |
| TOTAL MACHINE HP | 60 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| TOUCH SCREEN | 7'' Touch Screen |
| MIN. WORKING LENGTH | 20'' |
| MAX. WORKING WIDTH | 43'' |
| MIN. WORKING THICKNESS | .196'' |
| MAX. WORKING THICKNESS | 4.718'' |
| SANDPAPER SIZE | 43'' x 103'' |
| PLATEN SPECIFICATIONS | 4'' x 44'' Platen |
| 1st BELT SPEED | 4850 FPM |
| 2nd BELT SPEED | 2960 FPM |
| OSCILLATION STYLE | Photo Eye |
| OSCILLATION RATE | (20) Cycles Per Minute Adjustable |
| OSCILLATION TRAVEL | 1/2'' |

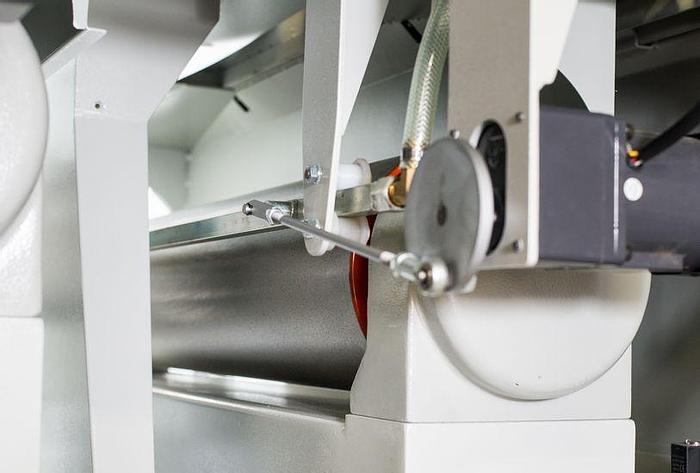

| CLEANING SYSTEM | Oscillating Jet Blow Off |
| TRACKING STYLE | Pneumatic Cylinder |
| TENSION STYLE | Pneumatic Cylinder |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Points of Extraction |
| DUST PORT SIZE OUTLET | (10) 5'' |
| IDLE ROLLERS | (8) Idle Rollers |
| PRESSURE SHOES | (3) Pressure Shoes |
| HOLD DOWN STYLE | Rollers / Shoes |

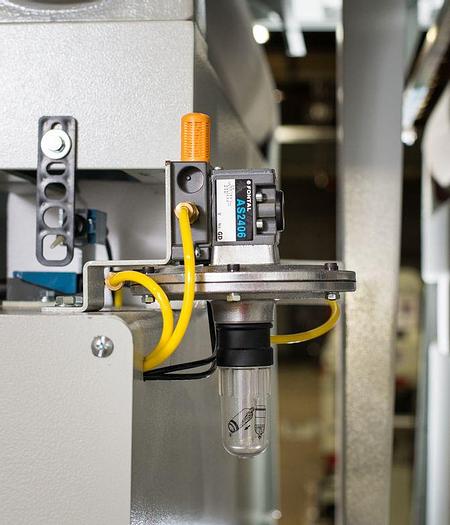

| FLR INCLUDED | Filter, Regulator, Lubricator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (2) |
| GUARDING | Full Enclosure |

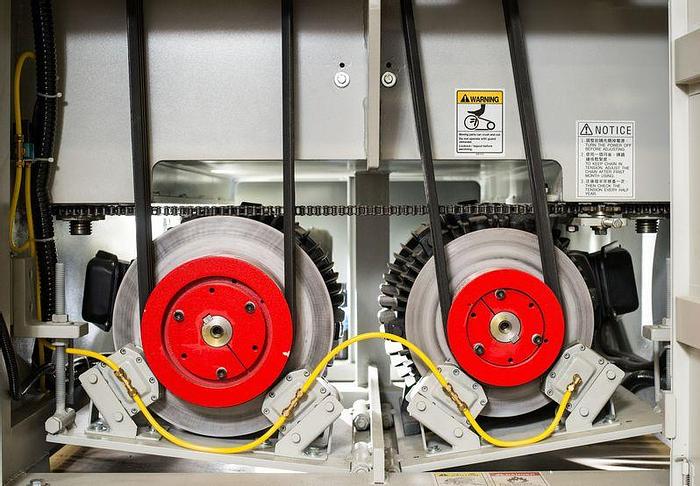

| BRAKE SYSTEM | Dual Caliper Pneumatic Brakes |
| FRAME CONSTRUCTION | Steel / Cast |
| TABLE CONSTRUCTION MATERIAL | Steel |
| MEASURING METHOD | Encoder |
| DECIBEL RATING | 77 dB |
| NET WEIGHT | 7716 Lbs. |
| GROSS WEIGHT | 8378 Lbs. |
| MACHINE DIMENSIONS | 88'' x 74'' x 92'' |
| PACKAGING DIMENSIONS | 95'' x 79'' x 93 |
