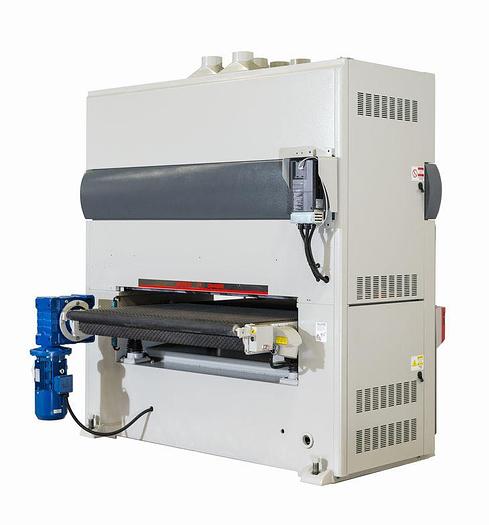

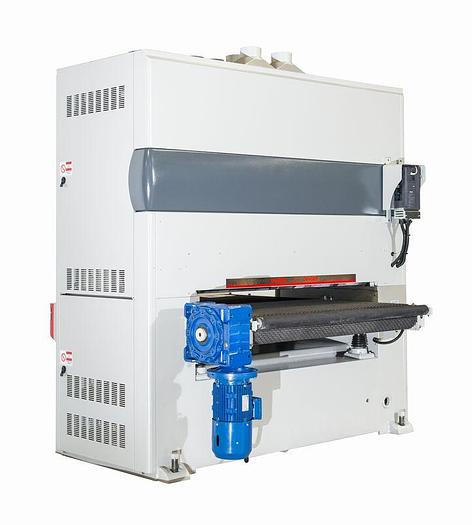

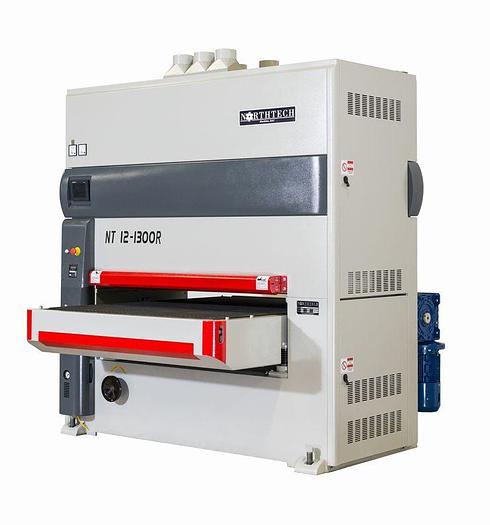

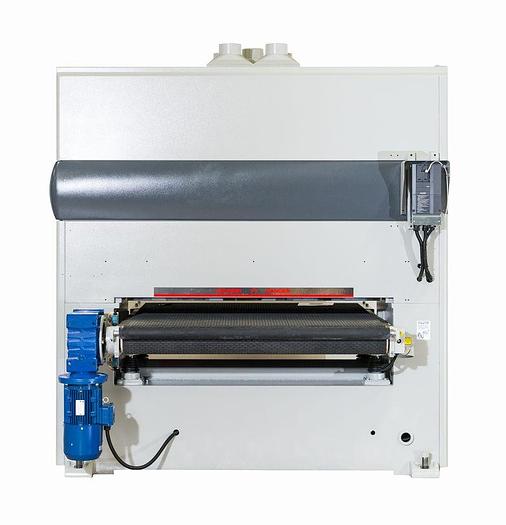

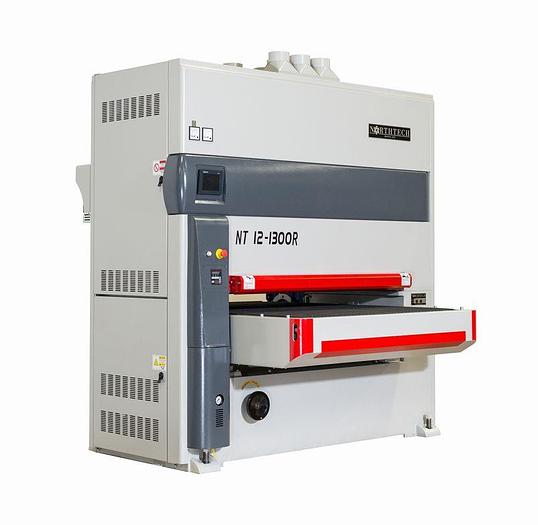

Northtech NT 12-1300R Wide Belt Sander

or
Call +1 (607) 678-4374
Description
While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, the 12-series machines are designed for industrial production use. The NT-12-1300R is a single head wide belt sander with over 50″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The single contact drum configuration provides a wide width in a small footprint. Available in a bottom series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.
Specifications
| Manufacturer | Northtech |
| Model | NT 12-1300R |
| Condition | New |
| Stock Number | NT 12-1300R |
| VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 26.5 / 53 |
| CONFIGURATION | Roller |
| 1st HEAD | 40 HP 12'' Spiral Fluted Steel Drum |
| BRUSH MOTOR HP | 1 HP |
| FEED HP | 3 HP |

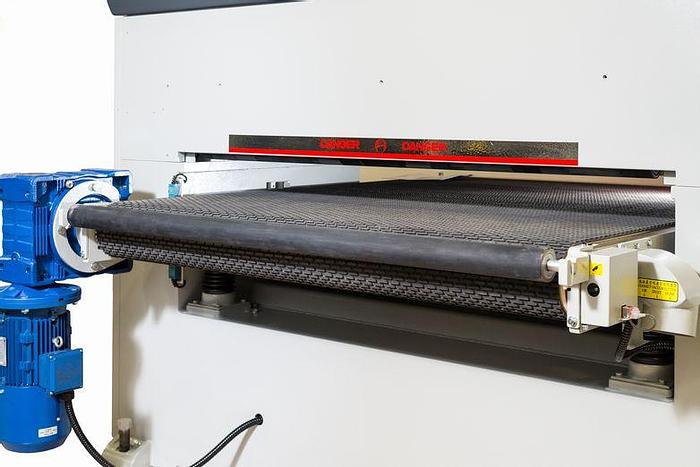

| FEED SYSTEM | 51'' Rubber Feed Mat |
| DRIVE SYSTEM | Motor to Gear Box |
| FEED SPEED RANGE | 15 - 63 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| ELEVATION HP | 1 HP |
| ELEVATION STYLE | Touch Screen Inverter Controlled |
| ELEVATION SYSTEM | (4) Post Jack Screw |
| TOTAL MACHINE HP | 45 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| PROGRAMABLE | Elevation |
| TOUCH SCREEN | 7'' Touch Screen |
| MIN. WORKING LENGTH | 16'' |
| MAX. WORKING WIDTH | 51'' |
| MIN. WORKING THICKNESS | .196'' |
| MAX. WORKING THICKNESS | 4.75'' |
| SANDPAPER SIZE | 51'' x 103'' |
| 1st BELT SPEED | 4725 FPM |
| OSCILLATION STYLE | Photo Eye |
| OSCILLATION RATE | (20) Cycles Per Minute Adjustable |
| OSCILLATION TRAVEL | 1/2'' |
| CLEANING SYSTEM | Oscillation Jet Blow Off |
| TRACKING STYLE | Pneumatic Cylinder |
| TENSION STYLE | Pneumatic Cylinder |

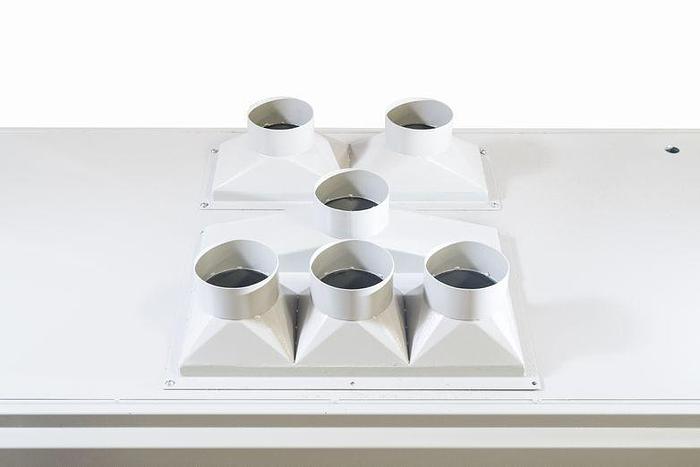

| DUST PORT SIZE OUTLET | (6) 5'' Ports |
| DIGITAL DISPLAY | Feed Speed |

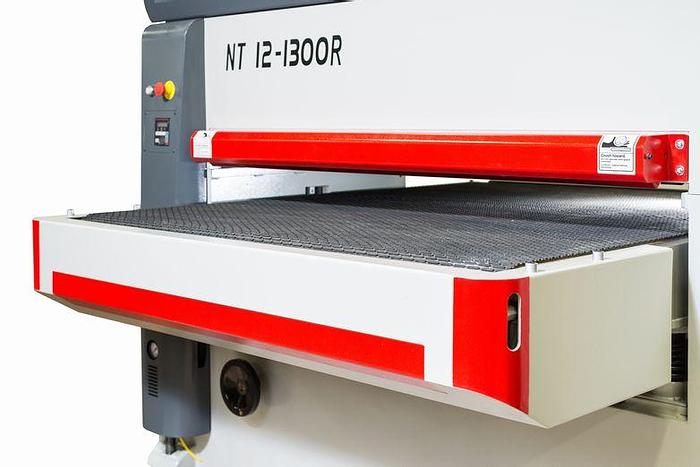

| CONVEYOR | 51'' Feed Mat |
| HOLD DOWN STYLE | Pressure Shoe / Rubber Rollers |
| FLR INCLUDED | Filter, Regulator, Lubricator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (2) |
| GUARDING | Full Enclosure |

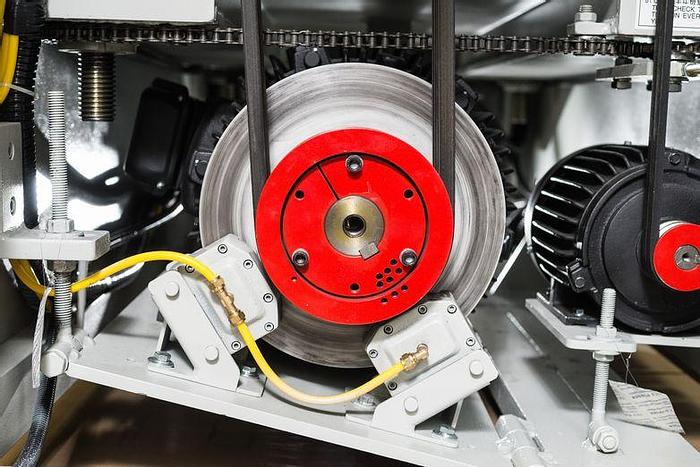

| BRAKE SYSTEM | Dual Caliper Pneumatic Brakes |
| FRAME CONSTRUCTION | Steel / Cast |
| MEASURING METHOD | Encoder |
| DECIBEL RATING | 74 dB |
| NET WEIGHT | 6600 Lbs. |
| GROSS WEIGHT | 7480 Lbs. |
| MACHINE DIMENSIONS | 84'' x 78'' x 92'' |
| PACKAGING DIMENSIONS | 91'' x 90'' x 99'' |
