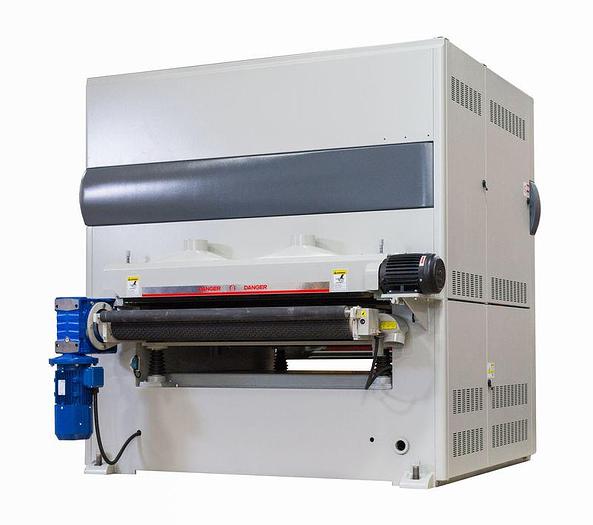

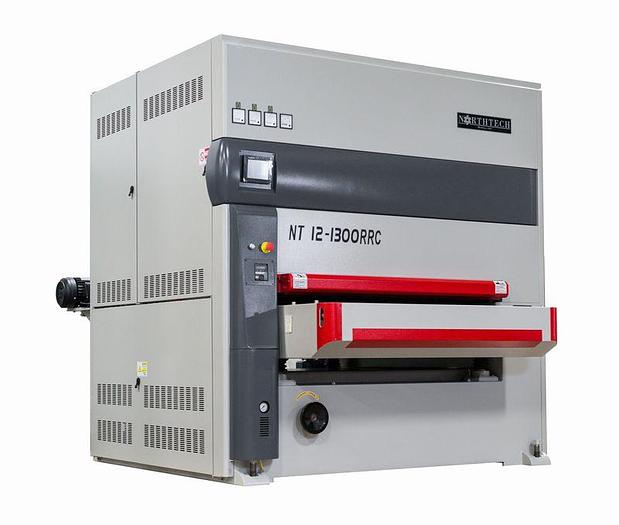

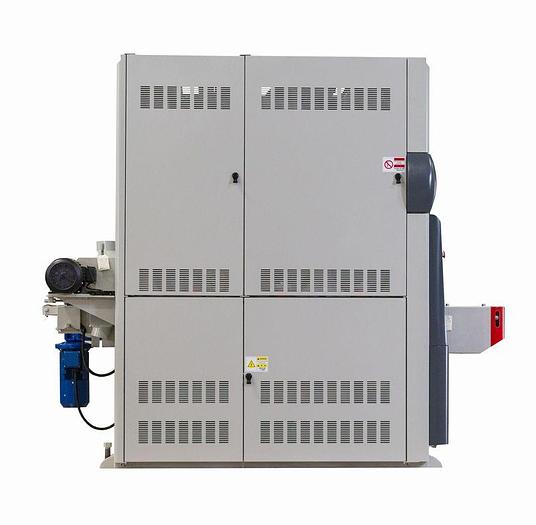

Northtech NT-12-1300RRC Wide Belt Sander
or
Call +1 (607) 678-4374
Description
While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, 12-series machines are designed for industrial production use. The NT-12-1300RRC is a three head wide belt sander with over 50″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The configuration of 12″ Roller-RollerCombination allows for aggressive stock removal and a smooth stain ready finish in one pass. Available in a bottom series and planer series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.
Specifications
| Manufacturer | Northtech |
| Model | NT-12-1300RRC |
| Condition | New |
| Stock Number | NT-12-1300RRC |
| VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 274 / 137 Amps |
| CONFIGURATION | Roller Roller Combination |
| 1st HEAD | 40 HP 12'' Spiral Fluted 70 Durometer |
| 2nd HEAD | 40 HP 12'' Spiral Fluted 65 Durometer |
| 3rd HEAD | 30 HP 6'' Roller and Platen Combination Head |
| BRUSH MOTOR HP | 1 HP |
| FEED HP | 5 HP |
| FEED SYSTEM | 51'' Rubber Feed Mat |

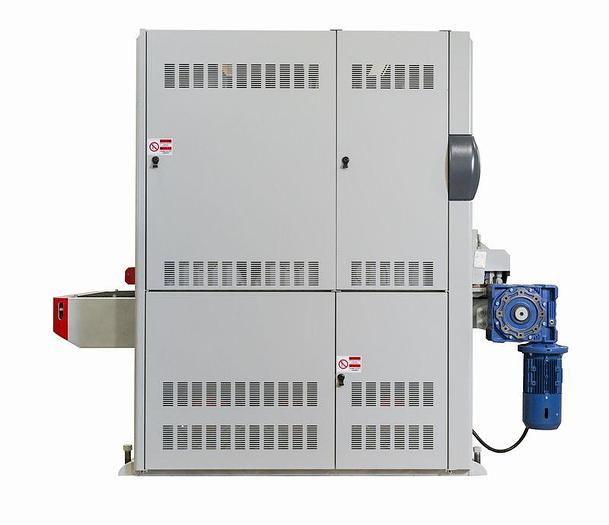

| DRIVE SYSTEM | Motor Gear Box |
| FEED SPEED RANGE | 14-63 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| ELEVATION HP | 1 HP |
| ELEVATION STYLE | Digital Touch Screen |
| ELEVATION SYSTEM | (4) Post Jack Screw |
| TOTAL MACHINE HP | 117 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| TOUCH SCREEN | 7'' Touch Screen |
| MIN. WORKING LENGTH | 20'' |
| MAX. WORKING WIDTH | 51'' |
| MIN. WORKING THICKNESS | .198'' |
| MAX. WORKING THICKNESS | 4.75 |
| SANDPAPER SIZE | 51'' x 103'' |
| PLATEN SPECIFICATIONS | 4'' x 54'' |
| 1st BELT SPEED | 5000 FPM |
| 2nd BELT SPEED | 5000 FPM |
| 3rd BELT SPEED | 3000 FPM |
| OSCILLATION STYLE | Photo Eye |
| OSCILLATION RATE | (20) Cycles Per Minute Adjustable |
| OSCILLATION TRAVEL | 1/2'' |
| CLEANING SYSTEM | Oscillating Jet Blow Off |

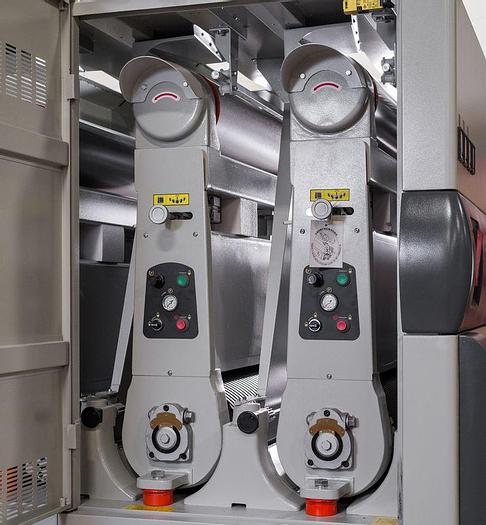

| TRACKING STYLE | Pneumatic Cylinder |
| TENSION STYLE | Pneumatic Cylinder |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Points |

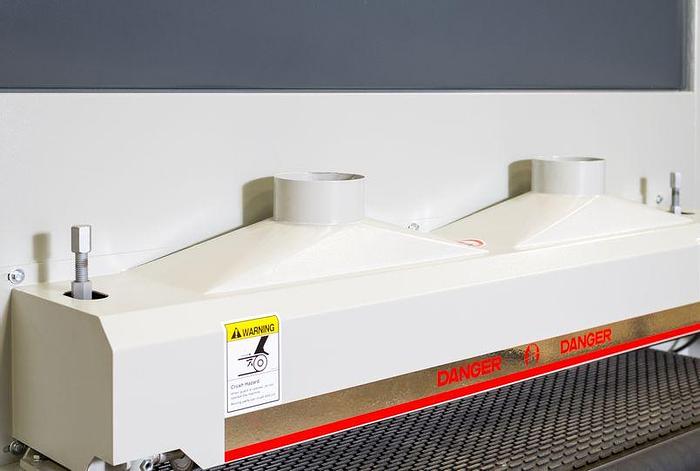

| DUST PORT SIZE OUTLET | (14) 5'' Ports |
| DIGITAL DISPLAY | Feed Speed |
| CONVEYOR | 51'' Rubber Feed Mat |
| IDLE ROLLERS | (12) Hold Down Rollers |
| PRESSURE SHOES | (4) Pressure Shoes |
| HOLD DOWN STYLE | Rollers / Shoes |

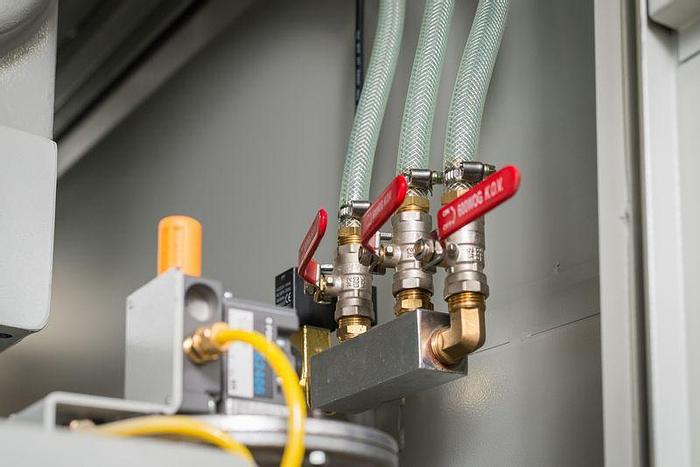

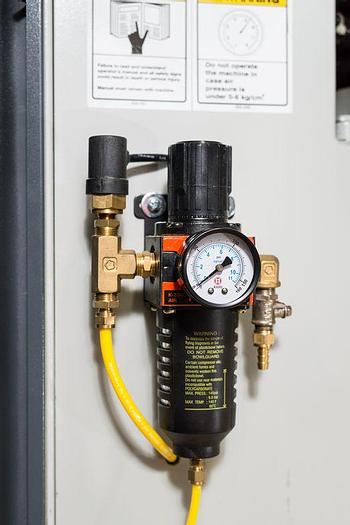

| FLR INCLUDED | Filter, Regulator, Lubricator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (2) |
| GUARDING | Full Enclosure |

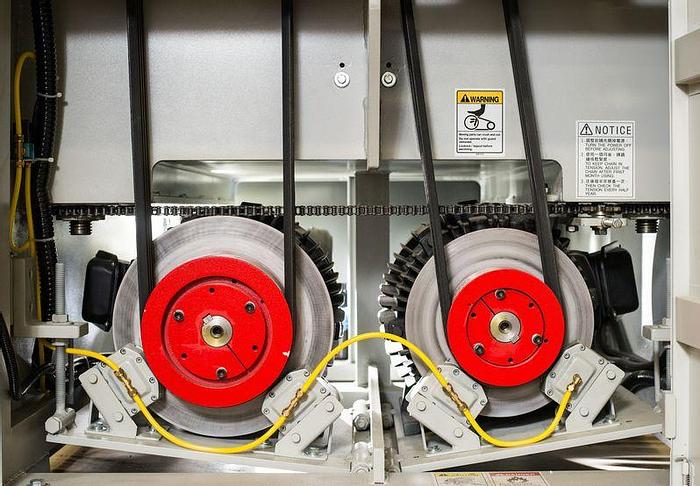

| BRAKE SYSTEM | Dual Caliper Pneumatic Brakes |
| FRAME CONSTRUCTION | Steel / Cast |
| TABLE CONSTRUCTION MATERIAL | Steel |
| MEASURING METHOD | Encoder |
| DECIBEL RATING | 79 dB |
| NET WEIGHT | 15875 Lbs. |
| GROSS WEIGHT | 165000 Lbs. |
| MACHINE DIMENSIONS | 102 x 86'' x 93'' |
| PACKAGING DIMENSIONS | 120'' x 91'' x 94'' |
