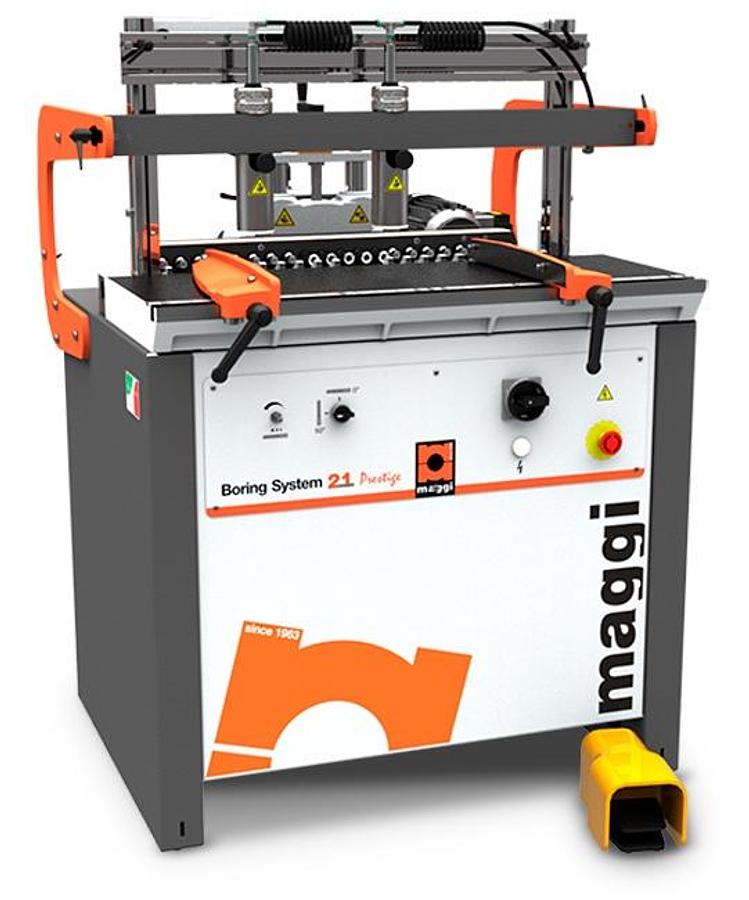

Maggi System 21 Prestige Construction/Line Borer

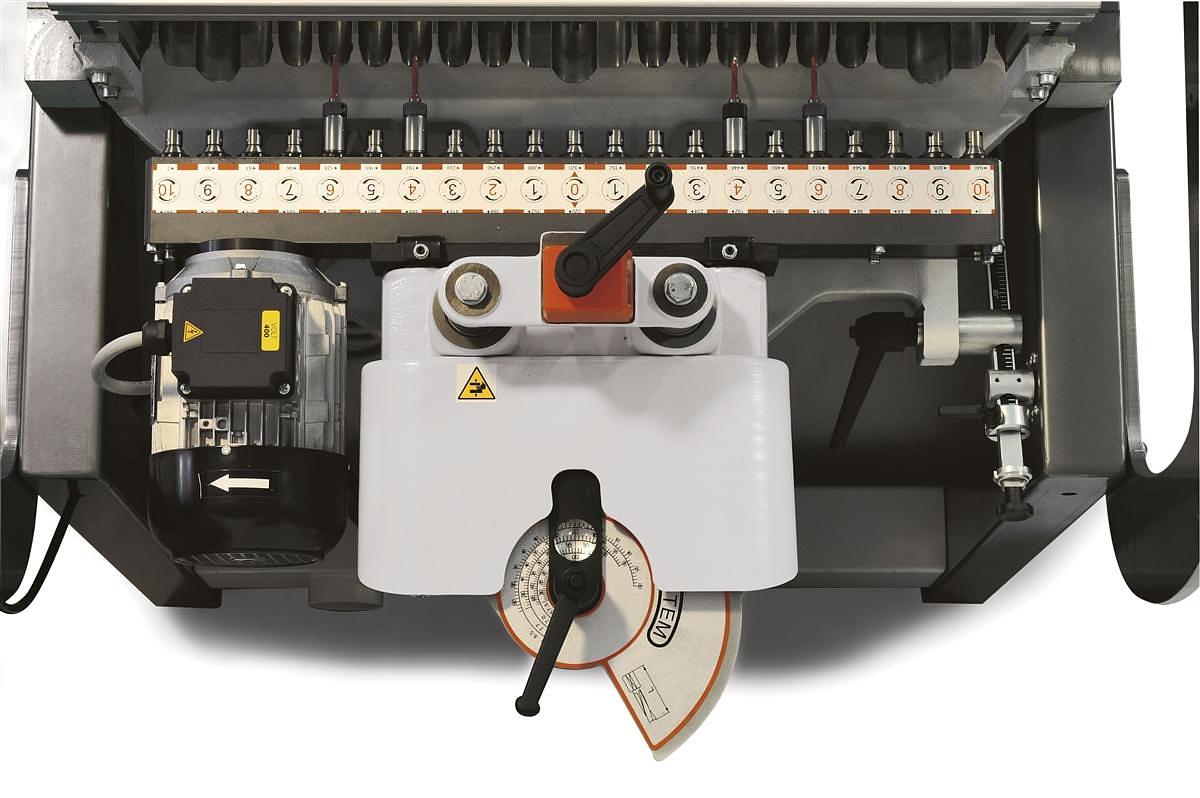

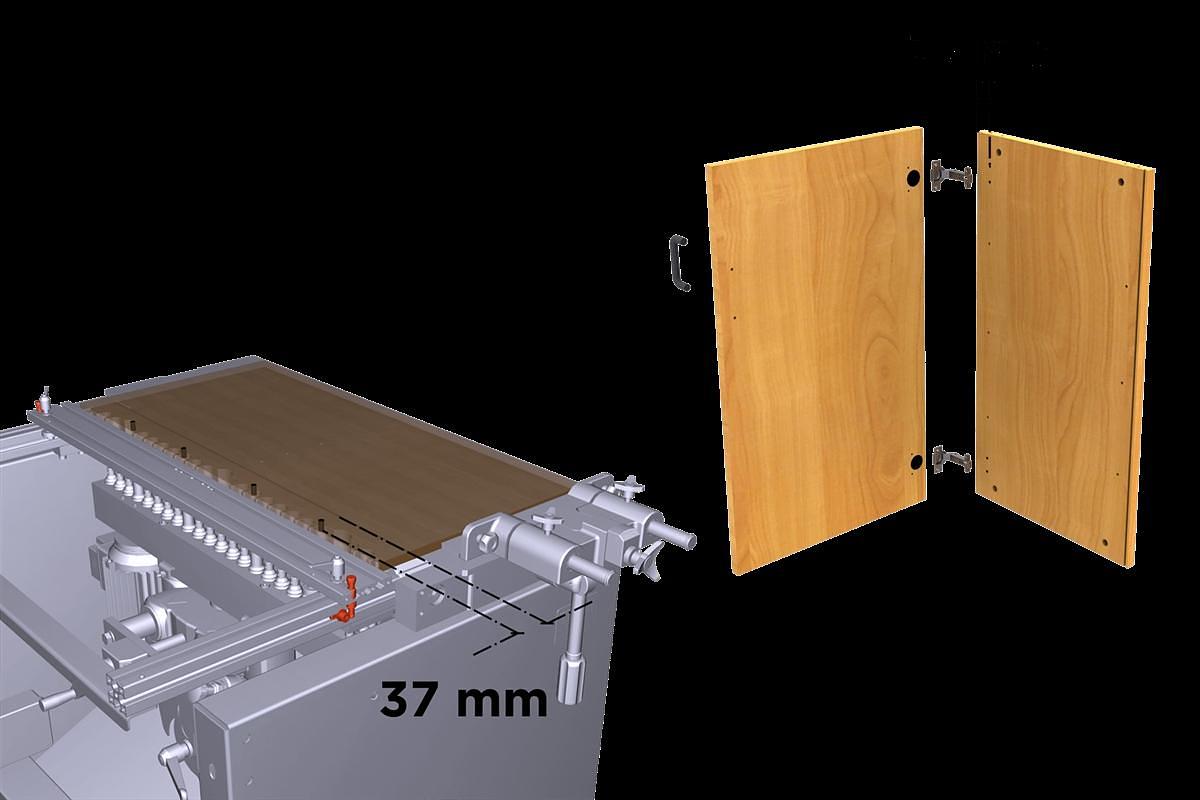

The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle;

• Accurate positioning of the boring unit to the table with digital readout.
• 3-Phase Option. Single Phase also available.

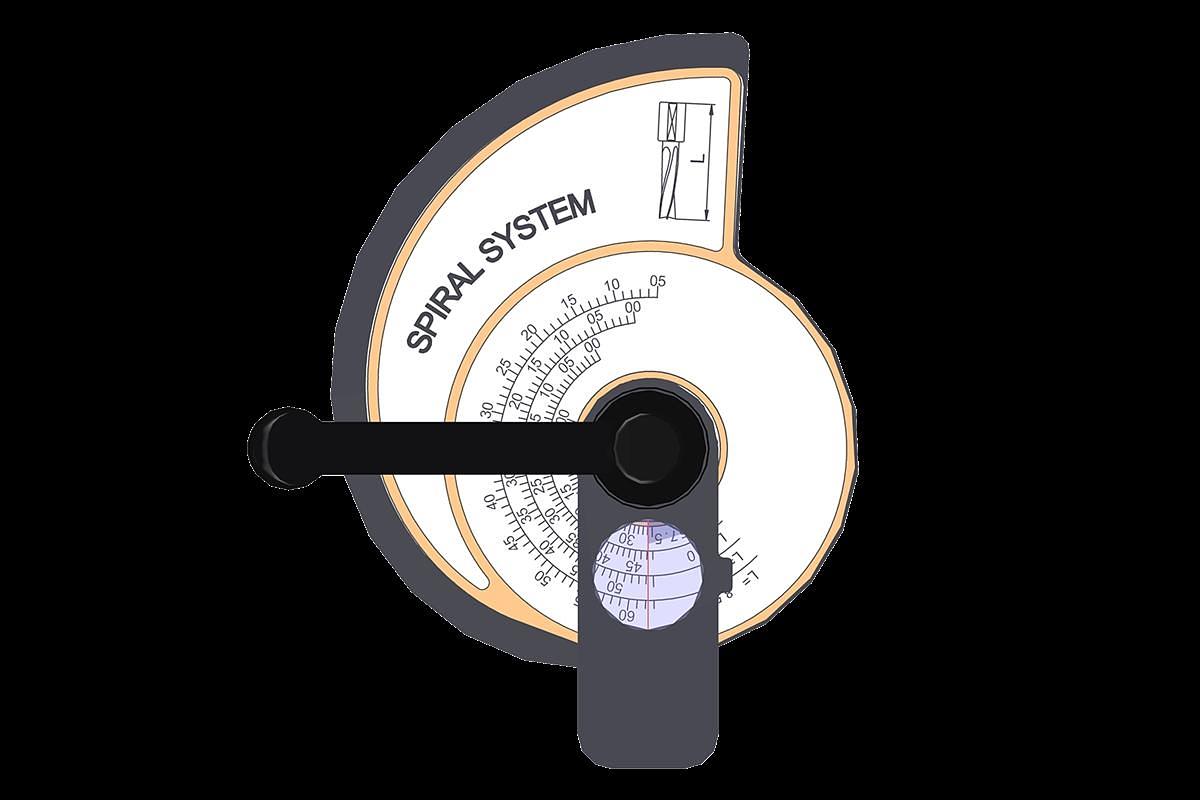

• 0 to 2.5" adjustable drilling depth with patented spiral setting device.

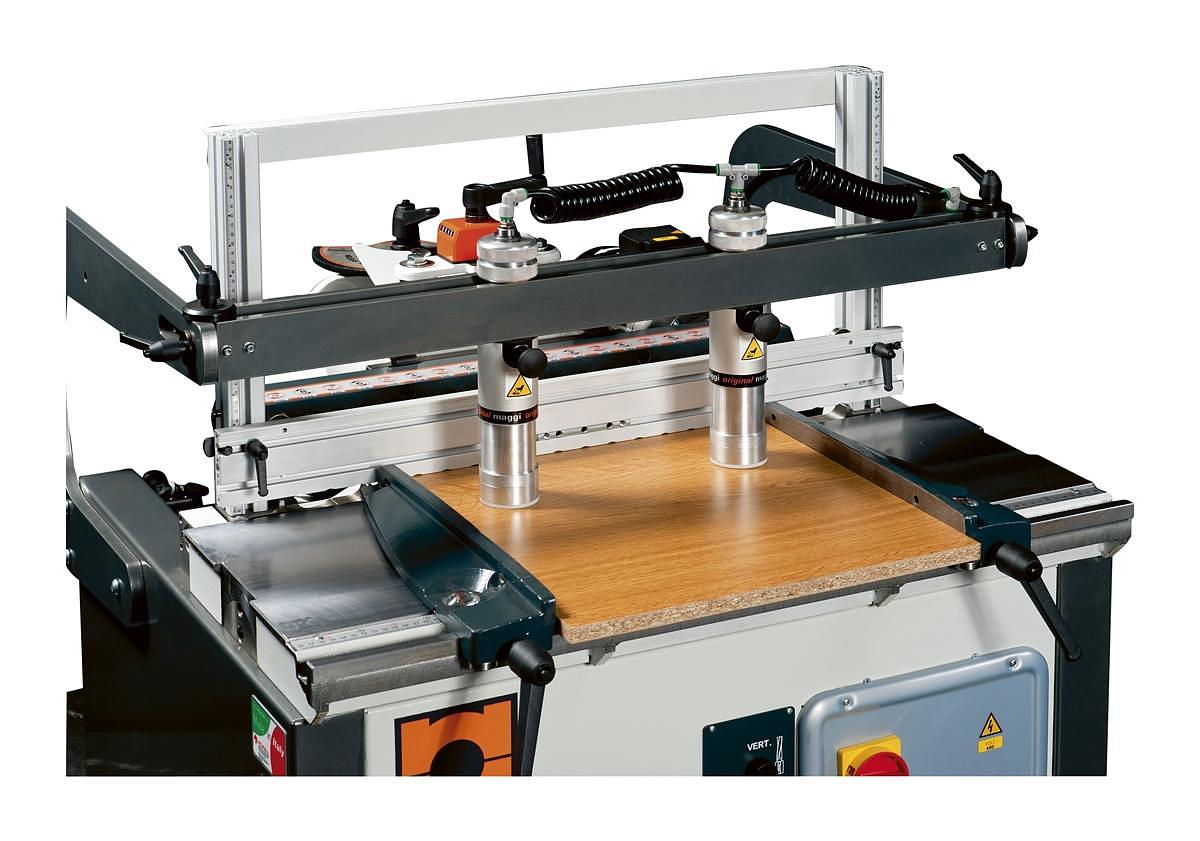

• (2) patented quick release material clamps with auto-setting to firmly hold material to table
• Powerful 2 HP motor
• 34" x 13" cast iron table.
• Cast iron side fences with ruler and magnifying glass.

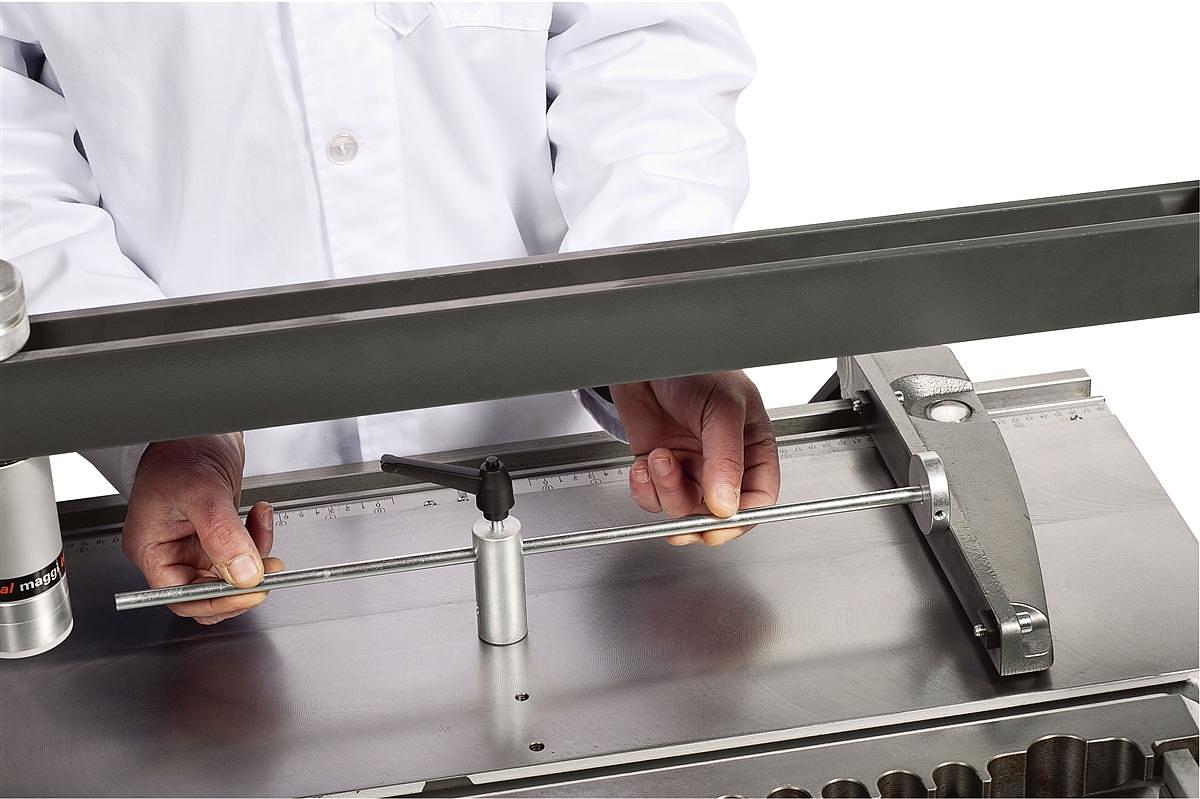

• Mirror imaging device to ensure quick and accurate set-up of the side fences.

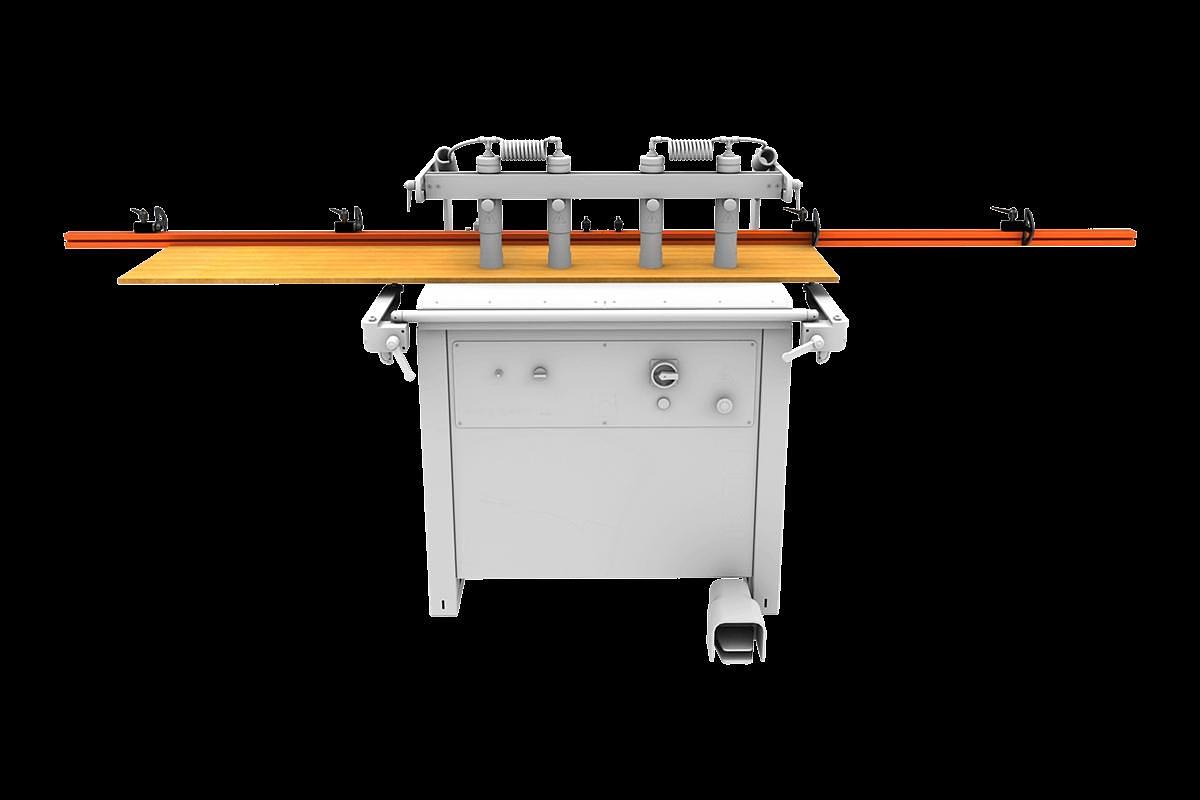

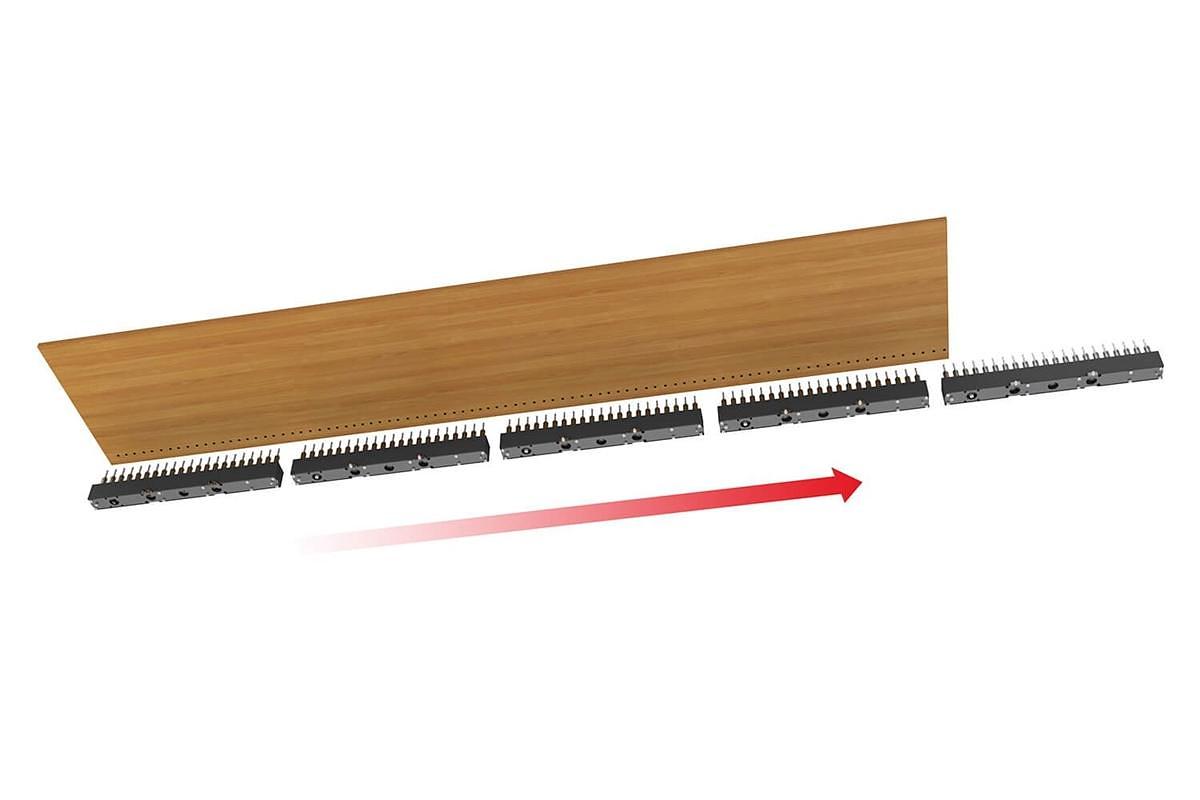

• 120" line boring fence with (2) stops
• Foot actuated pneumatic clamps and drill cycle.

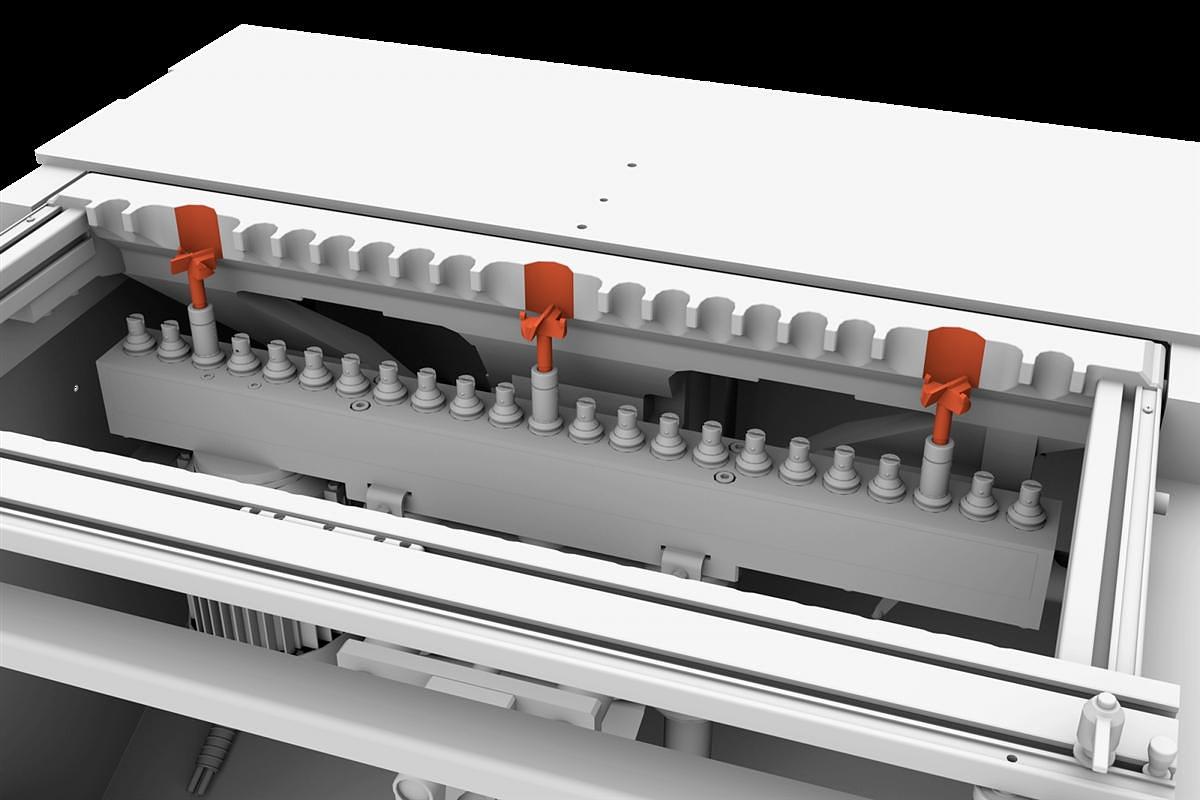

• Uses 10 Left Hand (red/orange) and 11 Right Hand (black) boring bits
• Includes: Magnetic starter with overload protection and (21) quick change chucks.
• Dust Outlet: 3"; Net weight: 605 lbs; Dimensions: 40.5" x 40.5" x 50" Tall;
• Crated Dimensions: 44" x 38" x 42" Tall; Crated Weight: 640 lbs
• Made in Italy.
