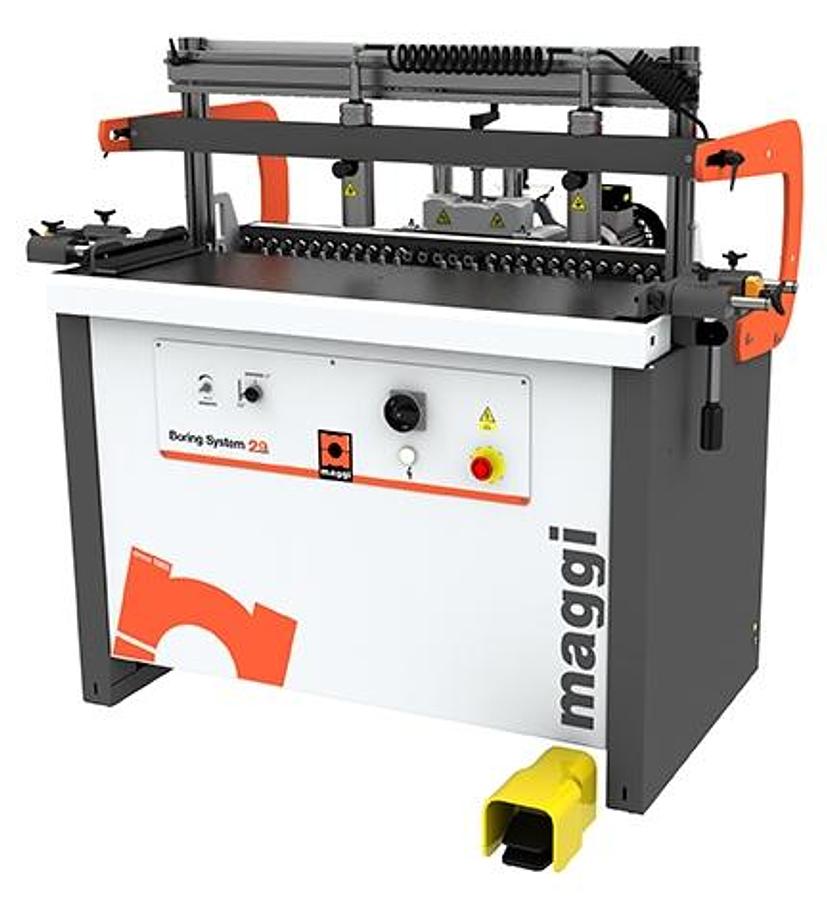

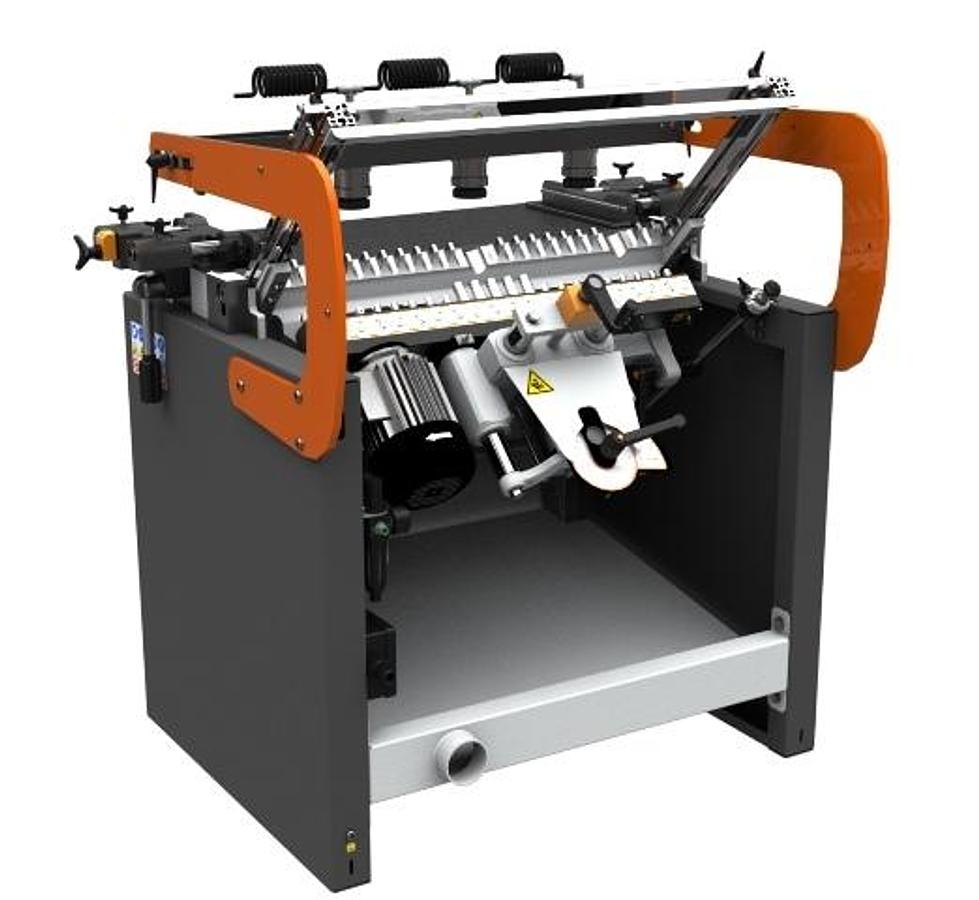

Maggi System 29 Construction/Line Borer

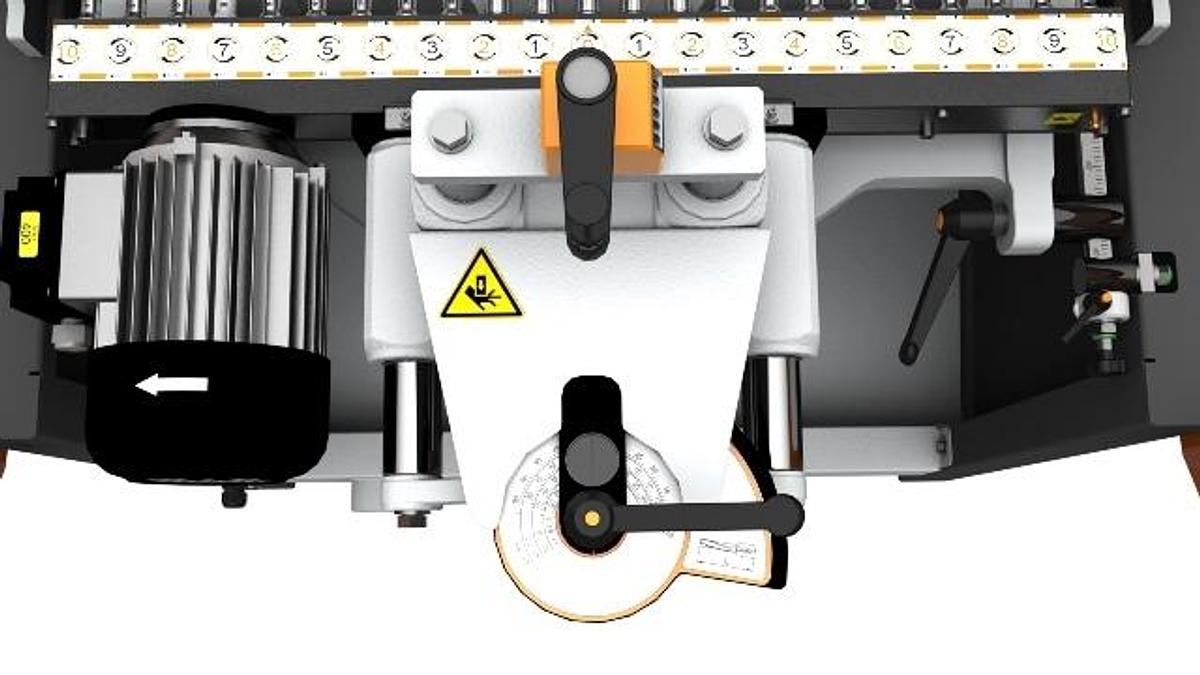

The Maggi System 29 Boring Machine provides a 29 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

• Accurate positioning of the boring unit to the table with digital readout.

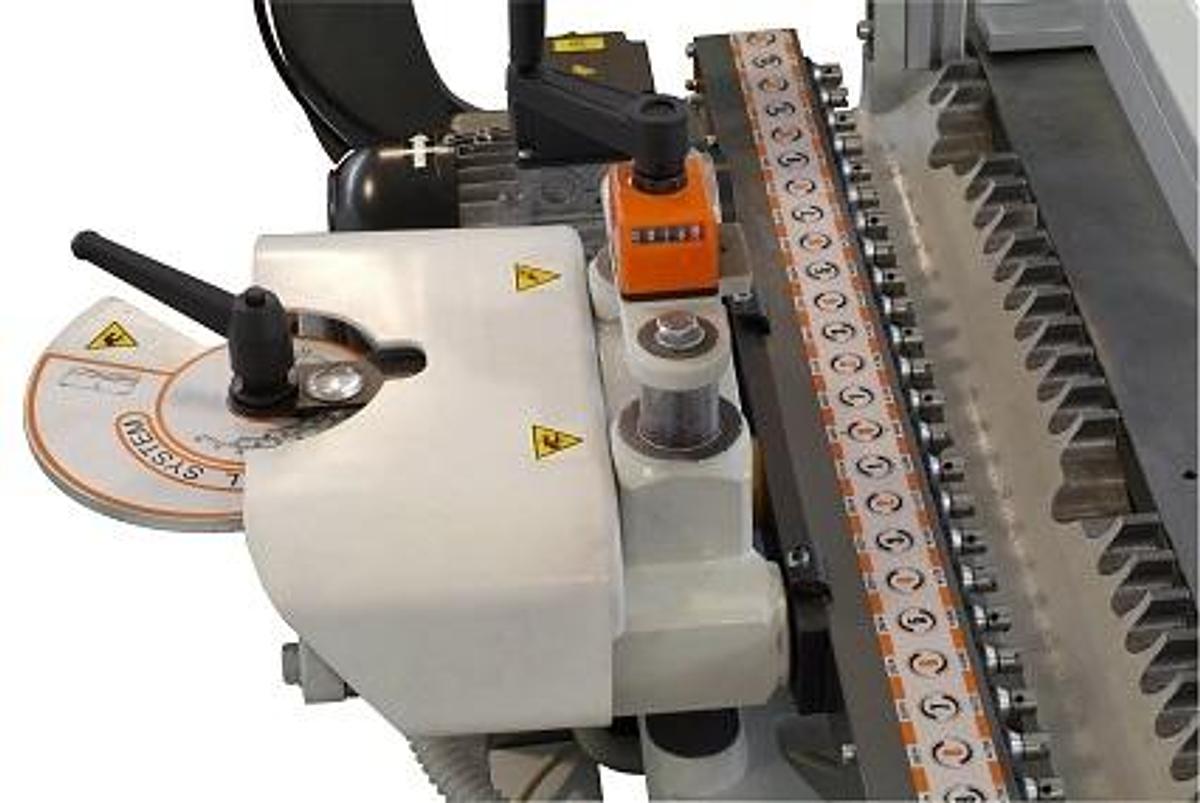

• 0 to 2.5" adjustable drilling depth with patented spiral setting device.
• (3) patented quick release material clamps with auto-setting to firmly hold material to table.
• Powerful 2 HP motor.
• 47" x 13" cast iron table.

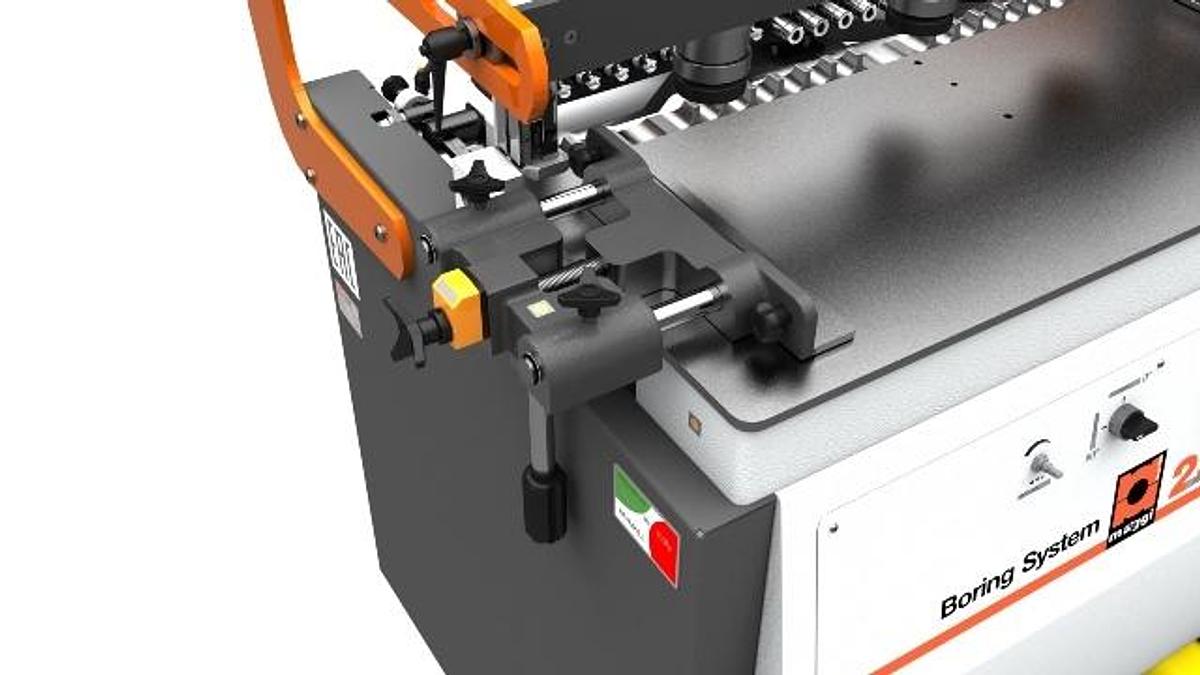

• Side fences with mechanical digital readout for quick and accurate setting.
• 120" line boring fence with (4) stops.
• Foot actuated pneumatic clamps and drill cycle.
• Uses 14 Left Hand (red/orange) and 15 Right Hand (black) boring bits
• Includes: Magnetic Starter with overload protection and (29) quick change chucks.
• Dust Outlet: 3"
• Voltage: 230V 3-Phase
• Net weight: 705 lbs.
• Dimensions: 59.3" x 37.8" x 50" Tall.
• Crated Dimensions: 50" x 38" x 42" Tall.
• Crated Weight: 759 lbs.
