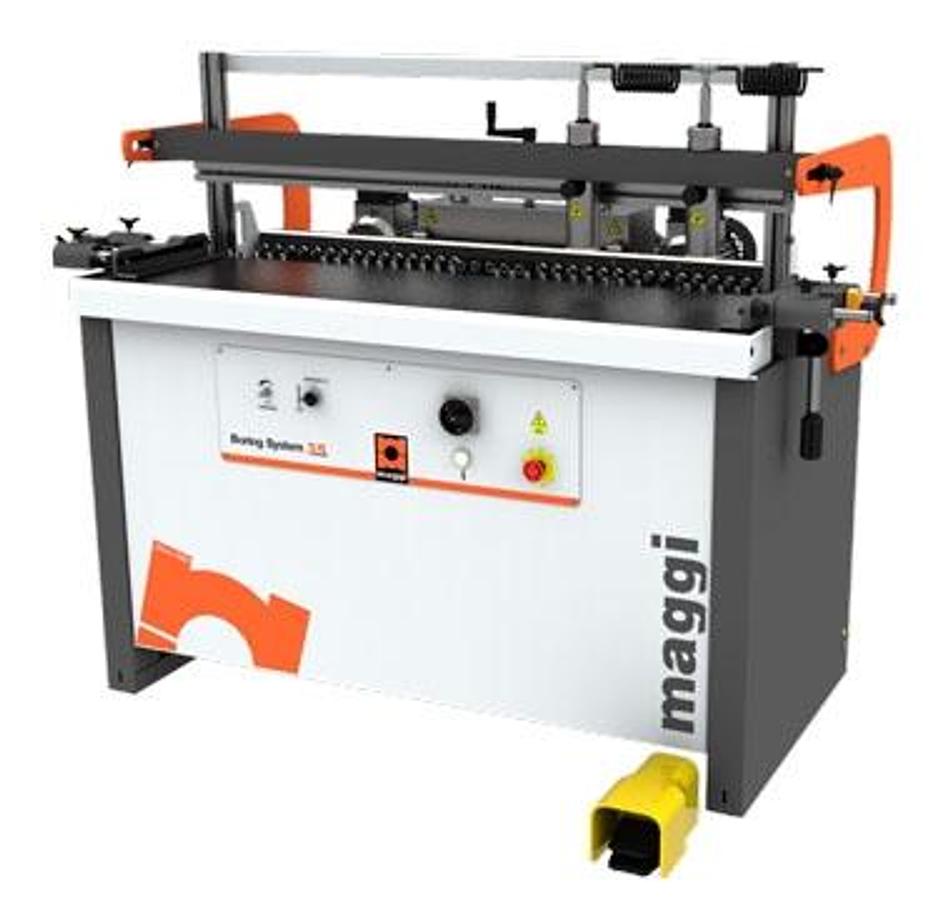

Maggi System 35 Construction/Line Borer

The Maggi System 35 Boring Machine provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle

• Accurate positioning of the boring unit to the table with digital readout
• 0 to 3.25" adjustable drilling depth with patented spiral setting device
• (4) patented quick release material clamps with auto-setting to firmly hold material to table
• (2) Powerful 2 HP motors
• 52" x 13" cast iron table
• Side fences with mechanical digital readout for quick and accurate setting
• 120" line boring fence with (4) stops
• Foot actuated pneumatic clamps and drill cycle

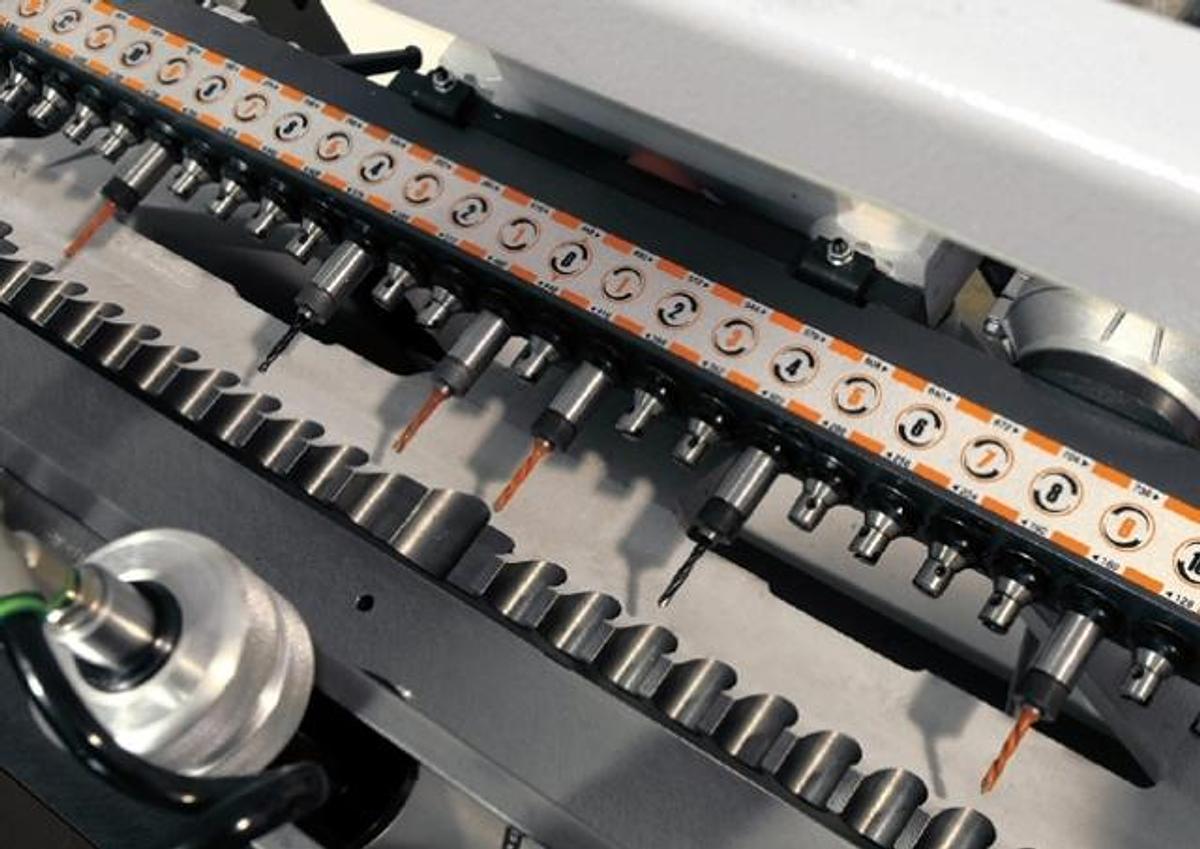

• Uses 17 Left Hand (red/orange) and 18 Right Hand (black) boring bits
• Includes: Magnetic Starter with overload protection and (35) quick change chucks
• Dust Outlet: 3"
• Voltage: 230V 3-Phase
• Net weight: 881 lbs
• Dimensions: 65.75" x 38.9" x 50" Tall
• Crated Dimensions: 57" x 38" x 43" Tall
• Crated Weight: 895 lbs.
