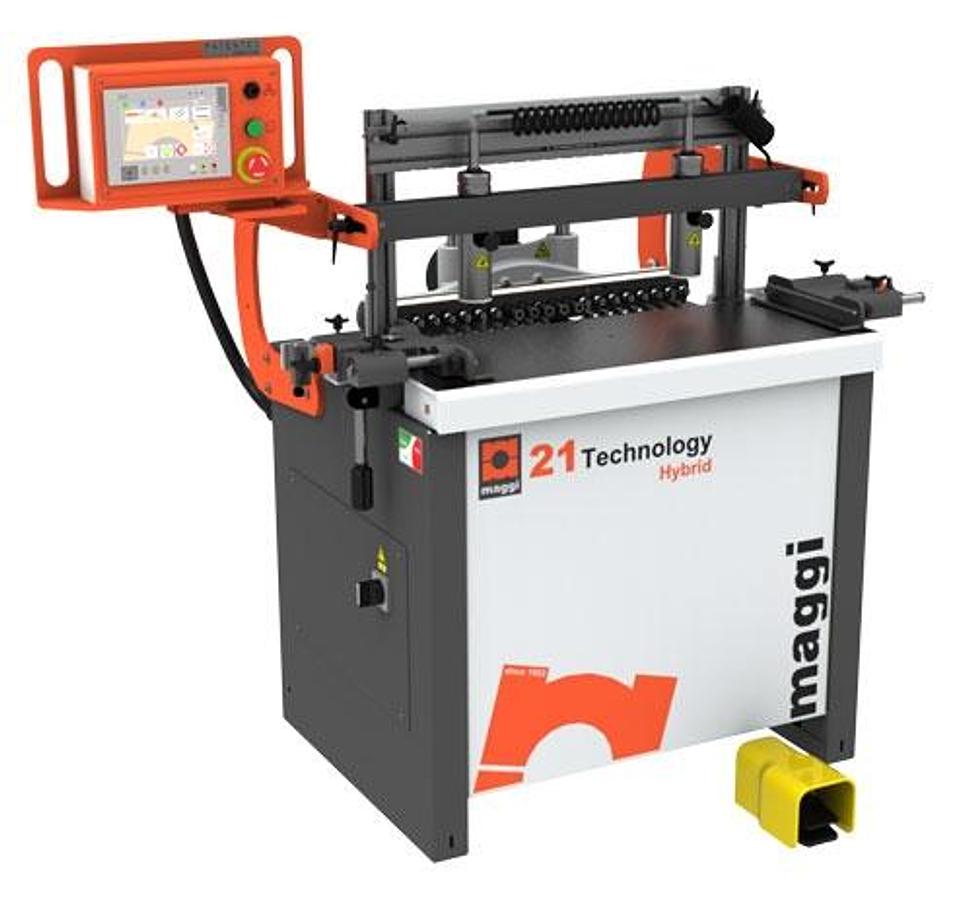

Maggi System 21 Technology Construction/Line Borer

COMPUTER CONTROLLED DRILL HEAD

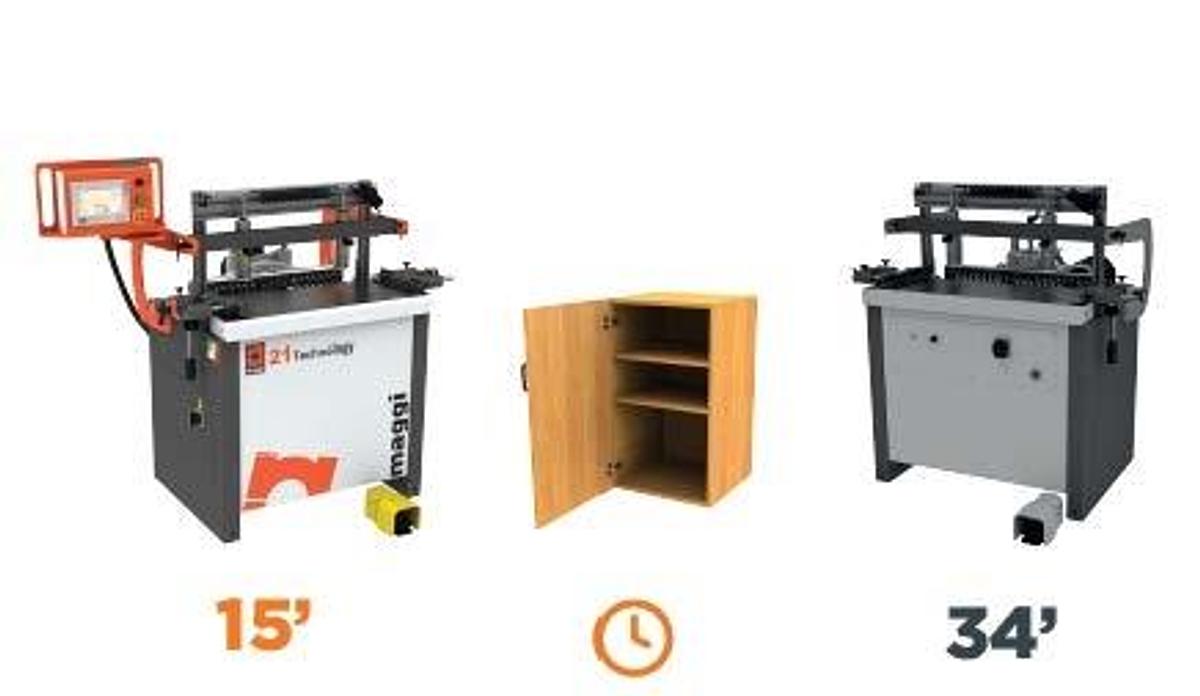

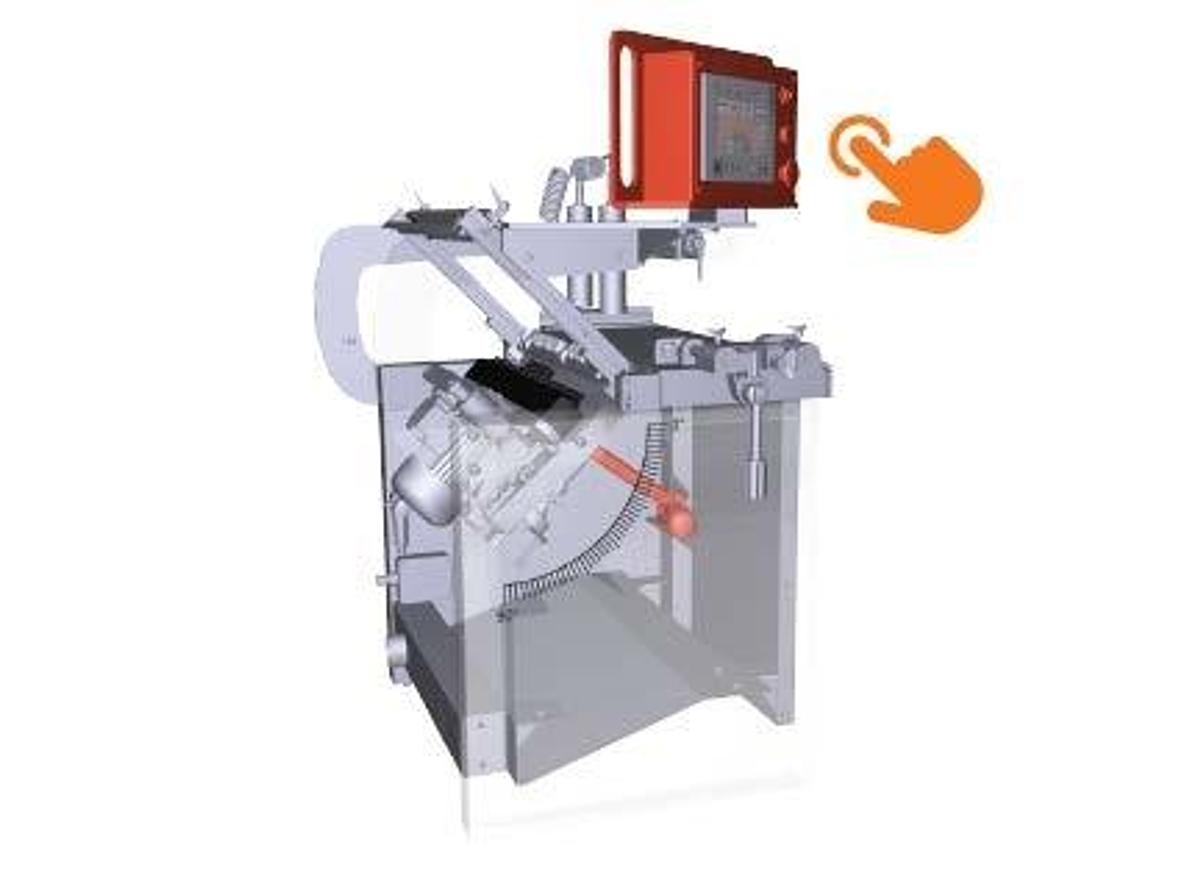

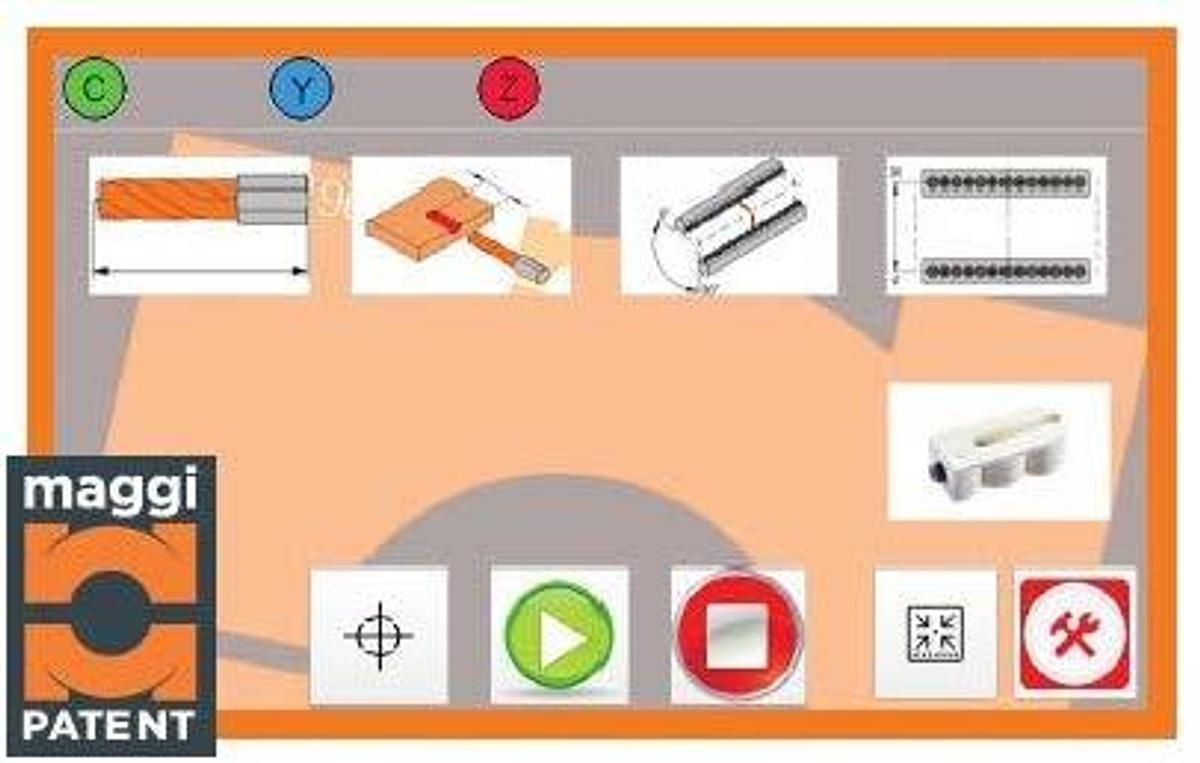

The Maggi System 21 Technology Boring Machine provides a 21 spindle 32 mm universal drilling solution with CNC boring capabilities. The drill head is controlled via a touch screen and programmable for horizontal and vertical boring as well as boring at any angle between 0 and 90 degrees. Jobs can be stored and recalled at a touch of a button, resulting in quick setups.

• Accurate positioning of the boring unit to the table via CNC touch panel controls.
• 0 to 2.5" adjustable drilling depth via CNC touch panel controls.

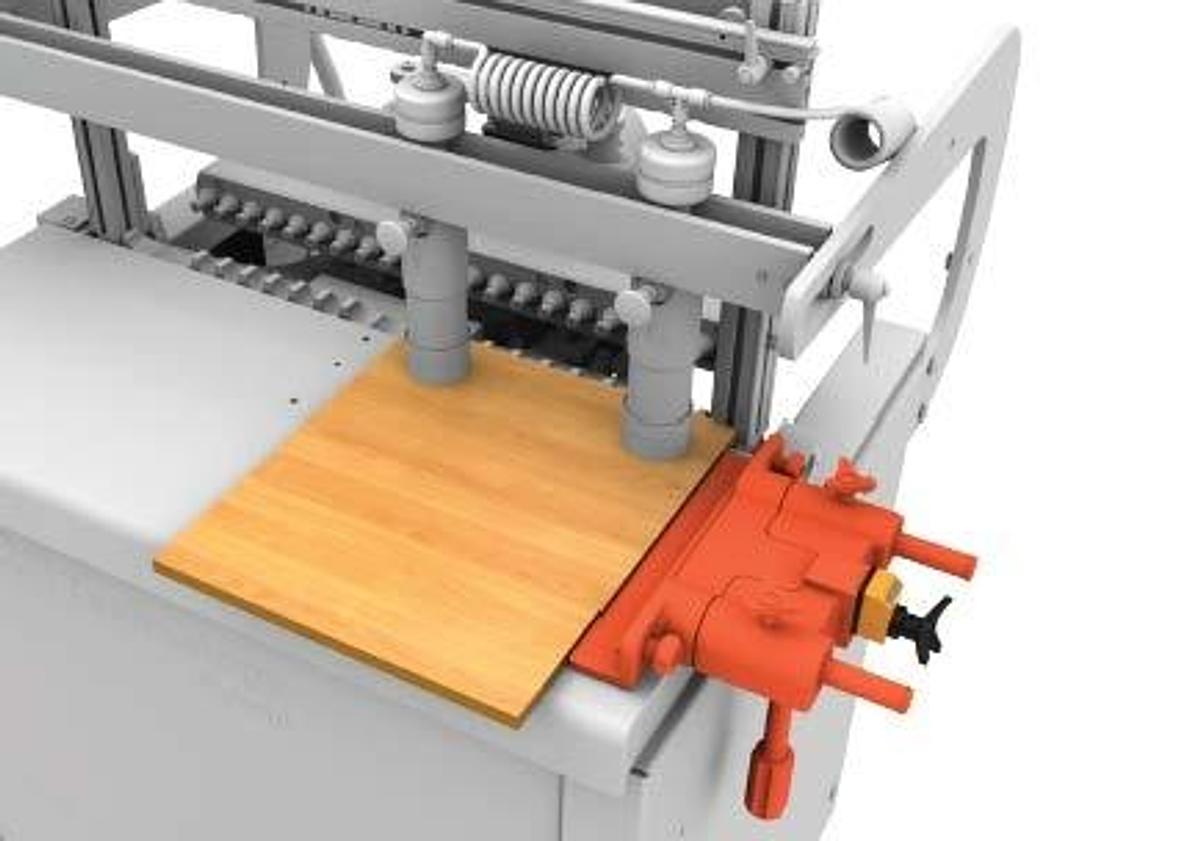

• (2) patented quick release material clamps with auto-setting to firmly hold material to table.

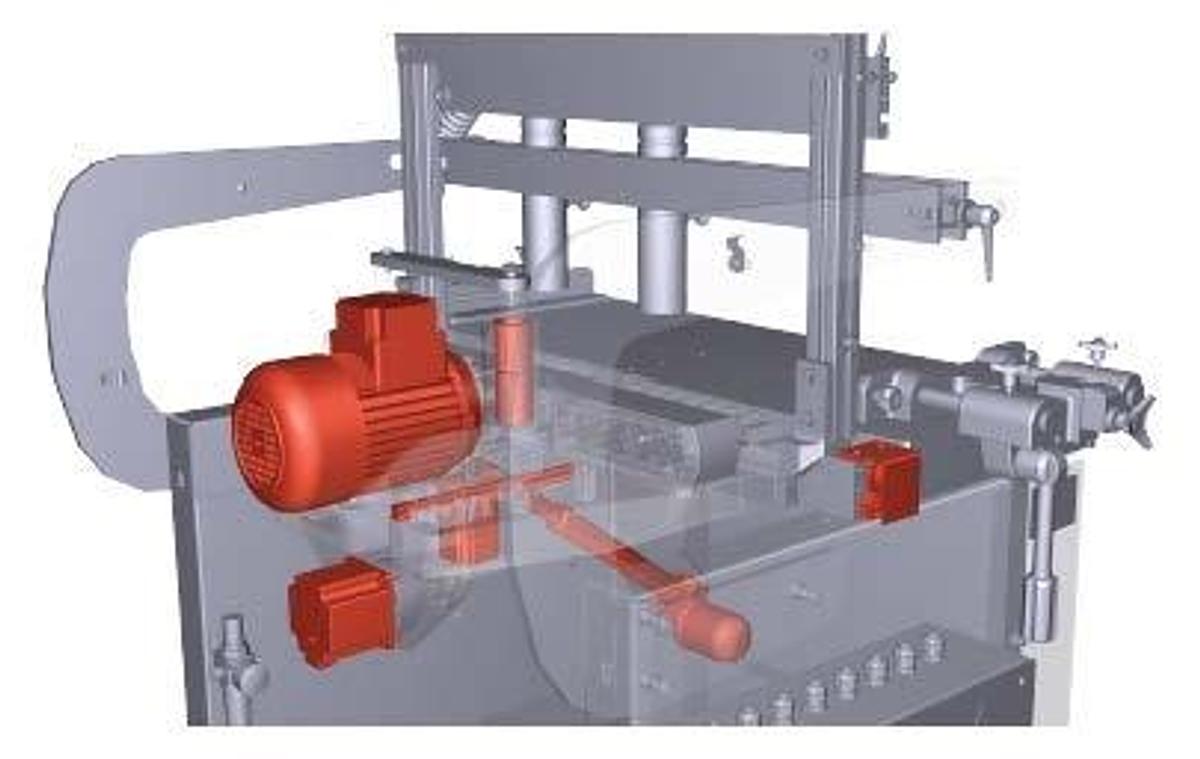

• Powerful 2 HP motor.
• 34" x 13" cast iron table.
• Side fences with mechanical digital readout for quick and accurate setting.
• 120" line boring fence with (4) stops.

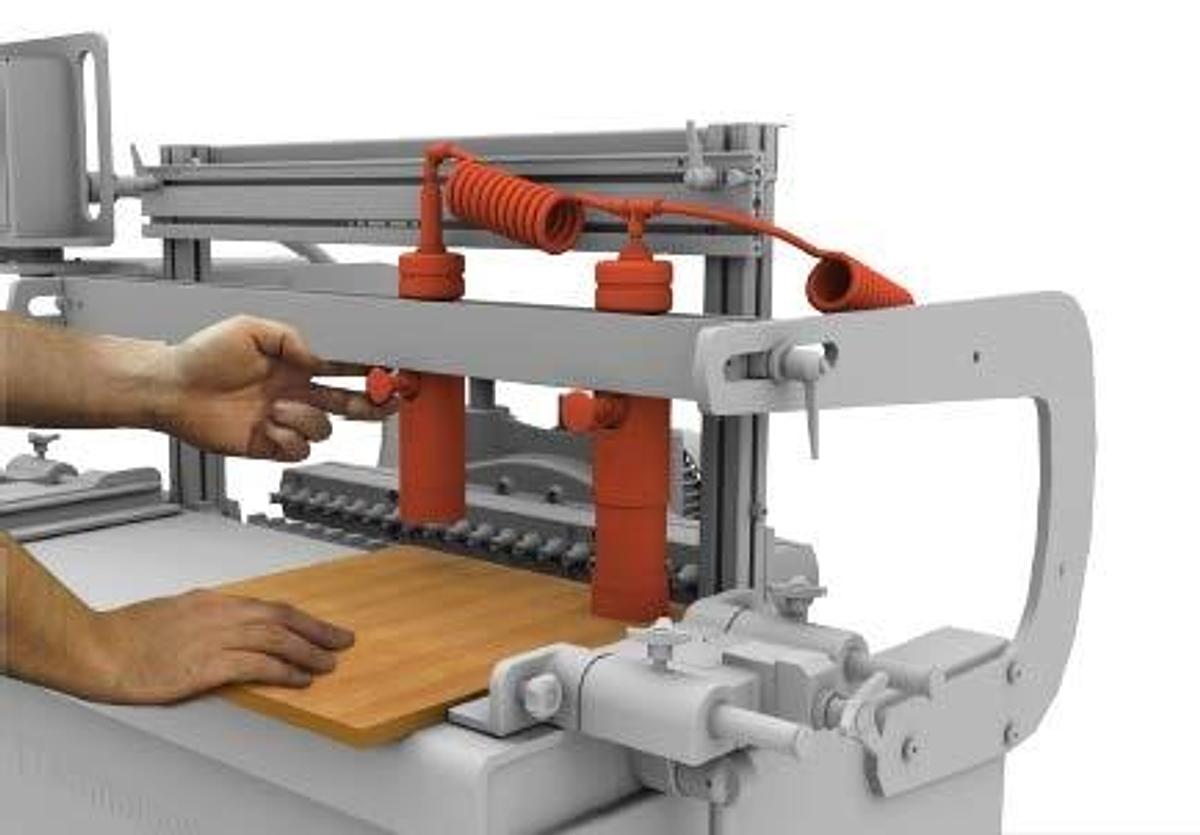

• Foot actuated pneumatic clamps and drill cycle.
• Uses 10 Left Hand (red/orange) and 11 Right Hand (black) boring bits.
• Capable of drilling holes for Cabineo panel fasteners.
• Includes: Magnetic Starter with overload protection and (21) quick change chucks.
• Dust Outlet: 3"
• Voltage: 230V 3-Phase
• Net weight: 750 lbs.
• Dimensions: 62.2" x 37.4" x 41.75" Tall.
• Crated Dimensions: 44.9" x 37.4" x 55.1" Tall.
• Crated Weight: 815 lbs.
