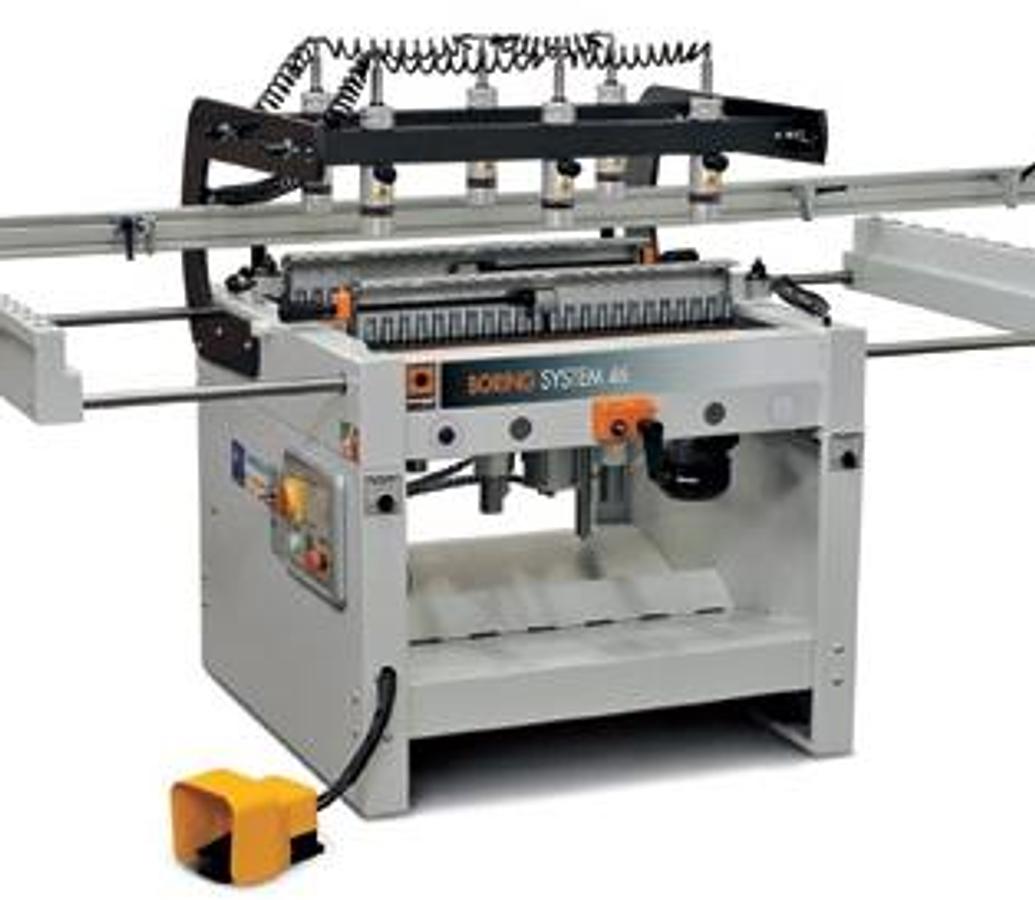

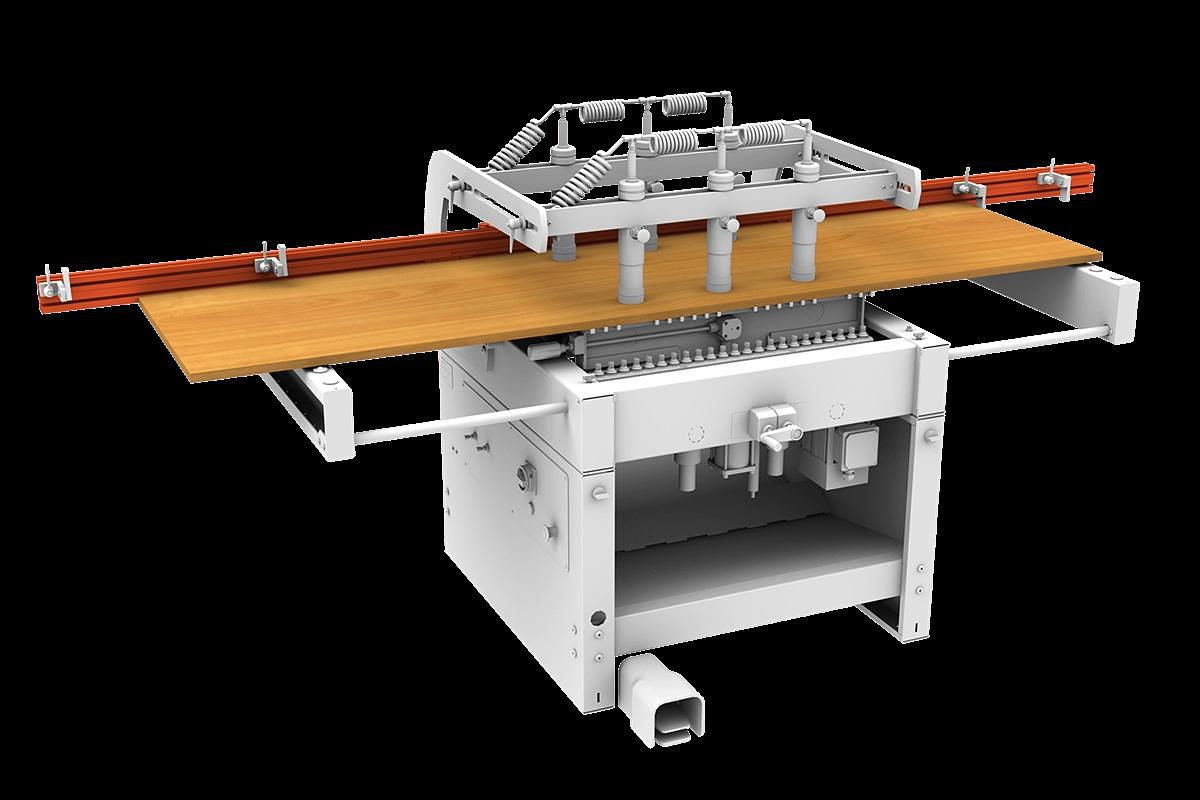

Maggi System 46 Double Row Line Boring Machine

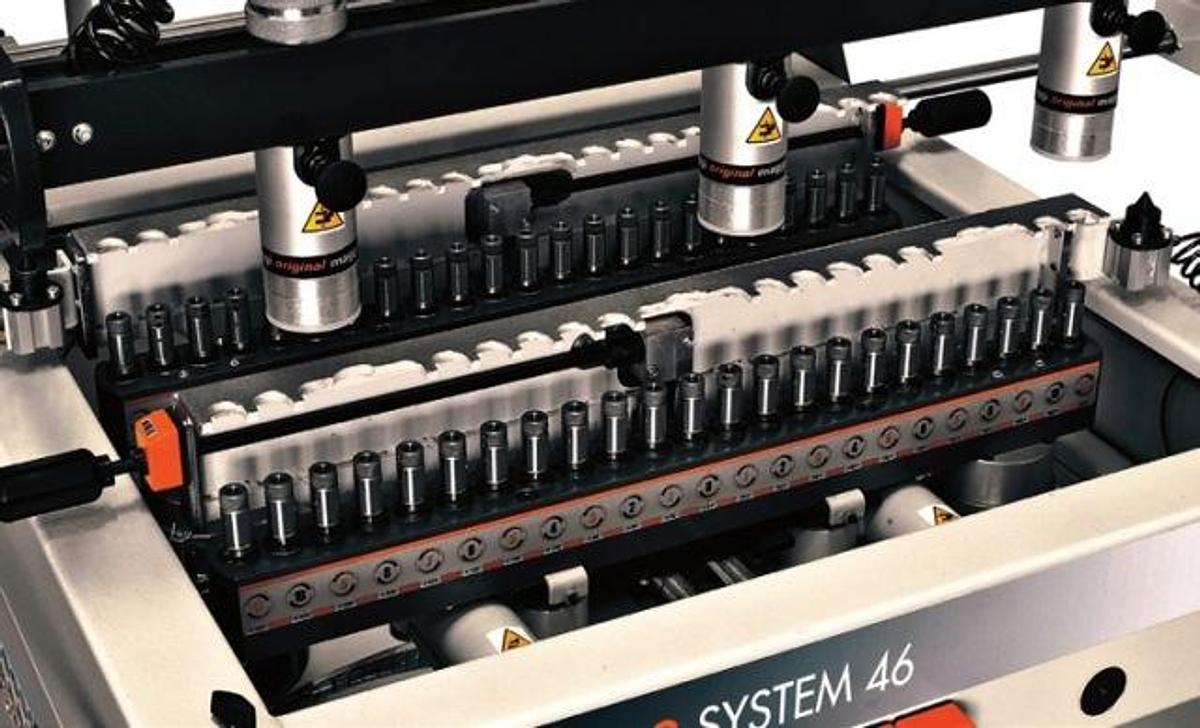

The Maggi System 46 Boring Machine provides (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32" (704 mm).

Front end adjustment for quick and easy set-up.

• (2) 2 HP 3,500 RPM motors
• Boring depth is 2-1/16" (55 mm).
• Side depth counter system; extractable 400 mm support rollers for long panels.
• Maximum distance between heads is 25-19/32" (650 mm) and minimum width is 5-1/8" (130 mm).
• Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps.

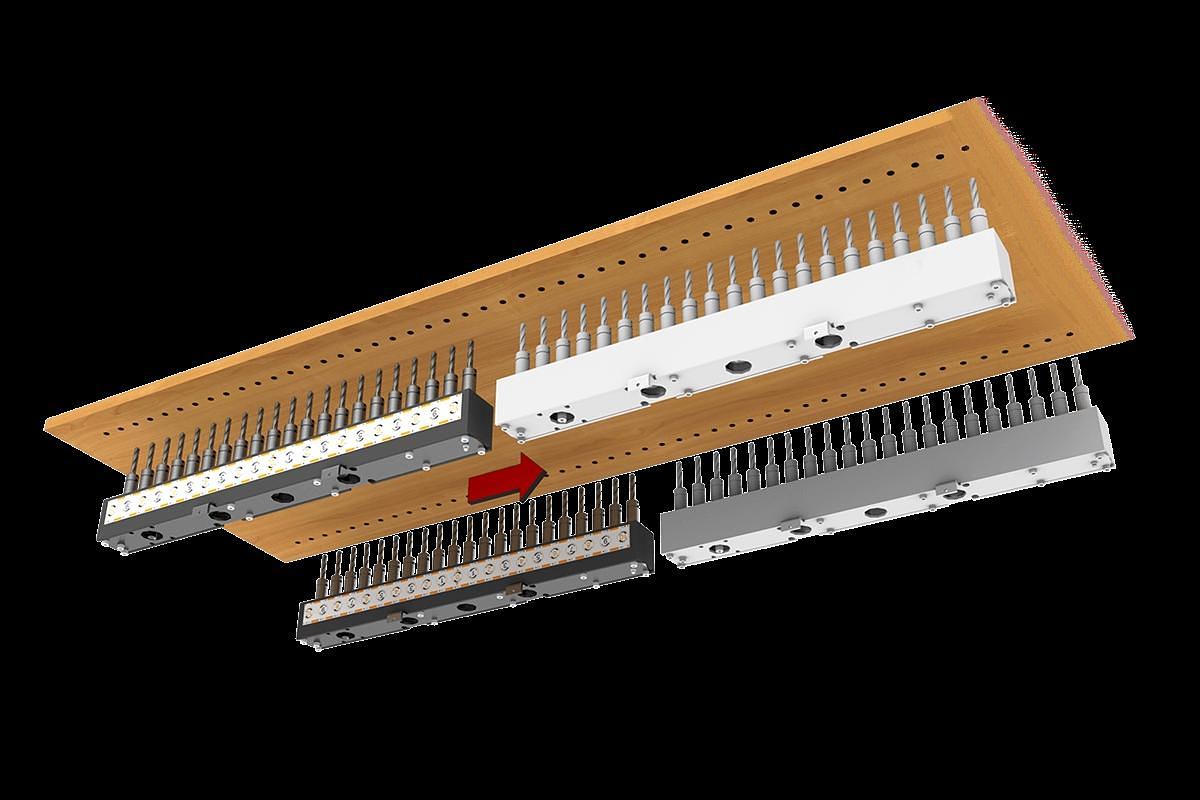

• This machine can be used for single or double row line drilling.
• Uses 24 LH (red) and 22 RH (black) boring bits.
• Working air pressure 94 psi.
• Voltage: 230V 3-Phase
• Net weight: 820 lbs.; Crated weight: 940 lbs.
