Extrema DB-100 10HP 3PH Dust Collection Blower
or
Call +1 (607) 678-4374
Description

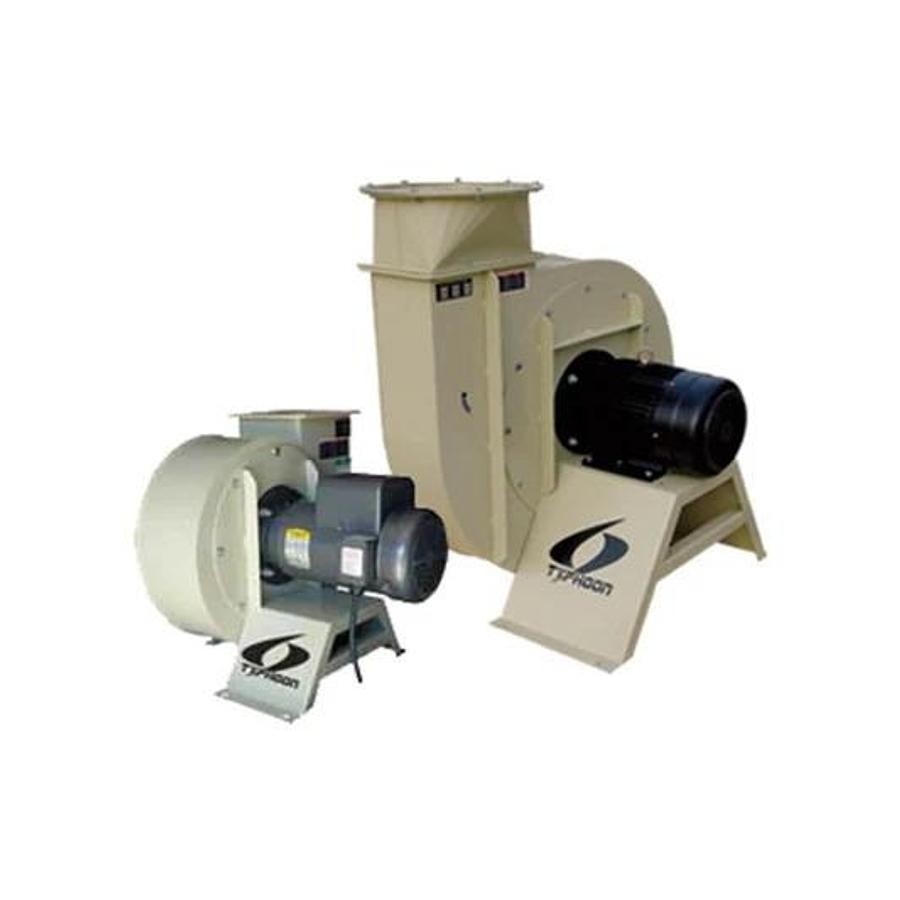

Our dust blowers are made up of a heavy duty dynamically balanced vaneaxial fan with safety guards on all inlets. The steel impeller is mounted directly to the shaft of the stand-mounted motor. Motors are available from 5 to 25 horsepower, 3 phase electric and have options for magnetic starters and remote control. Single phase electric motors are available for blowers up to 7.5 horsepower. Magnetic starter included.
Specifications
| Manufacturer | Extrema |
| Model | DB-100 |
| Condition | New |
| Stock Number | DB-100 |
| Amps | 27A @ 220V |
| CFM | 6350 |
| Fan rpm | 3450 |
| Fan size | 14" |
| Horsepower | 10HP |
| Inlet-size | 12" |
| Outlet size | 14" |
| Phase | 3 |
| Weight | 360 lbs |
