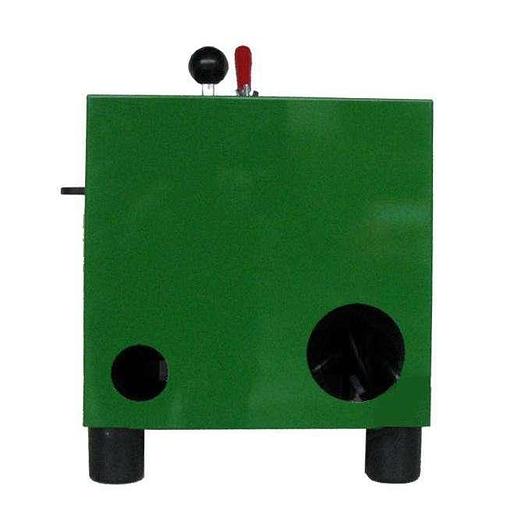

Castle TSM-12 Benchtop Pocket Cutter Machine

Castle TSM-12 Benchtop Pocket Cutter Machine

Contact us for price

Dundee, NY

orCall +1 (607) 243-7167

Description

The TSM-12 benchtop pocket cutter machine routs the 6 degree, low-angle Castle Pocket with no tear out in less than 2 seconds. The superior low screw angle minimizes joint shift while providing strong, stable joints. Because the TSM-12 uses standard 110V electric, and does not require any shop air, it’s ideal for jobsites, small shops, or the weekend woodworker. Each TSM-12 is equipped with a Bosch 1617 Router with a 3/8” three-flute solid carbide router bit for cutting the pocket and a Bosch Colt Router with a 9/64” premium drill bit for drilling the pilot hole. The TSM-12 comes ready-to-go and delivers Castle quality with every pocket it cuts.


Features and Benefits include:

Cuts the Castle low-angle pocket, for strong, stable, tight, and superior joints

Equipped with:

Bosch 1617 Router with a 3/8” three-flute solid carbide router bit for cutting the pocket

Bosch Colt Router with a 9/64” premium drill bit for drilling the pilot hole

Low-angle pockets minimize the need for clamping during assembly

Wider throat opening for thicker stock – accommodates stock from 1/2"to 1-1/2" thick

Adjustable web for handling various pocket screw lengths

Integral work clamp and pocket cutting lever are ergonomically positioned for fast pocket cutting

Integrated, 4” and Shop Vac dust ports for minimizing dust and debris

Easy maintenance and bit changing

Requires only basic, 110V power

Durable, solid surface work top

TSM-12 comes fully assembled, factory tested, and ready to work


Technical Specifications:

Router: Bosch 2.0hp #1617 Router Motor

Drill: Bosch Colt 1.0hp #PR20EVS

Router Bit: Premium 3/8” Solid Carbide, Rough Mill

Drill bit: 9/64” Brad and Spur Premium TiN-Coated Bit

Power req: 110V, 15 amps

Shipping weight: 65 lbs

Footprint: 13.5W x 20L x 20H

Specifications

ManufacturerCastle
ModelTSM-12
ConditionNew
