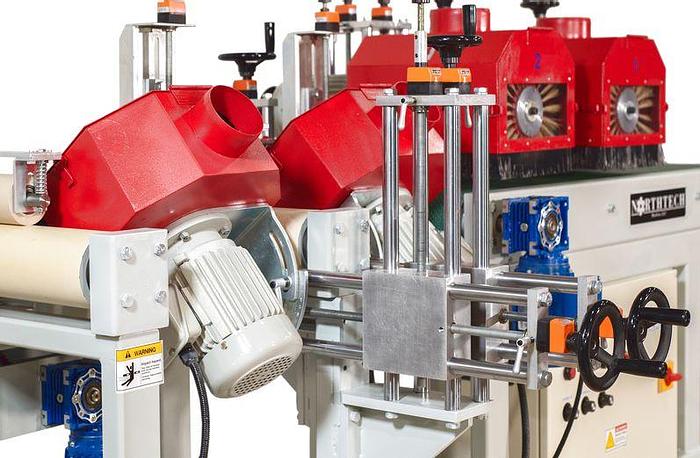

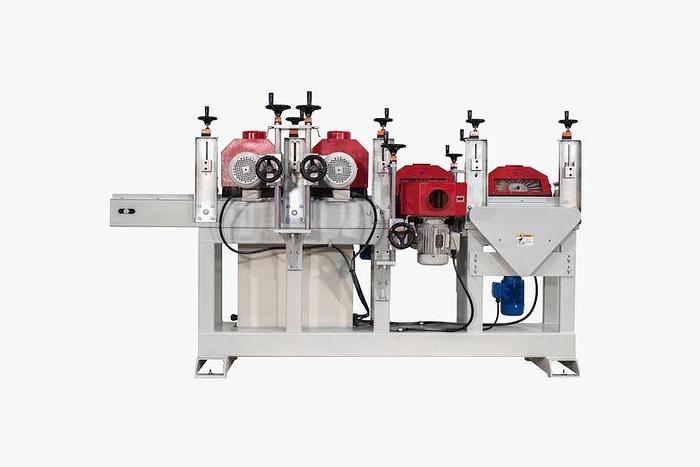

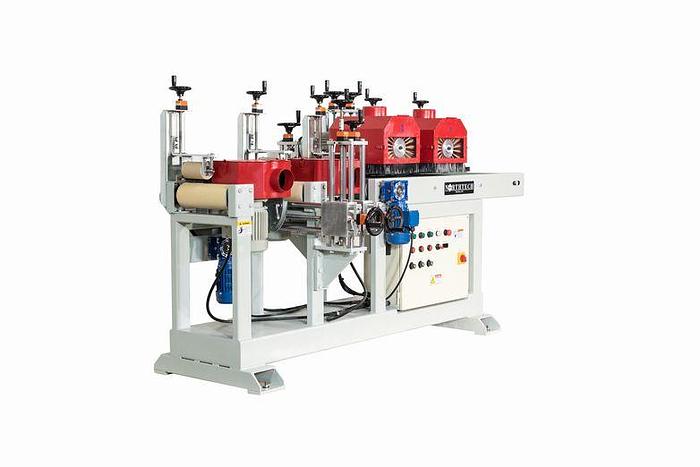

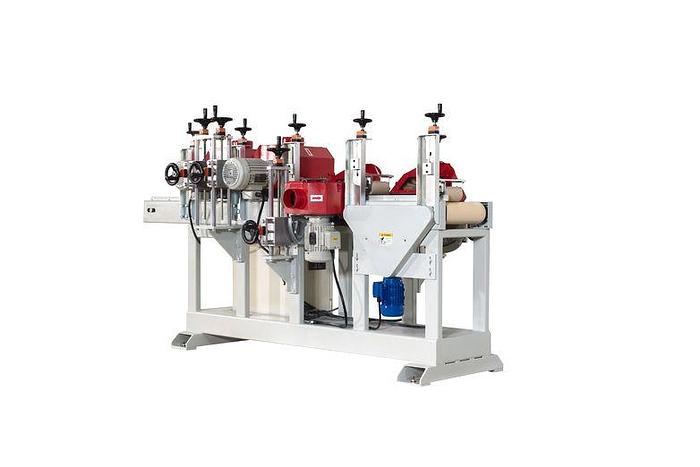

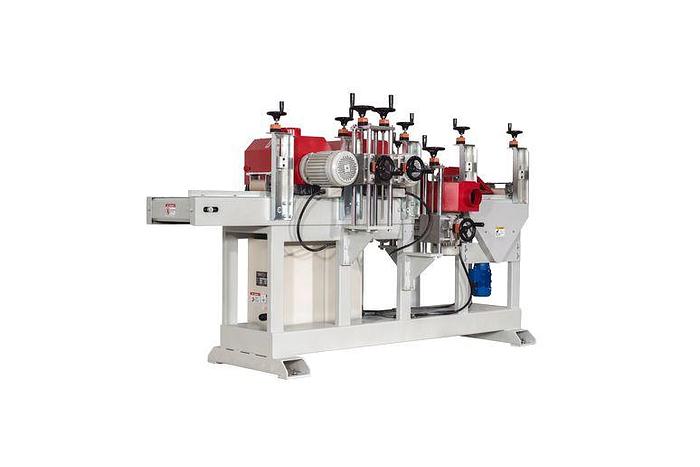

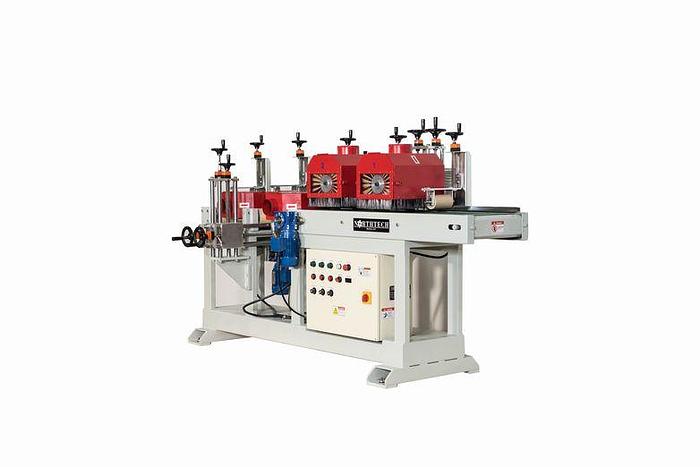

Northtech NT MBS12-2T1R2L-EL Five Head Moulding Brush Sander

NT MBS12-2T1R2L-EL Five Head Moulding Brush Sander

Sanding configuration: 2 Top + 1 Right + 2 Left

Working width 1-3/4" - 12.5"

Working thickness range: 1/8" - 4-3/8"

Minimum working length: 18-1/2"

Sanding heads RPM is inverter controlled

Sanding heads included with customer choice of 80-400 grit at time of order

(2) 1/3HP feed motors with 25-105 feed speed range

(2) 5" top dust ports requiring 681 CFM @ point of extraction

(3) 4" side dust ports requiring 436 CFM @ point of extraction

230V/460V 24 AMP / 12 AMP

Net / Gross weight: Approx. 1,240lbs / Approx. 1,645lbs

Machine /Packing dimensions (LxWxH): 89" x 49" x 67" / 93" x 50" x 75"

Tool box and Operation/Parts Manual included

Warranty is one year parts

Northtech offers a full line of dust collectors for any application.

All machines are tested stateside prior to shipment providing trouble free start up.

Machine Hp. = 4 Hp.

Voltage/ Freq. = 230 Volt 60Hz

Phase = 3 Phase

Amp Requirement = 12 Amps

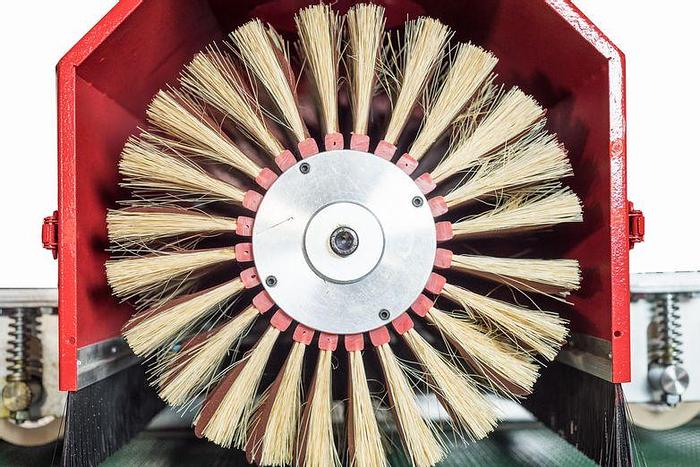

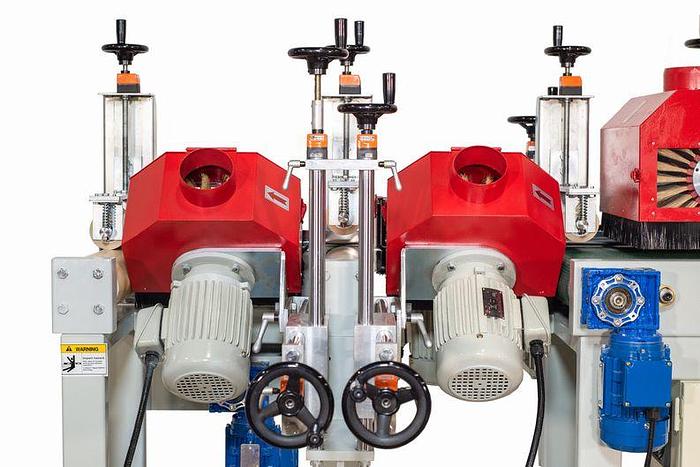

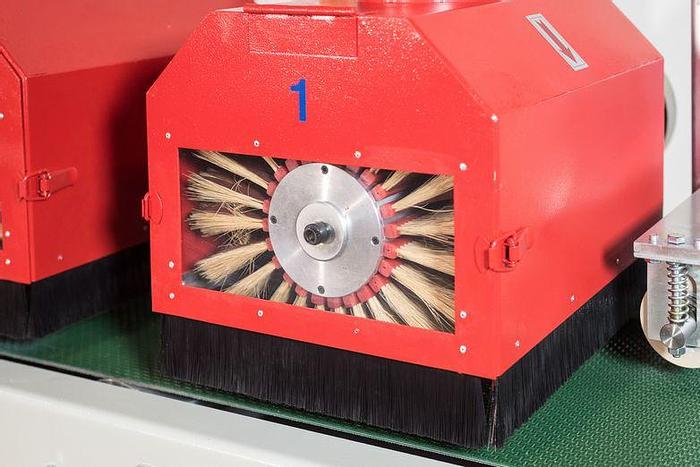

1st Head = 12-3/8'' x 10-1/2'' Brush Sand

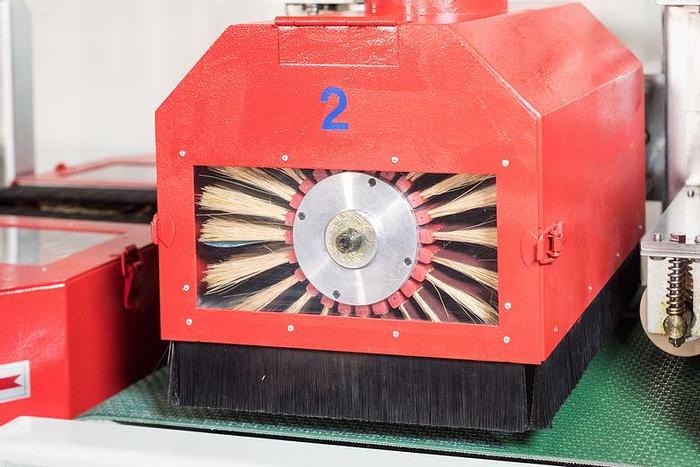

2nd Head = 12-3/8'' x 10-1/2'' Brush Sand

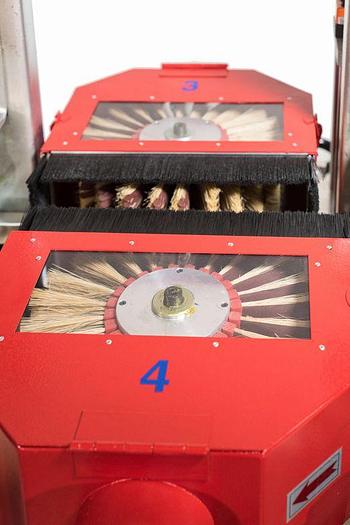

3rd Head = 4-3/8'' x 10-1/2'' Brush Sande

4th Head = 4-3/8'' x 10-1/2'' Brush Sande

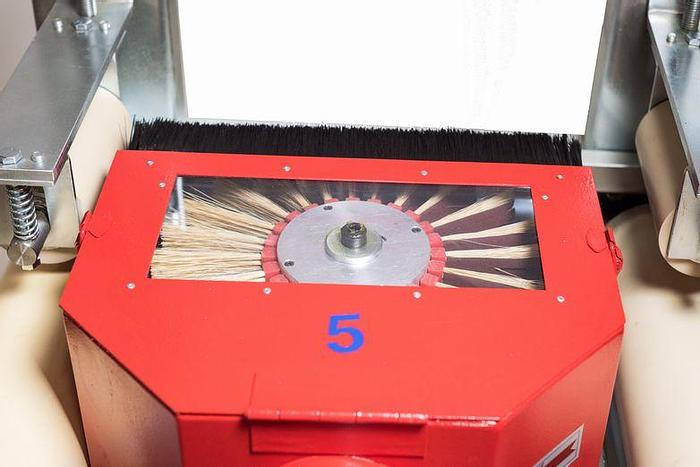

5th Head = 4-3/8'' x 10-1/2'' Brush Sande

Feed Hp. = (2) 1/3 Hp. Motors

Feed System = Belt / (2) Pinch Rollers

Feed Speed = 25-105 FPM

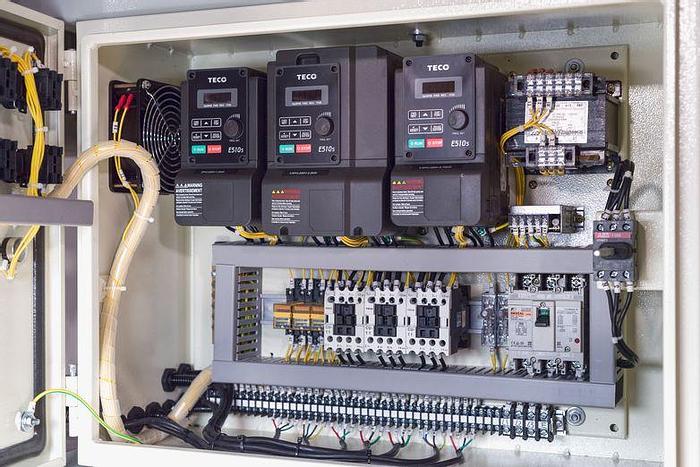

Variable Speed = Inverter Controlled

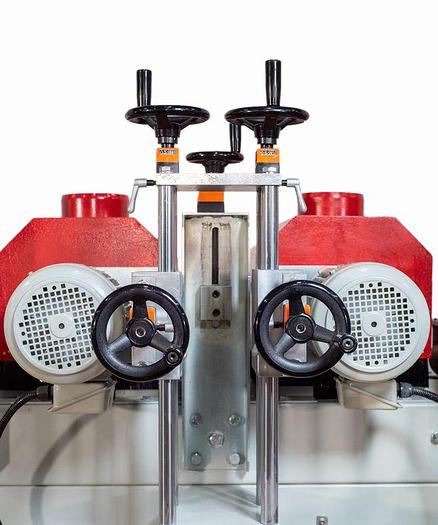

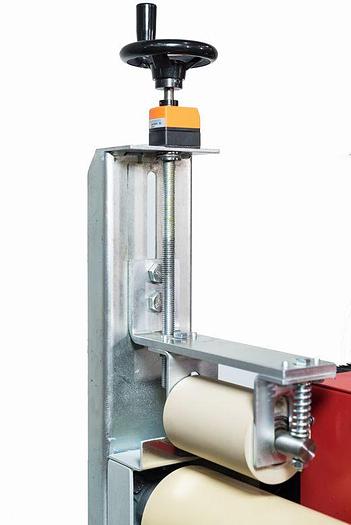

Elevation Style = Manual Wheel Adjustment

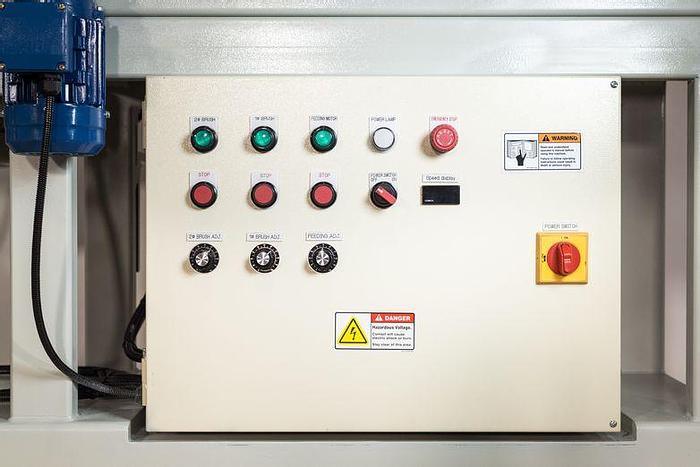

Electronics = CE Approved Components

Dual Voltage = 230/460 Volt

Control Voltage = 24 Volt Control Voltage

Pass-Line = 34-1/4''

Min. Length = 18-1/2''

Min. Width = 1-3/4''

Max. Width = 12-1/2''

Min. Thickness = 1/8''

Max. Thickness = 4-3/8''

Dust Collection = (2) 5'' (3) 4'' 2670 CFM Total

Digital Display = Feed

Conveyor = 12'' x 54''

Powered Rollers = (2) Powered Rollers

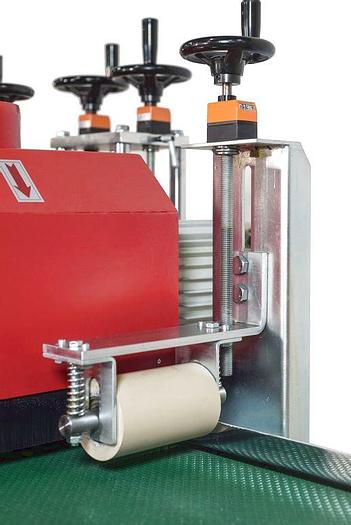

Idle Rollers = (5) Top Idle Rollers

Emergency Stop = Push Button

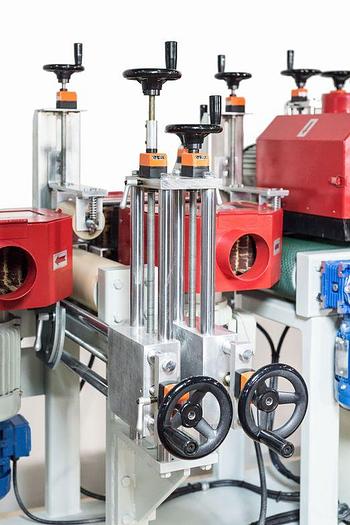

Fence Type = Adjustable Fence

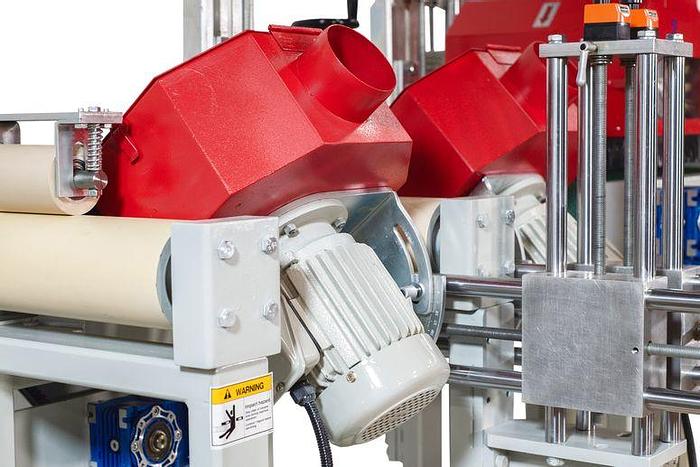

Tiltable = Head 3/4/5 45 Degrees

Measure Meth. = Siko Counter

Decible Rating = 67 dB

Net Weight = 1240 Lbs.

Gross Weight = 1625 Lbs.

Machine Dims. = 93'' x 53'' x 56''

Packaging Dims = 98'' x 55'' x 66''
