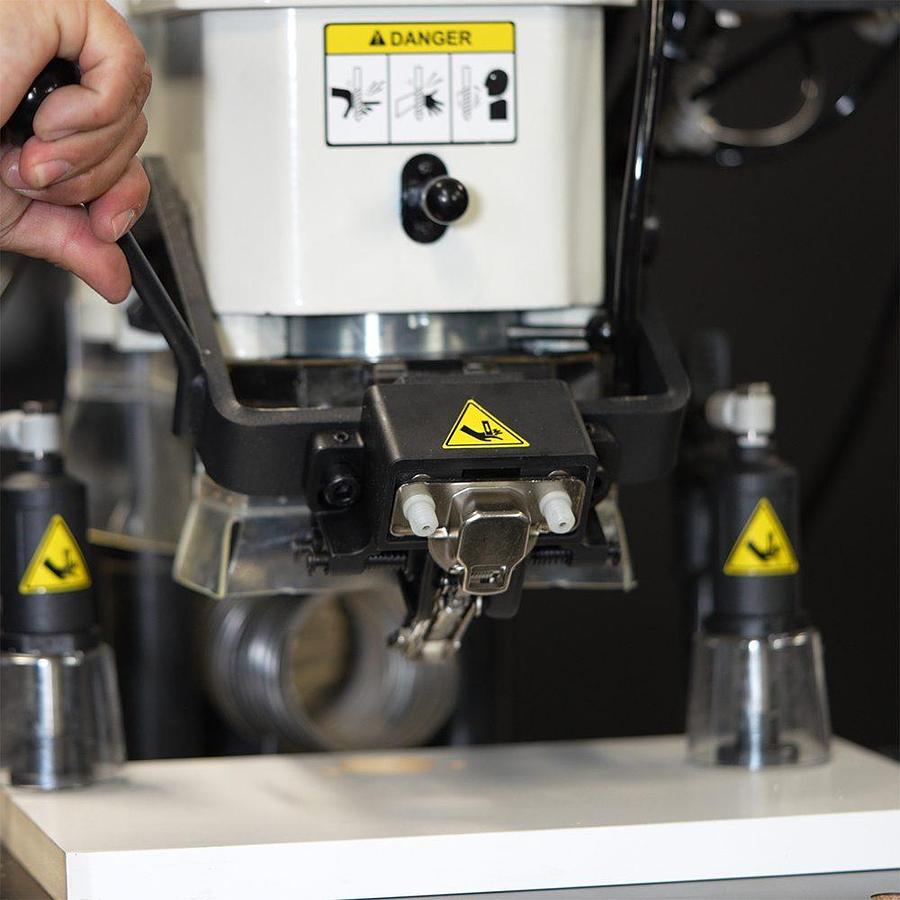

Maksiwa HBM.1000 Hinge Boring Machine
Maksiwa HBM.1000 Hinge Boring Machine
Contact us for price
Location:Dundee, NY
Available quantity:1
or
Call +1 (607) 678-4374
Description

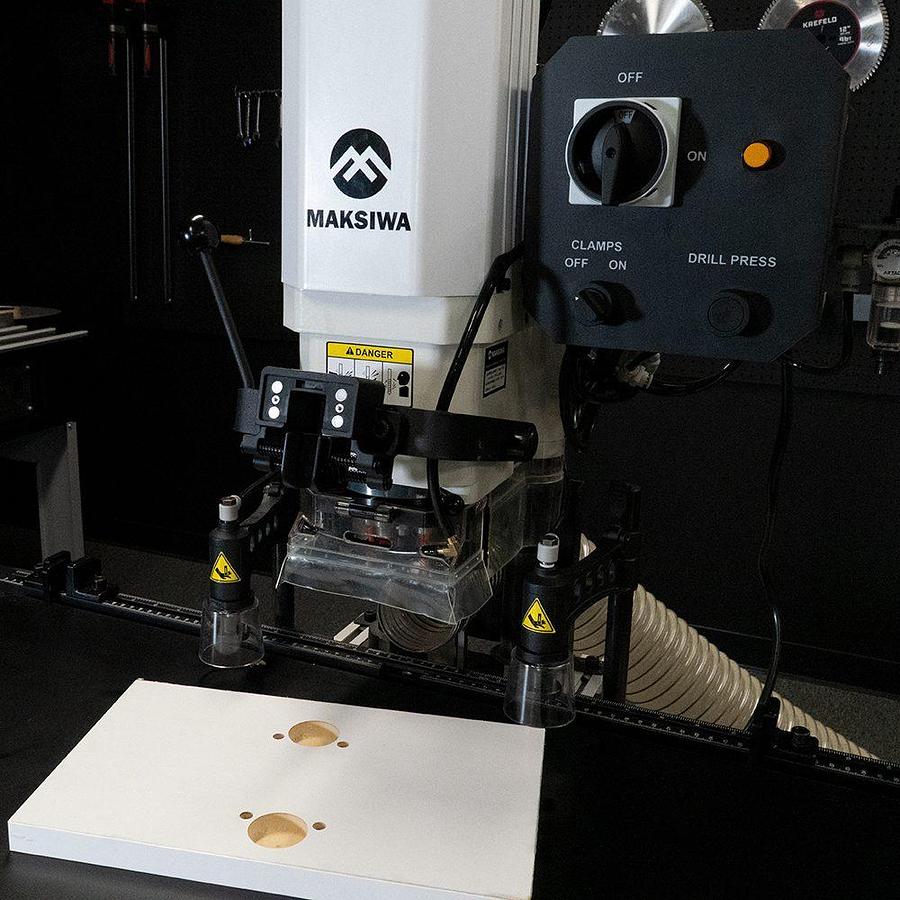

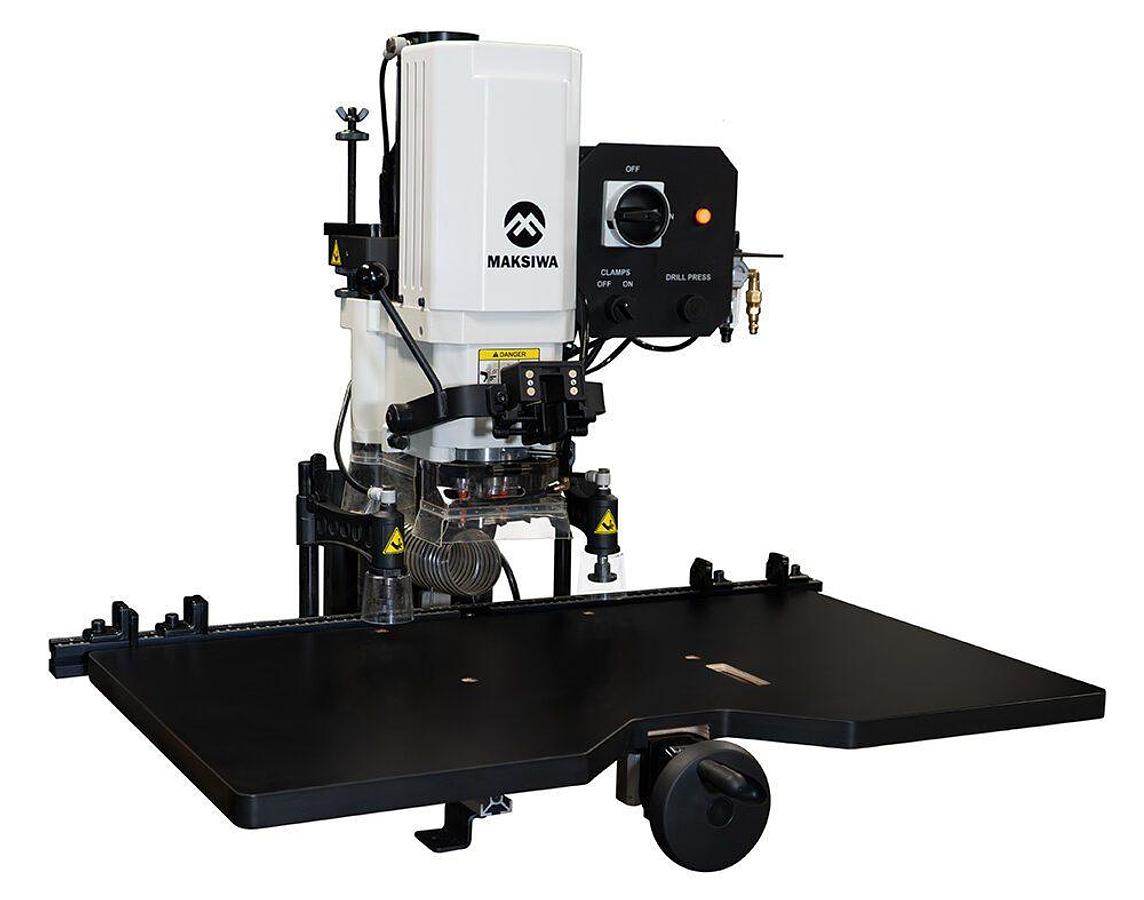

The Maksiwa HBM.1000 is a high-precision, compact machine designed for fast and efficient hinge and hardware installation in cabinetry and furniture production.

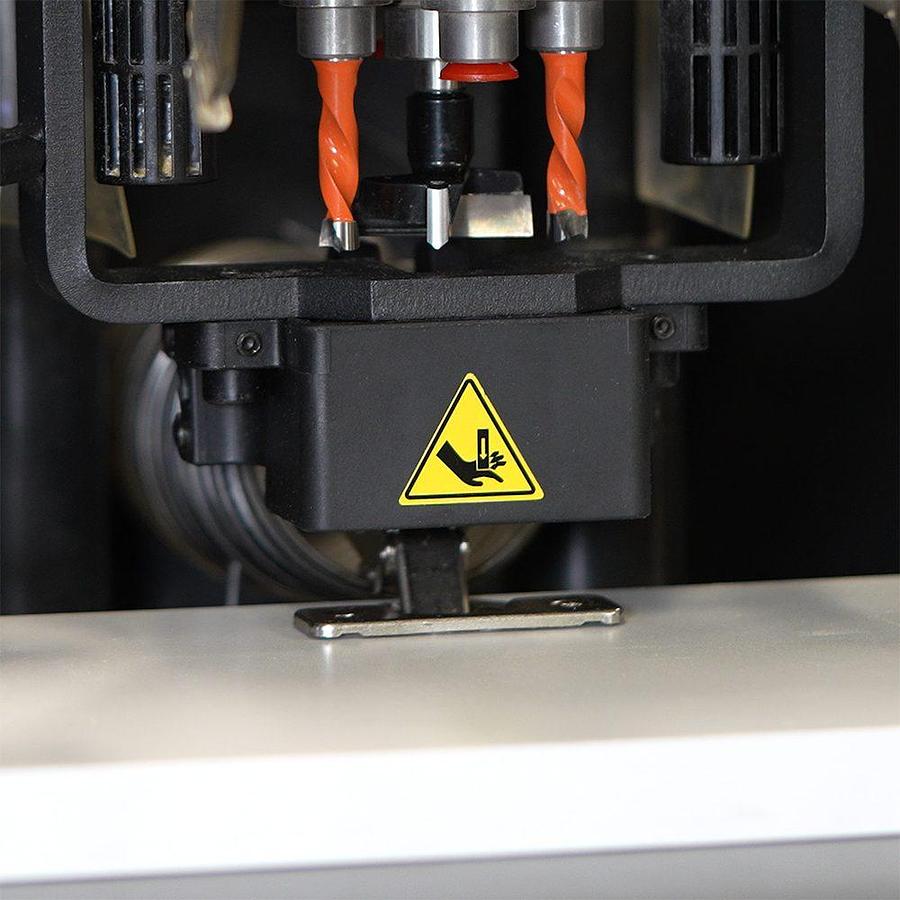

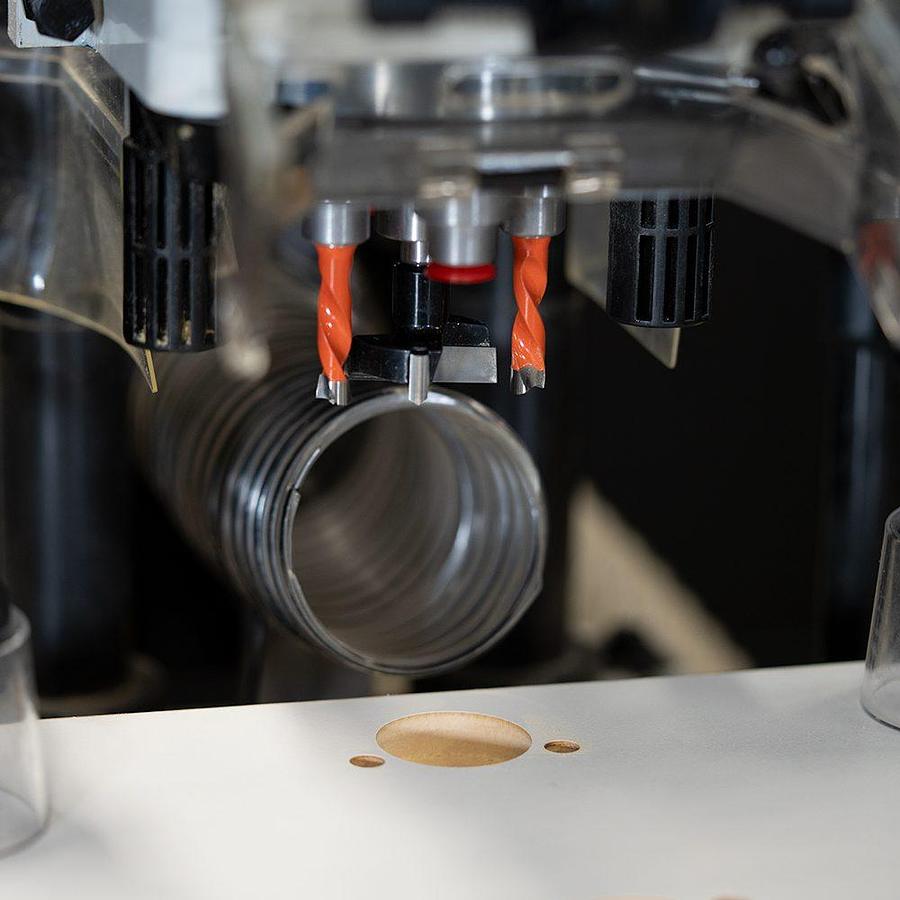

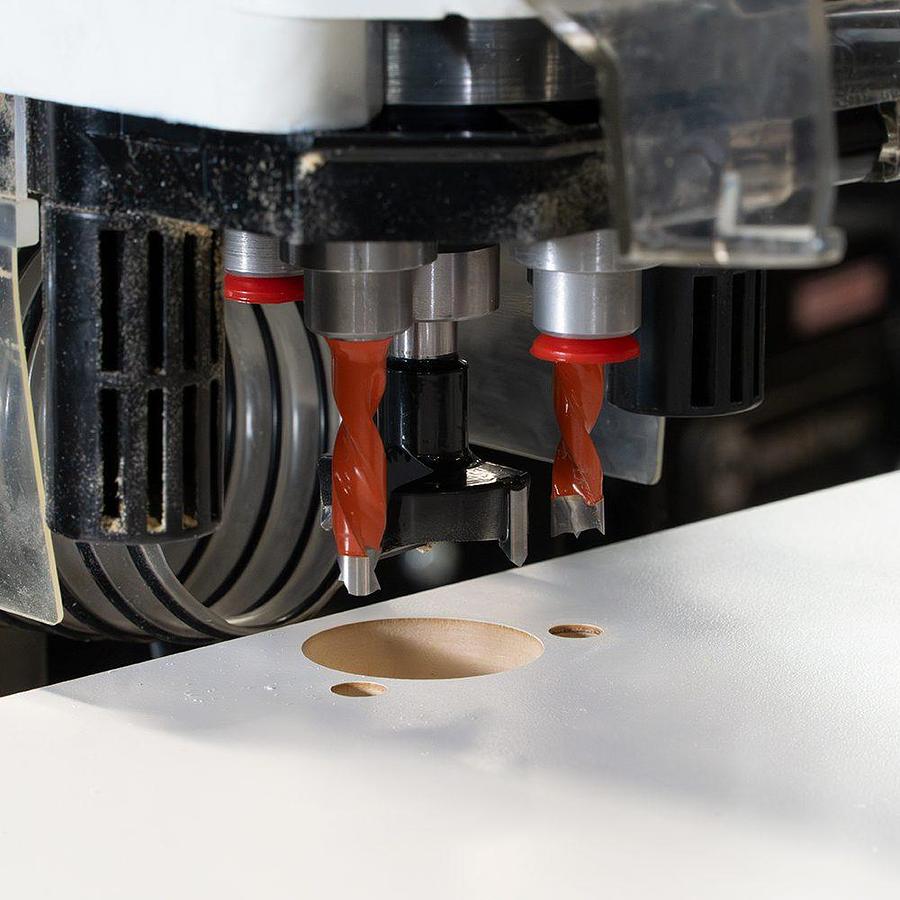

Powered by a 1.5 HP motor, it delivers accurate 35 mm hinge cup bores with carbide-tipped bits, making it ideal for hinges, mounting plates, and connectors.
With multiple drilling patterns, quick-set boring distance, and integrated dust collection, the HBM.1000 streamlines hinge installation while maintaining consistent, professional results.
Simple setup, easy adjustments, and reliable operation make this machine perfect for production environments that demand speed and precision.

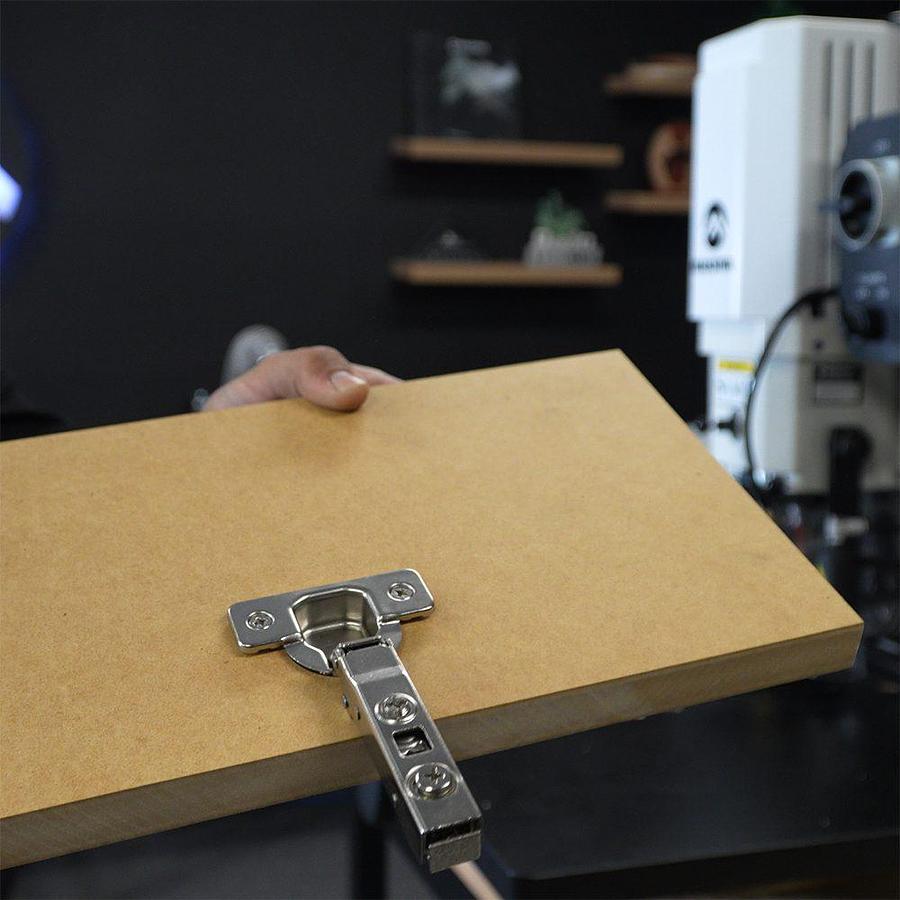

- All-in-one Boring & Insertion
- 1.5 HP motor
- 35mm hinge cup boring
- Multiple drilling patterns

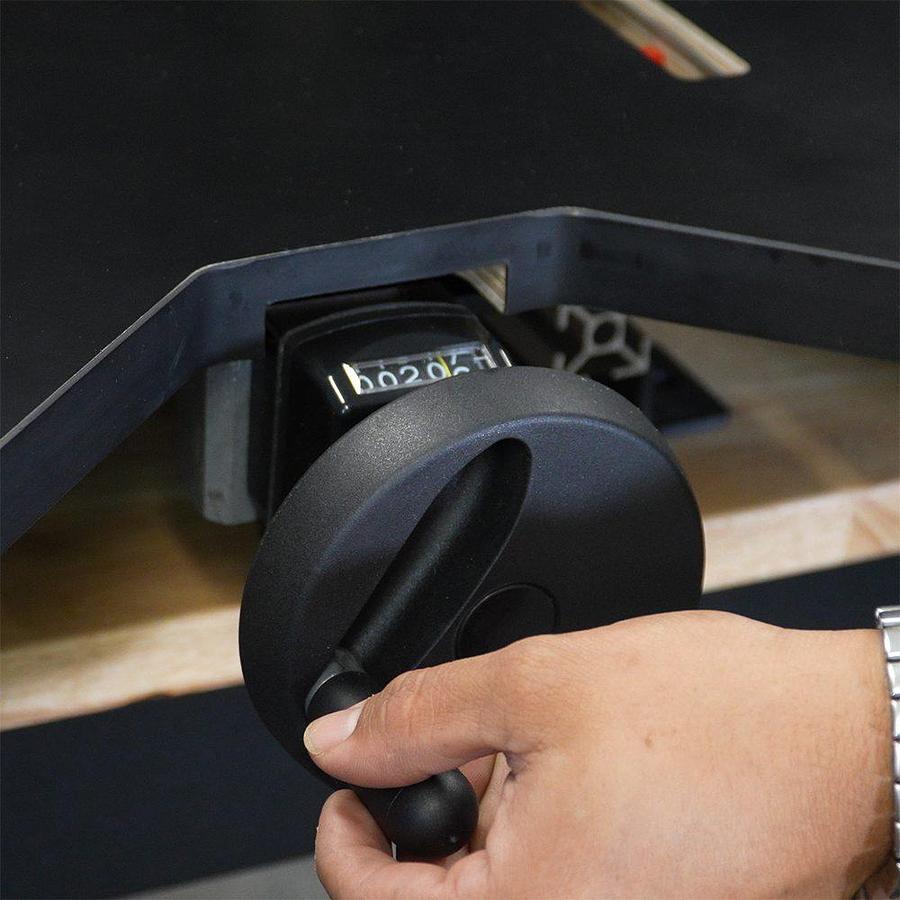

- Quick-set boring distance
- Integrated dust collection
- Compact design
- Ideal for cabinetry, and
Specifications
| Manufacturer | Maksiwa |
| Model | HBM.1000 |
| Condition | New |
| Stock Number | HBM.1000 |
| Electrical Specs | 1 Phase 110V 13.6Amps or 220V 6.8Amps |
| Motor Specs | 1.5 HP 1.1 KW 3400 RPM |
| Machine Dimensions | 33-7/16” x 28-3/8” x 31-1/2” |
| Boring Distance Center Spindle | 0 - 2-3/4” | 0 - 70mm |
| Table Size | 18" x 31-1/2" |
| Machine Table Height | 5-3/8" |
| Machine Table Depth | 2-3/4" |
| Hinge Boring Bit Diameter | Carbide Tipped - 35mm |
| Hinge Boring Bit Rotation | Right |
| Hinge Boring Shank | 10mm |
| Hinge Boring Length | 57mm |
| Drill Bits Diameter | Carbide Tipped - 8mm |
| Drill Boring Bits Rotation | Left |
| Drill Boring Shank | 10mm |
| Sound Rating | 78dB |
| Weight | 110lbs |
| Warranty | 2 Years |
| Air Pressure Requirement | 90 PSI |
| Maximum Depth of Stroke | 4-5/16” |
