Laguna PX|12 QuadTec: I 12'' Planer

Laguna PX|12 QuadTec: I 12'' Planer

Contact us for price

Dundee, NY

orCall +1 (607) 243-7167

Description

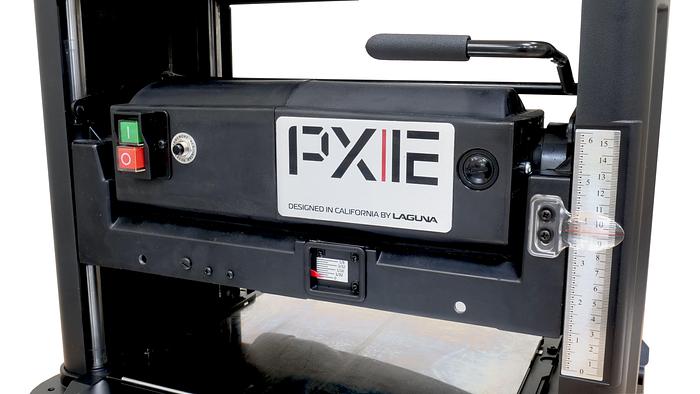

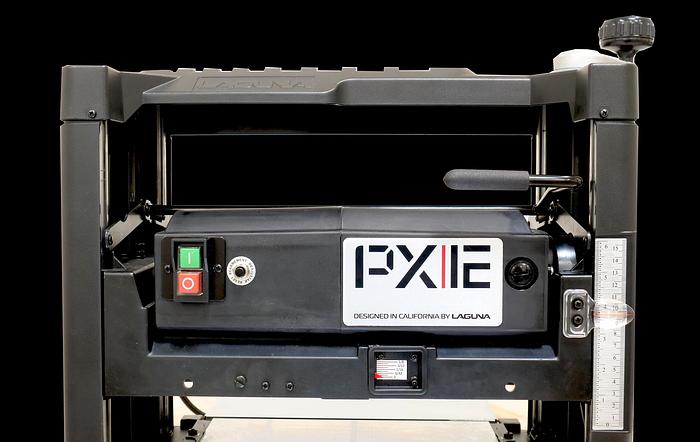

Brand new to the Laguna lineup is the all-new PX|12 benchtop planer featuring the new QuadTec I cutterhead. The Laguna PX|12 QuadTec I is loaded with premium features to make woodworking safer and more enjoyable.


PX|12 QuadTec I Standard Features:

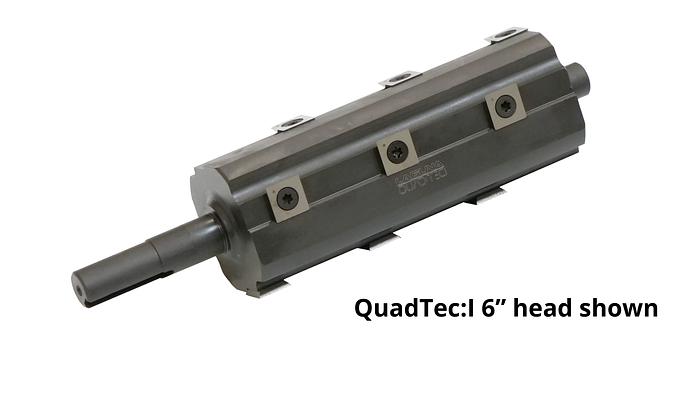

QuadTec I - The new QuadTec I delivers what woodworkers want most in a compact package by providing a quiet, long-lasting performance with its 24 carbide inserts. The carbide inserts last longer than traditional planer knives and are 4 sided to provide a fresh cutting edge when rotated. The QuadTec I is a game changer when planing tricky grain in hardwoods

2 HP Motor - The 2 HP motor provides plenty of power for this Best-in-Class benchtop planer. The motor spins the cutterhead at 10,000 RPM to provide the smoothest possible finish

Pull Out Extensions - The pull-out extensions and flip-down extensions make it easier to feed stock through the machine


Specs:

Motor                                 115v 2HP Universal 50/60hz/15 Amp.

CSA                                   Yes

Bed Size                                12-1/2 x 10-1/4"

Pull-Out Extension                       11-1/4" Flip Down Extensions x 2

Wheels Built-in                          N/A

Max. Depth of cut                        3/32"

Max. Stock Thickness                     6"

Min. Stock Thickness                     5/32"

Min. Stock Length                        5"

Max. Stock Width                        12-1/2"

Feed Speed                             26 FPM

Dust Port Diameter                       4" step down to 2-1/2"

Cutterhead RPM                         10000

Cutterhead Diameter                     1-7/8"

Cutterhead Insert #                       26 x 4-sided Carbide, 4 Row

Thickness Readout                       Hair line Readout

Dimensions set up approx.                 24"x 34"

Dimensions Shipping                     25"x17"x21-1/2"

Net/Ship Weight # of boxes                lbs. 65/72 1Box


Specifications

ManufacturerLaguna
ModelPX|12 QuadTec: I
ConditionNew
Stock NumberMPLANPX12-0130
