Laguna JX|8 ShearTec: II 8'' Jointer

Laguna JX|8 ShearTec: II 8'' Jointer

Contact us for price

Dundee, NY

orCall +1 (607) 243-7167

Description

All-new for 2021, the Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 220 volt 3 HP version.


JX|8 ShearTec II Standard Features:

Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel

Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.

New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine.

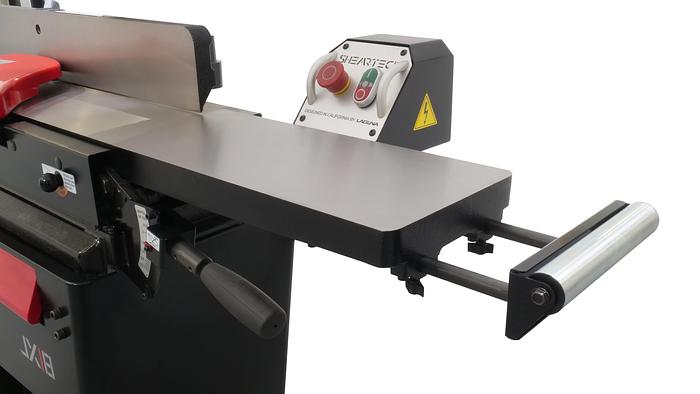

In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials.

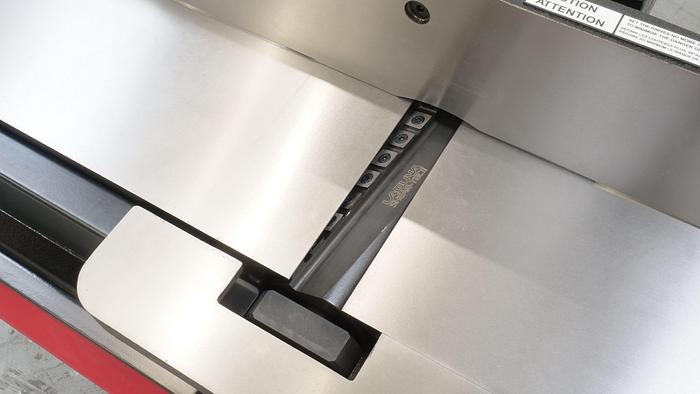

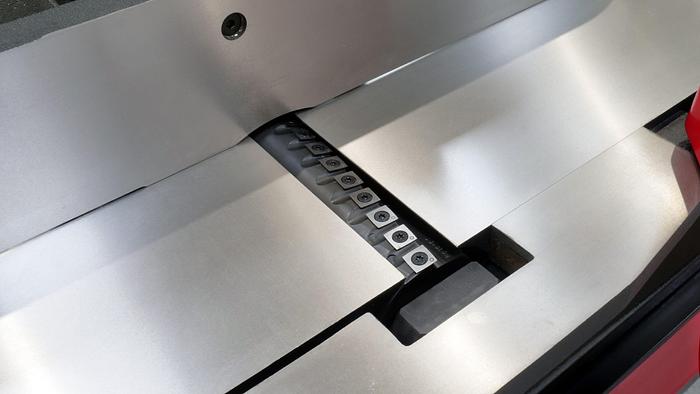

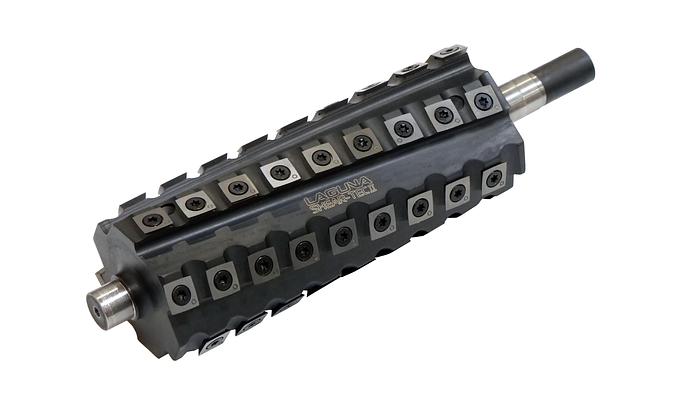

ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.

Built-In Wheels - No need to purchase a separate mobility kit.

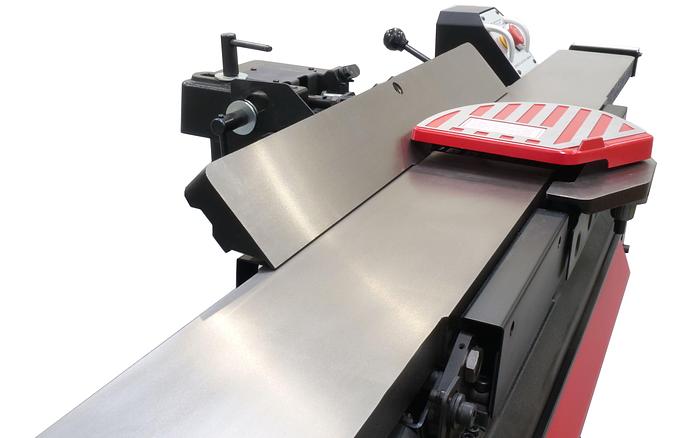

Cast-Iron Tables and Fence


Specs:

Motor                                 220v 3HP 1phase 60hz/12 Amp.

CSA                                   Yes

Bed Size                                8 x 72"

Infeed Table Pull-out Extension              8"

Rabbeting Capacity                      1/2"

Fence Size                              38"x 4-3/4" Cast Iron

Fence Tilt                              ±45/90°

Max. Depth of Cut                       1/8"

Table height from floor                    31"

Safety bar shut-off                       Yes

Wheels built-in                          Yes

Bracket to mount Light                    No

110v outlet for light                       No

Bracket to mount Feeder                   No

Dust Port Diameter                       4"

Cutterhead Insert #                       54 x 4-sided Carbide, 6 Row

Cutterhead RPM                         5500

Cutterhead Diameter                     3-1/8"

Bed Adjustment                         Parallelogram

Dimensions set up approx.                 75-1/2"x 26-1/2"

Dimensions Shipping                     76" x 25"x 41"

Net/Ship Weight # of boxes                Lbs. 380/495 1 Box

Specifications

ManufacturerLaguna
ModelJX|8 ShearTec: II
ConditionNew
Stock NumberMJ8x72P-0130
