Laguna JX|16 ShearTec: II 16'' Jointer

Laguna JX|16 ShearTec: II 16'' Jointer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

All-new for 2021, the Laguna JX|16 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.


JX|16 ShearTec II Standard Features:


Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel

Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece

New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

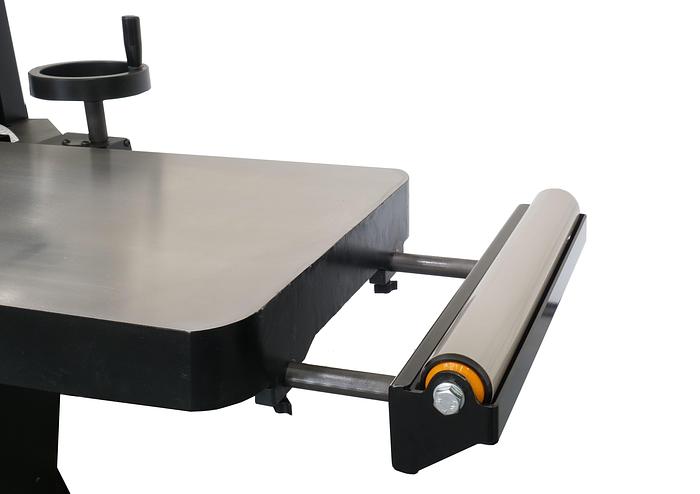

In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials

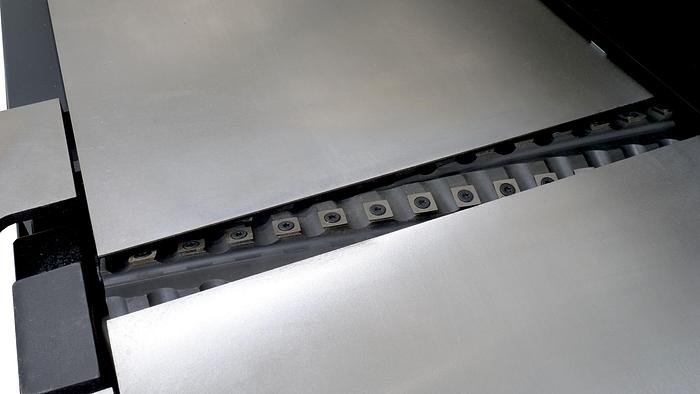

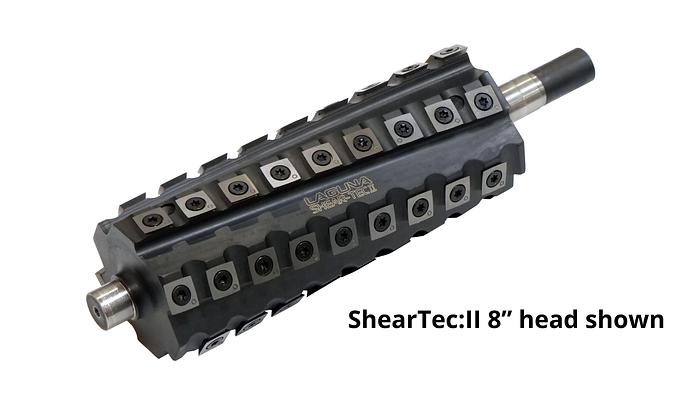

ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

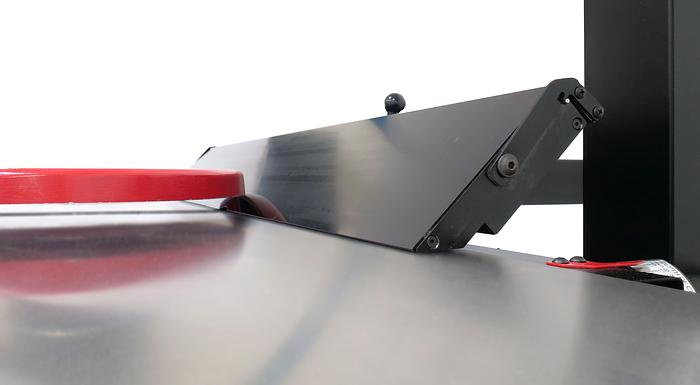

Deluxe Fence - 5-¾” fence with flip-down small fence for intricate work

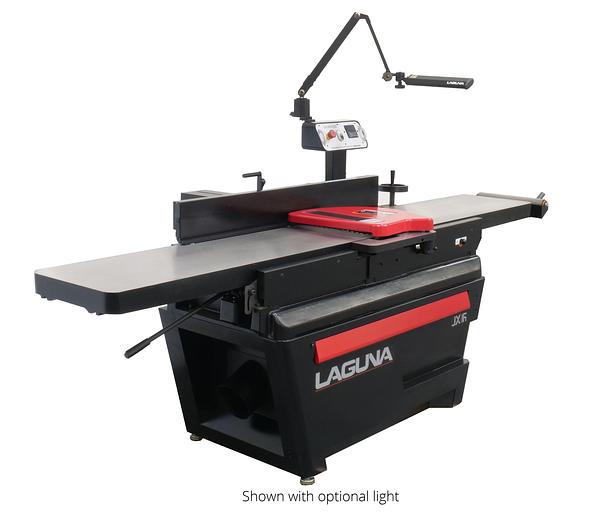

Worklight Ready - Built-in outlet and bracket for optional LED work light

Power-feeder Ready - Included bracket to mount optional power-feeder


Specs:

Motor                               220v 7.5HP 3phase 60hz /20 Amp.

CSA                                  Yes

Bed Size                               16 x 100"

Infeed Table Pull-out Extension             10"

Rabbeting Capacity                      3/4"

Fence Size                              5-3/4 x 47" Alu Fence

Fence Tilt                              +45/90°

Max. Depth of Cut                       1/8"

Table height from floor                   32"

Safety bar shut-off                       Yes

Wheels built-in                          Optional

Bracket to mount Light                    Yes

110v outlet for light                      Yes

Bracket to mount Feeder                  Yes

Dust Port Diameter                       6"

Cutterhead Insert #                       90 x 4-sided Carbide, 6 Row

Cutterhead RPM                         5500

Cutterhead Diameter                      3-7/8"

Bed Adjustment                         Parallelogram

Dimensions set up approx.                 103" x 48"

Dimensions Shipping                     105"x 35"x 48"

Net/Ship Weight # of boxes                Lbs. 1078/1254 1 Box

Specifications

ManufacturerLaguna
ModelJX|16 ShearTec: II
ConditionNew
Stock NumberMJ16x100P-0130
