Laguna JX|8 QuadTec: I 8'' Jointer

Laguna JX|8 QuadTec: I 8'' Jointer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

All-new for 2021, the Laguna JX|8 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 110 Volt 1.75 HP version.


JX|8 Quadtec I Standard Features:

Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel

Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece

New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine

In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials

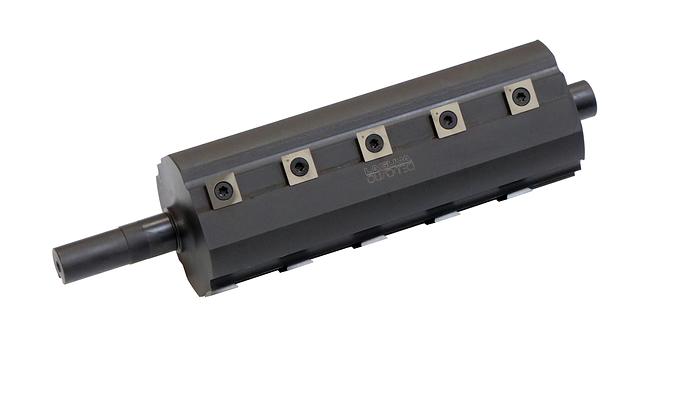

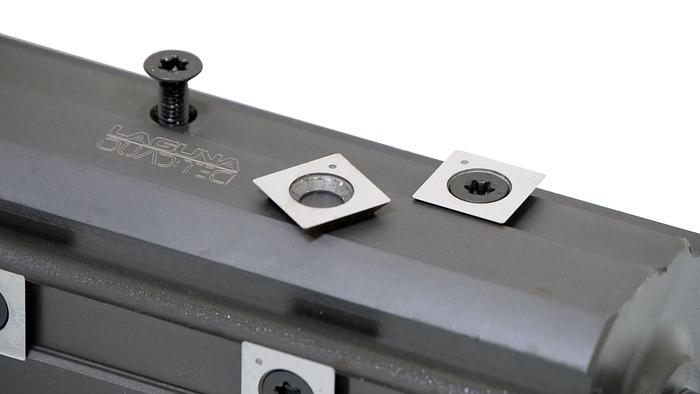

QuadTec I Cutterhead - The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-8 QuadTec I jointer. The QuadTec I produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

Built-In Wheels - No need to purchase a separate mobility kit

Cast-Iron Tables and Fence


Specs:

Motor.                              110v 1.75HP 1phase 60hz/15 Amp.

CSA                                  Yes

Bed Size                               8 x 72"

Infeed Table Pull-out Extension             8"

Rabbeting Capacity                      1/2"

Fence Size                              38" x 4-3/4" Cast Iron

Fence Tilt                              ±45/90°

Max. Depth of Cut                       1/8"

Table height from floor                   31"

Safety bar shut-off                       Yes

Wheels built-in                          Yes

Bracket to mount Light                    No

110v outlet for light                      No

Bracket to mount Feeder                  No

Dust Port Diameter                       4"

Cutterhead Insert #                       20 x 4-sided Carbide, 4 Row

Cutterhead RPM                         5500

Cutterhead Diameter                      3-1/8"

Bed Adjustment                         Parallelogram

Dimensions set up approx.                 75-1/2" x 26-1/2"

Dimensions Shipping                     76"x25" x 41"

Net/Ship Weight # of boxes                Lbs. 380/495 1 Box

Specifications

ManufacturerLaguna
ModelJX|8 QuadTec: I
ConditionNew
Stock NumberMJ8x72E-0130
