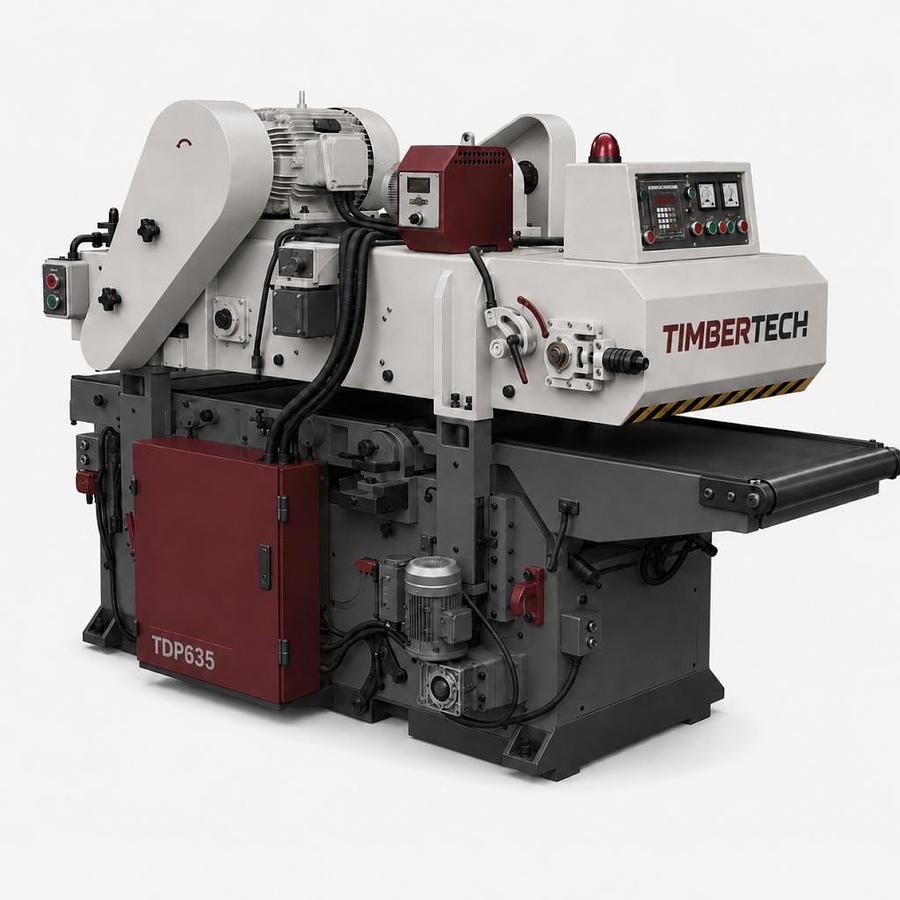

Timbertech TPD635D 25'' Double Surface Planer
or
Call +1 (607) 678-4374
Description
The Timbertech GT635 25″ Double Surface Planer has a robust castiron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. A spring-loaded finger feed system passes the board over the bottom head with the capability of flattening cupped material. The precision digital control and motorized thickness adjustment accurately dimension your lumber. Available in 8″, 16″, 20″, & 24″ thickness capacities!
Specifications
| Manufacturer | Timbertech |
| Model | TPD635D |
| Condition | New |
| Stock Number | TPD635D |
| Max working width | 635mm(25”) |
| Max working thickness | 200mm(8”) |
| Min working thickness | 0.39'' |
| Min working length | 12.2'' |
| Knife shaft diameter | 5000rpm |
| Variable frequency feed speed | 8-18m/min |
| Dust Port Diameter | 5”(Upper)/6”(Lower) |
| Top Head HP | 25HP |
| Bottom Head HP | 20HP |
| Feed motor | 3 HP |
| Table elevation motor | 1/2 HP |
| WORKTABLE DIMENSIONS | 27”x102” |
| Knife dimensions | 15 x 15 x 2.5 |
| Machine dimensions (LxWxH) | 105″ x 45.1″ x 67″ |
| Net Weight | 6922 |
| Gross Weight | 7650 |
