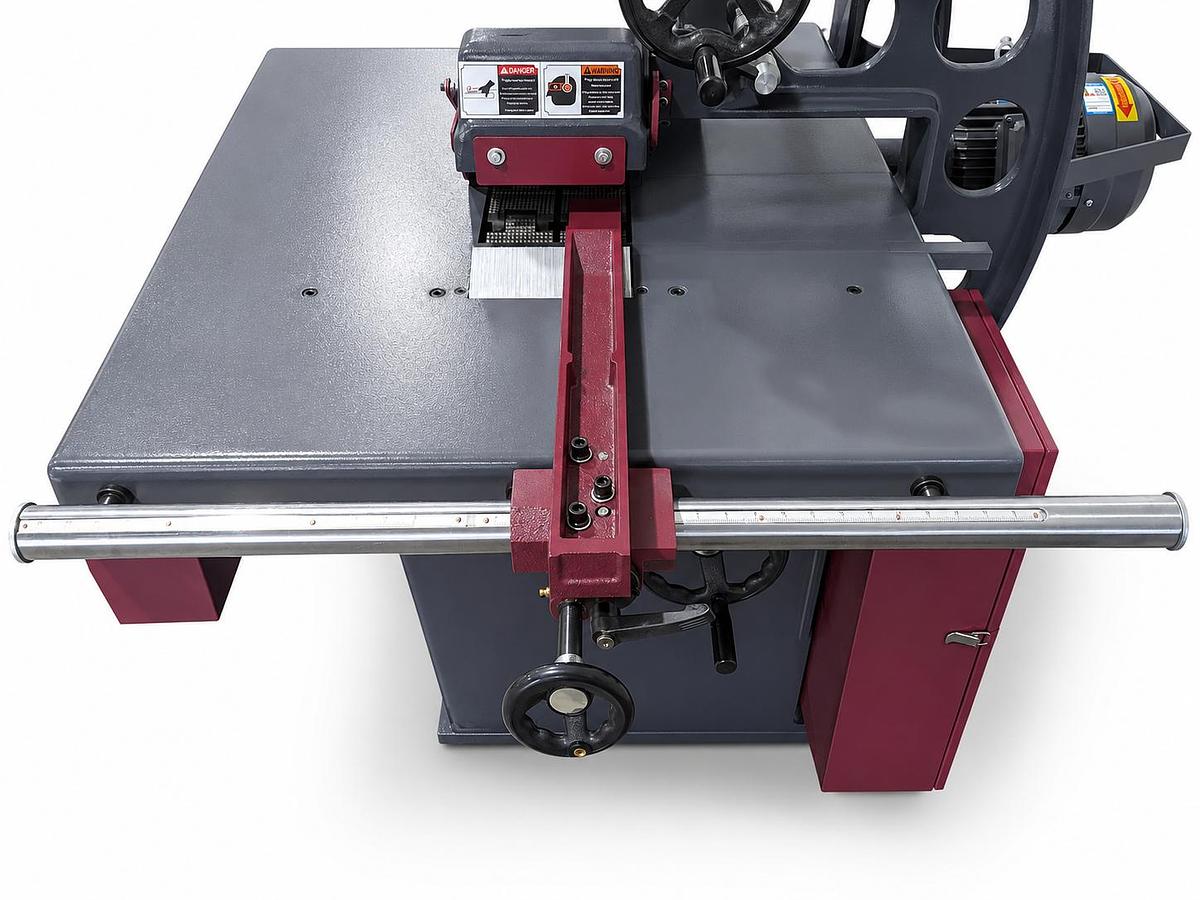

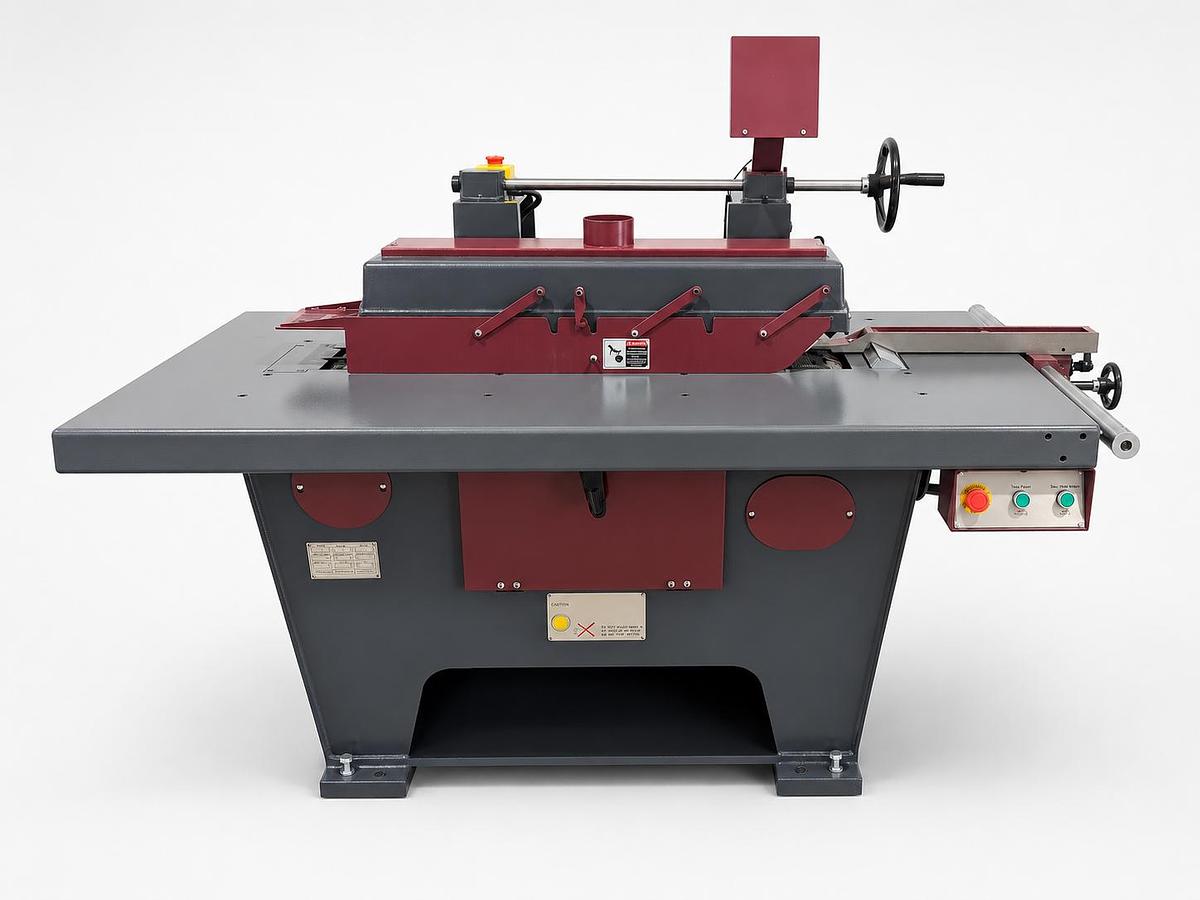

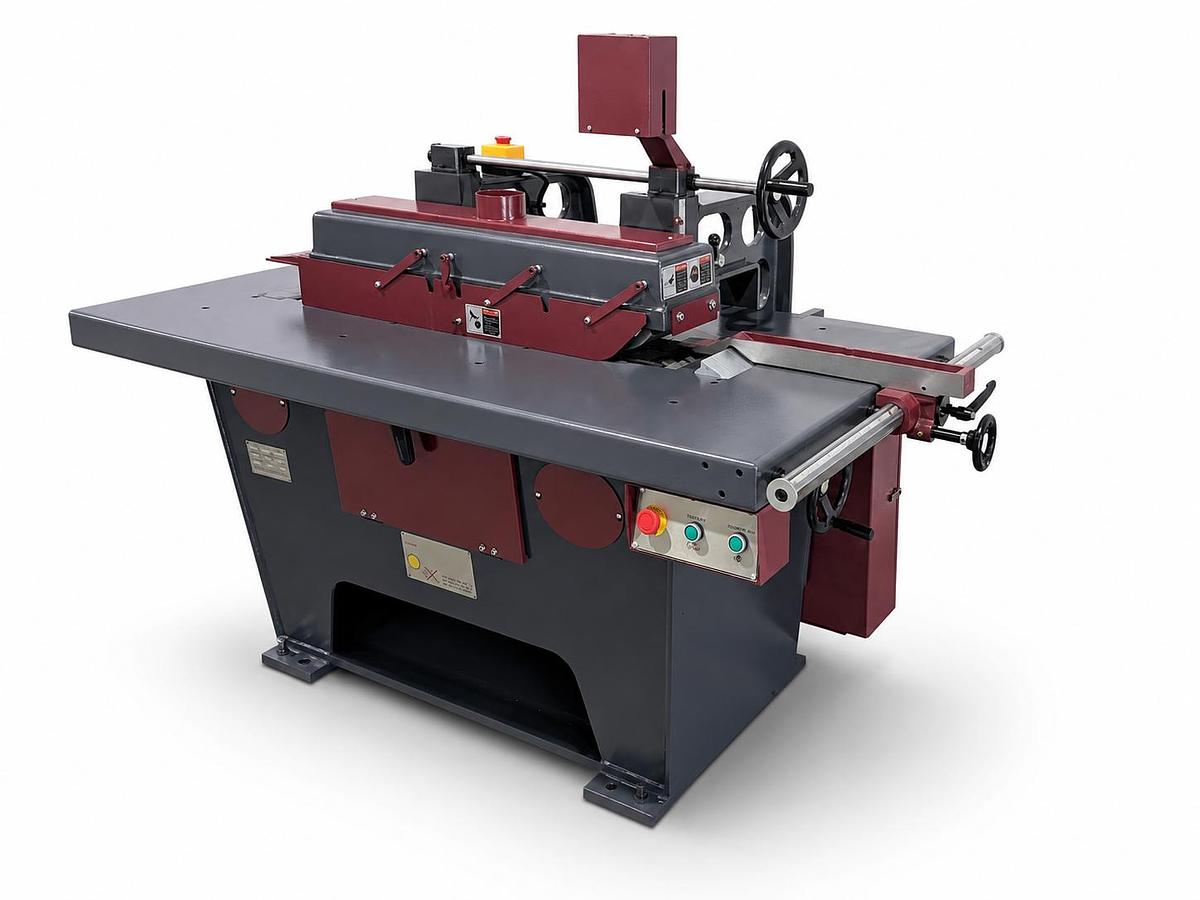

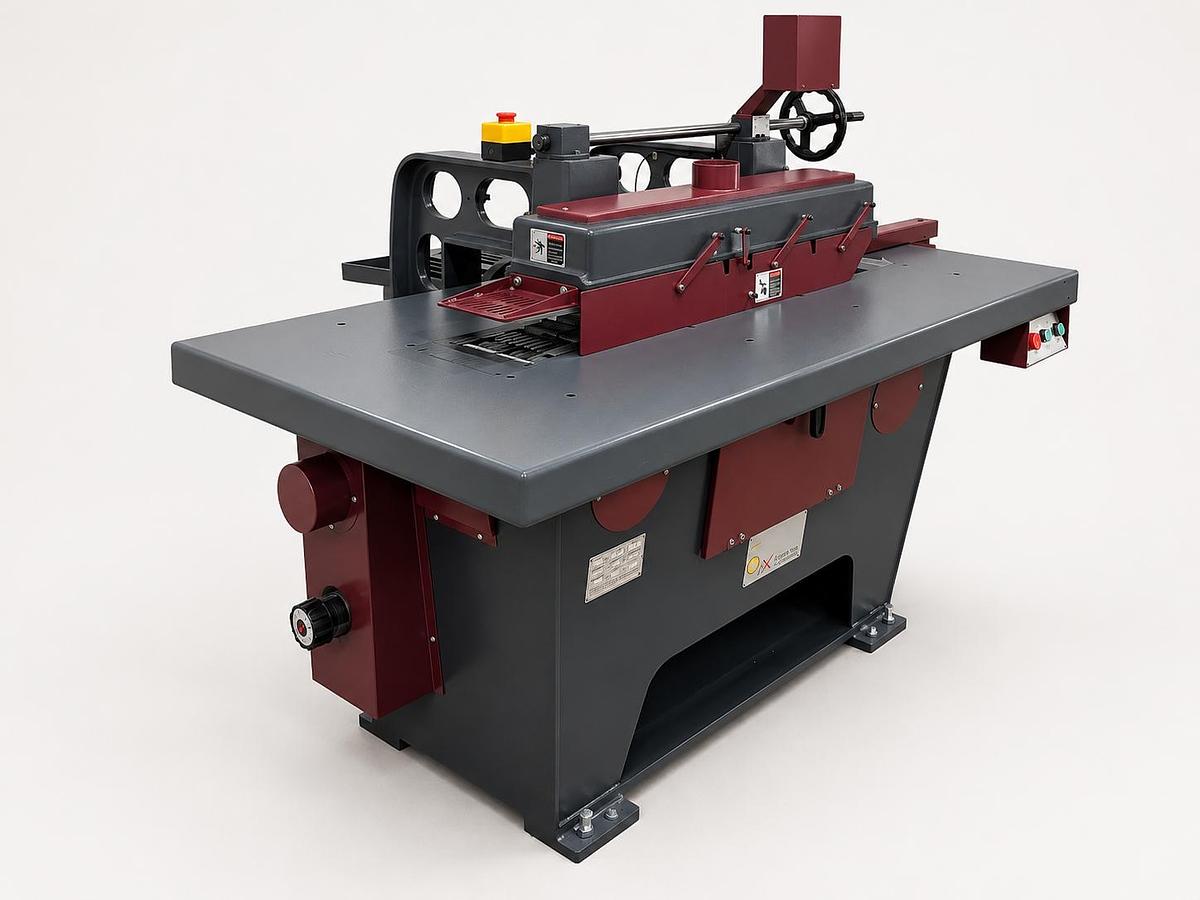

Timbertech TSLR16 16” Precision Straight Line Rip Saw
Timbertech TSLR16 16” Precision Straight Line Rip Saw
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description
The Timbertech TSLR16 is designed to be the perfect fit for anyone looking for a compact bottom arbor rip saw. Powerful and compact, the TSLR16 is equipped with a 14'' blade that effortlessly slices through materials up to 3'' thick. With its 8 pressure holddown rollers, it ensures perfect alignment and stability, enabling you to achieve seamless glue joints up to an impressive 8 feet in length. Safety is a top priority and with a double set of anƟkickback, safety interlocks, and emergency shut-off switches the TSLR16 doesn't disappoint.
Specifications
| Manufacturer | Timbertech |
| Model | TSLR16 |
| Condition | New |
| Stock Number | TSLR16 |
| MAIN MOTOR | 12HP 230V, 60 HZ, 3PH |
| GLUELINE RIP | 12’ 4/4 Stock @ 50 FPM |
| FENCE TYPE | Industrial Cam Lock Quick Release |
| KICKBACK FINGERS | (1) Set Top (1) Set Bottom |
| HOLD DOWN STYLE | (8) Spring Loaded Hold Downs |
| FEED SYSTEM | Split Chain |
| FEED SPEED | 10-90 FPM |
| ELEVATION STYLE | Manual Wheel Adjustment |
| MAX WORKING WIDTH | 18’’ |
| MAX WORKING THICKNESS | 3.75’’ |
| ARBOR RPM | 3530 |
| FENCE SIZE | 2-1/2’’ x 23-3/4’’ |
| WORKTABLE DIMENSIONS | 69’’ x 35-1/2’’ |
| NET / GROSS WEIGHT | 2150 / 2250 Lbs. |
| OILER | Automatic Oiler |
| BLADE SIZE | 12’’ TO 16’’ |
| ARBOR DIAMETER | 2’’ |
| MIN. WORKING THICKNESS | 3/16’’ |
